ST195G-DWPGK (1992)

Toyota Caldina

Production Nov 1992 - Aug 1997
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )

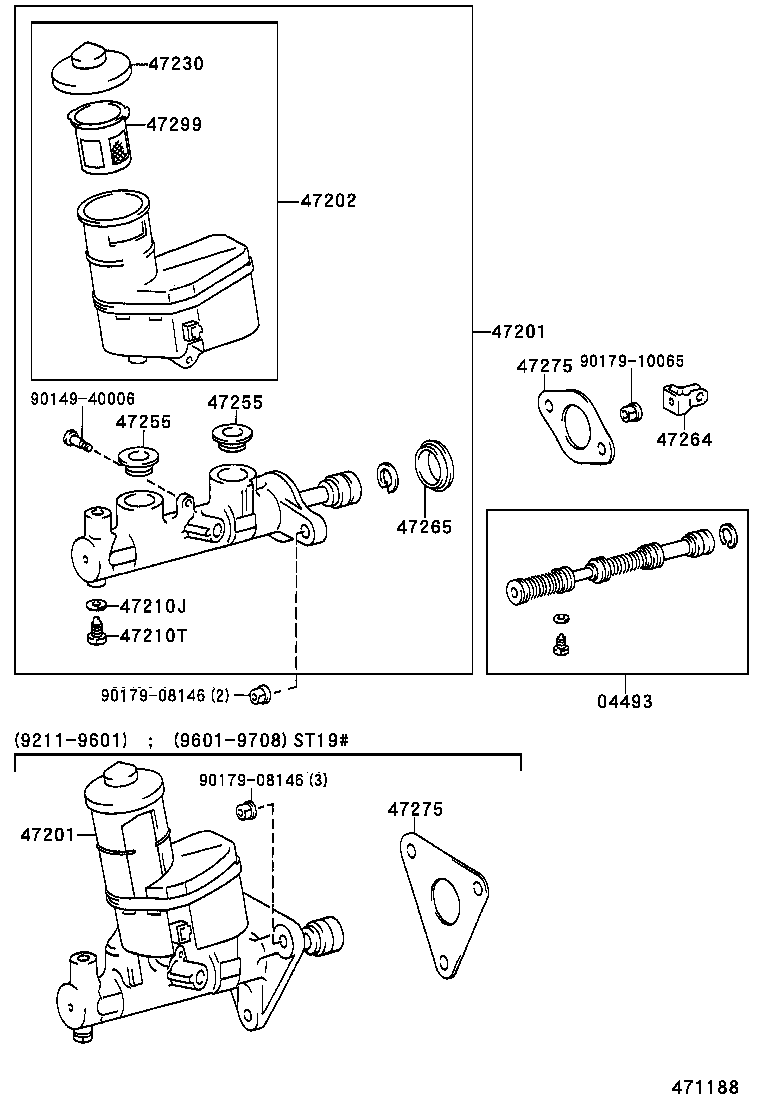

Click highlighted areas on diagram

diagram 04493 47201 47201 47202 47210J 47210T 47230 47255 47255 47264 47265 47275 47275 47299 9014940006 9017908146 9017908146 9017910065
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-2B010

AT191,CT190,ST19#

 1
04493-20260

CT19#,ET196,ST19#

 1
04493-33040

CT190,ST19#

ｱﾘ(ABS)

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-20820

ST195

 1
47201-20810

CT19#,ET196,ST19#

 1
47201-20840

CT190,ST19#

ｱﾘ(ABS)

 1
47201-2B140

ST19#

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-20820

ST195

 1
47201-20810

CT19#,ET196,ST19#

 1
47201-20840

CT190,ST19#

ｱﾘ(ABS)

 1
47201-2B140

ST19#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-20410

ST195

 1
47202-20400

CT19#,ET196,ST19#

 1
47220-20180

ST19#

 1
47202-20410

CT190,ST19#

ｱﾘ(ABS)

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

AT191,CT19#,ET196,ST19#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

AT191,CT19#,ET196,ST19#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-12040

AT191,CT19#,ET196,ST19#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

AT191,CT19#,ET196,ST19#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

AT191,CT19#,ET196,ST19#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-20060

AT191,CT19#,ET196,ST19#

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

AT191,CT19#,ET196,ST19#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-32010

CT19#,ET196,ST19#

 1
47275-32010

ST19#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-32010

CT19#,ET196,ST19#

 1
47275-32010

ST19#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010

AT191,CT19#,ET196,ST19#

 1
Common parts
90149-40006
90179-08146
90179-10065
