ST195G-DWPGK (1992)
Toyota Caldina
Production
Nov 1992
-
Aug 1997
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

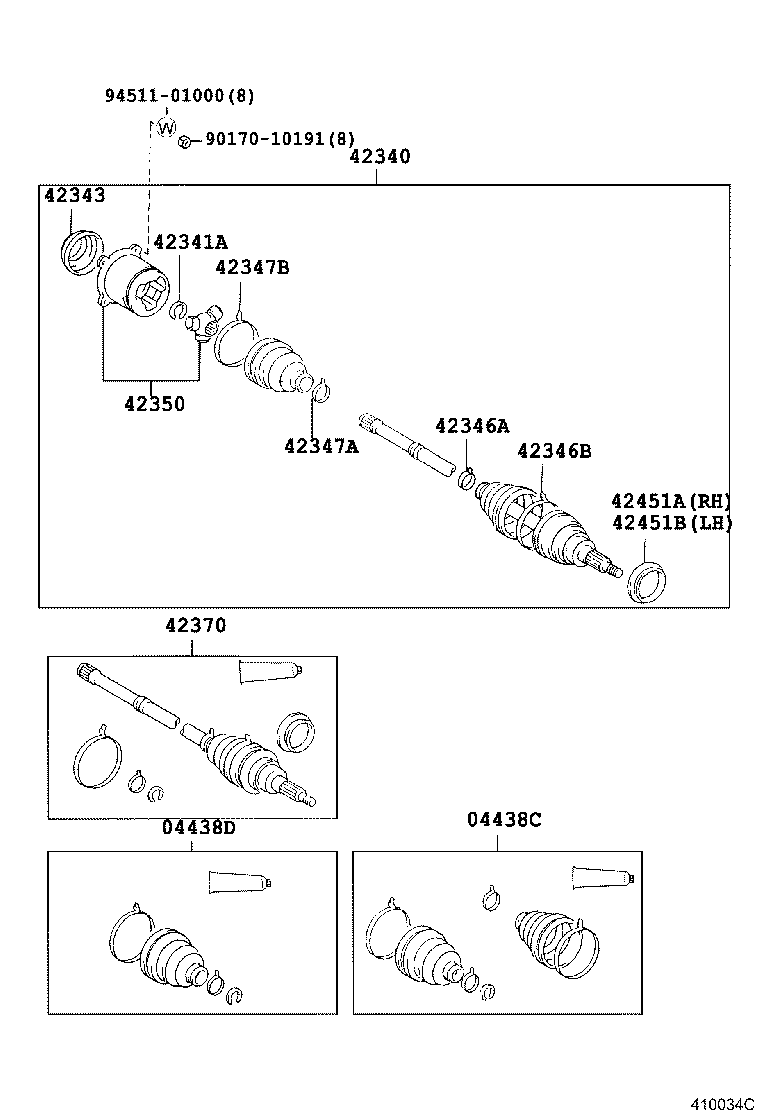

ILLUST NO. 1 OF 2(9211- )ST195
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04438-20290 |
ST195 |
2 | ||
| 04437-32010 |
ST195 |
2 | ||
| 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT | ||||
| 04437-14020 |
ST195 |
2 | ||
| 04438-20240 |
ST195 |
2 | ||
| 42340 - SHAFT ASSY, REAR DRIVE | ||||
| 42340-32031 |
ST195 |
2 | ||
| 42340-20080 |
ST195 |
2 | ||
| 42340-20090 |
ST195 ｱﾘ(*66) |
2 | ||
| 42340-32041 |
ST195 ｱﾘ(*66) |
2 | ||
| 42340-32080 |
ST195 |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-23024 |
ST195 |
2 | ||
| 42343 - COVER, OUTBOARD JOINT END | ||||
| 42343-14010 |
ST195 |
2 | ||
| 42346A - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-14010 |
ST195 内径=35.75 |
2 | ||
| 90949-01078 |
ST195 内径=32.7 |
2 | ||
| 42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-16040 |
ST195 |
2 | ||
| 90949-01076 |
ST195 |
2 | ||
| 90949-01080 |
ST195 |
2 | ||
| 42345-16020 |
ST195 |
2 | ||
| 42347A - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-14010 |
ST195 内径=35.75 |
2 | ||
| 42347B - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-14020 |
ST195 |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-14010 |
ST195 |
2 | ||
| 42370 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT | ||||
| 42370-29315 |
ST195 |
2 | ||
| 42370-39046 |
ST195 ｱﾘ(*66) |
2 | ||
| 42370-39036 |
ST195 |
2 | ||
| 42370-29325 |
ST195 ｱﾘ(*66) |
2 | ||
| 42370-39105 |
ST195 |
2 | ||
| 42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH | ||||
| 42451-32010 |
ST195 |
1 | ||
| 43247-12010 |
ST195 |
1 | ||
| 42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH | ||||
| 43247-12010 |
ST195 |
1 | ||
| 42451-32010 |
ST195 |
1 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||

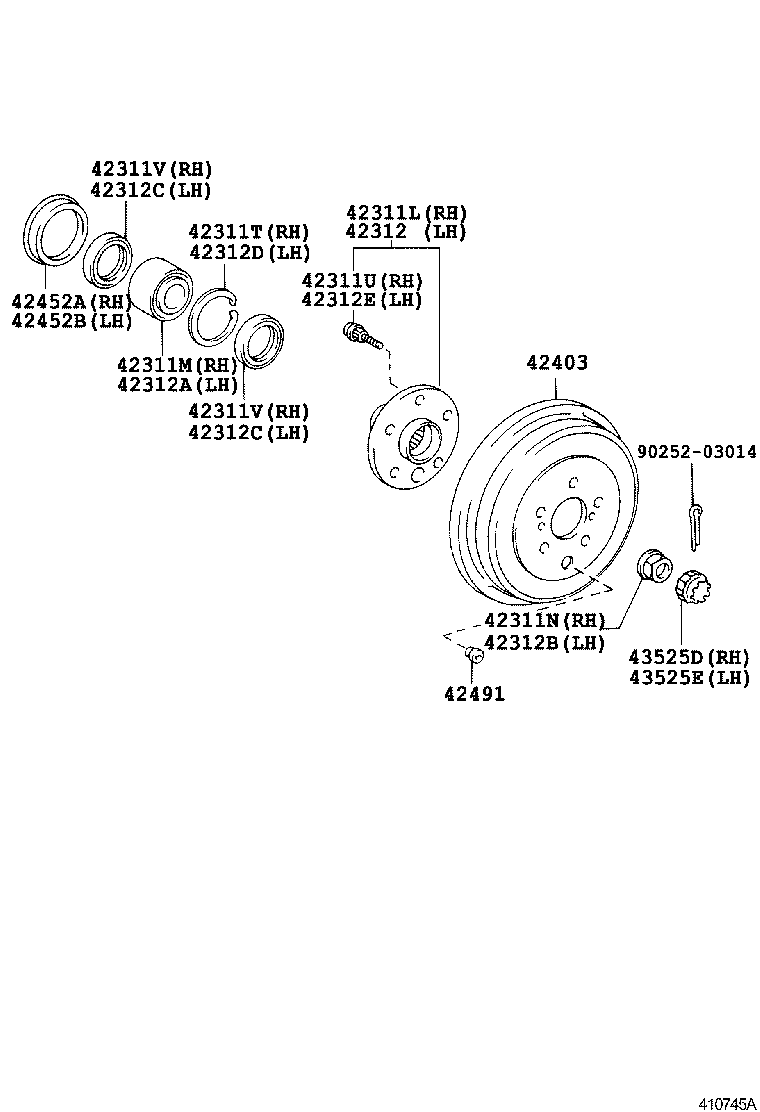

ILLUST NO. 2 OF 2(9601-9708)ST195
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42301-20150 |
ST195 |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90369-38003 |
ST195 |
1 | ||
| 90369-38003 |
ST195 |
1 | ||
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90179-22020 |
ST195 |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90521-79002 |
ST195 |
1 | ||
| 90521-79002 |
ST195 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02047 |
ST195 |
5 | ||
| 90942-02070 |
ST195 |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-52005 |
ST195 外側 |
1 | ||
| 90311-56007 |
ST195 内側 |
1 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-52005 |
ST195 外側 |
1 | ||
| 90311-56007 |
ST195 内側 |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42301-20150 |
ST195 |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90369-38003 |
ST195 |
1 | ||
| 90369-38003 |
ST195 |
1 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90179-22020 |
ST195 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-52005 |
ST195 外側 |
1 | ||
| 90311-56007 |
ST195 内側 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-52005 |
ST195 外側 |
1 | ||
| 90311-56007 |
ST195 内側 |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90521-79002 |
ST195 |
1 | ||
| 90521-79002 |
ST195 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02070 |
ST195 |
5 | ||
| 90942-02047 |
ST195 |
5 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-20380 |
ST195..CZ,TZ |
2 | ||
| 42452A - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH | ||||
| 43247-12010 |
ST195 |
1 | ||
| 42452B - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH | ||||
| 43247-12010 |
ST195 |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-14010 |
ST195..CZ,TZ |
2 | ||
| 47491-22020 |
ST191,195 |
2 | ||
| 47491-22020 |
ST191,195 |
2 | ||
| 43525D - CAP, REAR WHEEL ADJUSTING LOCK, RH | ||||
| 43525-20040 |
ST195 |
1 | ||
| 43525E - CAP, REAR WHEEL ADJUSTING LOCK, LH | ||||
| 43525-20040 |
ST195 |
1 | ||
| Common parts | ||||
| 90252-03014 | ||||

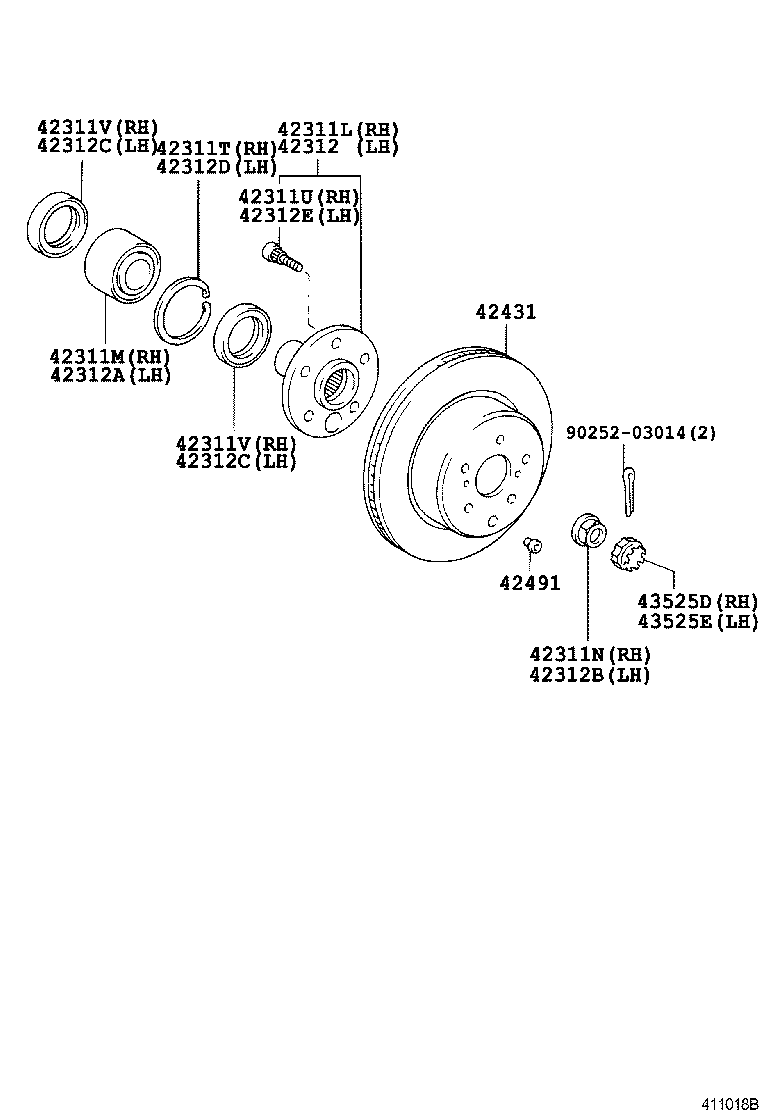

ILLUST NO. 2 OF 2(9211-9601)ST195 ; (9601- )TZG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42301-20150 |
ST195 |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90369-38003 |
ST195 |
1 | ||
| 90369-38003 |
ST195 |
1 | ||
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90179-22020 |
ST195 |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90521-79002 |
ST195 |
1 | ||
| 90521-79002 |
ST195 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02047 |
ST195 |
5 | ||
| 90942-02070 |
ST195 |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-52005 |
ST195 外側 |
1 | ||
| 90311-56007 |
ST195 内側 |
1 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-52005 |
ST195 外側 |
1 | ||
| 90311-56007 |
ST195 内側 |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42301-20150 |
ST195 |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90369-38003 |
ST195 |
1 | ||
| 90369-38003 |
ST195 |
1 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90179-22020 |
ST195 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-52005 |
ST195 外側 |
1 | ||
| 90311-56007 |
ST195 内側 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-52005 |
ST195 外側 |
1 | ||
| 90311-56007 |
ST195 内側 |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90521-79002 |
ST195 |
1 | ||
| 90521-79002 |
ST195 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02070 |
ST195 |
5 | ||
| 90942-02047 |
ST195 |
5 | ||
| 42431 - DISC, REAR | ||||
| 42431-20220 |
ST195 |
2 | ||
| 42431-20310 |
ST195 |
2 | ||
| 42431-20310 |
ST195 |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-14010 |
ST195..CZ,TZ |
2 | ||
| 47491-22020 |
ST191,195 |
2 | ||
| 47491-22020 |
ST191,195 |
2 | ||
| 43525D - CAP, REAR WHEEL ADJUSTING LOCK, RH | ||||
| 43525-20040 |
ST195 |
1 | ||
| 43525E - CAP, REAR WHEEL ADJUSTING LOCK, LH | ||||
| 43525-20040 |
ST195 |
1 | ||
| Common parts | ||||
| 90252-03014 | ||||
