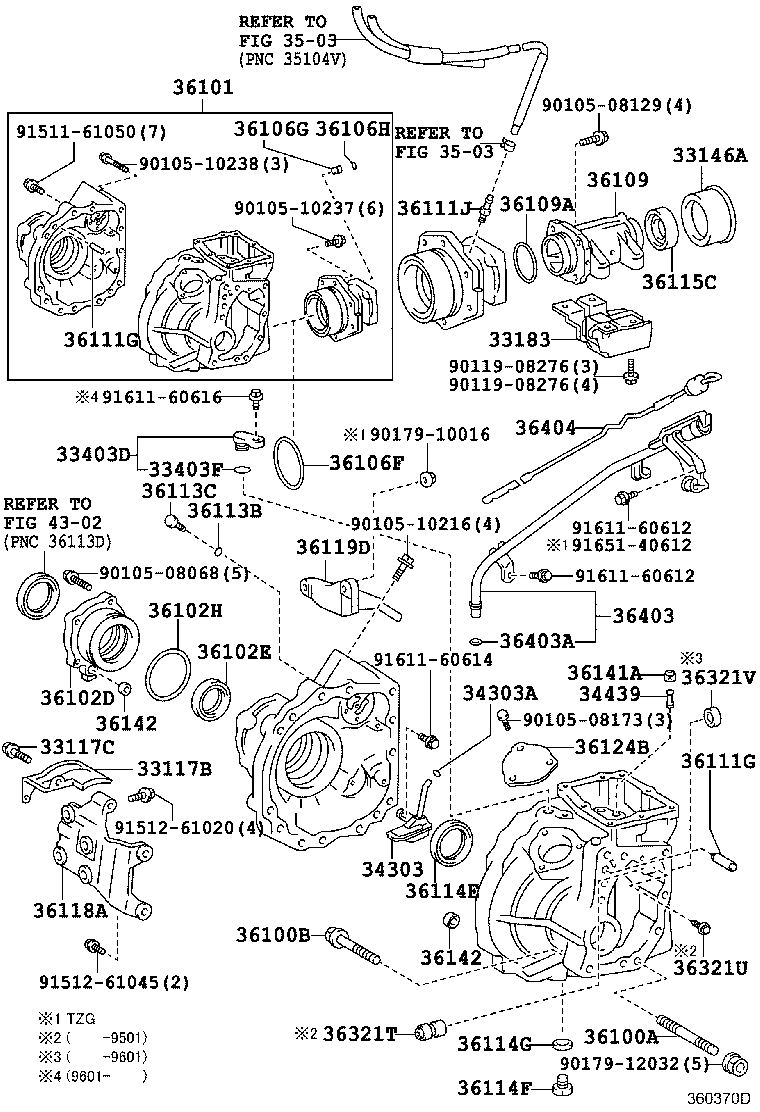

ST195G-DWPGK (1992)
Toyota Caldina
(9211-9708)ST195..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33117B - PROTECTOR, TRANSFER CASE | ||||
| 33117-32030 |
ST195,198 |
1 | ||
| 33117C - BOLT(FOR TRANSFER CASE PROTECTOR) | ||||
| 90105-08040 |
ST195,198 |
2 | ||
| 33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST | ||||
| 33146-30020 |
CT198,199,ST195,198 |
1 | ||
| 33183 - DAMPER, TRANSFER DYNAMIC | ||||
| 33183-20030 |
ST195,198..CZ,TZ,U,UL,UX |
1 | ||
| 33403D - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-20250 |
ST195..4FC |
1 | ||
| 33403F - RING,O (FOR SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 90301-11008 |
ST195..4FC |
1 | ||
| 34303 - STRAINER SUB-ASSY, TRANSFER OIL | ||||
| 34303-32010 |
ST195,198..4FC |
1 | ||
| 34303A - RING, O (FOR TRANSFER OIL STRAINER) | ||||
| 90301-06008 |
ST195,198..4FC |
1 | ||
| 34439 - STRAINER, TRANSFER VALVE BODY | ||||
| 34439-32010 |
ST195,198..4FC |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12028 |
CT198,199,ST195,198 ﾈｼﾞ部長さ=22 & 22,長さ=69 |
2 | ||
| 90116-12029 |
ST195,198..4FC ﾈｼﾞ部長さ=22 & 22,長さ=74 |
2 | ||
| 90116-12027 |
ST195,198..4FC ﾈｼﾞ部長さ=22 & 22,長さ=56 |
1 | ||
| 36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90105-12161 |
ST195,198..4FC *12−1.25PX204−30 |
1 | ||
| 90105-12137 |
ST195,198..4FC *12−1.25PX52−30 |
1 | ||
| 90105-12162 |
ST195,198..4FC *12−1.25PX62−30 |
1 | ||
| 36101 - CASE SUB-ASSY, TRANSFER | ||||
| 36101-32012 |
ST195..4FC |
1 | ||
| 36101-20010 |
ST195,198..4FC |
1 | ||
| 36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING | ||||
| 36102-32010 |
ST195,198..4FC |
1 | ||
| 36102E - SEAL, OIL, NO.1 (FOR TRANSFER RH BEARING RETAINER) | ||||
| 90316-52001 |
ST195,198..4FC |
1 | ||
| 36102H - RING, O (FOR TRANSFER RH BEARING RETAINER) | ||||
| 90301-85003 |
ST195,198..4FC |
1 | ||
| 36106F - RING, O (FOR TRANSFER PINION BEARING CAGE) | ||||
| 90301-94001 |
ST195,198..4FC |
1 | ||
| 36106G - PLUG, STRAIGHT (FOR TRANSFER PINION BEARING CAGE) | ||||
| 90334-09004 |
ST195,198..4FC |
1 | ||
| 36106H - PLUG, O (FOR TRANSFER PINION BEARING CAGE PLUG) | ||||
| 90301-05002 |
ST195,198..4FC |
1 | ||
| 36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION | ||||
| 36109-32010 |
ST195,198..4FC |
1 | ||
| 36109A - RING, O (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90301-63005 |
CT198,199,ST195,198 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12005 |
ST195..5F..TZG;CT198,ST195..CZ,TZ,U,UL 長さ=24,外径=12 |
2 | ||
| 90250-12005 |
CT198,199,ST195,198 長さ=24,外径=12 |
2 | ||
| 90254-10003 |
ST195,198..4FC 長さ=21.0 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12005 |
ST195..5F..TZG;CT198,ST195..CZ,TZ,U,UL 長さ=24,外径=12 |
2 | ||
| 90250-12005 |
CT198,199,ST195,198 長さ=24,外径=12 |
2 | ||
| 90254-10003 |
ST195,198..4FC 長さ=21.0 |
2 | ||
| 36111J - UNION, BREATHER, NO.1 (FOR TRANSFER) | ||||
| 90404-51059 |
ST195,198..4FC |
1 | ||
| 36113B - RING, O (FOR TRANSFER CASE PLUG) | ||||
| 90301-06196 |
ST195,198..4FC 外径=9.6 |
1 | ||
| 36113C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-08001 |
ST195,198..4FC |
1 | ||
| 36114E - SEAL, OIL (FOR TRANSFER CASE LH) | ||||
| 90316-61001 |
ST195,198..4FC |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18021 |
ST195,198..4FC |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90430-18008 |
CT198,199,ST195,198 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-38032 |
CT198,199,ST195,198 |
1 | ||
| 36118A - PLATE, TRANSFER STIFFENER, RH | ||||
| 36118-32020 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| 36119D - PLATE, TRANSFER STIFFENER, CENTER | ||||
| 36119-32021 |
ST195,198..4FC |
1 | ||
| 36119-32020 |
ST195..4FC |
1 | ||
| 36124B - COVER, TRANSFER INSPECTION HOLE | ||||
| 36124-32010 |
ST195,198..4FC |
1 | ||
| 36141A - GASKET, TRANSFER CASE | ||||
| 36141-32010 |
ST195,198..4FC |
2 | ||
| 36142 - GASKET, TRANSFER COVER | ||||
| 36142-12010 |
ST195,198..4FC |
2 | ||
| 36142 - GASKET, TRANSFER COVER | ||||
| 36142-12010 |
ST195,198..4FC |
2 | ||
| 36321T - LEVER, TRANSFER FRONT DRIVE SHIFT | ||||
| 36321-32010 |
ST195..4FC |
1 | ||
| 36321-20010 |
ST195..4FC |
1 | ||
| 36321U - BOLT (FOR TRANSFER SHIFT LEVER) | ||||
| 90105-05020 |
ST195..4FC |
1 | ||
| 36321V - SEAL, OIL (FOR TRANSFER SHIFT LEVER) | ||||
| 90311-14009 |
ST195..4FC |
1 | ||
| 90311-14009 |
ST195..4FC |
1 | ||
| 36403 - TUBE SUB-ASSY, TRANSFER OIL FILLER | ||||
| 36403-20050 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| 36403-20010 |
ST195..4FC..(CZ,TZ) |
1 | ||
| 36403A - RING, O (FOR TRANSFER OIL FILLER TUBE) | ||||
| 90301-09173 |
ST195,198..4FC |
1 | ||
| 36404 - GAGE SUB-ASSY, TRANSFER OIL LEVEL | ||||
| 36404-20010 |
ST195..4FC..(CZ,TZ) |
1 | ||
| 36404-20050 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| Common parts | ||||
| 90105-08068 | ||||
| 90105-08129 | ||||
| 90105-08173 | ||||
| 90105-10216 | ||||
| 90105-10237 | ||||
| 90105-10238 | ||||
| 90119-08276 | ||||
| 90179-10016 | ||||
| 90179-12032 | ||||
| 91511-61050 | ||||
| 91512-61020 | ||||
| 91512-61045 | ||||
| 91611-60612 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 3503 | ||||
| 4302 | ||||
