ST195G-DWPEK (1992)

Toyota Caldina

Production Nov 1992 - Aug 1997
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )CZ,TZ,TZG

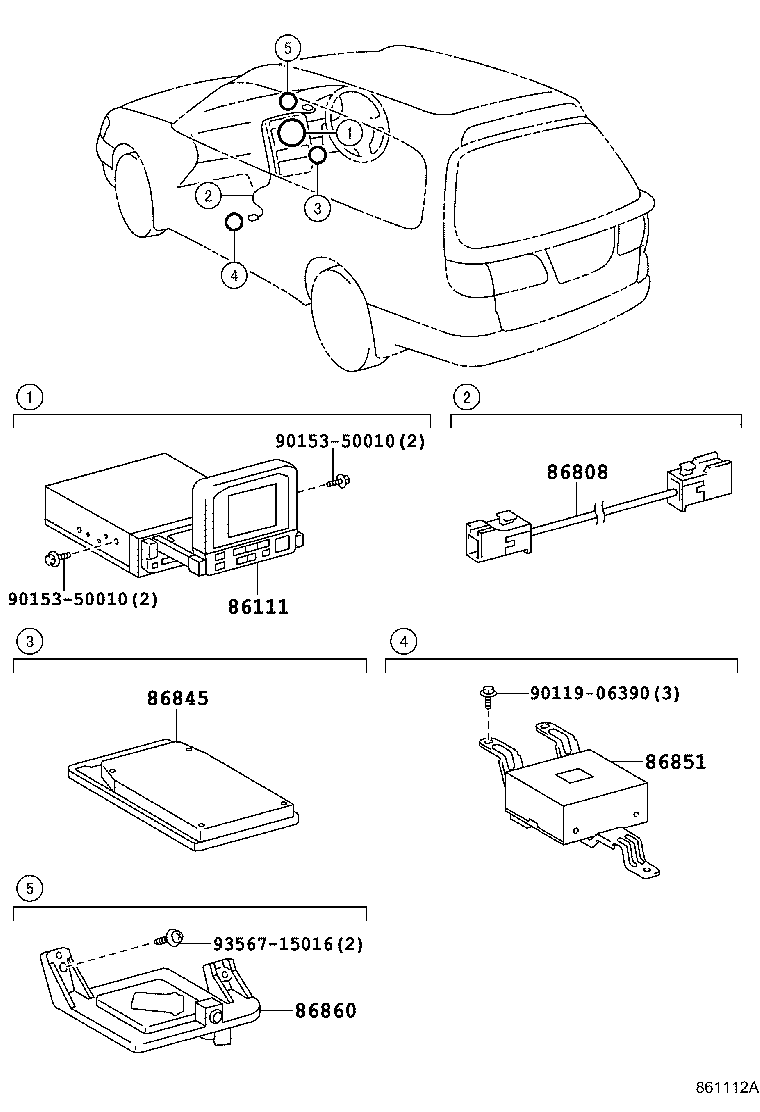

Click highlighted areas on diagram

diagram 86111 86808 86845 86851 86860 9011906390 9015350010 9015350010 9356715016
Part # Description Qty Price
86111 - MULTI-DISPLAY
86112-21010

AT191,CT190,ST19#..CZ,TZ,TZG

DENSO

 1
86808 - CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
86808-21010

AT191,CT190,ST19#..CZ,TZ,TZG

 1
86845 - CARD, NAVIGATION
86845-21060

AT191,CT190,ST19#..CZ,TZ,TZG

 1
86845-21010

AT191,CT190,ST19#..CZ,TZ,TZG

 1
86851 - RECEIVER, NAVIGATION
86851-21010

AT191,CT190,ST19#..CZ,TZ,TZG

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-21010

AT191,CT190,ST19#..CZ,TZ,TZG

 1
Common parts
90119-06390
90153-50010
93567-15016
