ST195G-DWPEK (1992)
Toyota Caldina

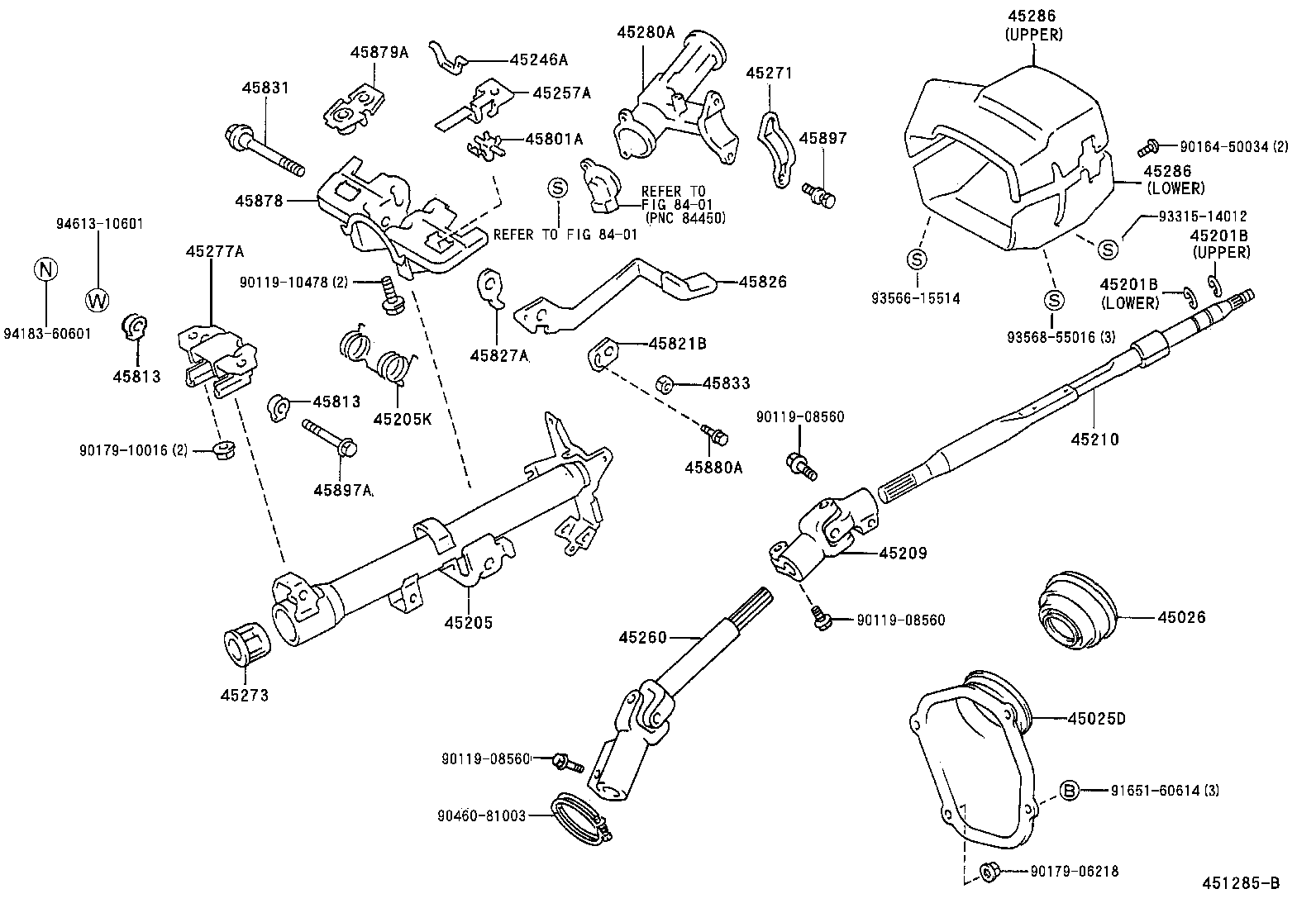

(9601- )CZ,FZ,TZ,TZG,UX
ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-20360 |
CT198,199,ST195,198 |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-20140 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 45026-20090 |
CT19#,ET196,ST19# |
1 | ||
| 45026-20091 |
CT19#,ET196,ST19# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AT191,CT19#,ET196,ST19# 厚さ=1.20,下側 |
1 | ||
| 90520-17269 |
AT191,CT19#,ET196,ST19# 厚さ=1.20,上側 |
1 | ||
| 90520-17042 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 厚さ=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AT191,CT19#,ET196,ST19# 厚さ=1.20,下側 |
1 | ||
| 90520-17269 |
AT191,CT19#,ET196,ST19# 厚さ=1.20,上側 |
1 | ||
| 90520-17042 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 厚さ=1.20 |
2 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-12360 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45205K - SPRING(FOR STEERING COLUMN TUBE) | ||||
| 90949-03027 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-20050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 45209-20040 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-12400 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45210-12480 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-12110 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-12070 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-20280 |
CT198,ST195 |
1 | ||
| 45260-20451 |
CT198,199,ST195,198 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45271-16020 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-22020 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
1 | ||
| 45273-12020 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 45273-20040 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45273-20050 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-20110 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45277-20100 |
AT191,CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-20550 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45280-12341 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 45280-12340 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-20942C0 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX BLACK,TRIM2# |
1 | ||
| 45286-20942C0 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX BLACK,TRIM1# |
1 | ||
| 45286-20600B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1#,上側 |
1 | ||
| 45287-20530B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1#,下側 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-20942C0 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX BLACK,TRIM2# |
1 | ||
| 45286-20942C0 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX BLACK,TRIM1# |
1 | ||
| 45286-20600B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1#,上側 |
1 | ||
| 45287-20530B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1#,下側 |
1 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-12010 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX 外径=14 |
2 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-12010 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX 外径=14 |
2 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-20020 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-20180 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45826-12021 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-12020 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45827-12030 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-12010 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45831-12020 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-12010 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45878 - BRACKET, STEERING COLUMN UPPER SUPPORT | ||||
| 45878-12220 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-12050 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 45832-12010 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-12040 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90164-50034 | ||||
| 90179-06218 | ||||
| 90179-10016 | ||||
| 90460-81003 | ||||
| 91651-60614 | ||||
| 93315-14012 | ||||
| 93566-15514 | ||||
| 93568-55016 | ||||
| 94183-60601 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 8401 | ||||

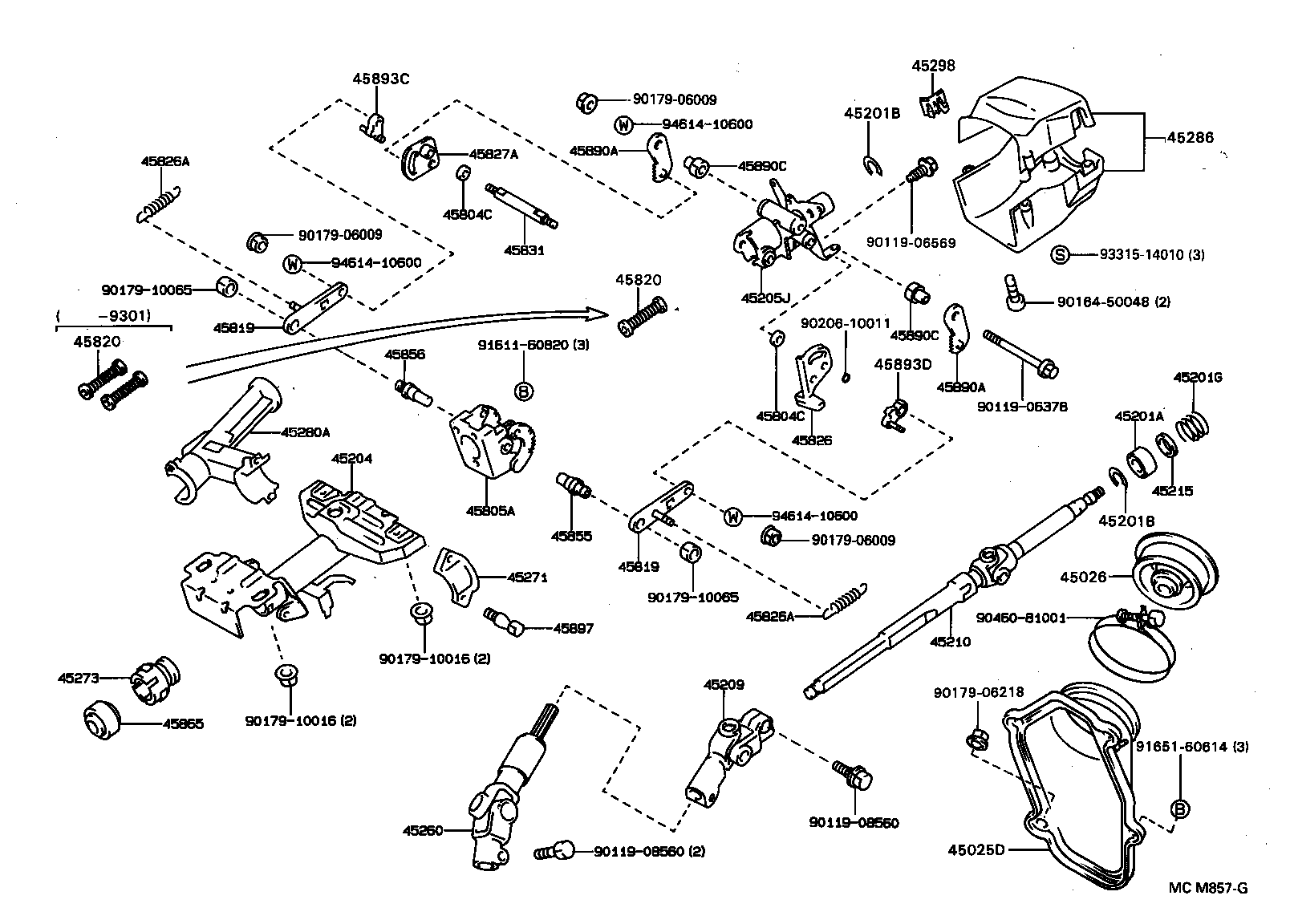

(9211-9601)CZ,FZ,TZ,TZG,UX
ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-20360 |
CT198,199,ST195,198 |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-20140 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 45026-20090 |
CT19#,ET196,ST19# |
1 | ||
| 45026-20091 |
CT19#,ET196,ST19# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
1 | ||
| 90363-18005 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 90363-18005 |
CT196,ET196,ST191,195..CZ,TZ,TZG,UX |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AT191,CT19#,ET196,ST19# 厚さ=1.20,下側 |
1 | ||
| 90520-17269 |
AT191,CT19#,ET196,ST19# 厚さ=1.20,上側 |
1 | ||
| 90520-17042 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 厚さ=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AT191,CT19#,ET196,ST19# 厚さ=1.20,下側 |
1 | ||
| 90520-17269 |
AT191,CT19#,ET196,ST19# 厚さ=1.20,上側 |
1 | ||
| 90520-17042 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 厚さ=1.20 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
1 | ||
| 90501-40017 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-20150 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
1 | ||
| 45204-20150 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-12251 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
1 | ||
| 45205-12251 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-20050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 45209-20040 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-12400 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45210-12480 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45215-12010 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-20280 |
CT198,ST195 |
1 | ||
| 45260-20451 |
CT198,199,ST195,198 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45271-16020 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-22020 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
1 | ||
| 45273-12020 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 45273-20040 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45273-20050 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-20550 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45280-12341 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 45280-12340 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-20942C0 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX BLACK,TRIM2# |
1 | ||
| 45286-20942C0 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX BLACK,TRIM1# |
1 | ||
| 45286-20600B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1#,上側 |
1 | ||
| 45287-20530B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1#,下側 |
1 | ||
| 45298 - PLUG, STEERING COLUMN COVER | ||||
| 45298-20020C0 |
CT190,196,ET196,ST19#..CZ,FZ,UX BLACK,TRIM1# |
1 | ||
| 45298-20020C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX BLACK,TRIM2# |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-10283 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
2 | ||
| 90201-10283 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
2 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-10283 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
2 | ||
| 90201-10283 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
2 | ||
| 45805A - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45805-12010 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45805-12010 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-12020 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
2 | ||
| 45819-12020 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-12020 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
2 | ||
| 45819-12020 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
2 | ||
| 45820 - SPRING ASSY, TILT STEERING SUPPORT | ||||
| 45820-12010 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
2 | ||
| 45820-20010 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ｱﾘ(*80) |
2 | ||
| 45820-12020 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45820-12020 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
1 | ||
| 45820 - SPRING ASSY, TILT STEERING SUPPORT | ||||
| 45820-12010 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
2 | ||
| 45820-20010 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ｱﾘ(*80) |
2 | ||
| 45820-12020 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45820-12020 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-20180 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45826-12021 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-12029 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
2 | ||
| 90507-12029 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
2 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-12029 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
2 | ||
| 90507-12029 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
2 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-12020 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45827-12030 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-12010 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45831-12020 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-12040 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX 外径=9.998−10.007 |
1 | ||
| 45855-12040 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 外径=9.998−10.007 |
1 | ||
| 45855-12030 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 外径=9.989−9.998 |
1 | ||
| 45855-12030 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX 外径=9.989−9.998 |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-12030 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX 外径=9.989−9.998 |
1 | ||
| 45856-12040 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 外径=9.998−10.007 |
1 | ||
| 45856-12040 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX 外径=9.998−10.007 |
1 | ||
| 45856-12030 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 外径=9.989−9.998 |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-12060 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX |
1 | ||
| 45865-12060 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-12031 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX 右側 |
1 | ||
| 45890-12021 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX 左側 |
1 | ||
| 45890-12031 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 右側 |
1 | ||
| 45890-12021 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 左側 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-12031 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX 右側 |
1 | ||
| 45890-12021 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX 左側 |
1 | ||
| 45890-12031 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 右側 |
1 | ||
| 45890-12021 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 左側 |
1 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-07005 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ 2 |
1 | ||
| 90389-07004 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ 0 |
1 | ||
| 90389-07007 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ 4 |
1 | ||
| 90389-07009 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ 6 |
1 | ||
| 90389-07004 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ 0 |
1 | ||
| 90389-07006 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ 3 |
1 | ||
| 90389-07008 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ A |
1 | ||
| 90389-07006 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ 3 |
1 | ||
| 90389-07010 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ 7 |
1 | ||
| 90389-07010 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ 7 |
1 | ||
| 90389-07007 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ 4 |
1 | ||
| 90389-07005 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ 2 |
1 | ||
| 90389-07011 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ 8 |
1 | ||
| 90389-07011 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ 8 |
1 | ||
| 90389-07008 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ A |
1 | ||
| 90389-07009 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ 6 |
1 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-07005 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ 2 |
1 | ||
| 90389-07004 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ 0 |
1 | ||
| 90389-07007 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ 4 |
1 | ||
| 90389-07009 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ 6 |
1 | ||
| 90389-07004 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ 0 |
1 | ||
| 90389-07006 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ 3 |
1 | ||
| 90389-07008 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ A |
1 | ||
| 90389-07006 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ 3 |
1 | ||
| 90389-07010 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ 7 |
1 | ||
| 90389-07010 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ 7 |
1 | ||
| 90389-07007 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ 4 |
1 | ||
| 90389-07005 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ 2 |
1 | ||
| 90389-07011 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ 8 |
1 | ||
| 90389-07011 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ 8 |
1 | ||
| 90389-07008 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ A |
1 | ||
| 90389-07009 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ 6 |
1 | ||
| 45893C - STOPPER, STEERING PAWL, RH | ||||
| 45893-12071 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ F OR 11 |
1 | ||
| 45893-12170 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ H OR 13 |
1 | ||
| 45893-12180 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ I OR 14 |
1 | ||
| 45893-12071 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ F OR 11 |
1 | ||
| 45893-12190 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ J OR 15 |
1 | ||
| 45893-12180 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ I OR 14 |
1 | ||
| 45893-12170 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ H OR 13 |
1 | ||
| 45893-12160 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ G OR 12 |
1 | ||
| 45893-12160 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ G OR 12 |
1 | ||
| 45893-12190 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ J OR 15 |
1 | ||
| 45893D - STOPPER, STEERING PAWL, LH | ||||
| 45893-12021 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ A |
1 | ||
| 45893-12140 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ D |
1 | ||
| 45893-12021 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ A |
1 | ||
| 45893-12120 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ B |
1 | ||
| 45893-12140 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ D |
1 | ||
| 45893-12150 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ E |
1 | ||
| 45893-12150 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ E |
1 | ||
| 45893-12130 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX ﾏｰｸ C |
1 | ||
| 45893-12120 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ B |
1 | ||
| 45893-12130 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX ﾏｰｸ C |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AT191,CT19#,ET196,ST19# |
2 | ||
| Common parts | ||||
| 90119-06378 | ||||
| 90119-06569 | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-06009 | ||||
| 90179-06218 | ||||
| 90179-10016 | ||||
| 90179-10065 | ||||
| 90206-10011 | ||||
| 90460-81001 | ||||
| 91611-60820 | ||||
| 91651-60614 | ||||
| 93315-14010 | ||||
| 94614-10600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
