ST195G-DWPEK (1992)

Toyota Caldina

Production Nov 1992 - Aug 1997
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501-9708)ST195..4FC ; (9908- )ST198

Click highlighted areas on diagram

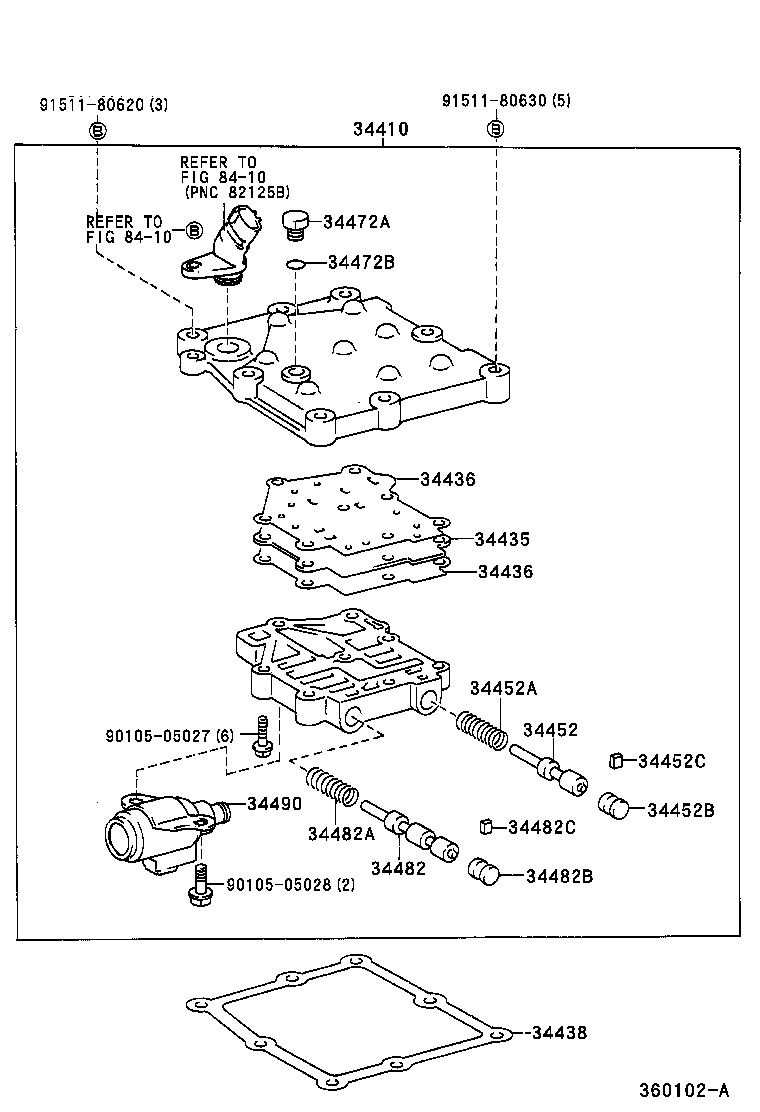

diagram 34410 34435 34436 34436 34438 34452 34452A 34452B 34452C 34472A 34472B 34482 34482A 34482B 34482C 34490 8410 8410 9010505027 9010505028 9151180620 9151180630
Part # Description Qty Price
34410 - BODY ASSY, TRANSFER CONTROL VALVE
34410-32011

ST195..4FC

 1
34410-20010

ST195..4FC

 1
34410-32020

ST195..4FC

 1
34435 - PLATE, TRANSFER VALVE BODY, LOWER
34435-32020

ST195..4FC

 1
34435-32011

ST195..4FC

 1
34435-20010

ST195,198..4FC

 1
34436 - GASKET, TRANSFER LOWER VALVE BODY, NO.1
34436-20010

ST195,198..4FC

 2
34436-32011

ST195..4FC

 2
34436 - GASKET, TRANSFER LOWER VALVE BODY, NO.1
34436-20010

ST195,198..4FC

 2
34436-32011

ST195..4FC

 2
34438 - GASKET, TRANSFER VALVE BODY
34438-32011

ST195..4FC

 1
34438-20010

ST195,198..4FC

 1
34452 - VALVE, TRANSFER DIRECT CLUTCH MODULATOR
34452-20010

ST195,198..4FC

 1
34452-32010

ST195..4FC

 1
34452A - SPRING (FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE)
90501-11070

ST195,198..4FC

 1
90501-06048

ST195..4FC

 1
34452B - PLUG (FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE)
90339-04017

ST195..4FC

 1
90339-04028

ST195,198..4FC

 1
34452C - KEY, STRAIGHT(FOR TRANSFER DIRECT CLUTCH MODULATOR VALV
90282-03005

ST195,198..4FC

 1
90282-03011

ST195..4FC

 1
34472A - PLUG (FOR TRANSFER VALVE BODY COVER)
90341-08001

ST195,198..4FC

 1
34472B - RING, O (FOR TRANSFER VALVE BODY COVER PLUG)
90301-06196

ST195,198..4FC

 1
34482 - VALVE, CENTER DIFFERENTIAL CLUTCH CONTROL
34482-20010

ST195..4FC

 1
34482A - SPRING(FOR CENTER DIFFERENTIAL CONTROL VALVE)
90501-05038

ST195..4FC

 1
34482B - SEAT(FOR CENTER DIFFERENTIAL CLUTCH CONTROL VALVE PLUG)
90339-04028

ST195,198..4FC

 1
34482C - KEY(FOR CENTER DIFFERENTIAL CLUTCH CONTROL VALVE)
90282-03005

ST195,198..4FC

 1
34490 - SOLENOID ASSY, TRANSFER CONTROL
34490-20010

ST195,198..4FC

 1
Common parts
90105-05027
90105-05028
91511-80620
91511-80630
Linked diagrams
8410

(9211-9501)ST195..4FC

Click highlighted areas on diagram

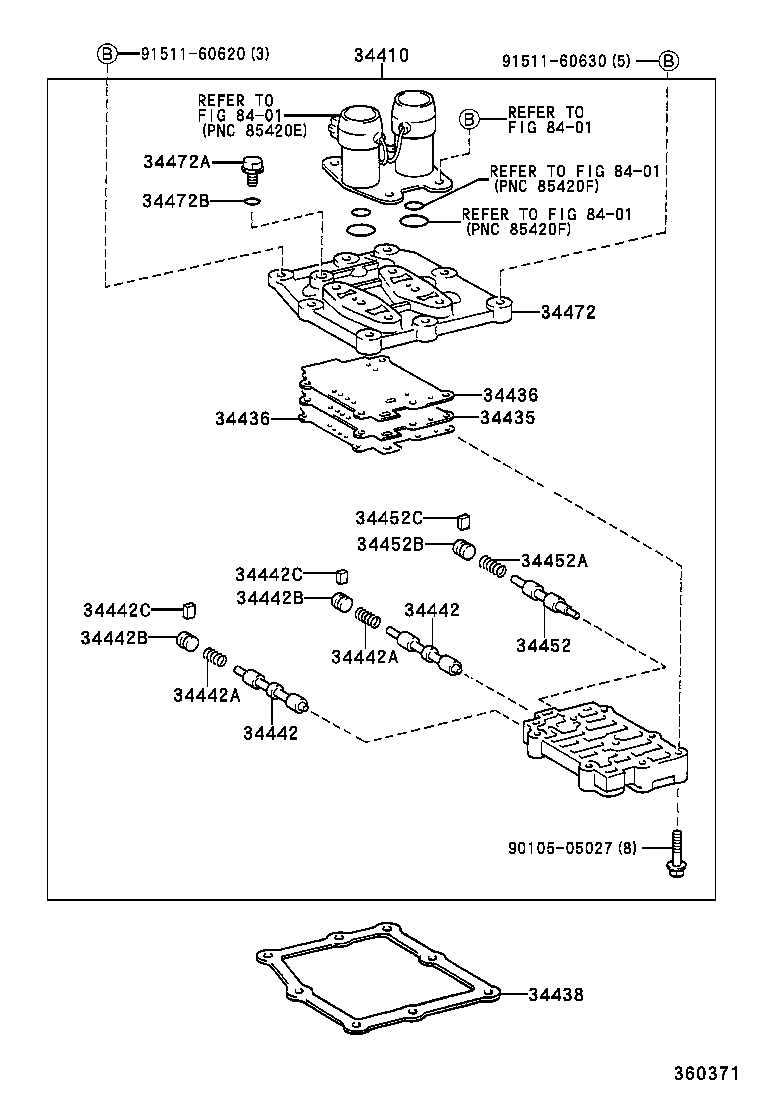

diagram 34410 34435 34436 34436 34438 34442 34442 34442A 34442A 34442B 34442B 34442C 34442C 34452 34452A 34452B 34452C 34472 34472A 34472B 8401 8401 8401 8401 9010505027 9151160620 9151160630
Part # Description Qty Price
34410 - BODY ASSY, TRANSFER CONTROL VALVE
34410-32011

ST195..4FC

 1
34410-20010

ST195..4FC

 1
34410-32020

ST195..4FC

 1
34435 - PLATE, TRANSFER VALVE BODY, LOWER
34435-32020

ST195..4FC

 1
34435-32011

ST195..4FC

 1
34435-20010

ST195,198..4FC

 1
34436 - GASKET, TRANSFER LOWER VALVE BODY, NO.1
34436-20010

ST195,198..4FC

 2
34436-32011

ST195..4FC

 2
34436 - GASKET, TRANSFER LOWER VALVE BODY, NO.1
34436-20010

ST195,198..4FC

 2
34436-32011

ST195..4FC

 2
34438 - GASKET, TRANSFER VALVE BODY
34438-32011

ST195..4FC

 1
34438-20010

ST195,198..4FC

 1
34442 - VALVE, LOW-HIGH SHIFT
34442-32010

ST195..4FC

 2
34442 - VALVE, LOW-HIGH SHIFT
34442-32010

ST195..4FC

 2
34442A - SPRING, COMPRESSION(FOR LOW-HIGH SHIFT VALVE)
90501-07070

ST195..4FC

 2
34442A - SPRING, COMPRESSION(FOR LOW-HIGH SHIFT VALVE)
90501-07070

ST195..4FC

 2
34442B - PLUG(FOR LOW-HIGH SHIFT VALVE)
90339-04028

ST195..4FC

 2
34442B - PLUG(FOR LOW-HIGH SHIFT VALVE)
90339-04028

ST195..4FC

 2
34442C - KEY, STRAIGHT(FOR LOW-HIGH SHIFT VALVE)
90282-03011

ST195..4FC

 2
34442C - KEY, STRAIGHT(FOR LOW-HIGH SHIFT VALVE)
90282-03011

ST195..4FC

 2
34452 - VALVE, TRANSFER DIRECT CLUTCH MODULATOR
34452-20010

ST195,198..4FC

 1
34452-32010

ST195..4FC

 1
34452A - SPRING (FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE)
90501-11070

ST195,198..4FC

 1
90501-06048

ST195..4FC

 1
34452B - PLUG (FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE)
90339-04017

ST195..4FC

 1
90339-04028

ST195,198..4FC

 1
34452C - KEY, STRAIGHT(FOR TRANSFER DIRECT CLUTCH MODULATOR VALV
90282-03005

ST195,198..4FC

 1
90282-03011

ST195..4FC

 1
34472 - COVER, TRANSFER VALVE BODY
34472-32011

ST195..4FC

 1
34472A - PLUG (FOR TRANSFER VALVE BODY COVER)
90341-08001

ST195,198..4FC

 1
34472B - RING, O (FOR TRANSFER VALVE BODY COVER PLUG)
90301-06196

ST195,198..4FC

 1
Common parts
90105-05027
91511-60620
91511-60630
Linked diagrams
8401
