ST195G-DWPEK (1992)
Toyota Caldina

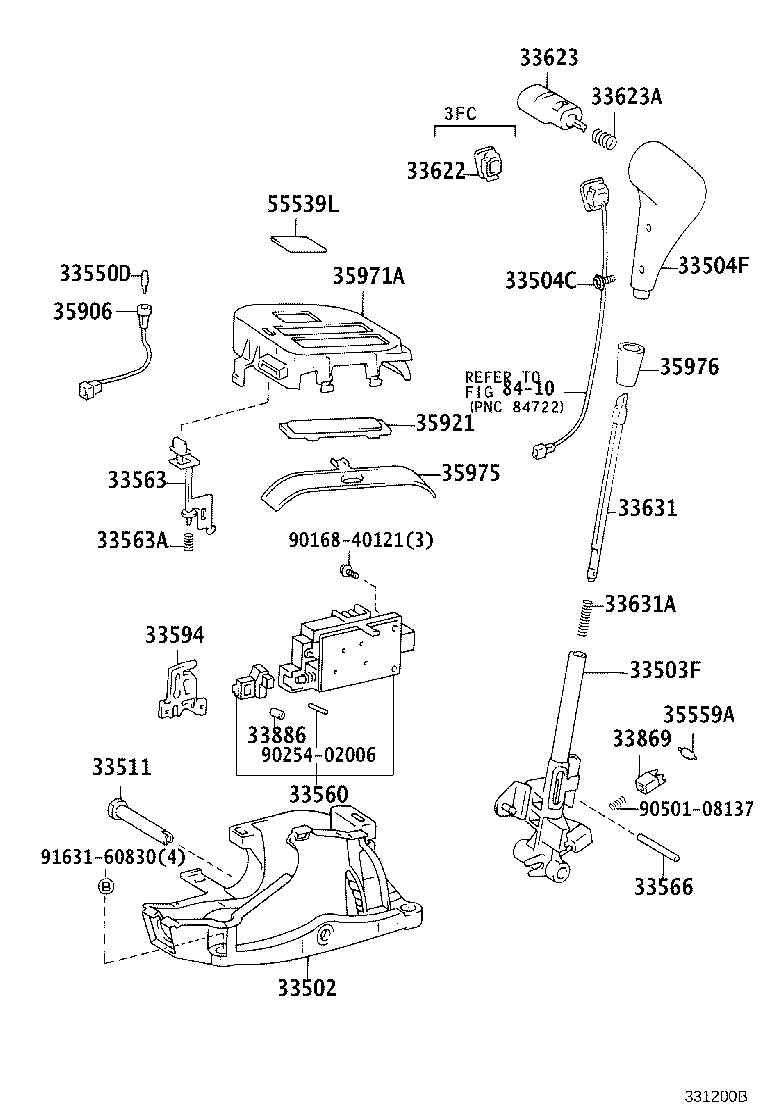

ILLUST NO. 1 OF 2(9601- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-20320 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33521-20280 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-20180 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33503-20520 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
CT190,196,ET196,ST19#..ATM |
2 | ||
| 93339-54008 |
AT191,CT190,196,197,ET196,ST19#..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-20100C0 |
CT190,196,ET196,ST19#..ATM BLACK,TRIM2# |
1 | ||
| 33542-20100C0 |
CT190,196,ET196,ST19#..ATM BLACK,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20270 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33511-16070 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11014 |
AT191,CT190,196,197,ET196,ST19#..ATM 14V 1.4W |
1 | ||
| 90981-11018 |
CT190,196,ET196,ST19#..ATM 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-20020 |
AT191,CT190,196,ET196,ST19#..ATM |
1 | ||
| 33560-20010 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-20080 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33563-20060 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-06063 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 90501-07103 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33566 - PIN, SHIFT LEVER STOP | ||||
| 33566-20020 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33594-20060 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-20060C0 |
CT190,196,ET196,ST19#..ATM BLACK,TRIM1# |
1 | ||
| 33623-20060C0 |
CT190,196,ET196,ST19#..ATM BLACK,TRIM2# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 90501-06088 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-16050 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33631-20170 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
CT190,196,ST19#..4FC |
1 | ||
| 90501-08111 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33869 - HOLDER, SHIFT LEVER DETENT ROLLER | ||||
| 33869-20020 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-20030 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35559A - PIN (FOR MANUAL DETENT SPRING) | ||||
| 90903-61002 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-20070 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 35906-20090 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-20310 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 35921-20350 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-20230 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 35971-20290 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-20120 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 35975-20160 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-20050 |
CT190,196,ET196,ST19#..ATM LWR,L=149.2 |
1 | ||
| 35976-20060 |
CT190,196,ET196,ST19#..ATM UPR,L=122.2 |
1 | ||
| Common parts | ||||
| 90168-40121 | ||||
| 90254-02006 | ||||
| 90501-08137 | ||||
| 91631-60830 | ||||
| Linked diagrams | ||||
| 8410 | ||||

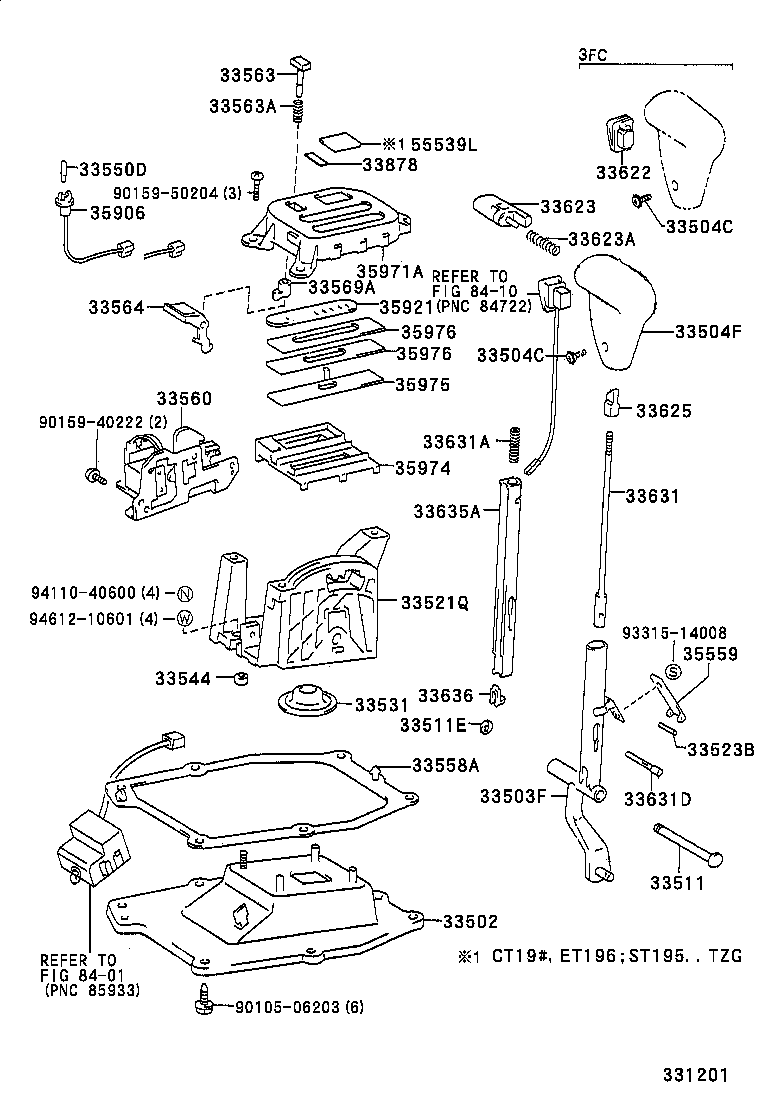

ILLUST NO. 1 OF 2(9211-9601)ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-20320 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33521-20280 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-20180 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33503-20520 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
CT190,196,ET196,ST19#..ATM |
2 | ||
| 93339-54008 |
AT191,CT190,196,197,ET196,ST19#..ATM |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
CT190,196,ET196,ST19#..ATM |
2 | ||
| 93339-54008 |
AT191,CT190,196,197,ET196,ST19#..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-20100C0 |
CT190,196,ET196,ST19#..ATM BLACK,TRIM2# |
1 | ||
| 33542-20100C0 |
CT190,196,ET196,ST19#..ATM BLACK,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20270 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33511-16070 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33511E - RING, SNAP (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90520-08001 |
CT190,196,ST19#..4FC |
1 | ||
| 90520-08001 |
CT190,196,ST19#..4FC |
1 | ||
| 33521Q - HOUSING, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33521-20240 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33521-20240 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 90249-02005 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 90249-02005 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-20010 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33531-20010 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-33010 |
CT190,196,ET196,ST19#..ATM |
4 | ||
| 33544-33010 |
CT190,196,ET196,ST19#..ATM |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11014 |
AT191,CT190,196,197,ET196,ST19#..ATM 14V 1.4W |
1 | ||
| 90981-11018 |
CT190,196,ET196,ST19#..ATM 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33558A - SEAL, SHIFT LEVER BOOT DUST, NO.1 | ||||
| 33558-20010 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33558-20010 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-20020 |
AT191,CT190,196,ET196,ST19#..ATM |
1 | ||
| 33560-20010 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-20080 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33563-20060 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-06063 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 90501-07103 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-20050 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33564-20050 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33569A - GUIDE, SHIFT LOCK RELEASE BUTTON | ||||
| 33569-20040 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33569-20040 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-20060C0 |
CT190,196,ET196,ST19#..ATM BLACK,TRIM1# |
1 | ||
| 33623-20060C0 |
CT190,196,ET196,ST19#..ATM BLACK,TRIM2# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 90501-06088 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-24010 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33625-24010 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-16050 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33631-20170 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
CT190,196,ST19#..4FC |
1 | ||
| 90501-08111 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04008 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 90256-04008 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-20050 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33635-20050 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
CT190,196,ST19#..4FC |
1 | ||
| 33636-35010 |
CT190,196,ST19#..4FC |
1 | ||
| 33878 - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-27010 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 33878-27010 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 35559 - SPRING, MANUAL DETENT | ||||
| 35559-33010 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 35559-33010 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-20070 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 35906-20090 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-20310 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 35921-20350 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-20230 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 35971-20290 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-20160 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 35974-20160 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-20120 |
CT190,196,ET196,ST19#..ATM |
1 | ||
| 35975-20160 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-20050 |
CT190,196,ET196,ST19#..ATM LWR,L=149.2 |
1 | ||
| 35976-20060 |
CT190,196,ET196,ST19#..ATM UPR,L=122.2 |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-20050 |
CT190,196,ET196,ST19#..ATM LWR,L=149.2 |
1 | ||
| 35976-20060 |
CT190,196,ET196,ST19#..ATM UPR,L=122.2 |
1 | ||
| Common parts | ||||
| 90105-06203 | ||||
| 90159-40222 | ||||
| 90159-50204 | ||||
| 93315-14008 | ||||
| 94110-40600 | ||||
| 94612-10601 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||

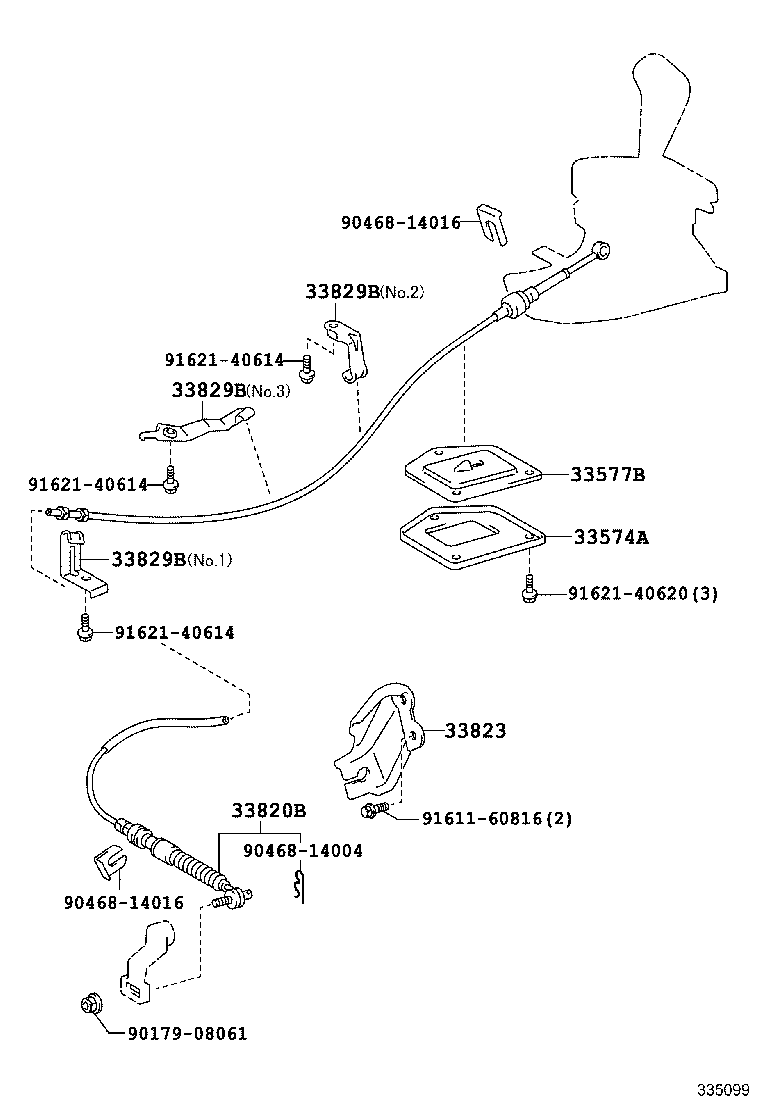

ILLUST NO. 2 OF 2(9601- )ST195,198..4FC..CZ,TZ,U,UL,UX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-20380 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 33577B - COVER, CONTROL SHAFT HOLE | ||||
| 33577-20020 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-2B090 |
ST195..4FC..(CZ,TZ) |
1 | ||
| 33820-2B460 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-20090 |
ST195..4FC |
1 | ||
| 33823-32031 |
ST195,198..4FC |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-20040 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) NO.2 |
1 | ||
| 33829-20050 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) NO.3 |
1 | ||
| 33829-20030 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) NO.1 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-20040 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) NO.2 |
1 | ||
| 33829-20050 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) NO.3 |
1 | ||
| 33829-20030 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) NO.1 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-20040 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) NO.2 |
1 | ||
| 33829-20050 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) NO.3 |
1 | ||
| 33829-20030 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) NO.1 |
1 | ||
| Common parts | ||||
| 90179-08061 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91611-60816 | ||||
| 91621-40614 | ||||
| 91621-40620 | ||||

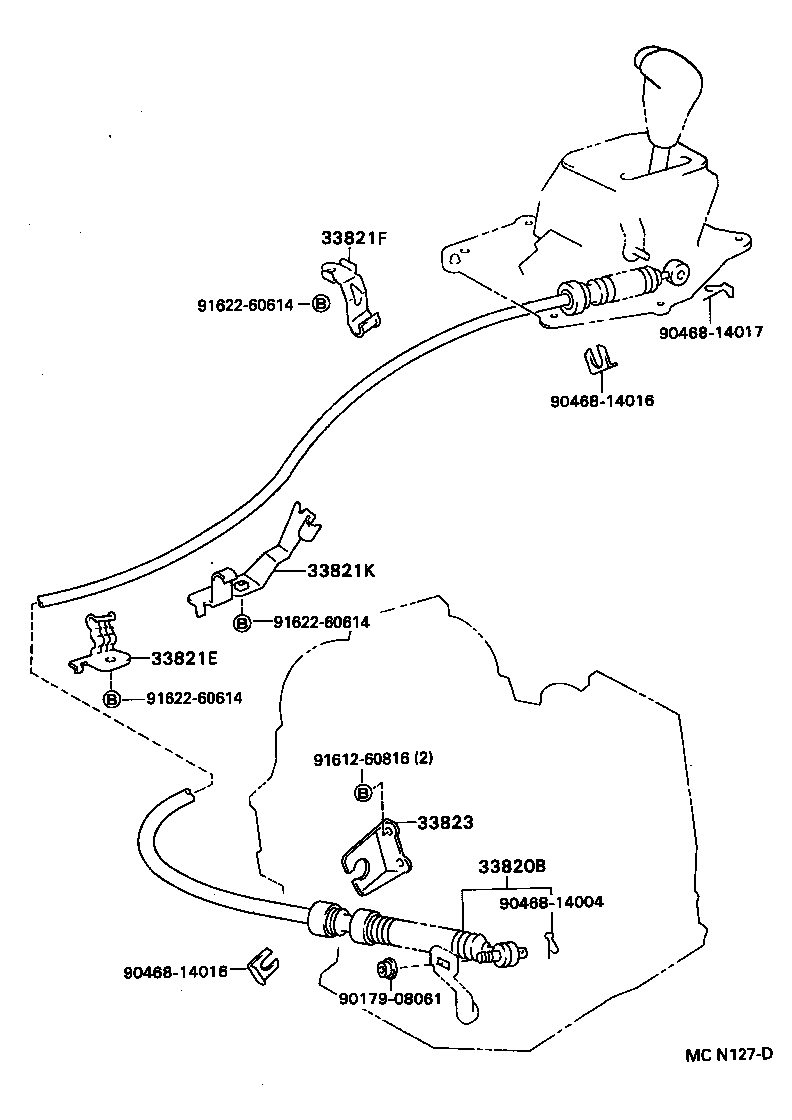

ILLUST NO. 2 OF 2(9211-9601)ST195..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-2B090 |
ST195..4FC..(CZ,TZ) |
1 | ||
| 33820-2B460 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01681 |
ST195..4FC..(CZ,TZ) |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01808 |
ST195..4FC |
1 | ||
| 90949-01808 |
ST195..4FC |
1 | ||
| 33821K - CLAMP, NO.3 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01809 |
ST195..4FC |
1 | ||
| 90949-01809 |
ST195..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-20090 |
ST195..4FC |
1 | ||
| 33823-32031 |
ST195,198..4FC |
1 | ||
| Common parts | ||||
| 90179-08061 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91612-60816 | ||||
| 91622-60614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
