ST195G-DWMVF (1995)
Toyota Caldina

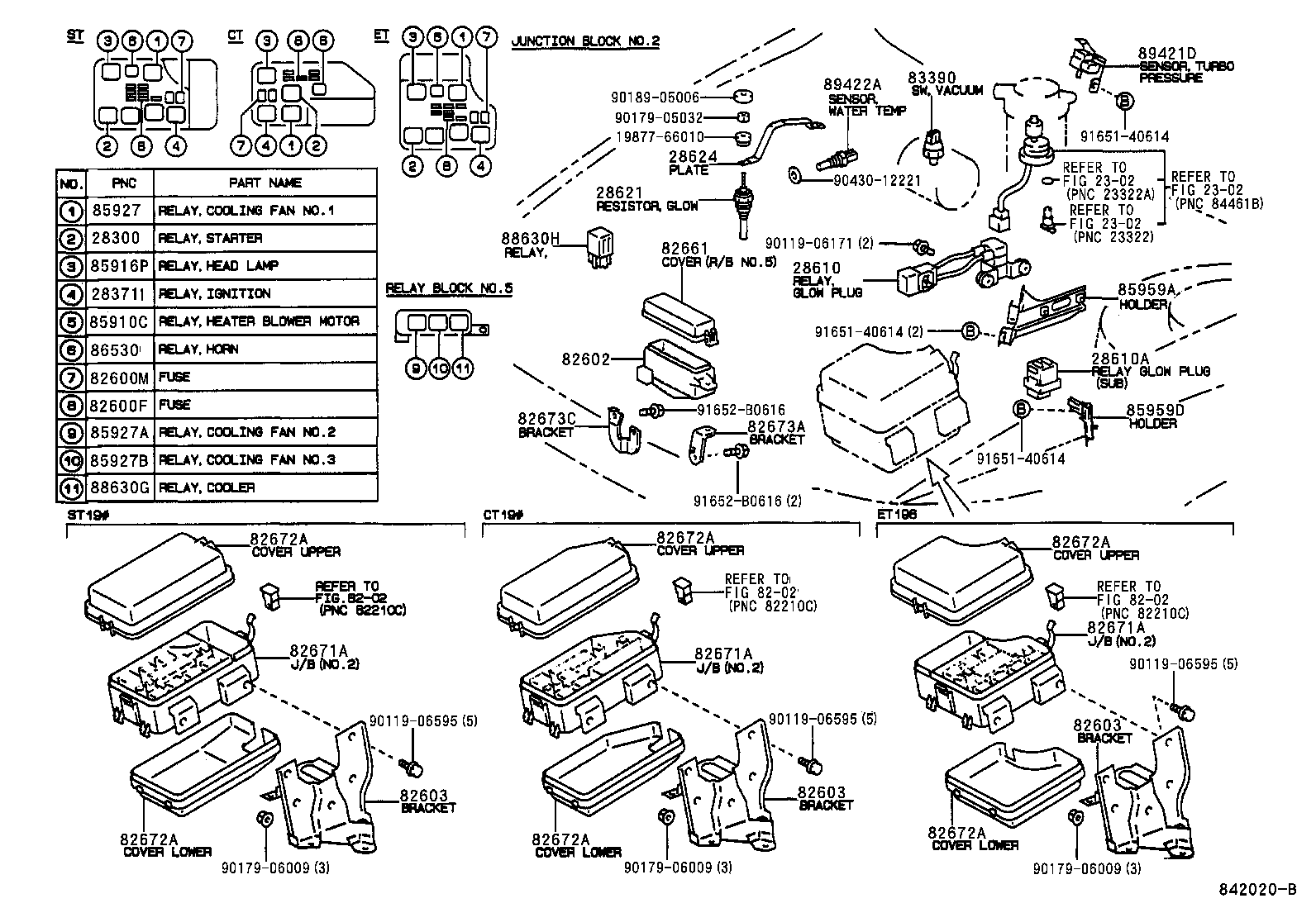

ILLUST NO. 2 OF 7(9211-9601)
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
2C,5EFE,3S#,4SFE..CT19#,ET196,ST19# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CT19#,ET196,ST19# 10A |
2 | ||
| 90982-07011 |
CT19#,ET196,ST19# 30A,緑 |
1 | ||
| 90982-09003 |
CT19#,ET196,ST19# 15A |
5 | ||
| 90982-09004 |
CT19#,ET196,ST19# 20A,黄 |
3 | ||
| 90982-09005 |
CT19#,ET196,ST19# 7.5A |
4 | ||
| 90982-09013 |
AT191,CT190,ST19# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
2 | ||
| 90982-09013 |
AT191,CT19#,ET196,ST19# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
2 | ||
| 90982-09007 |
CT197..4FC;CT197..5F..(U,UL);AT191,CT190,196,198,199,ET196,ST19# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
CT19#,ET196,ST19# 30A,ﾋﾟﾝｸ |
2 | ||
| 90982-10002 |
CT19#,ET196,ST19# 40A,緑 |
2 | ||
| 90982-10001 |
CT19#,ET196,ST19# 30A,ﾋﾟﾝｸ |
2 | ||
| 90982-10002 |
CT19#,ET196,ST19# 40A,緑 |
2 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-20500 |
CT19#,ET196,ST19# |
1 | ||
| 82742-20020 |
AT191,ET196,ST19# |
1 | ||
| 82742-20020 |
AT191,ST19# |
1 | ||
| 82603 - BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | ||||
| 82603-20060 |
ST19# |
1 | ||
| 82603-20011 |
ST19# |
1 | ||
| 82603 - BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | ||||
| 82603-20060 |
ST19# |
1 | ||
| 82603-20011 |
ST19# |
1 | ||
| 82603 - BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | ||||
| 82603-20060 |
ST19# |
1 | ||
| 82603-20011 |
ST19# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-20080 |
CT19#,ET196,ST19# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82720-20010 |
CT190..5F;AT191,CT196,198,ET196,ST19# |
1 | ||
| 82671-20301 |
ST19# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82720-20010 |
CT190..5F;AT191,CT196,198,ET196,ST19# |
1 | ||
| 82671-20301 |
ST19# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82720-20010 |
CT190..5F;AT191,CT196,198,ET196,ST19# |
1 | ||
| 82671-20301 |
ST19# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST19# UPPER |
1 | ||
| 82674-20040 |
AT191,CT19#,ET196,ST19# LOWER |
1 | ||
| 82674-20010 |
ST19# LOWER |
1 | ||
| 82672-2B030 |
CT190..5F;AT191,CT196,198,ET196,ST19# UPPER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST19# UPPER |
1 | ||
| 82674-20040 |
AT191,CT19#,ET196,ST19# LOWER |
1 | ||
| 82674-20010 |
ST19# LOWER |
1 | ||
| 82672-2B030 |
CT190..5F;AT191,CT196,198,ET196,ST19# UPPER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST19# UPPER |
1 | ||
| 82674-20040 |
AT191,CT19#,ET196,ST19# LOWER |
1 | ||
| 82674-20010 |
ST19# LOWER |
1 | ||
| 82672-2B030 |
CT190..5F;AT191,CT196,198,ET196,ST19# UPPER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST19# UPPER |
1 | ||
| 82674-20040 |
AT191,CT19#,ET196,ST19# LOWER |
1 | ||
| 82674-20010 |
ST19# LOWER |
1 | ||
| 82672-2B030 |
CT190..5F;AT191,CT196,198,ET196,ST19# UPPER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST19# UPPER |
1 | ||
| 82674-20040 |
AT191,CT19#,ET196,ST19# LOWER |
1 | ||
| 82674-20010 |
ST19# LOWER |
1 | ||
| 82672-2B030 |
CT190..5F;AT191,CT196,198,ET196,ST19# UPPER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST19# UPPER |
1 | ||
| 82674-20040 |
AT191,CT19#,ET196,ST19# LOWER |
1 | ||
| 82674-20010 |
ST19# LOWER |
1 | ||
| 82672-2B030 |
CT190..5F;AT191,CT196,198,ET196,ST19# UPPER |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-20070 |
ET196,ST19# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
CT190..5F..TD;AT191,CT19#,ET196,ST19#..DSL,EFI |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02012 |
AT191,ET196,ST19# |
1 | ||
| 90987-04003 |
CT19#,ET196,ST19# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02009 |
CT19#,ET196,ST19# |
1 | ||
| 90987-04004 |
AT191,ET196,ST19# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02012 |
AT191,CT197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 90987-02009 |
CT196..4FC;CT196..5F..UX;CT190,ET196,ST19#..CZ,FZ,TZ,UX |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 90119-06171 | ||||
| 90119-06595 | ||||
| 90179-05032 | ||||
| 90179-06009 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 91651-40614 | ||||
| 91652-B0616 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||

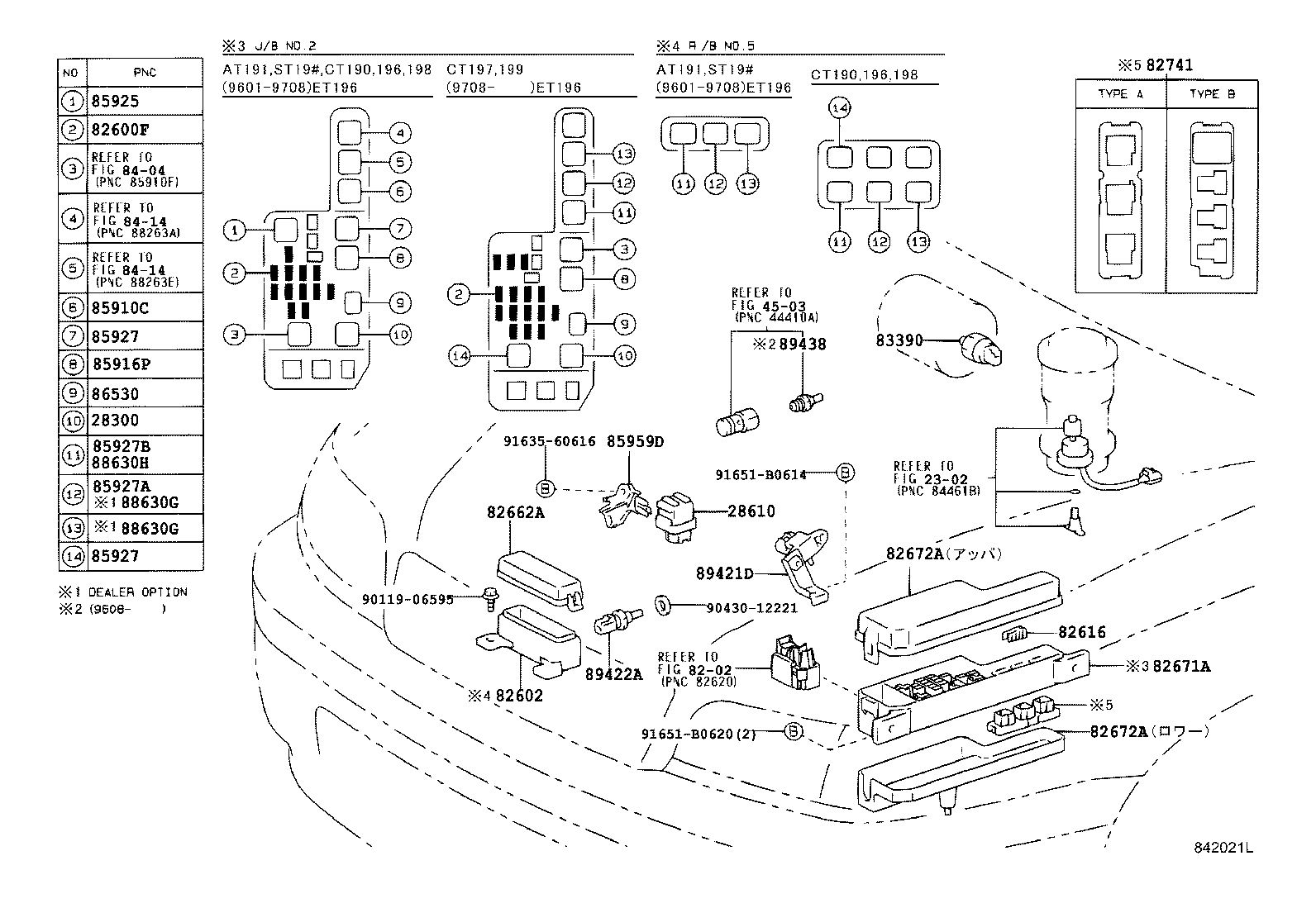

ILLUST NO. 2 OF 7(9601- )
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CT19#,ET196,ST19# 10A |
2 | ||
| 90982-07011 |
CT19#,ET196,ST19# 30A,緑 |
1 | ||
| 90982-09003 |
CT19#,ET196,ST19# 15A |
5 | ||
| 90982-09004 |
CT19#,ET196,ST19# 20A,黄 |
3 | ||
| 90982-09005 |
CT19#,ET196,ST19# 7.5A |
4 | ||
| 90982-09013 |
AT191,CT190,ST19# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
2 | ||
| 90982-09013 |
AT191,CT19#,ET196,ST19# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
2 | ||
| 90982-09007 |
CT197..4FC;CT197..5F..(U,UL);AT191,CT190,196,198,199,ET196,ST19# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-20500 |
CT19#,ET196,ST19# |
1 | ||
| 82742-20020 |
AT191,ET196,ST19# |
1 | ||
| 82742-20020 |
AT191,ST19# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-20180 |
AT191,ET196,ST19# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82720-20010 |
CT190..5F;AT191,CT196,198,ET196,ST19# |
1 | ||
| 82671-20301 |
ST19# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST19# UPPER |
1 | ||
| 82674-20040 |
AT191,CT19#,ET196,ST19# LOWER |
1 | ||
| 82674-20010 |
ST19# LOWER |
1 | ||
| 82672-2B030 |
CT190..5F;AT191,CT196,198,ET196,ST19# UPPER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST19# UPPER |
1 | ||
| 82674-20040 |
AT191,CT19#,ET196,ST19# LOWER |
1 | ||
| 82674-20010 |
ST19# LOWER |
1 | ||
| 82672-2B030 |
CT190..5F;AT191,CT196,198,ET196,ST19# UPPER |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 85925-17010 |
CT190..5F;AT191,CT196,198,ET196,ST19# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
CT190..5F..TD;AT191,CT19#,ET196,ST19#..DSL,EFI |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
CT190..5F..TD;AT191,CT19#,ET196,ST19#..DSL,EFI |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02012 |
AT191,ET196,ST19# |
1 | ||
| 90987-04003 |
CT19#,ET196,ST19# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02009 |
CT19#,ET196,ST19# |
1 | ||
| 90987-04004 |
AT191,ET196,ST19# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02012 |
AT191,CT197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 90987-02009 |
CT196..4FC;CT196..5F..UX;CT190,ET196,ST19#..CZ,FZ,TZ,UX |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02012 |
AT191,CT197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 90987-02009 |
CT196..4FC;CT196..5F..UX;CT190,ET196,ST19#..CZ,FZ,TZ,UX |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
ST19#..CZ,TZ,U,UL,UX |
1 | ||
| Common parts | ||||
| 90119-06595 | ||||
| 90430-12221 | ||||
| 91635-60616 | ||||
| 91651-B0614 | ||||
| 91651-B0620 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 4503 | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||

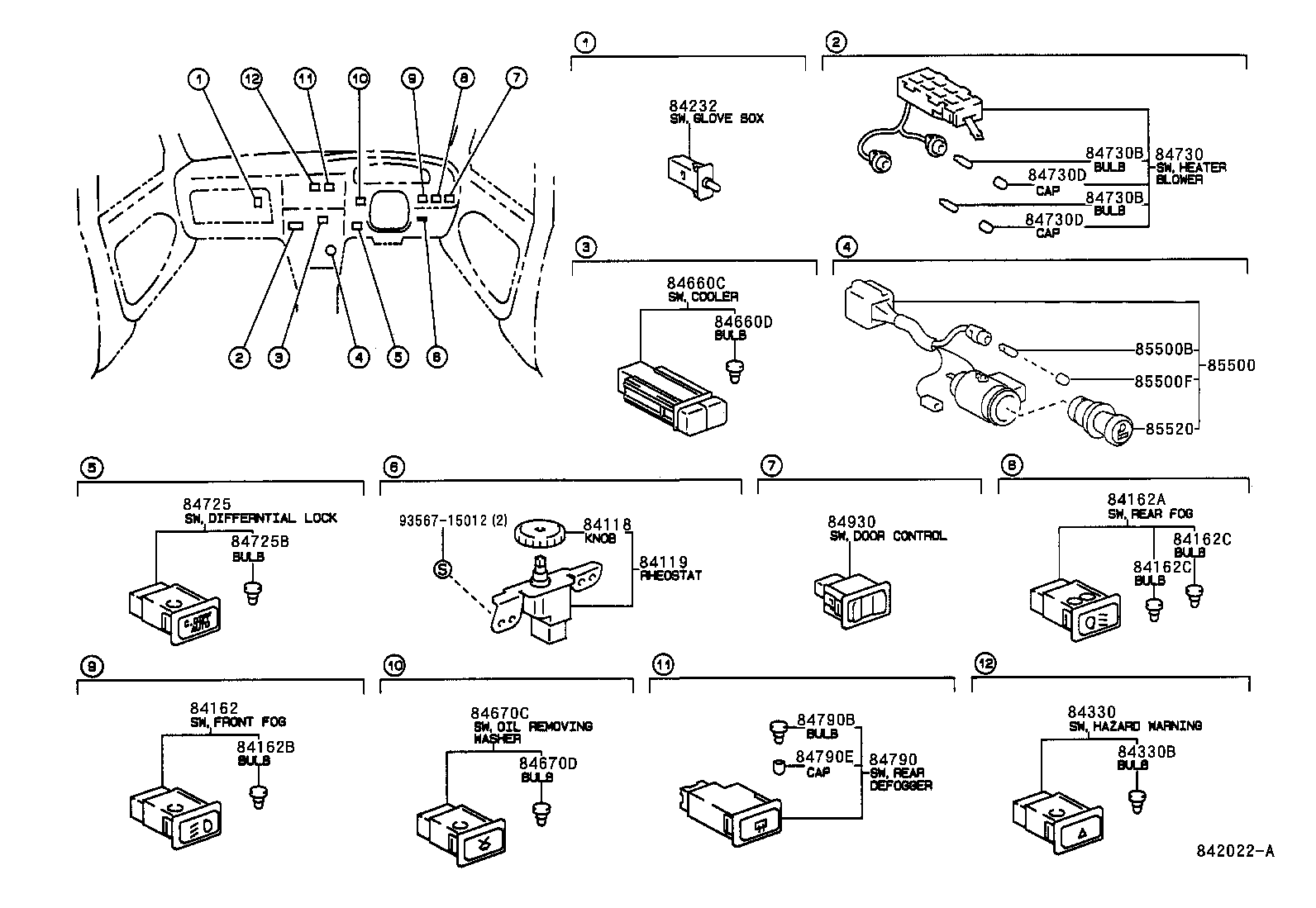

ILLUST NO. 3 OF 7(9211-9601)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-14020 |
ST19#..TZ |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20231 |
ST19#..TZ |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-20150 |
CT190,ST19# |
1 | ||
| 84160-20150 |
CT190,ST19# |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-20010 |
CT190,ST19# |
1 | ||
| 84165-20010 |
CT190,ST19# |
1 | ||
| 84165-20070 |
AT191,CT190,ST19# |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10320 |
CT190,ST19# 14V 0.84W |
1 | ||
| 84999-10320 |
ST19#..TZ 14V 0.84W |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10780 |
AT191,CT190,ST19# 14V 0.7W |
2 | ||
| 84999-10320 |
CT190,ST19# 14V 0.84W |
2 | ||
| 84999-10320 |
CT190,ST19# 14V 0.84W |
2 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10780 |
AT191,CT190,ST19# 14V 0.7W |
2 | ||
| 84999-10320 |
CT190,ST19# 14V 0.84W |
2 | ||
| 84999-10320 |
CT190,ST19# 14V 0.84W |
2 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-20030 |
ST19#..TZ |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20290 |
CT19#,ET196,ST19# |
1 | ||
| 84332-20350 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
CT19#,ET196,ST19# 14V 0.84W |
1 | ||
| 84999-10860 |
AT191,CT19#,ET196,ST19# 14V 0.91W |
1 | ||
| 84670C - SWITCH ASSY, OIL REMOVING WASHER | ||||
| 84670-20040 |
ST19#..TZ |
1 | ||
| 84670D - BULB(FOR WASHER SWITCH) | ||||
| 84999-10320 |
ST19#..TZ |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20390 |
CT19#,ET196,ST19# |
1 | ||
| 84790-20400 |
CT19#,ET196,ST19# ｱﾘ(ﾌﾛﾝﾄ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 84790-20480 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 84790-20420 |
AT191,CT19#,ET196,ST19# ｱﾘ(ﾌﾛﾝﾄ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10510 |
CT19#,ET196,ST19# 12V 0.56W |
1 | ||
| 84999-10560 |
CT19#,ET196,ST19# 12V 0.7W,ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 84999-10560 |
AT191,CT19#,ET196,ST191,195 12V 0.7W,ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10760 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 84998-10010 |
CT19#,ET196,ST19# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20230 |
CT19#,ET196,ST19# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11018 |
CT19#,ET196,ST19# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
CT19#,ET196,ST19# |
1 | ||
| Common parts | ||||
| 93567-15012 | ||||
ILLUST NO. 3 OF 7(9601- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-20010 |
CT190,ST19# |
1 | ||
| 84165-20010 |
CT190,ST19# |
1 | ||
| 84165-20070 |
AT191,CT190,ST19# |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10780 |
AT191,CT190,ST19# 14V 0.7W |
2 | ||
| 84999-10320 |
CT190,ST19# 14V 0.84W |
2 | ||
| 84999-10320 |
CT190,ST19# 14V 0.84W |
2 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10780 |
AT191,CT190,ST19# 14V 0.7W |
2 | ||
| 84999-10320 |
CT190,ST19# 14V 0.84W |
2 | ||
| 84999-10320 |
CT190,ST19# 14V 0.84W |
2 | ||
| 84162D - CAP, REAR FOG LAMP BULB | ||||
| 84998-10640 |
AT191,CT190,ST19# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20290 |
CT19#,ET196,ST19# |
1 | ||
| 84332-20350 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
CT19#,ET196,ST19# 14V 0.84W |
1 | ||
| 84999-10860 |
AT191,CT19#,ET196,ST19# 14V 0.91W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20390 |
CT19#,ET196,ST19# |
1 | ||
| 84790-20400 |
CT19#,ET196,ST19# ｱﾘ(ﾌﾛﾝﾄ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 84790-20480 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 84790-20420 |
AT191,CT19#,ET196,ST19# ｱﾘ(ﾌﾛﾝﾄ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10510 |
CT19#,ET196,ST19# 12V 0.56W |
1 | ||
| 84999-10560 |
CT19#,ET196,ST19# 12V 0.7W,ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 84999-10560 |
AT191,CT19#,ET196,ST191,195 12V 0.7W,ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10510 |
CT19#,ET196,ST19# 12V 0.56W |
1 | ||
| 84999-10560 |
CT19#,ET196,ST19# 12V 0.7W,ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 84999-10560 |
AT191,CT19#,ET196,ST191,195 12V 0.7W,ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10760 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 84998-10010 |
CT19#,ET196,ST19# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20110 |
CT190,ST19#..CZ,TZ ｱﾘ(ﾃﾞﾝﾄﾞｳﾘﾓｺﾝﾌｴﾝﾀﾞﾐﾗ-) |
1 | ||
| 84870-16040 |
AT191,CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 84870-20130 |
CT190,ST19#..CZ,TZ,TZG ｱﾘ(*88) |
1 | ||
| 84870-20120 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20110 |
CT190,ST19#..CZ,TZ ｱﾘ(ﾃﾞﾝﾄﾞｳﾘﾓｺﾝﾌｴﾝﾀﾞﾐﾗ-) |
1 | ||
| 84870-16040 |
AT191,CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 84870-20130 |
CT190,ST19#..CZ,TZ,TZG ｱﾘ(*88) |
1 | ||
| 84870-20120 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20230 |
CT19#,ET196,ST19# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11018 |
CT19#,ET196,ST19# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
CT19#,ET196,ST19# |
1 | ||

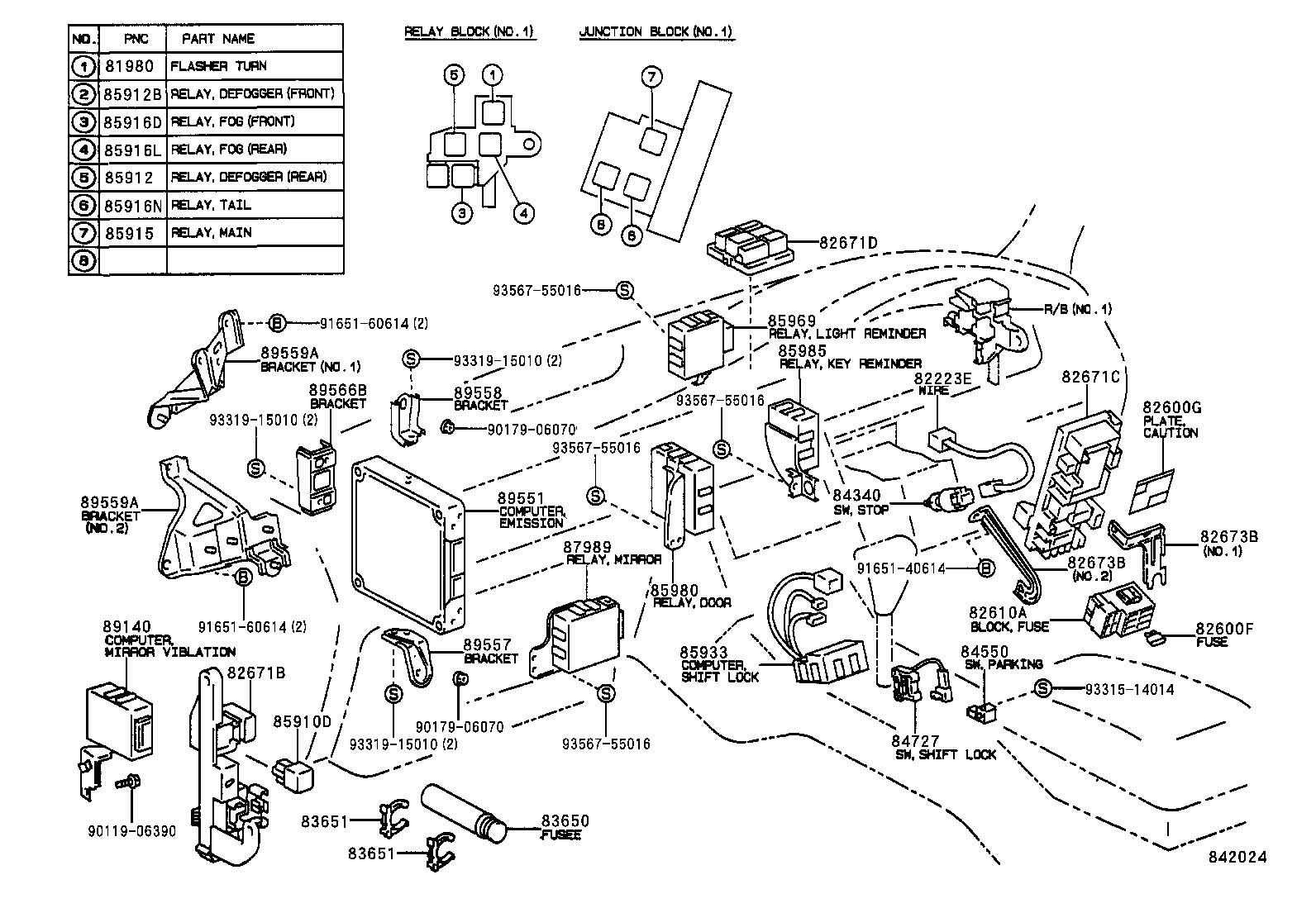

ILLUST NO. 4 OF 7(9211-9601)
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 82223E - WIRE, CLUTCH START SWITCH | ||||
| 82223-20130 |
CT19#,ET196,ST19# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CT19#,ET196,ST19# 10A |
2 | ||
| 90982-07011 |
CT19#,ET196,ST19# 30A,緑 |
1 | ||
| 90982-09003 |
CT19#,ET196,ST19# 15A |
5 | ||
| 90982-09004 |
CT19#,ET196,ST19# 20A,黄 |
3 | ||
| 90982-09005 |
CT19#,ET196,ST19# 7.5A |
4 | ||
| 90982-09013 |
AT191,CT190,ST19# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
2 | ||
| 90982-09013 |
AT191,CT19#,ET196,ST19# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
2 | ||
| 90982-09007 |
CT197..4FC;CT197..5F..(U,UL);AT191,CT190,196,198,199,ET196,ST19# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-20050 |
CT19#,ET196,ST19# |
1 | ||
| 82685-20100 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20070 |
CT19#,ET196,ST19# |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-20290 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 82671-20290 |
CT190,ET196,ST19#..(4FC,5F)..(CZ,TZ,U) NO.1 J/B |
1 | ||
| 82671-20290 |
CT190,ST19#..CZ,TZ ｱﾘ(6SP),NO.3 J/B |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-20270 |
CT19#,ET196,ST19# |
1 | ||
| 82671-20270 |
CT19#,ET196,ST19# |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-20090 |
CT19#,ET196,ST19# NO.1 |
1 | ||
| 82673-20110 |
CT19#,ET196,ST19# NO.2 |
1 | ||
| 82673-20110 |
CT190,196,198,ET196,ST190,191,195..DSL,EFI NO.2 |
1 | ||
| 82673-20090 |
CT190,196,198,ET196,ST190,191,195..DSL,EFI NO.1 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-20090 |
CT19#,ET196,ST19# NO.1 |
1 | ||
| 82673-20110 |
CT19#,ET196,ST19# NO.2 |
1 | ||
| 82673-20110 |
CT190,196,198,ET196,ST190,191,195..DSL,EFI NO.2 |
1 | ||
| 82673-20090 |
CT190,196,198,ET196,ST190,191,195..DSL,EFI NO.1 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
CT19#,ET196,ST19# |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
CT19#,ET196,ST19# |
1 | ||
| 90987-02012 |
AT191,CT19#,ET196,ST19# DENSO |
1 | ||
| 85912B - RELAY, DEFOGGER(FOR FRONT WINDOW) | ||||
| 90987-02009 |
CT19#,ET196,ST19# |
1 | ||
| 90987-02012 |
AT191,CT19#,ET196,ST19# DENSO |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02009 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX |
1 | ||
| 90987-02009 |
CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
AT191,CT190,ST19# NIPPONDENSO |
1 | ||
| 90987-02009 |
CT190,ST19# |
1 | ||
| 90987-02009 |
CT190,ST19# |
1 | ||
| 90080-87011 |
AT191,CT190,ST19# |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02009 |
CT190,ST19# |
1 | ||
| 90987-02009 |
CT190,ST19# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
AT191,CT19#,ET196,ST19# DENSO |
1 | ||
| 90080-87010 |
AT191,CT19#,ET196,ST19# SIEMENS |
1 | ||
| 90987-02009 |
CT19#,ET196,ST19# |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-20030 |
CT190,ST19#..CZ,TZ |
1 | ||
| 85969-20060 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20310 |
CT190,196,ET196,ST19#..FZ,TZ,UX |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-20010 |
CT19#,ET196,ST19# |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 87989-20050 |
CT190,ST19#..CZ,TZ |
1 | ||
| 87989-20050 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 89140 - COMPUTER,ASSY MIRROR VIBLATION CONTROL | ||||
| 89140-20070 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 89140-20070 |
CT190,ST19#..CZ,TZ |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90179-06070 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
| 93315-14014 | ||||
| 93319-15010 | ||||
| 93567-55016 | ||||

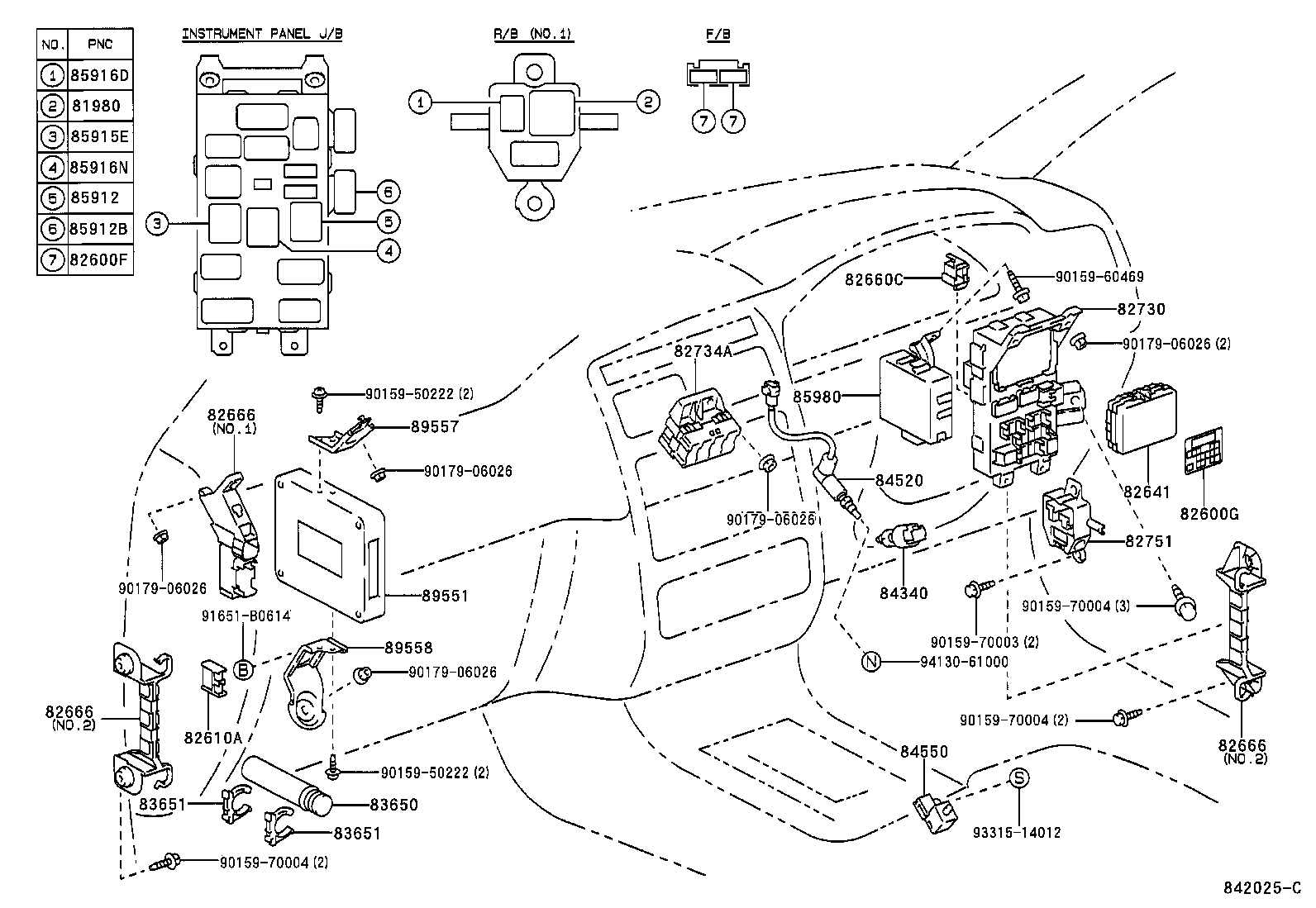

ILLUST NO. 4 OF 7(9601- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CT19#,ET196,ST19# 10A |
2 | ||
| 90982-07011 |
CT19#,ET196,ST19# 30A,緑 |
1 | ||
| 90982-09003 |
CT19#,ET196,ST19# 15A |
5 | ||
| 90982-09004 |
CT19#,ET196,ST19# 20A,黄 |
3 | ||
| 90982-09005 |
CT19#,ET196,ST19# 7.5A |
4 | ||
| 90982-09013 |
AT191,CT190,ST19# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
2 | ||
| 90982-09013 |
AT191,CT19#,ET196,ST19# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
2 | ||
| 90982-09007 |
CT197..4FC;CT197..5F..(U,UL);AT191,CT190,196,198,199,ET196,ST19# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-20050 |
CT19#,ET196,ST19# |
1 | ||
| 82685-20100 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20070 |
CT19#,ET196,ST19# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-20190 |
ST19#..TZ,TZG |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-20040 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-20030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
CT19#,ET196,ST19# |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
CT19#,ET196,ST19# |
1 | ||
| 90987-02012 |
AT191,CT19#,ET196,ST19# DENSO |
1 | ||
| 85912B - RELAY, DEFOGGER(FOR FRONT WINDOW) | ||||
| 90987-02009 |
CT19#,ET196,ST19# |
1 | ||
| 90987-02012 |
AT191,CT19#,ET196,ST19# DENSO |
1 | ||
| 85915E - RELAY | ||||
| 90987-02012 |
AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX DENSO |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
AT191,CT190,ST19# NIPPONDENSO |
1 | ||
| 90987-02009 |
CT190,ST19# |
1 | ||
| 90987-02009 |
CT190,ST19# |
1 | ||
| 90080-87011 |
AT191,CT190,ST19# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
AT191,CT19#,ET196,ST19# DENSO |
1 | ||
| 90080-87010 |
AT191,CT19#,ET196,ST19# SIEMENS |
1 | ||
| 90987-02009 |
CT19#,ET196,ST19# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20310 |
CT190,196,ET196,ST19#..FZ,TZ,UX |
1 | ||
| Common parts | ||||
| 90159-50222 | ||||
| 90159-60469 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||
| 90179-06026 | ||||
| 91651-B0614 | ||||
| 93315-14012 | ||||
| 94130-61000 | ||||

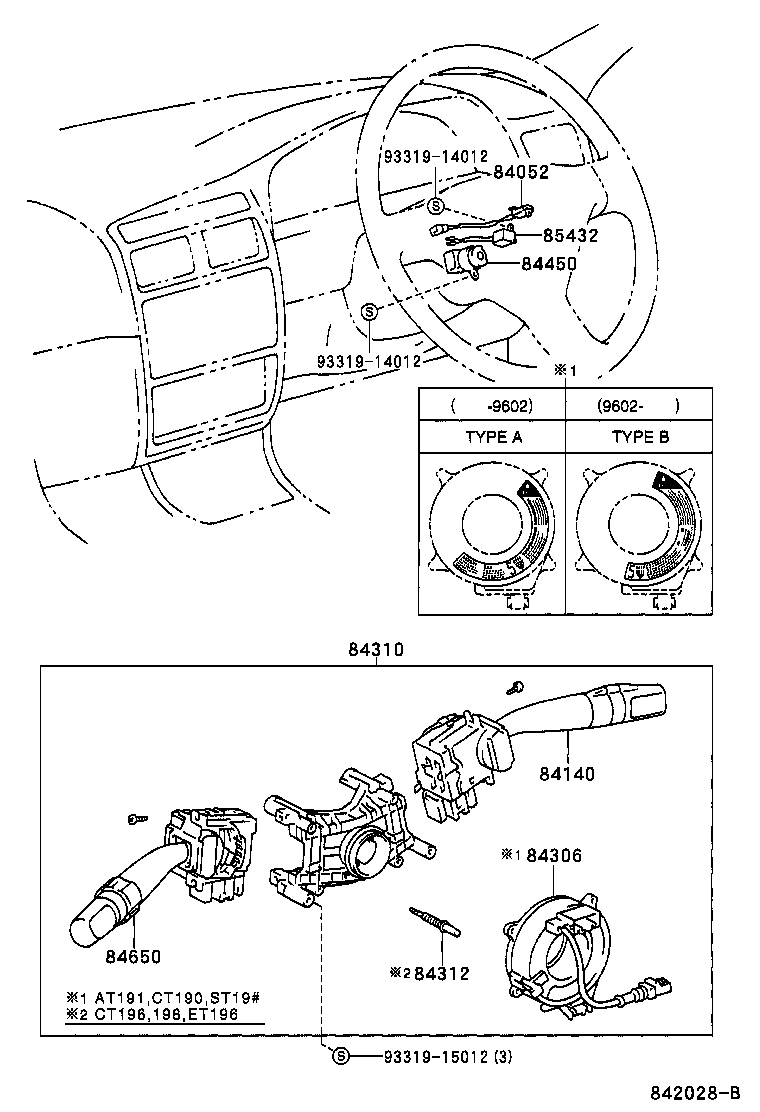

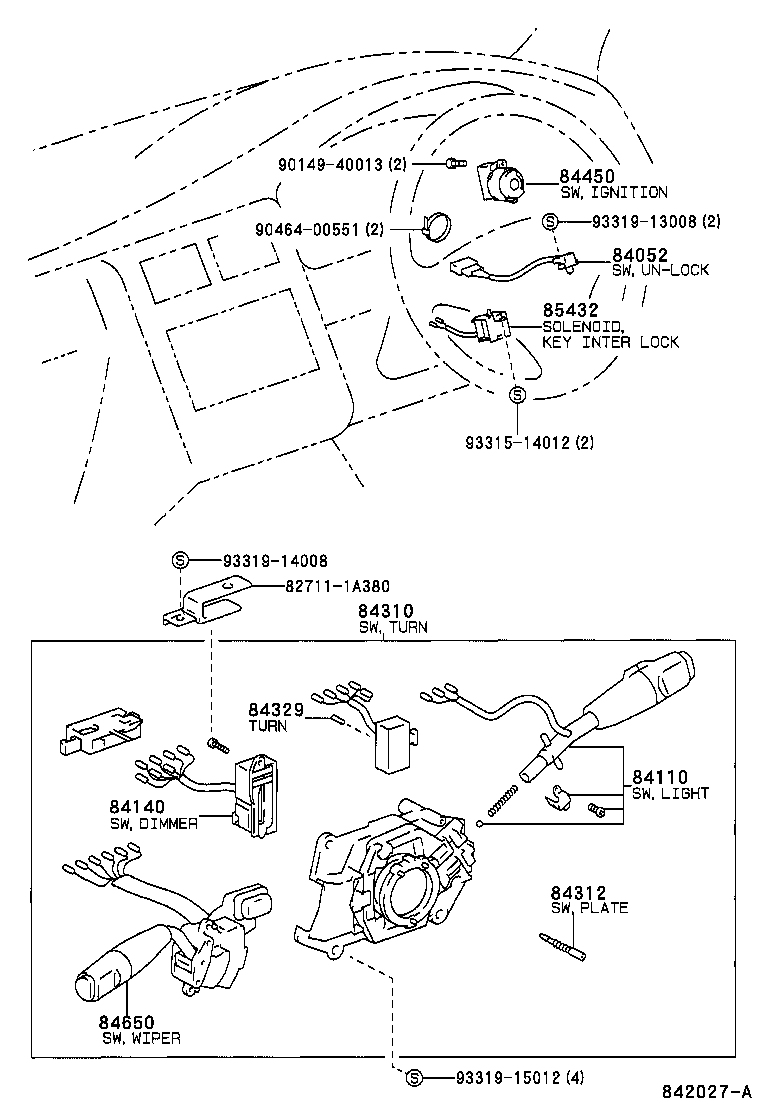

ILLUST NO. 6 OF 7(9211-9601)
ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
CT19#,ET196,ST19# |
1 | ||
| 84052-12070 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80174 |
ST19#..TZ,TZG |
1 | ||
| 84112-80109 |
ST19#..TZ |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20450 |
ST19#..TZ |
1 | ||
| 84140-20590 |
ST19#..TZ,TZG ﾅｼ(ﾌﾛﾝﾄ ﾌｵｸﾞ ﾗﾝﾌﾟ) OR ｱﾘ(ｸﾞﾘﾙｶﾞ-ﾄﾞﾖｳ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 84140-20600 |
ST19#..TZ,TZG |
1 | ||
| 84140-20660 |
ST19#..TZ,TZG ﾅｼ(ﾌﾛﾝﾄ ﾌｵｸﾞ ﾗﾝﾌﾟ) OR ｱﾘ(ｸﾞﾘﾙｶﾞ-ﾄﾞﾖｳ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 84140-20650 |
ST19#..TZ,TZG |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2H600 |
ST19#..TZ |
1 | ||
| 84310-2L470 |
ST19#..TZ,TZG TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84310-2L610 |
ST19#..TZ,TZG TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84310-2L620 |
ST19#..TZ,TZG TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ﾗｼﾞｴ-ﾀｸﾞﾘﾙ ﾖｳ ﾌｵｸﾞﾗﾝﾌﾟ);TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾅｼ(ﾌﾛﾝﾄ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 84310-21110 |
ST19#..TZ,TZG TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ﾅｼ(ﾌﾛﾝﾄ ﾌｵｸﾞ ﾗﾝﾌﾟ);TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ﾗｼﾞｴ-ﾀｸﾞﾘﾙ ﾖｳ ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX |
1 | ||
| 84312-12040 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20260 |
CT19#,ET196,ST19# |
1 | ||
| 84450-12200 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2G110 |
ST19#..TZ |
1 | ||
| 84652-2G380 |
AT191,CT190,ST19# 東海理化 |
1 | ||
| 84652-2G440 |
AT191,CT190,ST19# MATSUSHITA |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
ILLUST NO. 6 OF 7(9601- )
ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
CT19#,ET196,ST19# |
1 | ||
| 84052-12070 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20450 |
ST19#..TZ |
1 | ||
| 84140-20590 |
ST19#..TZ,TZG ﾅｼ(ﾌﾛﾝﾄ ﾌｵｸﾞ ﾗﾝﾌﾟ) OR ｱﾘ(ｸﾞﾘﾙｶﾞ-ﾄﾞﾖｳ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 84140-20600 |
ST19#..TZ,TZG |
1 | ||
| 84140-20660 |
ST19#..TZ,TZG ﾅｼ(ﾌﾛﾝﾄ ﾌｵｸﾞ ﾗﾝﾌﾟ) OR ｱﾘ(ｸﾞﾘﾙｶﾞ-ﾄﾞﾖｳ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 84140-20650 |
ST19#..TZ,TZG |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-20050 |
AT191,CT190,ST19# |
1 | ||
| 84306-35010 |
AT191,CT190,ST19# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,東海理化 |
1 | ||
| 84306-20080 |
AT191,CT190,ST19# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2H600 |
ST19#..TZ |
1 | ||
| 84310-2L470 |
ST19#..TZ,TZG TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84310-2L610 |
ST19#..TZ,TZG TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84310-2L620 |
ST19#..TZ,TZG TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ﾗｼﾞｴ-ﾀｸﾞﾘﾙ ﾖｳ ﾌｵｸﾞﾗﾝﾌﾟ);TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾅｼ(ﾌﾛﾝﾄ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 84310-21110 |
ST19#..TZ,TZG TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ﾅｼ(ﾌﾛﾝﾄ ﾌｵｸﾞ ﾗﾝﾌﾟ);TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ﾗｼﾞｴ-ﾀｸﾞﾘﾙ ﾖｳ ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX |
1 | ||
| 84312-12040 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20260 |
CT19#,ET196,ST19# |
1 | ||
| 84450-12200 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2G110 |
ST19#..TZ |
1 | ||
| 84652-2G380 |
AT191,CT190,ST19# 東海理化 |
1 | ||
| 84652-2G440 |
AT191,CT190,ST19# MATSUSHITA |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
