ST195G-DWMVF (1995)

Toyota Caldina

Production Feb 1995 - Aug 1997
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )AT191,CT190,ST191,195

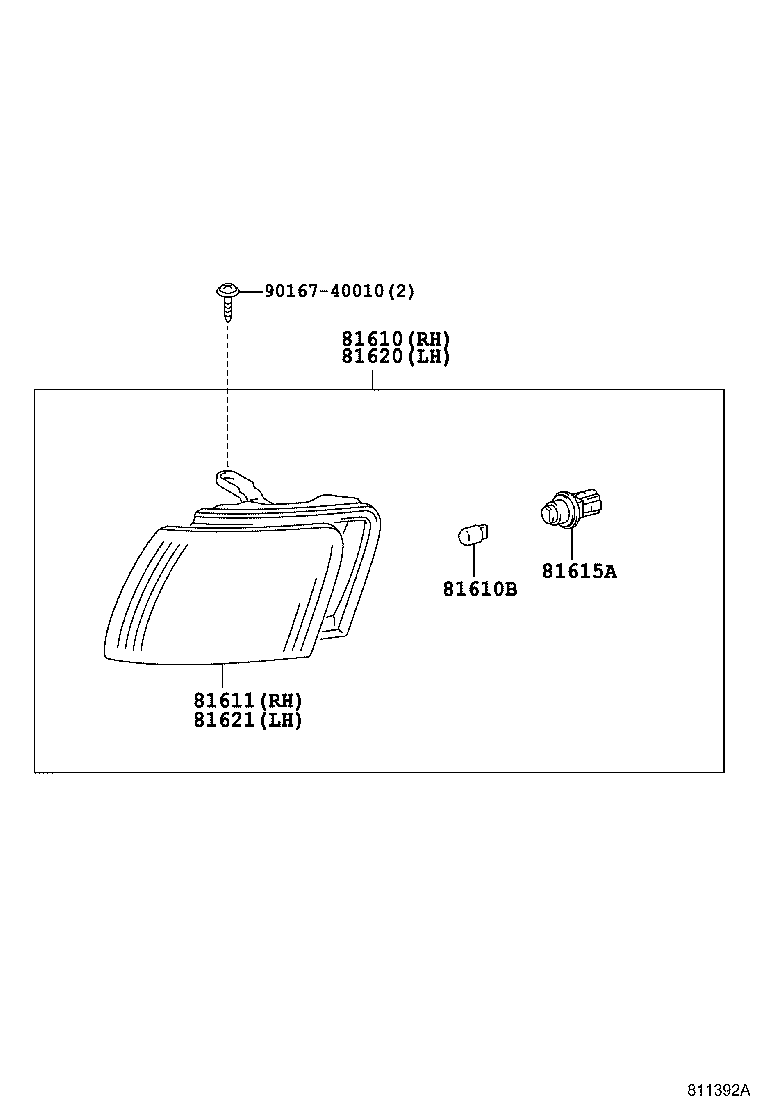

Click highlighted areas on diagram

diagram 81610 81610B 81611 81615A 81620 81621 9016740010
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-21010

AT191,CT190,ST19#

 1
81610-21020

ST19#

ｴｱﾘｱﾙ

 1
81610-21020

ST19#..TZ,TZG

TZ-Gﾘﾐﾃﾂﾄﾞ*(G),*(J)

 1
81610-21020

ST19#..TZ,TZG

TZ(-G)ﾘﾐﾃﾂﾄﾞ*(S),*(U)

 1
81610-21020

ST19#

ｴｱﾘｱﾙｼﾖｳ

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AT191,CT190,ST19#

12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-21020

ST19#

ｴｱﾘｱﾙ OR ｴｱﾘｱﾙ ﾂ-ﾘﾝｸﾞ ﾊﾞ-ｼﾞﾖﾝ

 1
81611-21010

AT191,CT190,ST19#

 1
81611-21020

ST19#..TZ,TZG

TZ(-G)ﾘﾐﾃﾂﾄﾞ*(S),*(U)

 1
81611-21020

ST19#..TZ,TZG

TZ-Gﾘﾐﾃﾂﾄﾞ*(G),*(J)

 1
81611-21020

ST19#

ｴｱﾘｱﾙｼﾖｳ

 1
81615A - SOCKET PLUG, CLEARANCE LAMP
90075-60004

AT191,CT190,ST19#

 2
81615-21020

ST19#..TZ,TZG

TZ(-G)ﾘﾐﾃﾂﾄﾞ*(S),*(U)

 2
81615-21020

ST19#

ｴｱﾘｱﾙｼﾖｳ

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-21020

ST19#

ｴｱﾘｱﾙｼﾖｳ

 1
81620-21010

AT191,CT190,ST19#

 1
81620-21020

ST19#..TZ,TZG

TZ-Gﾘﾐﾃﾂﾄﾞ*(G),*(J)

 1
81620-21020

ST19#

ｴｱﾘｱﾙ

 1
81620-21020

ST19#..TZ,TZG

TZ(-G)ﾘﾐﾃﾂﾄﾞ*(S),*(U)

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-21020

ST19#

ｴｱﾘｱﾙ OR ｴｱﾘｱﾙ ﾂ-ﾘﾝｸﾞ ﾊﾞ-ｼﾞﾖﾝ

 1
81621-21010

AT191,CT190,ST19#

 1
81621-21020

ST19#..TZ,TZG

TZ-Gﾘﾐﾃﾂﾄﾞ*(G),*(J)

 1
81621-21020

ST19#..TZ,TZG

TZ(-G)ﾘﾐﾃﾂﾄﾞ*(S),*(U)

 1
81621-21020

ST19#

ｴｱﾘｱﾙｼﾖｳ

 1
Common parts
90167-40010
