ST195G-DWMVF (1995)

Toyota Caldina

Production Feb 1995 - Aug 1997
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211-9601)

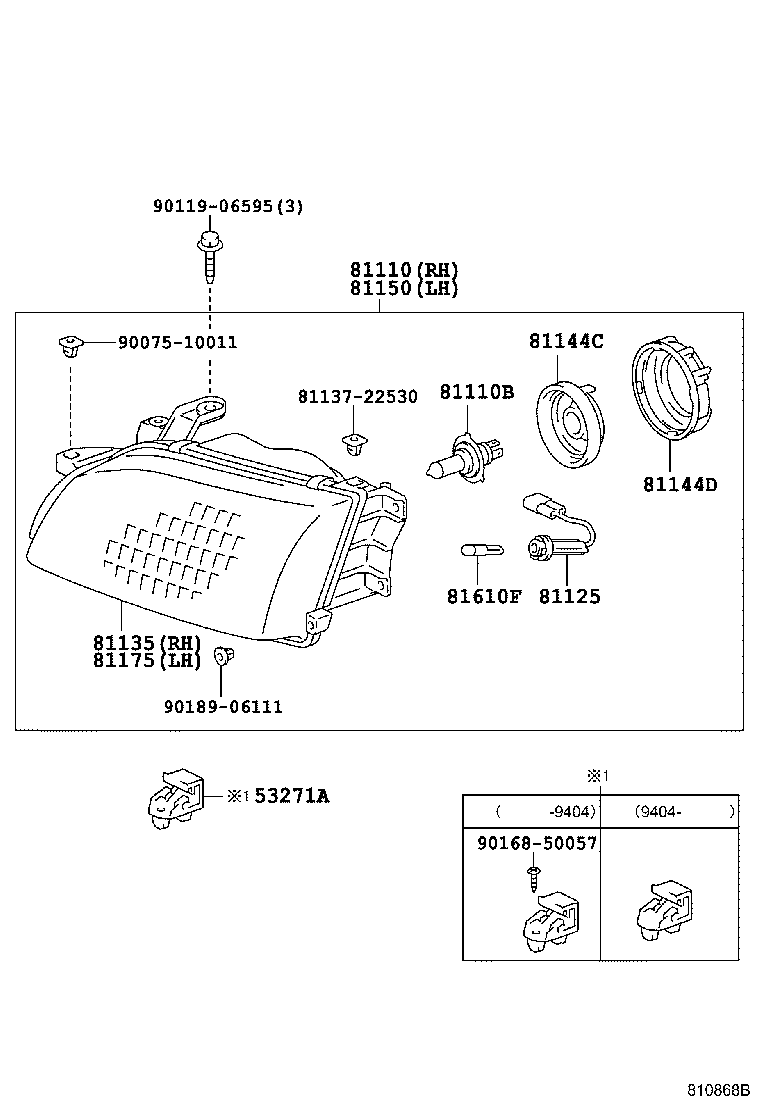

Click highlighted areas on diagram

diagram 53271A 81110 81110B 81125 81135 8113722530 81144C 81144D 81150 81175 81610F 9007510011 9011906595 9016850057 9018906111
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-12040

CT19#,ET196,ST19#

 2
81110 - HEADLAMP ASSY, RH
81110-21060

ST19#

ｴｱﾘｱﾙ

 1
81110-21060

ST19#

ｴｱﾘｱﾙｼﾖｳ

 1
81110-21060

ST19#..TZ,TZG

TZ-Gﾘﾐﾃﾂﾄﾞ*(G),*(J)

 1
81110-21040

AT191,CT190,ST19#

 1
81110-21060

ST19#..TZ,TZG

TZ(-G)ﾘﾐﾃﾂﾄﾞ*(S),*(U)

 1
81110-21020

CT190,ST19#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

CT19#,ET196,ST19#

12V 60/55W,*HAL *WH

 2
81125 - CORD, HEADLAMP
81125-2B650

CT19#,ET196,ST19#

 2
81125-2B650

CT19#,ET196,ST19#

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-21020

CT190,ST19#

 1
81130-21060

ST19#..TZ,TZG

TZ-Gﾘﾐﾃﾂﾄﾞ*(G),*(J)

 1
81130-21060

ST19#

ｴｱﾘｱﾙ OR ｴｱﾘｱﾙ ﾂ-ﾘﾝｸﾞ ﾊﾞ-ｼﾞﾖﾝ

 1
81130-21060

ST19#

ｴｱﾘｱﾙｼﾖｳ

 1
81130-21060

ST19#..TZ,TZG

TZ(-G)ﾘﾐﾃﾂﾄﾞ*(S),*(U)

 1
81130-21040

AT191,CT190,ST19#

 1
81144C - COVER, HEADLAMP SOCKET
90075-99058

CT19#,ET196,ST19#

 2
90075-65002

AT191,CT19#,ET196,ST19#

 2
90075-65002

ST19#..TZ,TZG

TZ(-G)ﾘﾐﾃﾂﾄﾞ*(S),*(U)

 2
81144D - CAP, HEADLAMP LOCKING
90075-99057

CT19#,ET196,ST19#

 2
90075-99057

CT19#,ET196,ST19#

 2
81150 - HEADLAMP ASSY, LH
81150-21040

AT191,CT190,ST19#

 1
81150-21060

ST19#

ｴｱﾘｱﾙ

 1
81150-21020

CT190,ST19#

 1
81150-21060

ST19#..TZ,TZG

TZ(-G)ﾘﾐﾃﾂﾄﾞ*(S),*(U)

 1
81150-21060

ST19#..TZ,TZG

TZ-Gﾘﾐﾃﾂﾄﾞ*(G),*(J)

 1
81150-21060

ST19#

ｴｱﾘｱﾙｼﾖｳ

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-21020

CT190,ST19#

 1
81170-21060

ST19#

ｴｱﾘｱﾙ OR ｴｱﾘｱﾙ ﾂ-ﾘﾝｸﾞ ﾊﾞ-ｼﾞﾖﾝ

 1
81170-21040

AT191,CT190,ST19#

 1
81170-21060

ST19#..TZ,TZG

TZ-Gﾘﾐﾃﾂﾄﾞ*(G),*(J)

 1
81170-21060

ST19#..TZ,TZG

TZ(-G)ﾘﾐﾃﾂﾄﾞ*(S),*(U)

 1
81170-21060

ST19#

ｴｱﾘｱﾙｼﾖｳ

 1
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

CT19#,ET196,ST19#

12V 5W

 2
Common parts
81137-22530
90075-10011
90119-06595
90168-50057
90189-06111

(9601- )

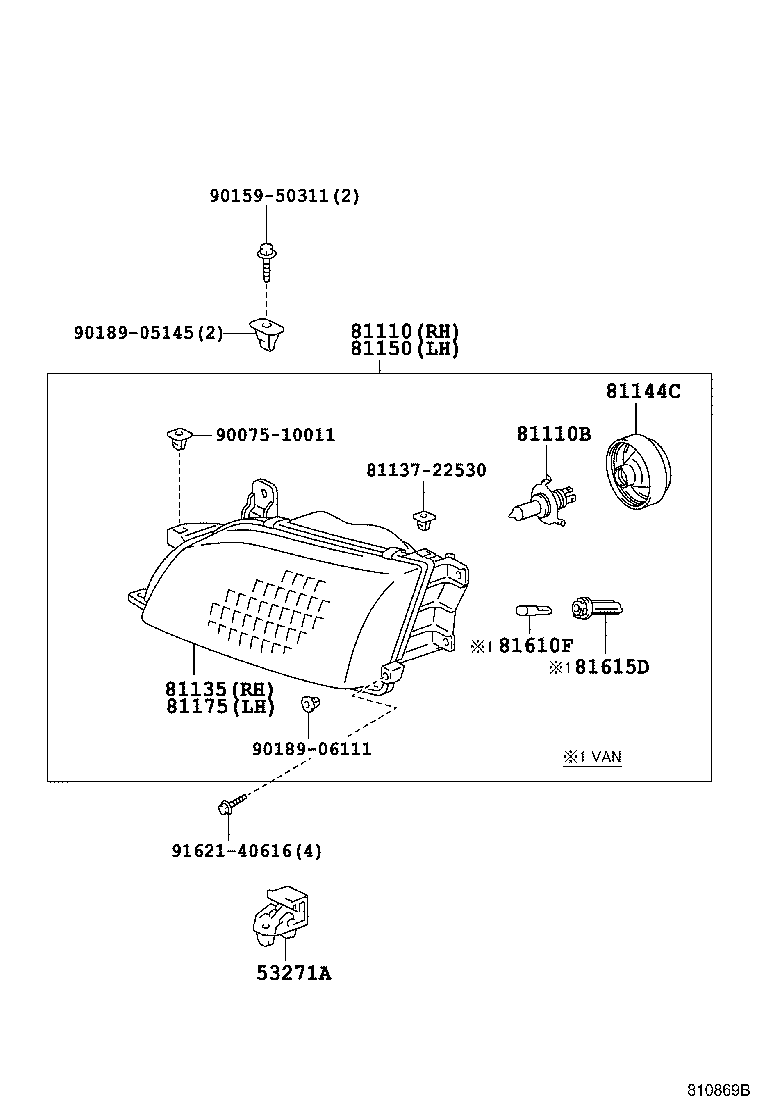

Click highlighted areas on diagram

diagram 53271A 81110 81110B 81135 8113722530 81144C 81150 81175 81610F 81615D 9007510011 9015950311 9018905145 9018906111 9162140616
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-12040

CT19#,ET196,ST19#

 2
81110 - HEADLAMP ASSY, RH
81110-21060

ST19#

ｴｱﾘｱﾙ

 1
81110-21060

ST19#

ｴｱﾘｱﾙｼﾖｳ

 1
81110-21060

ST19#..TZ,TZG

TZ-Gﾘﾐﾃﾂﾄﾞ*(G),*(J)

 1
81110-21040

AT191,CT190,ST19#

 1
81110-21060

ST19#..TZ,TZG

TZ(-G)ﾘﾐﾃﾂﾄﾞ*(S),*(U)

 1
81110-21020

CT190,ST19#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

CT19#,ET196,ST19#

12V 60/55W,*HAL *WH

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-21020

CT190,ST19#

 1
81130-21060

ST19#..TZ,TZG

TZ-Gﾘﾐﾃﾂﾄﾞ*(G),*(J)

 1
81130-21060

ST19#

ｴｱﾘｱﾙ OR ｴｱﾘｱﾙ ﾂ-ﾘﾝｸﾞ ﾊﾞ-ｼﾞﾖﾝ

 1
81130-21060

ST19#

ｴｱﾘｱﾙｼﾖｳ

 1
81130-21060

ST19#..TZ,TZG

TZ(-G)ﾘﾐﾃﾂﾄﾞ*(S),*(U)

 1
81130-21040

AT191,CT190,ST19#

 1
81144C - COVER, HEADLAMP SOCKET
90075-99058

CT19#,ET196,ST19#

 2
90075-65002

AT191,CT19#,ET196,ST19#

 2
90075-65002

ST19#..TZ,TZG

TZ(-G)ﾘﾐﾃﾂﾄﾞ*(S),*(U)

 2
81150 - HEADLAMP ASSY, LH
81150-21040

AT191,CT190,ST19#

 1
81150-21060

ST19#

ｴｱﾘｱﾙ

 1
81150-21020

CT190,ST19#

 1
81150-21060

ST19#..TZ,TZG

TZ(-G)ﾘﾐﾃﾂﾄﾞ*(S),*(U)

 1
81150-21060

ST19#..TZ,TZG

TZ-Gﾘﾐﾃﾂﾄﾞ*(G),*(J)

 1
81150-21060

ST19#

ｴｱﾘｱﾙｼﾖｳ

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-21020

CT190,ST19#

 1
81170-21060

ST19#

ｴｱﾘｱﾙ OR ｴｱﾘｱﾙ ﾂ-ﾘﾝｸﾞ ﾊﾞ-ｼﾞﾖﾝ

 1
81170-21040

AT191,CT190,ST19#

 1
81170-21060

ST19#..TZ,TZG

TZ-Gﾘﾐﾃﾂﾄﾞ*(G),*(J)

 1
81170-21060

ST19#..TZ,TZG

TZ(-G)ﾘﾐﾃﾂﾄﾞ*(S),*(U)

 1
81170-21060

ST19#

ｴｱﾘｱﾙｼﾖｳ

 1
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

CT19#,ET196,ST19#

12V 5W

 2
Common parts
81137-22530
90075-10011
90159-50311
90189-05145
90189-06111
91621-40616
