ST195G-DWMVF (1995)
Toyota Caldina

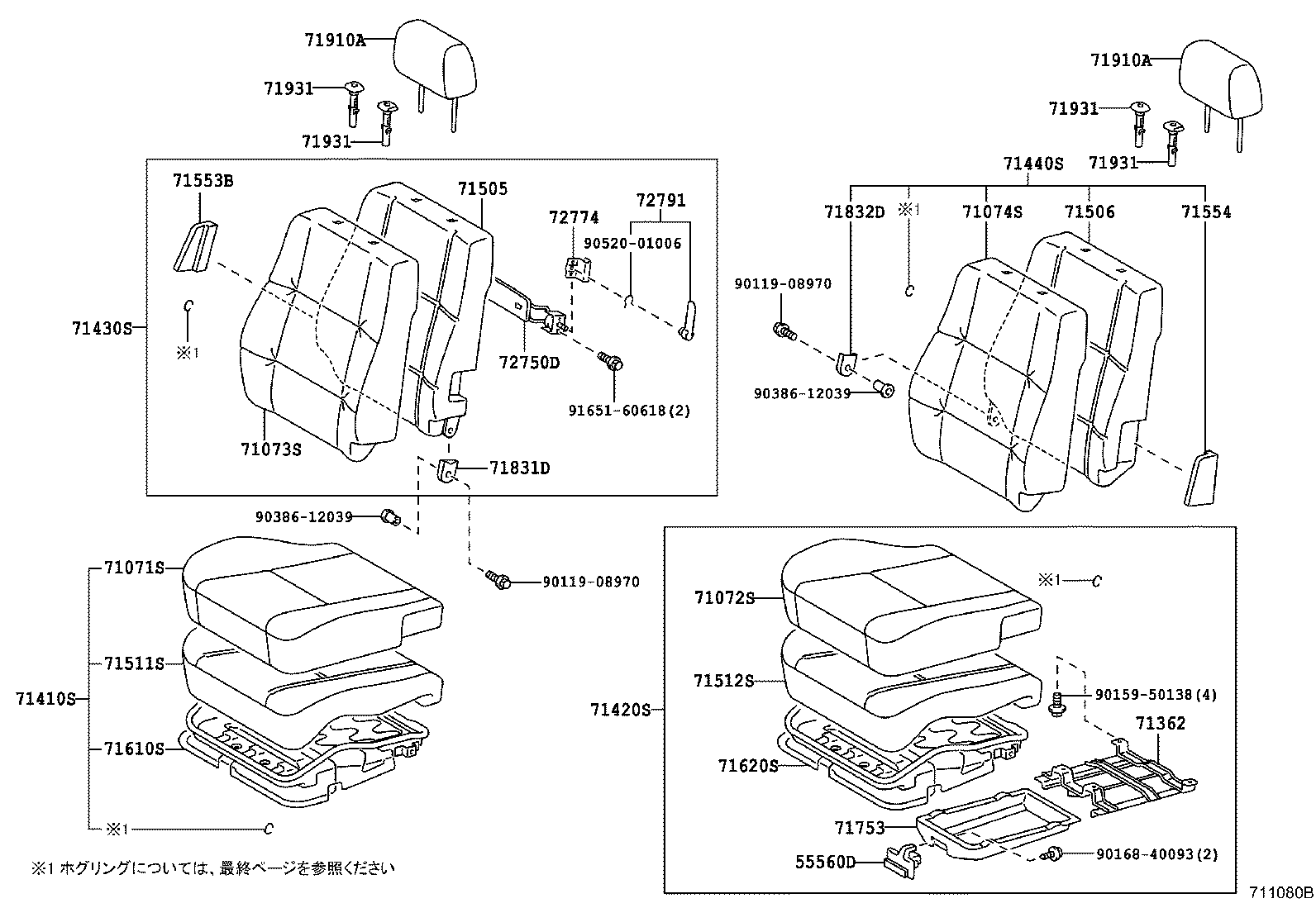

ILLUST NO. 1 OF 2(9211-9601)CZ,TZ,TZG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 55560-95J00C0 |
CT190,ST19# BLACK,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-21070C2 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71071-21170B0 |
AT191,CT190,ST19#..CZ,TZ GRAY,TRIM1# |
1 | ||
| 71071-21140B0 |
ST19# ｴｱﾘｱﾙ,GRAY,TRIM1# |
1 | ||
| 71071-21140B0 |
ST19#..TZ,TZG ｴｱﾘｴﾙ,GRAY,TRIM1# |
1 | ||
| 71071-21210B0 |
ST191,195..TZ ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ(FZ12),GRAY,TRIM1# |
1 | ||
| 71071-21180B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71071-21150B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-21070C2 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71072-21210B0 |
ST191,195..TZ ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾟ(FZ12),GRAY,TRIM1# |
1 | ||
| 71072-21150B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71072-21180B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71072-21170B0 |
AT191,CT190,ST19#..CZ,TZ GRAY,TRIM1# |
1 | ||
| 71072-21140B0 |
ST19#..TZ,TZG ｴｱﾘｴﾙ,GRAY,TRIM1# |
1 | ||
| 71072-21140B0 |
ST19# ｴｱﾘｱﾙ,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-21060C1 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71073-21110B0 |
AT191,CT190,ST19#..CZ,TZ GRAY,TRIM1# |
1 | ||
| 71073-21170B0 |
ST19# ｴｱﾘｱﾙ,GRAY,TRIM1# |
1 | ||
| 71073-21160B0 |
ST191,195..TZ ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ(FZ12),GRAY,TRIM1# |
1 | ||
| 71073-21120B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71073-21170B0 |
ST19#..TZ,TZG ｴｱﾘｴﾙ,GRAY,TRIM1# |
1 | ||
| 71073-21100B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-21060C1 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71074-21140B0 |
ST191,195..TZ ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ(FZ12),GRAY,TRIM1# |
1 | ||
| 71074-21110B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71074-21130B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71074-21150B0 |
ST19#..TZ,TZG ｴｱﾘｴﾙ,GRAY,TRIM1# |
1 | ||
| 71074-21150B0 |
ST19# ｴｱﾘｱﾙ,GRAY,TRIM1# |
1 | ||
| 71074-21120B0 |
AT191,CT190,ST19#..CZ,TZ GRAY,TRIM1# |
1 | ||
| 71362 - BRACKET, FRONT SEAT SET, NO.2 | ||||
| 71362-20130 |
CT190,ST19# |
1 | ||
| 71362-20130 |
CT190,ST19# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-21140B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1#,PLANT.NO.C21-24 |
1 | ||
| 71410-21160B0 |
AT191,CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-21150B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1#,PLANT.NO.A41 |
1 | ||
| 71410-21220B0 |
ST19# ***,ｴｱﾘｱﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-21220B0 |
ST19#..TZ,TZG ***,ｴｱﾘｴﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-21070C2 |
ST191,195..TZ ***,BLACK,TRIM2# |
1 | ||
| 71410-21170B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-21190B0 |
ST195..TZG ***,ｱﾘ(ｽｰﾊﾟｰ ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ),SHADOW GRAY,TRIM1#,PLANT.NO.C21-C24 |
1 | ||
| 71420-21280B0 |
ST19# ***,ｴｱﾘｱﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-21230B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-21210B0 |
ST195..TZG ***,ｱﾘ(ｽｰﾊﾟｰ ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ),SHADOW GRAY,TRIM1#,PLANT.NO.A41 |
1 | ||
| 71420-21220B0 |
AT191,CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-21200B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1#,PLANT.NO.A41 |
1 | ||
| 71420-21180B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1#,PLANT.NO.C21-C24 |
1 | ||
| 71420-21280B0 |
ST19#..TZ,TZG ***,ｴｱﾘｴﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-21070C2 |
CT190,ST19#..CZ,TZ ***,BLACK,TRIM2# |
1 | ||
| 71430-21090B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-21170B0 |
ST19#..TZ,TZG ***,ｴｱﾘｴﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-21170B0 |
ST19# ***,ｴｱﾘｱﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-21110B0 |
AT191,CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-21120B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-21070C2 |
CT190,ST19#..CZ,TZ ***,BLACK,TRIM2# |
1 | ||
| 71440-21140B0 |
ST19# ***,ｴｱﾘｱﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-21140B0 |
ST19#..TZ,TZG ***,ｴｱﾘｴﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-21110B0 |
AT191,CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-21100B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-21120B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-21020 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 71505-20190 |
CT190,ST19#..CZ,TZ |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-20150 |
CT190,ST19#..CZ,TZ |
1 | ||
| 71506-21020 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20630 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 71511-21020 |
AT191,CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20630 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 71512-21010 |
AT191,CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-21010 |
CT190,ST19#..CZ,TZ RH,PLANT.NO.C21-C24 |
1 | ||
| 71553-20220 |
CT190,ST19#..CZ,TZ RH,PLANT.NO.A41 |
1 | ||
| 71553-20220 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-20190 |
CT190,ST19#..CZ,TZ PLANT.NO.A41 |
1 | ||
| 71554-20190 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 71554-21010 |
CT190,ST19#..CZ,TZ PLANT.NO.C21-C24 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20490 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX |
1 | ||
| 71610-20490 |
CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20290 |
CT19#,ET196,ST19# |
1 | ||
| 71620-20290 |
CT19#,ET196,ST19# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-20080 |
CT190,ST19# |
1 | ||
| 71753-20080 |
CT190,ST19# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
CT19#,ET196,ST19# |
1 | ||
| 71831-16010 |
CT19#,ET196,ST19# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
CT19#,ET196,ST19# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B550C0 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
2 | ||
| 71910-21080B0 |
AT191,CT190,ST19#..CZ,TZ,TZG GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B550C0 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
2 | ||
| 71910-21080B0 |
AT191,CT190,ST19#..CZ,TZ,TZG GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1002022 |
CT19#,ET196,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-21050B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-20120B2 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT19#,ET196,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-20080B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1002022 |
CT19#,ET196,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-21050B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-20120B2 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT19#,ET196,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-20080B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1002022 |
CT19#,ET196,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-21050B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-20120B2 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT19#,ET196,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-20080B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1002022 |
CT19#,ET196,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-21050B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-20120B2 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT19#,ET196,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-20080B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-12090 |
CT190,ST19#..CZ,TZ |
1 | ||
| 72774 - PROTECTOR, LUMBAR SUPPORT SPRING | ||||
| 72774-20040 |
CT190,ST19#..CZ,TZ |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-20050C0 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-08970 | ||||
| 90159-50138 | ||||
| 90168-40093 | ||||
| 90386-12039 | ||||
| 90520-01006 | ||||
| 91651-60618 | ||||

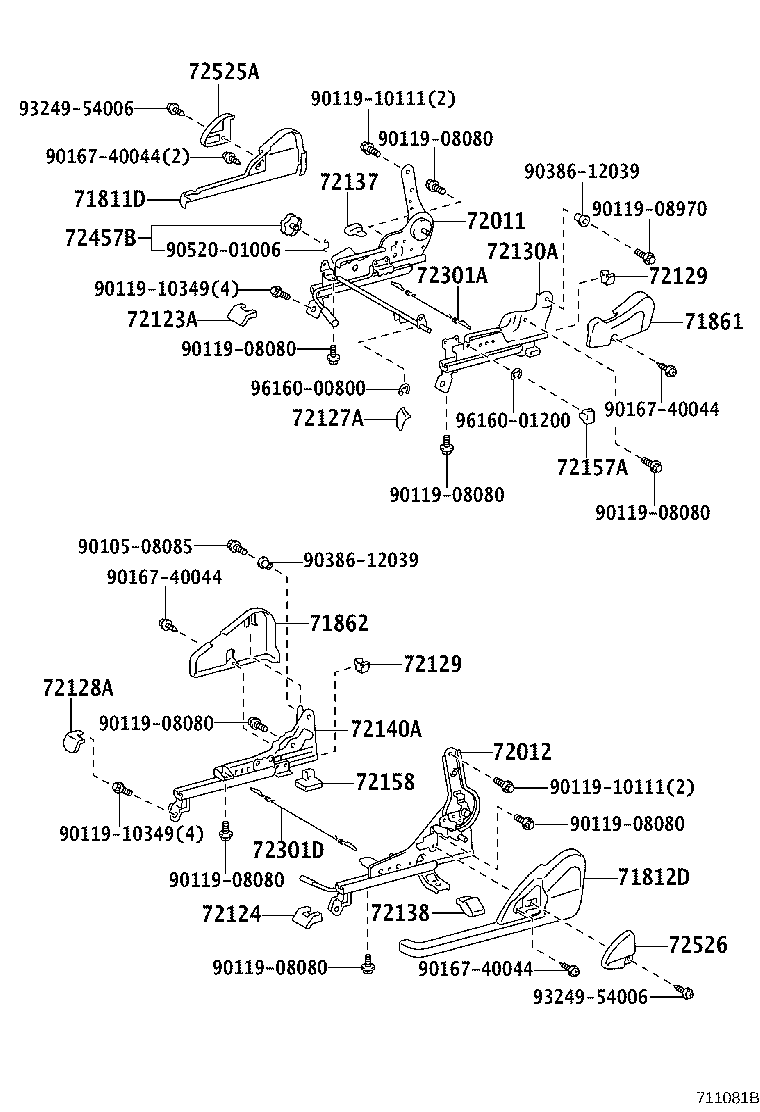

ILLUST NO. 2 OF 2(9211-9601)CZ,FZ,TZ,TZG,UL,UX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20300B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-20230C0 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20200C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 71812-20270B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20040C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 71861-20130B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20040C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 71862-20130B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20250 |
AT191,CT190,ST19# |
1 | ||
| 72010-20280 |
CT190,ST19# |
1 | ||
| 72011-21030 |
AT191,CT190,ST19# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-21020 |
AT191,CT190,ST19# |
1 | ||
| 72020-20220 |
CT190,ST19# |
1 | ||
| 72012-20310 |
AT191,CT190,ST19# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20130C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-20050C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-20040C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-20320 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX |
1 | ||
| 72130-20321 |
CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20060C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72137-20080C0 |
AT191,CT190,ST19# BLACK,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-20030C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72137-20080C0 |
AT191,CT190,ST19# BLACK,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-20270 |
CT19#,ET196,ST19# |
1 | ||
| 72140-20271 |
CT19#,ET196,ST19# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20020C0 |
AT191,CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 72157-20020C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20010C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72158-20010C0 |
AT191,CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12090 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX |
1 | ||
| 72301-12090 |
CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12160 |
CT19#,ET196,ST19# |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-18010C0 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX BLACK,TRIM2# |
1 | ||
| 72457-18010B3 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72525-16010B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90119-08080 | ||||
| 90119-08970 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90386-12039 | ||||
| 90520-01006 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||

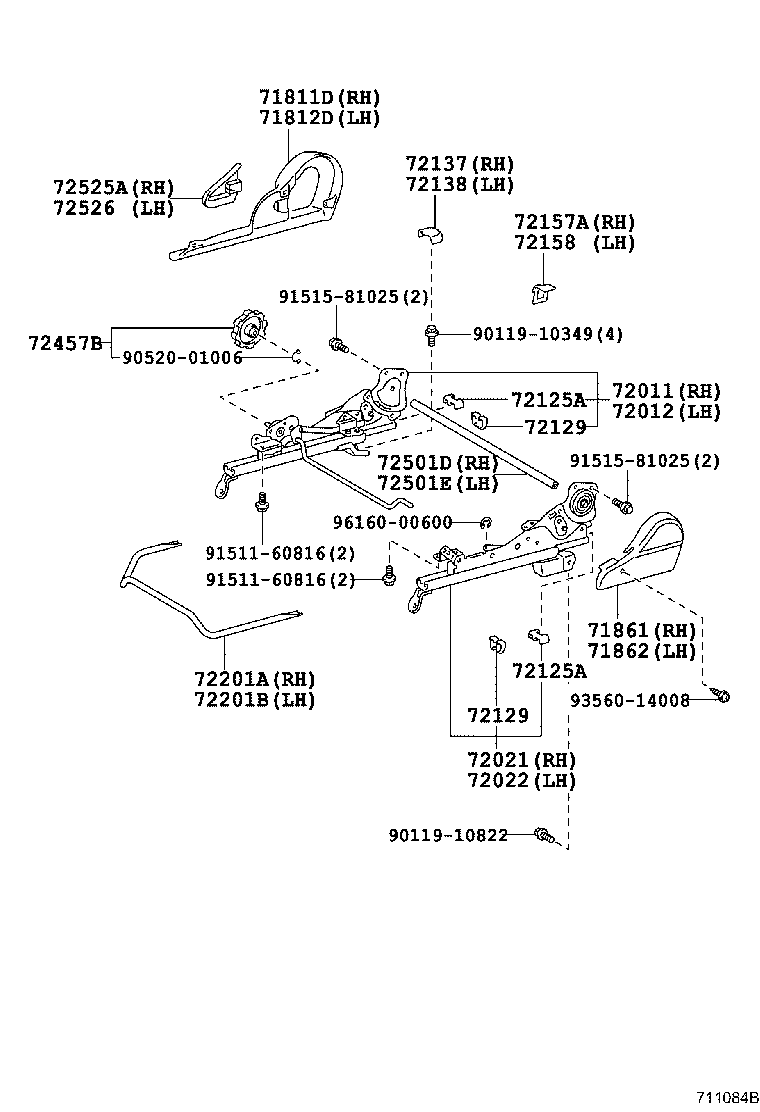

ILLUST NO. 2 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20300B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-20230C0 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20200C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 71812-20270B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20040C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 71861-20130B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20040C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 71862-20130B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20250 |
AT191,CT190,ST19# |
1 | ||
| 72010-20280 |
CT190,ST19# |
1 | ||
| 72011-21030 |
AT191,CT190,ST19# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-21020 |
AT191,CT190,ST19# |
1 | ||
| 72020-20220 |
CT190,ST19# |
1 | ||
| 72012-20310 |
AT191,CT190,ST19# |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-21030 |
AT191,CT190,ST19# |
1 | ||
| 72021-20220 |
AT191,CT190,ST19# |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20280 |
AT191,CT190,ST19# |
1 | ||
| 72022-21020 |
AT191,CT190,ST19# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20060C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72137-20080C0 |
AT191,CT190,ST19# BLACK,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-20030C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72137-20080C0 |
AT191,CT190,ST19# BLACK,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20020C0 |
AT191,CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 72157-20020C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20010C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72158-20010C0 |
AT191,CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-20110 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 72201-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 72201-20110 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-18010C0 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX BLACK,TRIM2# |
1 | ||
| 72457-18010B3 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-20050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-20050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72525-16010B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90119-10822 | ||||
| 90520-01006 | ||||
| 91511-60816 | ||||
| 91515-81025 | ||||
| 93560-14008 | ||||
| 96160-00600 | ||||

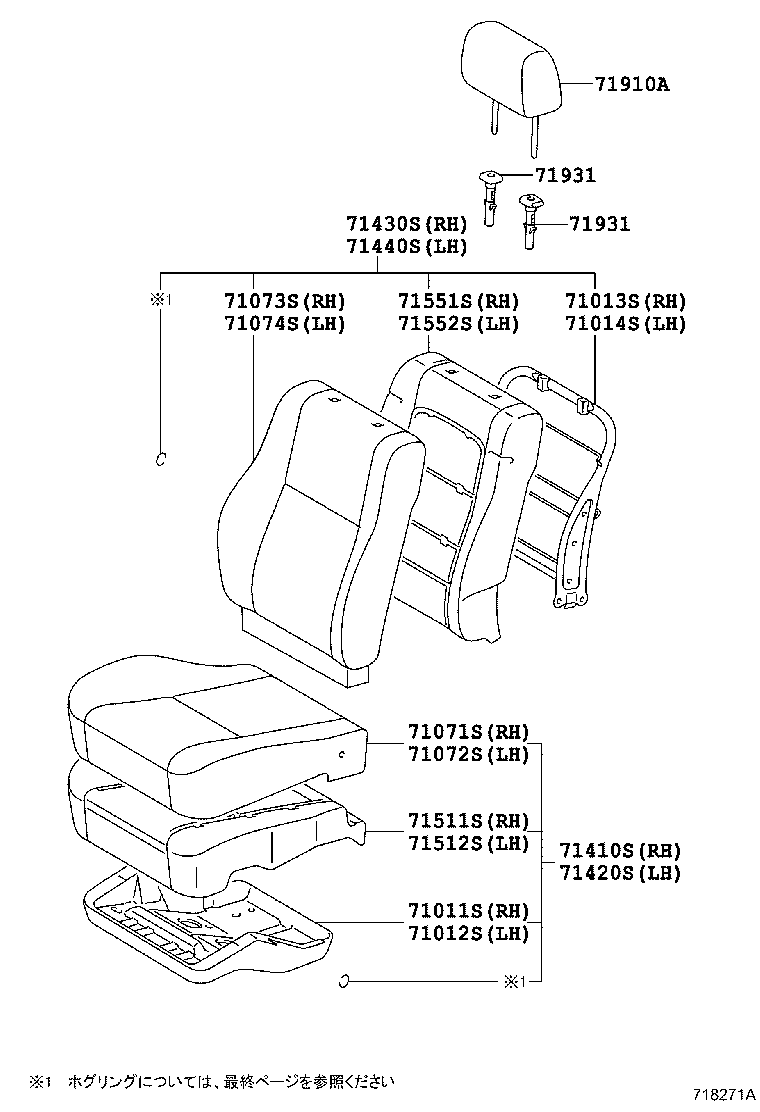

ILLUST NO. 1 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-20430 |
AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-20440 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-21020 |
AT191,CT19#,ET196,ST19#..CZ,TZ,TZG,U,UL,UX |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-21020 |
AT191,CT19#,ET196,ST19#..CZ,TZ,TZG,U,UL,UX |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-21070C2 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71071-21170B0 |
AT191,CT190,ST19#..CZ,TZ GRAY,TRIM1# |
1 | ||
| 71071-21140B0 |
ST19# ｴｱﾘｱﾙ,GRAY,TRIM1# |
1 | ||
| 71071-21140B0 |
ST19#..TZ,TZG ｴｱﾘｴﾙ,GRAY,TRIM1# |
1 | ||
| 71071-21210B0 |
ST191,195..TZ ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ(FZ12),GRAY,TRIM1# |
1 | ||
| 71071-21180B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71071-21150B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-21070C2 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71072-21210B0 |
ST191,195..TZ ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾟ(FZ12),GRAY,TRIM1# |
1 | ||
| 71072-21150B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71072-21180B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71072-21170B0 |
AT191,CT190,ST19#..CZ,TZ GRAY,TRIM1# |
1 | ||
| 71072-21140B0 |
ST19#..TZ,TZG ｴｱﾘｴﾙ,GRAY,TRIM1# |
1 | ||
| 71072-21140B0 |
ST19# ｴｱﾘｱﾙ,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-21060C1 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71073-21110B0 |
AT191,CT190,ST19#..CZ,TZ GRAY,TRIM1# |
1 | ||
| 71073-21170B0 |
ST19# ｴｱﾘｱﾙ,GRAY,TRIM1# |
1 | ||
| 71073-21160B0 |
ST191,195..TZ ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ(FZ12),GRAY,TRIM1# |
1 | ||
| 71073-21120B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71073-21170B0 |
ST19#..TZ,TZG ｴｱﾘｴﾙ,GRAY,TRIM1# |
1 | ||
| 71073-21100B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-21060C1 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71074-21140B0 |
ST191,195..TZ ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ(FZ12),GRAY,TRIM1# |
1 | ||
| 71074-21110B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71074-21130B0 |
ST195..TZG GRAY,TRIM1# |
1 | ||
| 71074-21150B0 |
ST19#..TZ,TZG ｴｱﾘｴﾙ,GRAY,TRIM1# |
1 | ||
| 71074-21150B0 |
ST19# ｴｱﾘｱﾙ,GRAY,TRIM1# |
1 | ||
| 71074-21120B0 |
AT191,CT190,ST19#..CZ,TZ GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-21140B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1#,PLANT.NO.C21-24 |
1 | ||
| 71410-21160B0 |
AT191,CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-21150B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1#,PLANT.NO.A41 |
1 | ||
| 71410-21220B0 |
ST19# ***,ｴｱﾘｱﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-21220B0 |
ST19#..TZ,TZG ***,ｴｱﾘｴﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-21070C2 |
ST191,195..TZ ***,BLACK,TRIM2# |
1 | ||
| 71410-21170B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-21190B0 |
ST195..TZG ***,ｱﾘ(ｽｰﾊﾟｰ ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ),SHADOW GRAY,TRIM1#,PLANT.NO.C21-C24 |
1 | ||
| 71420-21280B0 |
ST19# ***,ｴｱﾘｱﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-21230B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-21210B0 |
ST195..TZG ***,ｱﾘ(ｽｰﾊﾟｰ ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ),SHADOW GRAY,TRIM1#,PLANT.NO.A41 |
1 | ||
| 71420-21220B0 |
AT191,CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-21200B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1#,PLANT.NO.A41 |
1 | ||
| 71420-21180B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1#,PLANT.NO.C21-C24 |
1 | ||
| 71420-21280B0 |
ST19#..TZ,TZG ***,ｴｱﾘｴﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-21070C2 |
CT190,ST19#..CZ,TZ ***,BLACK,TRIM2# |
1 | ||
| 71430-21090B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-21170B0 |
ST19#..TZ,TZG ***,ｴｱﾘｴﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-21170B0 |
ST19# ***,ｴｱﾘｱﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-21110B0 |
AT191,CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-21120B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-21070C2 |
CT190,ST19#..CZ,TZ ***,BLACK,TRIM2# |
1 | ||
| 71440-21140B0 |
ST19# ***,ｴｱﾘｱﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-21140B0 |
ST19#..TZ,TZG ***,ｴｱﾘｴﾙ,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-21110B0 |
AT191,CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-21100B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-21120B0 |
ST195..TZG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20630 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 71511-21020 |
AT191,CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20630 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 71512-21010 |
AT191,CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-21010 |
AT191,CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-21010 |
AT191,CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B550C0 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
2 | ||
| 71910-21080B0 |
AT191,CT190,ST19#..CZ,TZ,TZG GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1002022 |
CT19#,ET196,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-21050B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-20120B2 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT19#,ET196,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-20080B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-21050B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1002022 |
CT19#,ET196,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-20120B2 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT19#,ET196,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-20080B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
