ST195G-DWMVF (1995)
Toyota Caldina

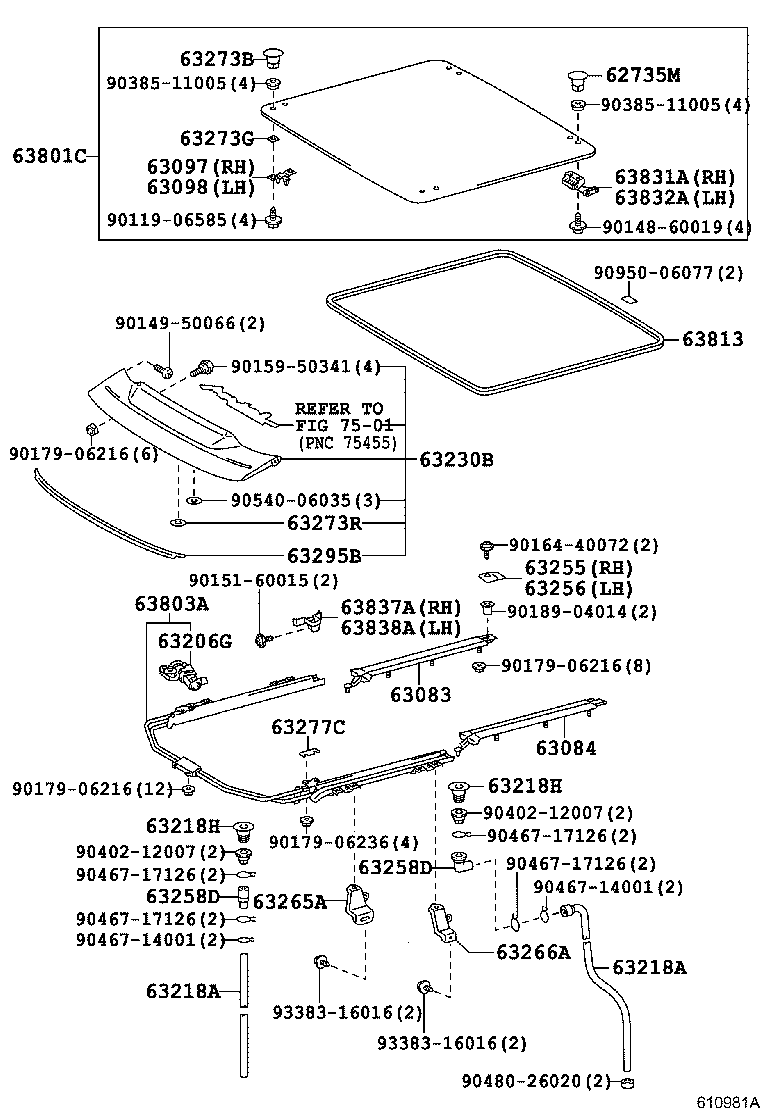

ILLUST NO. 2 OF 3(9601- )ST191,195
ｴｱﾘｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62735M - RETAINER, QUARTER WINDOW HINGE | ||||
| 62735-95D00 |
ST19# ｴｱﾘｱﾙ |
4 | ||
| 63083 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR RH | ||||
| 63083-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63084 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR LH | ||||
| 63084-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63097 - RETAINER SUB-ASSY, REAR SLIDE ROOF SHOE, FRONT RH | ||||
| 63097-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63098 - RETAINER SUB-ASSY, REAR SLIDE ROOF SHOE, FRONT LH | ||||
| 63098-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0W011 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63260-0W010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63260-0W011 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 63260-21021 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63260-21022 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63245-21010 |
ST19# 長さ=1610,ｴｱﾘｱﾙ |
2 | ||
| 63249-21010 |
ST191,195 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63257-21070 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63245-21010 |
ST19# 長さ=1610,ｴｱﾘｱﾙ |
2 | ||
| 63249-21010 |
ST191,195 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63257-21070 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-21040 |
CT190,ST19#..CZ,TZ REAR |
2 | ||
| 63249-20210 |
CT190,ST19#..CZ,TZ,TZG FRONT |
2 | ||
| 63249-20210 |
CT190,ST19#..CZ,TZ FRONT |
2 | ||
| 63247-21020 |
ST19# ｴｱﾘｱﾙ |
4 | ||
| 63249-21040 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),REAR |
2 | ||
| 63249-21040 |
CT190,ST19#..CZ,TZ,TZG REAR |
2 | ||
| 63249-20210 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),FRONT |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-21040 |
CT190,ST19#..CZ,TZ REAR |
2 | ||
| 63249-20210 |
CT190,ST19#..CZ,TZ,TZG FRONT |
2 | ||
| 63249-20210 |
CT190,ST19#..CZ,TZ FRONT |
2 | ||
| 63247-21020 |
ST19# ｴｱﾘｱﾙ |
4 | ||
| 63249-21040 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),REAR |
2 | ||
| 63249-21040 |
CT190,ST19#..CZ,TZ,TZG REAR |
2 | ||
| 63249-20210 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),FRONT |
2 | ||
| 63230B - PANEL ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-05010 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 63255-21010G0 |
ST19# ｴｱﾘｱﾙ,DK.GREEN M.M.,2BL |
1 | ||
| 63255-05010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63255-21010B0 |
ST195..TZG TZ-Gﾘﾐﾃﾂﾄﾞ*(G),*(J),ｴｱﾘｱﾙ;TZ-G ﾘﾐﾃﾂﾄﾞ*(S),*(U),ｴｱﾘｱﾙ,BLUISH SILVER ME,1A0 |
1 | ||
| 63255-21010J0 |
ST19# ｴｱﾘｱﾙ,DK.BLUE M.M.,2BM |
1 | ||
| 63255-05010 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63255-21010C0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(S)*(U) & ｴｱﾘｱﾙ,BLACK ME.,26V |
1 | ||
| 63255-21010C0 |
ST19# ｴｱﾘｱﾙ,BLACK ME,26V |
1 | ||
| 63255-21010B0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(S)*(U) & ｴｱﾘｱﾙ,BLUISH SILVER ME.,1A0 |
1 | ||
| 63255-21010C0 |
ST195..TZG TZ-Gﾘﾐﾃﾂﾄﾞ*(G),*(J),ｴｱﾘｱﾙ;TZ-G ﾘﾐﾃﾂﾄﾞ*(S),*(U),ｴｱﾘｱﾙ,BLACK ME,26V |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63256-05010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63256-21020C0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(G),*(J),ｴｱﾘｱﾙ,BLACK ME,26V |
1 | ||
| 63256-21020C0 |
ST195..TZG TZ-G ﾘﾐﾃﾂﾄﾞ*(G),*(J),ｴｱﾘｱﾙ,BLACK ME,26V |
1 | ||
| 63256-21020C0 |
ST19# ｴｱﾘｱﾙ,BLACK ME,26V |
1 | ||
| 63256-21020J0 |
ST19# ｴｱﾘｱﾙ,DK.BLUE M.M.,2BM |
1 | ||
| 63256-21020B0 |
ST195..TZG TZ-G ﾘﾐﾃﾂﾄﾞ*(G),*(J),ｴｱﾘｱﾙ,BLUISH SILVER ME,1A0 |
1 | ||
| 63256-21020G0 |
ST19# ｴｱﾘｱﾙ,DK.GREEN M.M.,2BL |
1 | ||
| 63256-05010 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63256-05010 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 63256-21020B0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(S),*(U),ｴｱﾘｱﾙ,BLUISH SILVER ME,1A0 |
1 | ||
| 63256-21020B0 |
ST195..TZG TZ-G ﾘﾐﾃﾂﾄﾞ*(S),*(U),ｴｱﾘｱﾙ,BLUISH SILVER ME,1A0 |
1 | ||
| 63256-21020C0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(S),*(U),ｴｱﾘｱﾙ,BLACK ME,26V |
1 | ||
| 63256-21020B0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(G),*(J),ｴｱﾘｱﾙ,BLUISH SILVER ME,1A0 |
1 | ||
| 63256-21020C0 |
ST195..TZG TZ-G ﾘﾐﾃﾂﾄﾞ*(S),*(U),ｴｱﾘｱﾙ,BLACK ME,26V |
1 | ||
| 63258D - JOINT, SLIDE ROOF DRAIN HOSE | ||||
| 63258-95J01 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63258-21010 |
ST19# ｴｱﾘｱﾙ,NO.1 |
4 | ||
| 63258-21020 |
ST19# ｴｱﾘｱﾙ,NO.2 |
4 | ||
| 63258D - JOINT, SLIDE ROOF DRAIN HOSE | ||||
| 63258-95J01 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63258-21010 |
ST19# ｴｱﾘｱﾙ,NO.1 |
4 | ||
| 63258-21020 |
ST19# ｴｱﾘｱﾙ,NO.2 |
4 | ||
| 63265A - LEVER, REMOVABLE ROOF LOCK, RH | ||||
| 63265-21020 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63266A - LEVER, REMOVABLE ROOF LOCK, LH | ||||
| 63266-21010 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63273B - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-28030 |
ST19# ｴｱﾘｱﾙ |
4 | ||
| 63273G - PACKING, SLIDE ROOF | ||||
| 63273-95J00 |
ST19# ｴｱﾘｱﾙ |
4 | ||
| 63273R - PACKING, ROOF WINDOW DEFRECTOR | ||||
| 63273-21010 |
ST19# ｴｱﾘｱﾙ |
3 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-28030 |
ST19# 厚さ=2.0,ｴｱﾘｱﾙ |
1 | ||
| 63277-95701 |
ST19# 厚さ=1.0,ｴｱﾘｱﾙ |
1 | ||
| 63295B - PAD, ROOF WIND DEFLECTOR PANEL | ||||
| 63295-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63295-21010 |
ST19# ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63801C - GLASS SUB-ASSY, REAR SLIDE ROOF | ||||
| 63801-21020 |
ST19# *SERT,厚さ=5.0,ｸﾞﾘｰﾝ,ｴｱﾘｱﾙ |
1 | ||
| 63803A - CABLE SUB-ASSY, REAR SLIDE ROOF DRIVE | ||||
| 63803-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63803-21011 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63813 - WEATHERSTRIP, REAR SLIDE ROOF | ||||
| 63813-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63831A - SHOE, REAR SLIDE ROOF, RH | ||||
| 60383-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63832A - SHOE, REAR SLIDE ROOF, LH | ||||
| 60384-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63837A - GARNISH, REAR SLIDE ROOF, RH | ||||
| 63837-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63838A - GARNISH, REAR SLIDE ROOF, LH | ||||
| 63838-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| Common parts | ||||
| 90119-06585 | ||||
| 90148-60019 | ||||
| 90149-50066 | ||||
| 90151-60015 | ||||
| 90159-50341 | ||||
| 90164-40072 | ||||
| 90179-06216 | ||||
| 90179-06236 | ||||
| 90189-04014 | ||||
| 90385-11005 | ||||
| 90402-12007 | ||||
| 90467-14001 | ||||
| 90467-17126 | ||||
| 90480-26020 | ||||
| 90540-06035 | ||||
| 90950-06077 | ||||
| 93383-16016 | ||||
| Linked diagrams | ||||
| 7501 | ||||

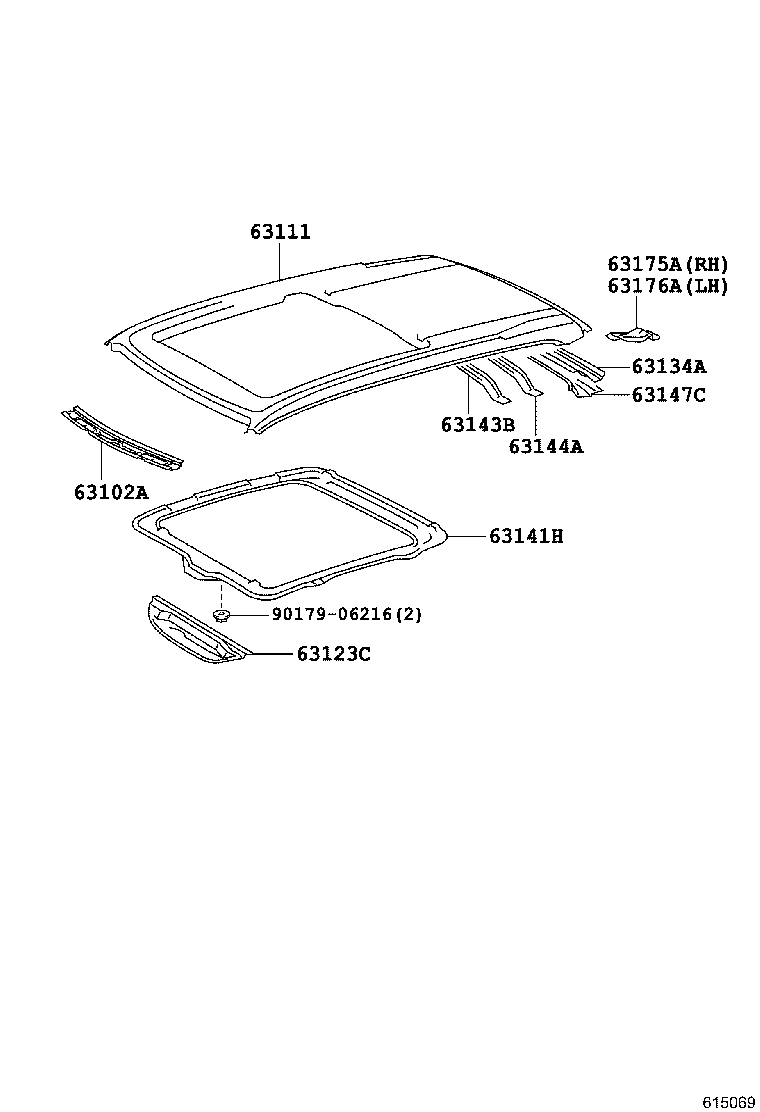

ILLUST NO. 1 OF 3(9601- )ST191,195
ｴｱﾘｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20230 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63102-20230 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63102-20240 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63014-21010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-21090 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63111-21040 |
AT191,CT190,ST19# |
1 | ||
| 63123C - REINFORCEMENT, ROOF PANEL | ||||
| 63123-21011 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63123-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-20150 |
CT19#,ET196,ST19# |
1 | ||
| 63141-21021 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63141-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63141-21030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-21050 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63143-21030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63143-20100 |
CT19#,ET196,ST19# |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-21020 |
ST19# ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63144-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63144-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63147C - REINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER | ||||
| 63147-21020 |
ST19# ｴｱﾘｱﾙ & ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) OR ｴｱﾘｱﾙ ﾂ-ﾘﾝｸﾞﾊﾞ-ｼﾞﾖﾝ & ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63147-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63147-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH | ||||
| 63175-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH | ||||
| 63176-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| Common parts | ||||
| 90179-06216 | ||||

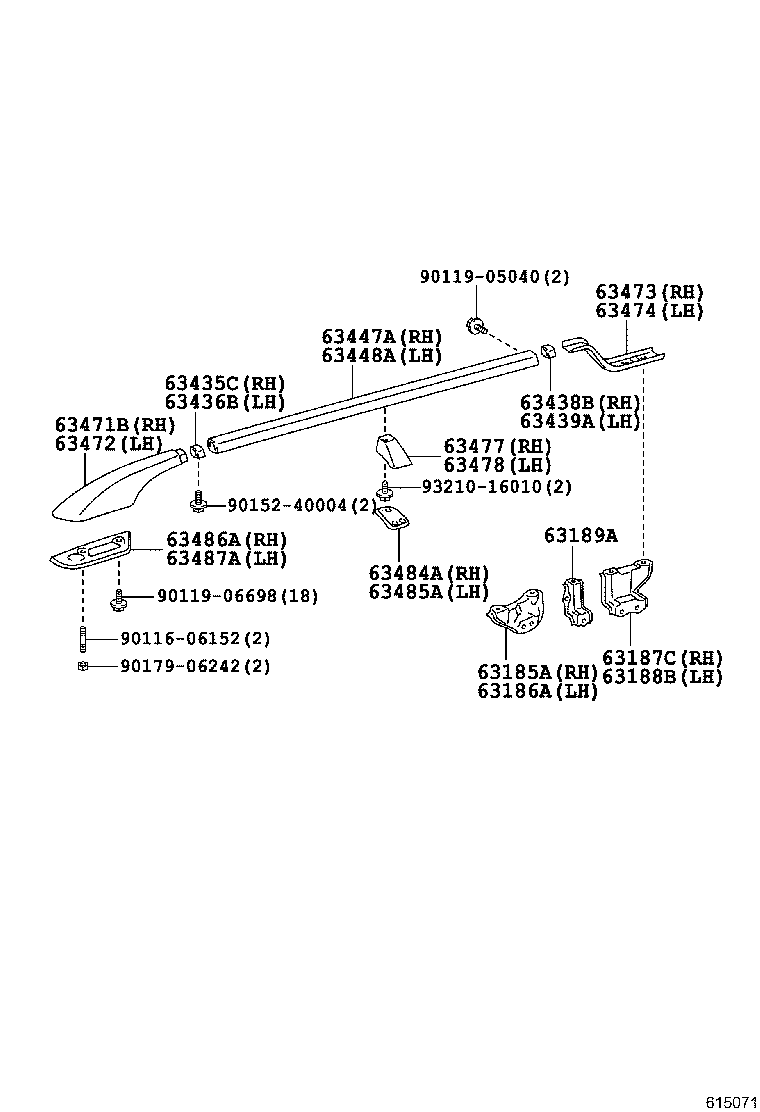

ILLUST NO. 3 OF 3(9601- )ST191,195
ｴｱﾘｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-21010 |
CT190,ST19# |
1 | ||
| 63185-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63185-21010 |
AT191,CT190,ST19# |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-21010 |
CT190,ST19# |
1 | ||
| 63186-21010 |
AT191,CT190,ST19# |
1 | ||
| 63186-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63187C - BRACKET, ROOF RACK, NO.1 REAR RH | ||||
| 63187-21010 |
CT190,ST19# |
1 | ||
| 63187-21010 |
AT191,CT190,ST19# |
1 | ||
| 63187-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63188B - BRACKET, ROOF RACK, NO.1 REAR LH | ||||
| 63188-21010 |
CT190,ST19# |
1 | ||
| 63188-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63188-21010 |
AT191,CT190,ST19# |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-21010 |
CT190,ST19# |
2 | ||
| 63189-21010 |
AT191,CT190,ST19# |
2 | ||
| 63189-21020 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63435-13020 |
CT190,ST19# FRONT |
1 | ||
| 63435-13020 |
AT191,CT190,ST19# FRONT |
1 | ||
| 63436-13030 |
CT190,ST19# REAR |
1 | ||
| 63435-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63436-13030 |
AT191,CT190,ST19# REAR |
1 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63435-13020 |
CT190,ST19# REAR |
1 | ||
| 63436-13030 |
CT190,ST19# FRONT |
1 | ||
| 63435-13020 |
AT191,CT190,ST19# REAR |
1 | ||
| 63436-13030 |
AT191,CT190,ST19# FRONT |
1 | ||
| 63436-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63438B - SEAL, ROOF CARRIER, NO.3 RH | ||||
| 63438-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63439A - SEAL, ROOF CARRIER, NO.3 LH | ||||
| 63439-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63447A - ROOF RAIL, RH | ||||
| 63447-21020 |
CT190,ST19# |
1 | ||
| 63447-21020 |
AT191,CT190,ST19# |
1 | ||
| 63447-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63448A - ROOF RAIL, LH | ||||
| 63448-21010 |
AT191,CT190,ST19# |
1 | ||
| 63448-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63448-21010 |
CT190,ST19# |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-21020 |
CT190,ST19# |
1 | ||
| 63471-21030 |
AT191,CT190,ST19# |
1 | ||
| 63471-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-21900 |
ST19#..TZ,TZG ｴｱﾘｱﾙ |
1 | ||
| 63472-21020 |
AT191,CT190,ST19# |
1 | ||
| 63472-21010 |
CT190,ST19# |
1 | ||
| 63472-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-21010 |
CT190,ST19# |
1 | ||
| 63473-21030 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63473-21020 |
AT191,CT190,ST19# |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-21010 |
CT190,ST19# |
1 | ||
| 63474-21020 |
AT191,CT190,ST19# |
1 | ||
| 63474-21030 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63477 - SUPPORT, ROOF RACK, CENTER RH | ||||
| 63477-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63477-21010 |
AT191,CT190,ST19# |
1 | ||
| 63477-21010 |
CT190,ST19# |
1 | ||
| 63478 - SUPPORT, ROOF RACK, CENTER LH | ||||
| 63478-21010 |
AT191,CT190,ST19# |
1 | ||
| 63478-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63478-21010 |
CT190,ST19# |
1 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-21030 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63484-21020 |
AT191,CT190,ST19# |
1 | ||
| 63484-21020 |
CT190,ST19# |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-21010 |
CT190,ST19# |
1 | ||
| 63485-21010 |
AT191,CT190,ST19# |
1 | ||
| 63485-21030 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-21010 |
CT190,ST19# |
1 | ||
| 63486-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63486-21010 |
AT191,CT190,ST19# |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-21010 |
CT190,ST19# |
1 | ||
| 63487-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63487-21010 |
AT191,CT190,ST19# |
1 | ||
| Common parts | ||||
| 90116-06152 | ||||
| 90119-05040 | ||||
| 90119-06698 | ||||
| 90152-40004 | ||||
| 90179-06242 | ||||
| 93210-16010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
