ST195G-DWMGK (1992)
Toyota Caldina

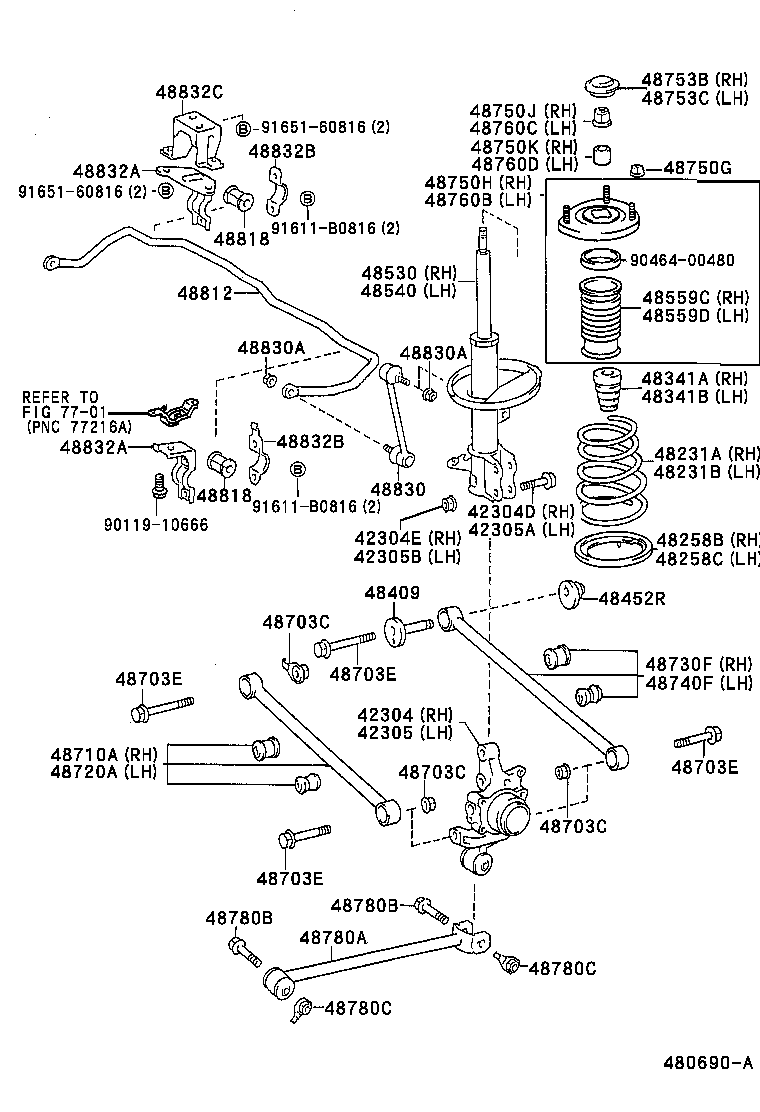

(9211-9601)ST195
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-20200 |
ST195 |
1 | ||
| 42304-20210 |
ST195 ｱﾘ(ABS) |
1 | ||
| 42304-20210 |
ST195 |
1 | ||
| 42304D - BOLT (FOR REAR AXLE CARRIER RH) | ||||
| 90105-15001 |
CT190,ST19# |
2 | ||
| 90105-15001 |
AT191,CT190,ST19# |
2 | ||
| 42304E - NUT (FOR REAR AXLE CARRIER RH) | ||||
| 90179-15001 |
AT191,CT190,ST19# |
2 | ||
| 90179-15001 |
CT190,ST19# |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-20210 |
ST195 ｱﾘ(ABS) |
1 | ||
| 42305-20200 |
ST195 |
1 | ||
| 42305-20210 |
ST195 |
1 | ||
| 42305A - BOLT (FOR REAR AXLE CARRIER LH) | ||||
| 90105-15001 |
CT190,ST19# |
2 | ||
| 90105-15001 |
AT191,CT190,ST19# |
2 | ||
| 42305B - NUT (FOR REAR AXLE CARRIER LH) | ||||
| 90179-15001 |
CT190,ST19# |
2 | ||
| 90179-15001 |
AT191,CT190,ST19# |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-2D740 |
ST195..CZ,TZ |
1 | ||
| 48231-2G270 |
ST195 |
1 | ||
| 48231-2D740 |
ST195 |
1 | ||
| 48231-21041 |
CT190,ST195..CZ,FZ,TZ |
1 | ||
| 48231-2D780 |
ST195..TZ ﾌｲ-ﾙﾄﾞﾊﾝﾀ- |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-2D740 |
ST195 |
1 | ||
| 48231-21041 |
CT190,ST195..CZ,FZ,TZ |
1 | ||
| 48231-2D780 |
ST195..TZ ﾌｲ-ﾙﾄﾞﾊﾝﾀ- |
1 | ||
| 48231-2D740 |
ST195..CZ,TZ |
1 | ||
| 48231-2G270 |
ST195 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-32010 |
CT190,ST19# |
1 | ||
| 48258-32010 |
AT191,CT190,ST19# |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-32010 |
AT191,CT190,ST19# |
1 | ||
| 48258-32010 |
CT190,ST19# |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-20280 |
CT190,ST19# |
1 | ||
| 48341-32071 |
ST195 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-32071 |
ST195 |
1 | ||
| 48341-20280 |
CT190,ST19# |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-32030 |
ST195 |
2 | ||
| 48409-32030 |
ST195 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-32030 |
ST195 |
2 | ||
| 48452-32030 |
ST195 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-20860 |
ST195 |
1 | ||
| 48530-29395 |
ST195 |
1 | ||
| 48530-29525 |
ST195..CZ,TZ |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-29095 |
ST195 |
1 | ||
| 48540-29205 |
ST195..CZ,TZ |
1 | ||
| 48540-20860 |
ST195 |
1 | ||
| 48559C - COVER, REAR SHOCK ABSORBER DUST, RH NO.1 | ||||
| 48559-20040 |
CT190,ST19# 東海ｺﾞﾑ |
1 | ||
| 48559-20040 |
CT190,ST19# 東海ｺﾞﾑ |
1 | ||
| 48559D - COVER, REAR SHOCK ABSORBER DUST, LH NO.1 | ||||
| 48559-20040 |
CT190,ST19# 東海ｺﾞﾑ |
1 | ||
| 48559-20040 |
CT190,ST19# 東海ｺﾞﾑ |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
ST195 ｷﾔﾘｱ ｻｲﾄﾞ |
4 | ||
| 90179-12100 |
ST195 ﾎﾞﾃﾞｰ側 |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
ST195 ｷﾔﾘｱ ｻｲﾄﾞ |
4 | ||
| 90179-12100 |
ST195 ﾎﾞﾃﾞｰ側 |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
ST195 ｷﾔﾘｱ ｻｲﾄﾞ |
4 | ||
| 90179-12100 |
ST195 ﾎﾞﾃﾞｰ側 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12126 |
ST195 *12−1.25PX94−35 |
2 | ||
| 90901-19002 |
ST195 *14−1.50PX95−26,ｷﾔﾘｱ ｻｲﾄﾞ |
4 | ||
| 90901-19003 |
ST195 *12−1.25PX78−24,ﾎﾞﾃﾞｰ側 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12126 |
ST195 *12−1.25PX94−35 |
2 | ||
| 90901-19002 |
ST195 *14−1.50PX95−26,ｷﾔﾘｱ ｻｲﾄﾞ |
4 | ||
| 90901-19003 |
ST195 *12−1.25PX78−24,ﾎﾞﾃﾞｰ側 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12126 |
ST195 *12−1.25PX94−35 |
2 | ||
| 90901-19002 |
ST195 *14−1.50PX95−26,ｷﾔﾘｱ ｻｲﾄﾞ |
4 | ||
| 90901-19003 |
ST195 *12−1.25PX78−24,ﾎﾞﾃﾞｰ側 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12126 |
ST195 *12−1.25PX94−35 |
2 | ||
| 90901-19002 |
ST195 *14−1.50PX95−26,ｷﾔﾘｱ ｻｲﾄﾞ |
4 | ||
| 90901-19003 |
ST195 *12−1.25PX78−24,ﾎﾞﾃﾞｰ側 |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-20270 |
ST195 |
1 | ||
| 48710-20270 |
ST195 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-20270 |
ST195 |
1 | ||
| 48710-20270 |
ST195 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-20180 |
ST195 |
1 | ||
| 48730-20180 |
ST195 |
1 | ||
| 48730-20230 |
ST195 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-20180 |
ST195 |
1 | ||
| 48730-20230 |
ST195 |
1 | ||
| 48730-20180 |
ST195 |
1 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-08122 |
CT190,ST19# |
6 | ||
| 90179-08122 |
AT191,CT190,ST19# |
6 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-20150 |
AT191,CT190,ST19# |
1 | ||
| 48750-20100 |
CT190,ST19# |
1 | ||
| 48750-20100 |
CT190,ST19# |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90179-14015 |
CT190,ST19# |
1 | ||
| 94184-61400 |
AT191,CT190,ST19# |
1 | ||
| 90179-14015 |
CT190,ST19# |
1 | ||
| 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90387-15012 |
CT190,ST19# |
1 | ||
| 90387-15027 |
AT191,CT190,ST19# |
1 | ||
| 90387-15027 |
CT190,ST19# |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-20040 |
CT190,ST19# |
1 | ||
| 48753-20040 |
AT191,CT190,ST19# |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-20040 |
CT190,ST19# |
1 | ||
| 48753-20040 |
AT191,CT190,ST19# |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-20100 |
CT190,ST19# |
1 | ||
| 48750-20100 |
CT190,ST19# |
1 | ||
| 48750-20150 |
AT191,CT190,ST19# |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90179-14015 |
CT190,ST19# |
1 | ||
| 94184-61400 |
AT191,CT190,ST19# |
1 | ||
| 90179-14015 |
CT190,ST19# |
1 | ||
| 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90387-15012 |
CT190,ST19# |
1 | ||
| 90387-15027 |
CT190,ST19# |
1 | ||
| 90387-15027 |
AT191,CT190,ST19# |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-12010 |
ST195 |
2 | ||
| 48780-12010 |
ST195 |
2 | ||
| 48780-32060 |
ST195 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
AT191,CT190,ST19# |
4 | ||
| 90119-12131 |
CT190,ST19# |
4 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
AT191,CT190,ST19# |
4 | ||
| 90119-12131 |
CT190,ST19# |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12062 |
CT190,ST19# ｷﾔﾘｱ ｻｲﾄﾞ |
2 | ||
| 90179-12114 |
AT191,CT190,ST19# ﾎﾞﾃﾞｰ側 |
2 | ||
| 90179-12091 |
AT191,CT190,ST19# ｷﾔﾘｱ ｻｲﾄﾞ |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12062 |
CT190,ST19# ｷﾔﾘｱ ｻｲﾄﾞ |
2 | ||
| 90179-12114 |
AT191,CT190,ST19# ﾎﾞﾃﾞｰ側 |
2 | ||
| 90179-12091 |
AT191,CT190,ST19# ｷﾔﾘｱ ｻｲﾄﾞ |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-20740 |
ST195 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-20290 |
ST195 |
2 | ||
| 48818-20290 |
ST195 |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-20290 |
ST195 |
2 | ||
| 48818-20290 |
ST195 |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-32040 |
ST195 |
2 | ||
| 48830-32040 |
ST195 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
CT190,ST19# |
4 | ||
| 90179-10054 |
CT190,ST19# |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
CT190,ST19# |
4 | ||
| 90179-10054 |
CT190,ST19# |
4 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-32050 |
ST195 左側 |
1 | ||
| 48832-32070 |
ST195 右側 |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-32050 |
ST195 左側 |
1 | ||
| 48832-32070 |
ST195 右側 |
1 | ||
| 48832B - BRACKET, REAR STABILIZER BAR, NO.2 | ||||
| 48832-32060 |
ST195 左側 |
1 | ||
| 48832-32080 |
ST195 右側 |
1 | ||
| 48832B - BRACKET, REAR STABILIZER BAR, NO.2 | ||||
| 48832-32060 |
ST195 左側 |
1 | ||
| 48832-32080 |
ST195 右側 |
1 | ||
| 48832C - BRACKET, REAR STABILIZER BAR, NO.3 | ||||
| 48832-32090 |
ST195 |
1 | ||
| 48832-32090 |
ST195 |
1 | ||
| Common parts | ||||
| 90119-10666 | ||||
| 90464-00480 | ||||
| 91611-B0816 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 7701 | ||||

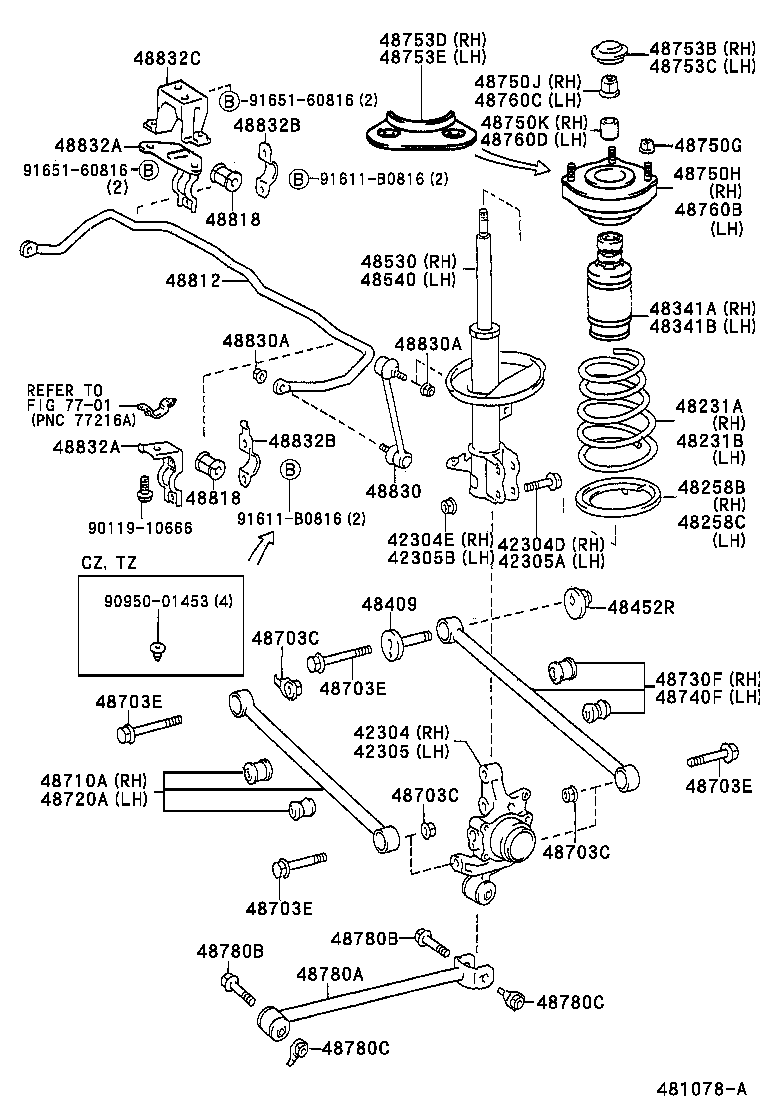

(9601-9708)ST195
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-20200 |
ST195 |
1 | ||
| 42304-20210 |
ST195 ｱﾘ(ABS) |
1 | ||
| 42304-20210 |
ST195 |
1 | ||
| 42304D - BOLT (FOR REAR AXLE CARRIER RH) | ||||
| 90105-15001 |
CT190,ST19# |
2 | ||
| 90105-15001 |
AT191,CT190,ST19# |
2 | ||
| 42304E - NUT (FOR REAR AXLE CARRIER RH) | ||||
| 90179-15001 |
AT191,CT190,ST19# |
2 | ||
| 90179-15001 |
CT190,ST19# |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-20210 |
ST195 ｱﾘ(ABS) |
1 | ||
| 42305-20200 |
ST195 |
1 | ||
| 42305-20210 |
ST195 |
1 | ||
| 42305A - BOLT (FOR REAR AXLE CARRIER LH) | ||||
| 90105-15001 |
CT190,ST19# |
2 | ||
| 90105-15001 |
AT191,CT190,ST19# |
2 | ||
| 42305B - NUT (FOR REAR AXLE CARRIER LH) | ||||
| 90179-15001 |
CT190,ST19# |
2 | ||
| 90179-15001 |
AT191,CT190,ST19# |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-2D740 |
ST195..CZ,TZ |
1 | ||
| 48231-2G270 |
ST195 |
1 | ||
| 48231-2D740 |
ST195 |
1 | ||
| 48231-21041 |
CT190,ST195..CZ,FZ,TZ |
1 | ||
| 48231-2D780 |
ST195..TZ ﾌｲ-ﾙﾄﾞﾊﾝﾀ- |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-2D740 |
ST195 |
1 | ||
| 48231-21041 |
CT190,ST195..CZ,FZ,TZ |
1 | ||
| 48231-2D780 |
ST195..TZ ﾌｲ-ﾙﾄﾞﾊﾝﾀ- |
1 | ||
| 48231-2D740 |
ST195..CZ,TZ |
1 | ||
| 48231-2G270 |
ST195 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-32010 |
CT190,ST19# |
1 | ||
| 48258-32010 |
AT191,CT190,ST19# |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-32010 |
AT191,CT190,ST19# |
1 | ||
| 48258-32010 |
CT190,ST19# |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-20280 |
CT190,ST19# |
1 | ||
| 48341-32071 |
ST195 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-32071 |
ST195 |
1 | ||
| 48341-20280 |
CT190,ST19# |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-32030 |
ST195 |
2 | ||
| 48409-32030 |
ST195 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-32030 |
ST195 |
2 | ||
| 48452-32030 |
ST195 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-20860 |
ST195 |
1 | ||
| 48530-29395 |
ST195 |
1 | ||
| 48530-29525 |
ST195..CZ,TZ |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-29095 |
ST195 |
1 | ||
| 48540-29205 |
ST195..CZ,TZ |
1 | ||
| 48540-20860 |
ST195 |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
ST195 ｷﾔﾘｱ ｻｲﾄﾞ |
4 | ||
| 90179-12100 |
ST195 ﾎﾞﾃﾞｰ側 |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
ST195 ｷﾔﾘｱ ｻｲﾄﾞ |
4 | ||
| 90179-12100 |
ST195 ﾎﾞﾃﾞｰ側 |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
ST195 ｷﾔﾘｱ ｻｲﾄﾞ |
4 | ||
| 90179-12100 |
ST195 ﾎﾞﾃﾞｰ側 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12126 |
ST195 *12−1.25PX94−35 |
2 | ||
| 90901-19002 |
ST195 *14−1.50PX95−26,ｷﾔﾘｱ ｻｲﾄﾞ |
4 | ||
| 90901-19003 |
ST195 *12−1.25PX78−24,ﾎﾞﾃﾞｰ側 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12126 |
ST195 *12−1.25PX94−35 |
2 | ||
| 90901-19002 |
ST195 *14−1.50PX95−26,ｷﾔﾘｱ ｻｲﾄﾞ |
4 | ||
| 90901-19003 |
ST195 *12−1.25PX78−24,ﾎﾞﾃﾞｰ側 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12126 |
ST195 *12−1.25PX94−35 |
2 | ||
| 90901-19002 |
ST195 *14−1.50PX95−26,ｷﾔﾘｱ ｻｲﾄﾞ |
4 | ||
| 90901-19003 |
ST195 *12−1.25PX78−24,ﾎﾞﾃﾞｰ側 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12126 |
ST195 *12−1.25PX94−35 |
2 | ||
| 90901-19002 |
ST195 *14−1.50PX95−26,ｷﾔﾘｱ ｻｲﾄﾞ |
4 | ||
| 90901-19003 |
ST195 *12−1.25PX78−24,ﾎﾞﾃﾞｰ側 |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-20270 |
ST195 |
1 | ||
| 48710-20270 |
ST195 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-20270 |
ST195 |
1 | ||
| 48710-20270 |
ST195 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-20180 |
ST195 |
1 | ||
| 48730-20180 |
ST195 |
1 | ||
| 48730-20230 |
ST195 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-20180 |
ST195 |
1 | ||
| 48730-20230 |
ST195 |
1 | ||
| 48730-20180 |
ST195 |
1 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-08122 |
CT190,ST19# |
6 | ||
| 90179-08122 |
AT191,CT190,ST19# |
6 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-20150 |
AT191,CT190,ST19# |
1 | ||
| 48750-20100 |
CT190,ST19# |
1 | ||
| 48750-20100 |
CT190,ST19# |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90179-14015 |
CT190,ST19# |
1 | ||
| 94184-61400 |
AT191,CT190,ST19# |
1 | ||
| 90179-14015 |
CT190,ST19# |
1 | ||
| 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90387-15012 |
CT190,ST19# |
1 | ||
| 90387-15027 |
AT191,CT190,ST19# |
1 | ||
| 90387-15027 |
CT190,ST19# |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-20040 |
CT190,ST19# |
1 | ||
| 48753-20040 |
AT191,CT190,ST19# |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-20040 |
CT190,ST19# |
1 | ||
| 48753-20040 |
AT191,CT190,ST19# |
1 | ||
| 48753D - COVER, REAR SUSPENSION SUPOPORT, NO.2 RH | ||||
| 48753-20070 |
AT191,CT190,ST19# |
1 | ||
| 48753-20060 |
ST19# |
1 | ||
| 48753E - COVER, REAR SUSPENSION SUPOPORT, NO.2 LH | ||||
| 48753-20070 |
AT191,CT190,ST19# |
1 | ||
| 48753-20060 |
ST19# |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-20100 |
CT190,ST19# |
1 | ||
| 48750-20100 |
CT190,ST19# |
1 | ||
| 48750-20150 |
AT191,CT190,ST19# |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90179-14015 |
CT190,ST19# |
1 | ||
| 94184-61400 |
AT191,CT190,ST19# |
1 | ||
| 90179-14015 |
CT190,ST19# |
1 | ||
| 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90387-15012 |
CT190,ST19# |
1 | ||
| 90387-15027 |
CT190,ST19# |
1 | ||
| 90387-15027 |
AT191,CT190,ST19# |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-12010 |
ST195 |
2 | ||
| 48780-12010 |
ST195 |
2 | ||
| 48780-32060 |
ST195 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
AT191,CT190,ST19# |
4 | ||
| 90119-12131 |
CT190,ST19# |
4 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
AT191,CT190,ST19# |
4 | ||
| 90119-12131 |
CT190,ST19# |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12062 |
CT190,ST19# ｷﾔﾘｱ ｻｲﾄﾞ |
2 | ||
| 90179-12114 |
AT191,CT190,ST19# ﾎﾞﾃﾞｰ側 |
2 | ||
| 90179-12091 |
AT191,CT190,ST19# ｷﾔﾘｱ ｻｲﾄﾞ |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12062 |
CT190,ST19# ｷﾔﾘｱ ｻｲﾄﾞ |
2 | ||
| 90179-12114 |
AT191,CT190,ST19# ﾎﾞﾃﾞｰ側 |
2 | ||
| 90179-12091 |
AT191,CT190,ST19# ｷﾔﾘｱ ｻｲﾄﾞ |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-20740 |
ST195 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-20290 |
ST195 |
2 | ||
| 48818-20290 |
ST195 |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-20290 |
ST195 |
2 | ||
| 48818-20290 |
ST195 |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-32040 |
ST195 |
2 | ||
| 48830-32040 |
ST195 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
CT190,ST19# |
4 | ||
| 90179-10054 |
CT190,ST19# |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
CT190,ST19# |
4 | ||
| 90179-10054 |
CT190,ST19# |
4 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-32050 |
ST195 左側 |
1 | ||
| 48832-32070 |
ST195 右側 |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-32050 |
ST195 左側 |
1 | ||
| 48832-32070 |
ST195 右側 |
1 | ||
| 48832B - BRACKET, REAR STABILIZER BAR, NO.2 | ||||
| 48832-32060 |
ST195 左側 |
1 | ||
| 48832-32080 |
ST195 右側 |
1 | ||
| 48832B - BRACKET, REAR STABILIZER BAR, NO.2 | ||||
| 48832-32060 |
ST195 左側 |
1 | ||
| 48832-32080 |
ST195 右側 |
1 | ||
| 48832C - BRACKET, REAR STABILIZER BAR, NO.3 | ||||
| 48832-32090 |
ST195 |
1 | ||
| 48832-32090 |
ST195 |
1 | ||
| Common parts | ||||
| 90119-10666 | ||||
| 90950-01453 | ||||
| 91611-B0816 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 7701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
