ST195G-DWMEK (1992)

Toyota Caldina

Production Nov 1992 - Aug 1997
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211-9601)CT190,ST19#

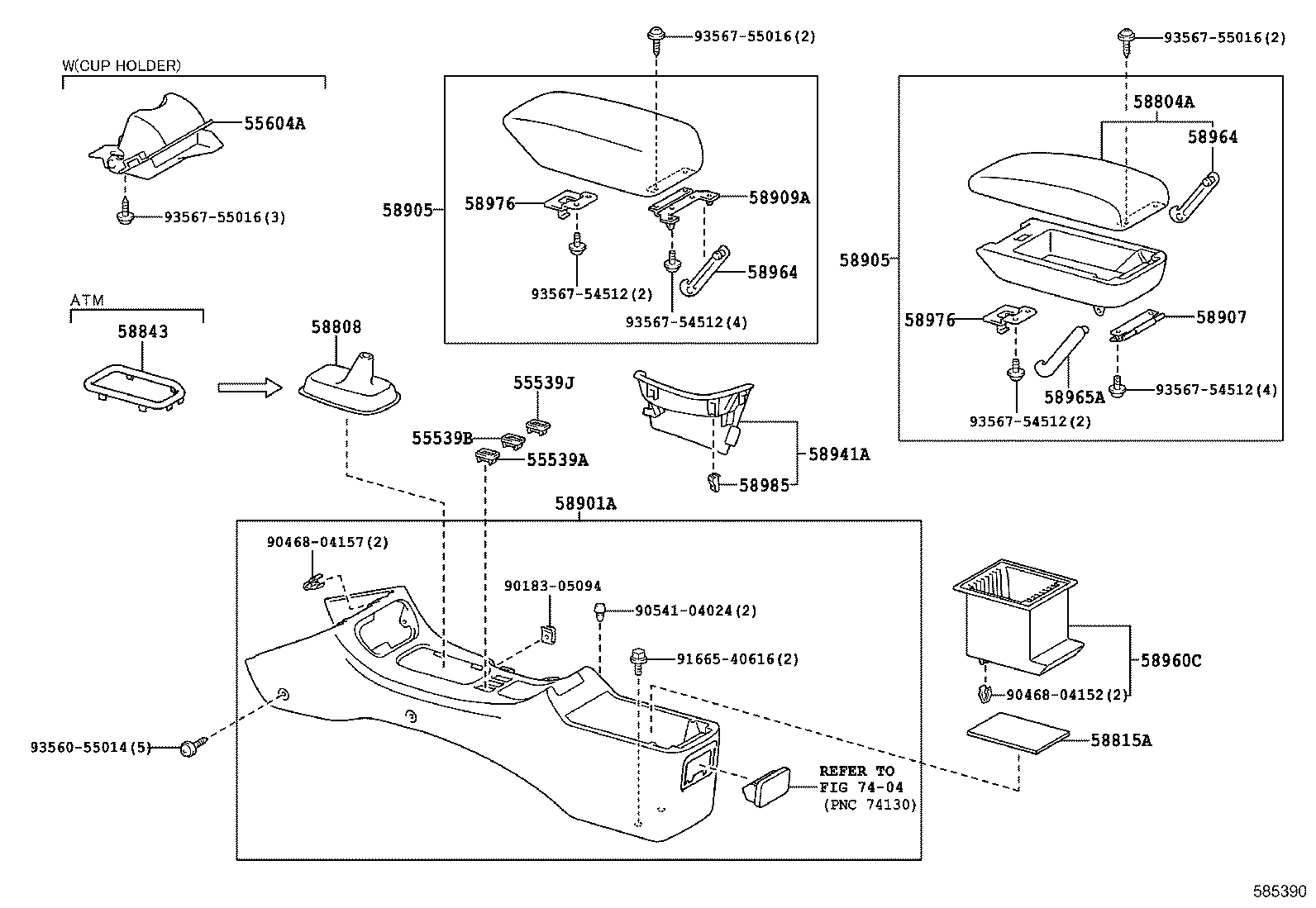

Click highlighted areas on diagram

diagram 55539A 55539B 55539J 55604A 58804A 58808 58815A 58843 58901A 58905 58905 58907 58909A 58941A 58960C 58964 58964 58965A 58976 58976 58985 7404 9018305094 9046804152 9046804157 9054104024 9166540616 9356055014 9356754512 9356754512 9356754512 9356754512 9356755016 9356755016 9356755016
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-20020C0

CT190,ST19#

BLACK,TRIM2#

 1
55539-20020P0

CT190,ST19#

SHADOW GRAY,TRIM1#

 1
55539-20020P0

CT190,ST19#

SHADOW GRAY,TRIM1#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-20020P0

CT190,ST19#

SHADOW GRAY,TRIM1#

 1
55539-20020P0

CT190,ST19#

SHADOW GRAY,TRIM1#

 1
55539-20020C0

CT190,ST19#

BLACK,TRIM2#

 1
55539J - COVER, SPARE SWITCH HOLE
55539-20020C0

CT190,ST19#

BLACK,TRIM2#

 1
55539-20020P0

CT190,ST19#

SHADOW GRAY,TRIM1#

 1
55539-20020P0

CT190,ST19#

SHADOW GRAY,TRIM1#

 1
55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-20050C0

CT190,ST19#

BLACK,TRIM2#

 1
55604-20050B1

CT190,ST19#

SHADOW GRAY,TRIM1#

 1
55604-20050B1

CT190,ST19#

SHADOW GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-20100C0

CT19#,ET196,ST190,195..5F

BLACK,TRIM2#

 1
58808-20100C0

CT19#,ET196,ST190,195..5F

BLACK,TRIM1#

 1
58815A - CARPET, CONSOLE BOX
58815-20030C0

CT190,ST19#

BLACK,TRIM1#

 1
58815-21010

AT191,CT19#,ET196,ST19#

 1
58815-20060

AT191,CT19#,ET196,ST19#

 1
58815-20030C0

CT190,ST19#

BLACK,TRIM2#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-20120B2

CT190,ST19#

SHADOW GRAY,TRIM1#

 1
58901-20140B0

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,U,UX

SHADOW GRAY,TRIM1#

 1
58901-20120C1

CT190,ST19#

BLACK,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-20170C0

CT190,ST19#..CZ,FZ

BLACK,TRIM2#

 1
58905-20170B1

CT190,ST19#..CZ,FZ

SHADOW GRAY,TRIM1#

 1
58905-20250B0

AT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

SHADOW GRAY,TRIM1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-20170C0

CT190,ST19#..CZ,FZ

BLACK,TRIM2#

 1
58905-20170B1

CT190,ST19#..CZ,FZ

SHADOW GRAY,TRIM1#

 1
58905-20250B0

AT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

SHADOW GRAY,TRIM1#

 1
58909A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
58909-20030

CT190,ST19#..CZ,FZ

 1
58941A - COVER, PARKING BRAKE HOLE
58904-20030C0

CT190,ST19#

BLACK,TRIM2#

 1
58904-20030B1

CT190,ST19#

SHADOW GRAY,TRIM1#

 1
58904-20050B0

AT191,CT19#,ET196,ST19#

SHADOW GRAY,TRIM1#

 1
58960C - HOLDER ASSY, CASSETTE CASE
58960-20050

CT190,ST19#..CZ,TZ

 1
58960-20050

CT190,ST19#..CZ,TZ,TZG

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20030C0

AT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

BLACK,TRIM1#

 1
58965-12040

CT190,ST19#

左側

 1
58964-12040

CT190,ST19#

右側

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20030C0

AT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

BLACK,TRIM1#

 1
58965-12040

CT190,ST19#

左側

 1
58964-12040

CT190,ST19#

右側

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20040C0

AT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

BLACK,TRIM1#

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20020

AT191,CT19#,ET196,ST19#

 1
58976-20020

CT190,ST19#

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20020

AT191,CT19#,ET196,ST19#

 1
58976-20020

CT190,ST19#

 1
58985 - RETAINER, CONSOLE BOX
58985-20050

CT19#,ET196,ST19#

 1
58985-20050

CT19#,ET196,ST19#

 1
Common parts
90183-05094
90468-04152
90468-04157
90541-04024
91665-40616
93560-55014
93567-54512
93567-55016
Linked diagrams
7404

(9601- )

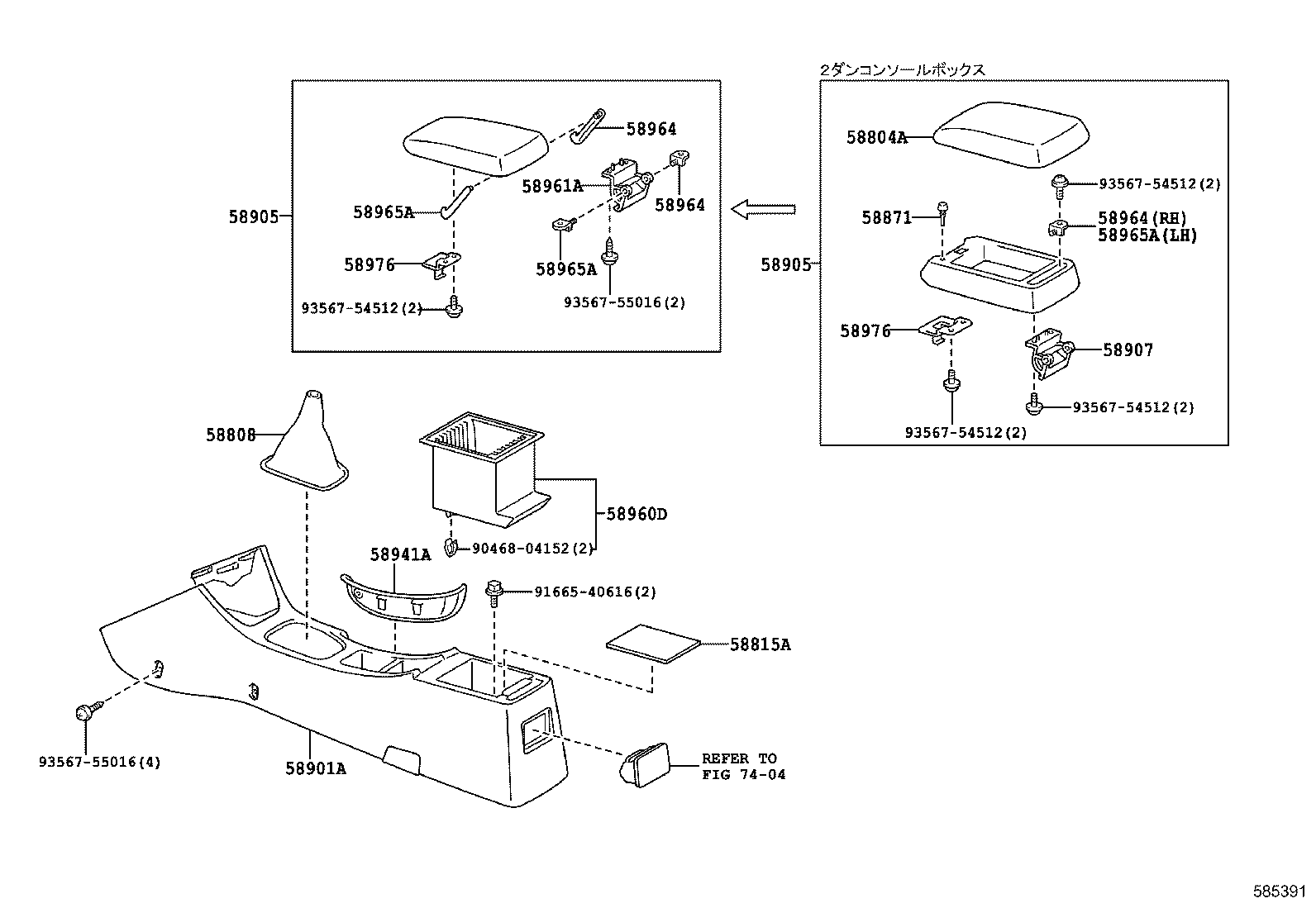

Click highlighted areas on diagram

diagram 58804A 58808 58815A 58871 58901A 58905 58905 58907 58941A 58960D 58961A 58964 58964 58964 58965A 58965A 58965A 58976 58976 7404 9046804152 9166540616 9356754512 9356754512 9356754512 9356754512 9356755016 9356755016
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-20100C0

CT19#,ET196,ST190,195..5F

BLACK,TRIM2#

 1
58808-20100C0

CT19#,ET196,ST190,195..5F

BLACK,TRIM1#

 1
58815A - CARPET, CONSOLE BOX
58815-20030C0

CT190,ST19#

BLACK,TRIM1#

 1
58815-21010

AT191,CT19#,ET196,ST19#

 1
58815-20060

AT191,CT19#,ET196,ST19#

 1
58815-20030C0

CT190,ST19#

BLACK,TRIM2#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-20120B2

CT190,ST19#

SHADOW GRAY,TRIM1#

 1
58901-20140B0

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,U,UX

SHADOW GRAY,TRIM1#

 1
58901-20120C1

CT190,ST19#

BLACK,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-20170C0

CT190,ST19#..CZ,FZ

BLACK,TRIM2#

 1
58905-20170B1

CT190,ST19#..CZ,FZ

SHADOW GRAY,TRIM1#

 1
58905-20250B0

AT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

SHADOW GRAY,TRIM1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-20170C0

CT190,ST19#..CZ,FZ

BLACK,TRIM2#

 1
58905-20170B1

CT190,ST19#..CZ,FZ

SHADOW GRAY,TRIM1#

 1
58905-20250B0

AT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

SHADOW GRAY,TRIM1#

 1
58941A - COVER, PARKING BRAKE HOLE
58904-20030C0

CT190,ST19#

BLACK,TRIM2#

 1
58904-20030B1

CT190,ST19#

SHADOW GRAY,TRIM1#

 1
58904-20050B0

AT191,CT19#,ET196,ST19#

SHADOW GRAY,TRIM1#

 1
58960D - HOLDER ASSY, CD CASE
58960-20060

AT191,CT190,ST19#..CZ,TZ,TZG

 1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58961-20030

AT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20030C0

AT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

BLACK,TRIM1#

 1
58965-12040

CT190,ST19#

左側

 1
58964-12040

CT190,ST19#

右側

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20030C0

AT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

BLACK,TRIM1#

 1
58965-12040

CT190,ST19#

左側

 1
58964-12040

CT190,ST19#

右側

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20030C0

AT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

BLACK,TRIM1#

 1
58965-12040

CT190,ST19#

左側

 1
58964-12040

CT190,ST19#

右側

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20040C0

AT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

BLACK,TRIM1#

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20040C0

AT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

BLACK,TRIM1#

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20040C0

AT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

BLACK,TRIM1#

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20020

AT191,CT19#,ET196,ST19#

 1
58976-20020

CT190,ST19#

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20020

AT191,CT19#,ET196,ST19#

 1
58976-20020

CT190,ST19#

 1
Common parts
90468-04152
91665-40616
93567-54512
93567-55016
Linked diagrams
7404
