ST191G-DWPGK (1992)
Toyota Caldina

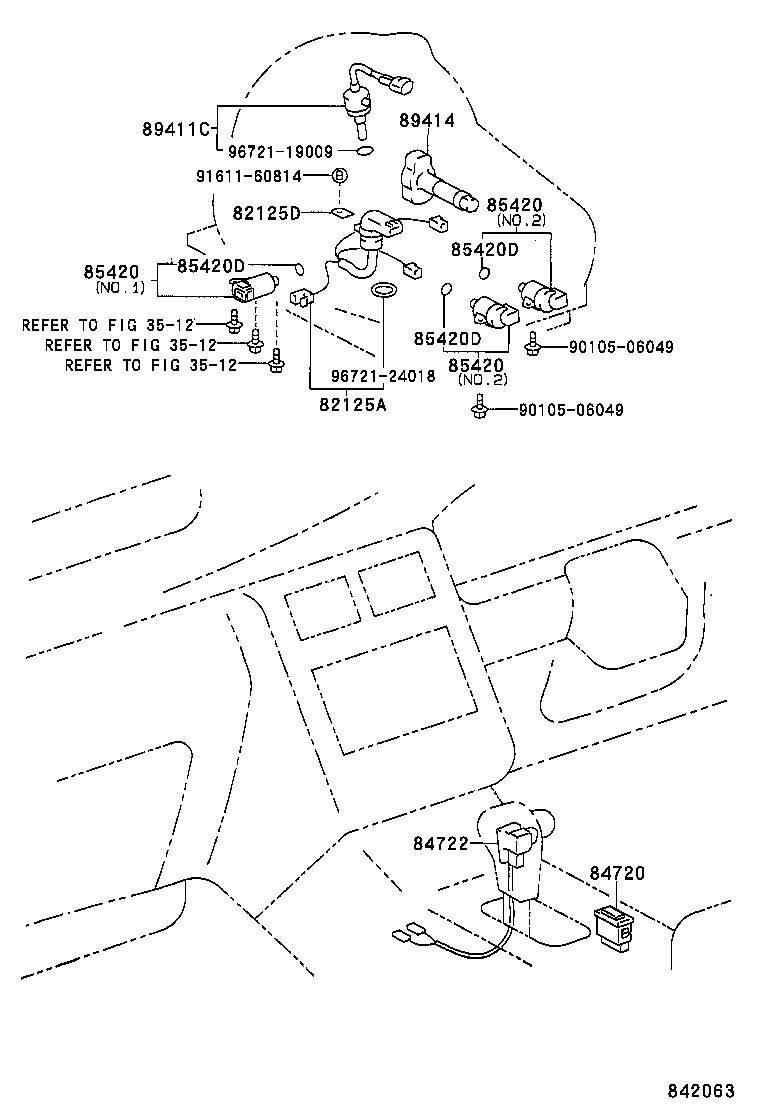

(9211-9601)CT190,196,ST190,191..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-20160 |
ST190,191..4FC |
1 | ||
| 82125-20220 |
ST190,191..4FC |
1 | ||
| 82125D - PLATE, TRANSMISSION WIRE LOCK | ||||
| 33485-30020 |
CT190,196,197,ST190,191..4FC |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-20170 |
AT191,ST19#..4FC |
1 | ||
| 84720-20080 |
ST19#..4FC |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-20150C0 |
CT190,196,ST19#..4FC BLACK,TRIM1# |
1 | ||
| 84722-20110C0 |
CT190,196,ST19#..4FC BLACK,TRIM2# |
1 | ||
| 84722-20150C0 |
CT190,196,ST19#..4FC BLACK,TRIM2# |
1 | ||
| 84722-20170C0 |
AT191,CT190,196,197,ST19#..4FC BLACK,TRIM1# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-12062 |
ST190,191..4FC NO.1 |
1 | ||
| 85420-20140 |
ST191 NO.1 |
1 | ||
| 85420-22080 |
ST190,191..4FC NO.2 |
2 | ||
| 85420-20140 |
ST190,191..4FC NO.1 |
1 | ||
| 85420-30200 |
ST190,191..4FC NO.2 |
2 | ||
| 85420-30200 |
ST191 NO.2 |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-12062 |
ST190,191..4FC NO.1 |
1 | ||
| 85420-20140 |
ST191 NO.1 |
1 | ||
| 85420-22080 |
ST190,191..4FC NO.2 |
2 | ||
| 85420-20140 |
ST190,191..4FC NO.1 |
1 | ||
| 85420-30200 |
ST190,191..4FC NO.2 |
2 | ||
| 85420-30200 |
ST191 NO.2 |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-12062 |
ST190,191..4FC NO.1 |
1 | ||
| 85420-20140 |
ST191 NO.1 |
1 | ||
| 85420-22080 |
ST190,191..4FC NO.2 |
2 | ||
| 85420-20140 |
ST190,191..4FC NO.1 |
1 | ||
| 85420-30200 |
ST190,191..4FC NO.2 |
2 | ||
| 85420-30200 |
ST191 NO.2 |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
ST191 |
6 | ||
| 90301-06004 |
ST19#..4FC |
6 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
ST191 |
6 | ||
| 90301-06004 |
ST19#..4FC |
6 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
ST191 |
6 | ||
| 90301-06004 |
ST19#..4FC |
6 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-20050 |
ST190,191..4FC |
1 | ||
| 89414 - ROTOR, SENSOR | ||||
| 89414-12010 |
ST190,191..4FC |
1 | ||
| Common parts | ||||
| 90105-06049 | ||||
| 91611-60814 | ||||
| 96721-19009 | ||||
| 96721-24018 | ||||
| Linked diagrams | ||||
| 3512 | ||||

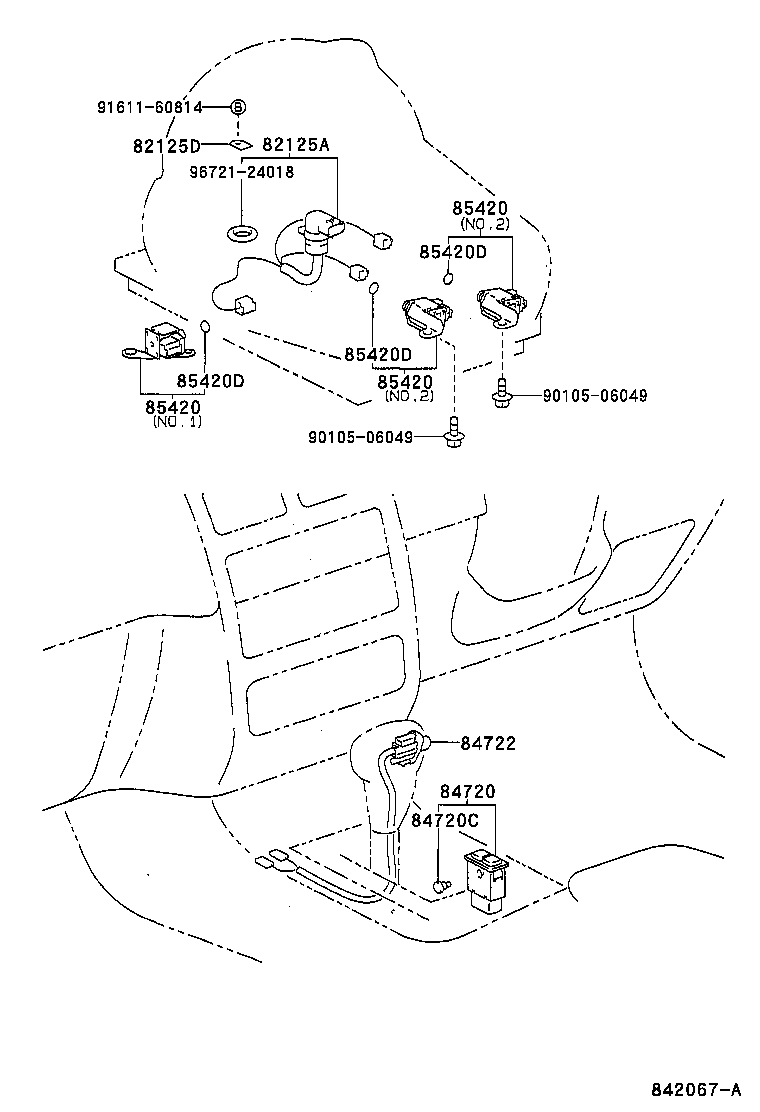

(9601- )ST191
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-20160 |
ST190,191..4FC |
1 | ||
| 82125-20220 |
ST190,191..4FC |
1 | ||
| 82125D - PLATE, TRANSMISSION WIRE LOCK | ||||
| 33485-30020 |
CT190,196,197,ST190,191..4FC |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-20170 |
AT191,ST19#..4FC |
1 | ||
| 84720-20080 |
ST19#..4FC |
1 | ||
| 84720C - BULB(FOR PATTERN SELECT SWITCH) | ||||
| 84999-20110 |
AT191,ST19#..4FC 14V 1.4W |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-20150C0 |
CT190,196,ST19#..4FC BLACK,TRIM1# |
1 | ||
| 84722-20110C0 |
CT190,196,ST19#..4FC BLACK,TRIM2# |
1 | ||
| 84722-20150C0 |
CT190,196,ST19#..4FC BLACK,TRIM2# |
1 | ||
| 84722-20170C0 |
AT191,CT190,196,197,ST19#..4FC BLACK,TRIM1# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-12062 |
ST190,191..4FC NO.1 |
1 | ||
| 85420-20140 |
ST191 NO.1 |
1 | ||
| 85420-22080 |
ST190,191..4FC NO.2 |
2 | ||
| 85420-20140 |
ST190,191..4FC NO.1 |
1 | ||
| 85420-30200 |
ST190,191..4FC NO.2 |
2 | ||
| 85420-30200 |
ST191 NO.2 |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-12062 |
ST190,191..4FC NO.1 |
1 | ||
| 85420-20140 |
ST191 NO.1 |
1 | ||
| 85420-22080 |
ST190,191..4FC NO.2 |
2 | ||
| 85420-20140 |
ST190,191..4FC NO.1 |
1 | ||
| 85420-30200 |
ST190,191..4FC NO.2 |
2 | ||
| 85420-30200 |
ST191 NO.2 |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-12062 |
ST190,191..4FC NO.1 |
1 | ||
| 85420-20140 |
ST191 NO.1 |
1 | ||
| 85420-22080 |
ST190,191..4FC NO.2 |
2 | ||
| 85420-20140 |
ST190,191..4FC NO.1 |
1 | ||
| 85420-30200 |
ST190,191..4FC NO.2 |
2 | ||
| 85420-30200 |
ST191 NO.2 |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
ST191 |
6 | ||
| 90301-06004 |
ST19#..4FC |
6 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
ST191 |
6 | ||
| 90301-06004 |
ST19#..4FC |
6 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
ST191 |
6 | ||
| 90301-06004 |
ST19#..4FC |
6 | ||
| Common parts | ||||
| 90105-06049 | ||||
| 91611-60814 | ||||
| 96721-24018 | ||||
