ST191G-DWPEK (1992)

Toyota Caldina

Production Nov 1992 - Aug 1997
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211-9402)ET196,ST19#

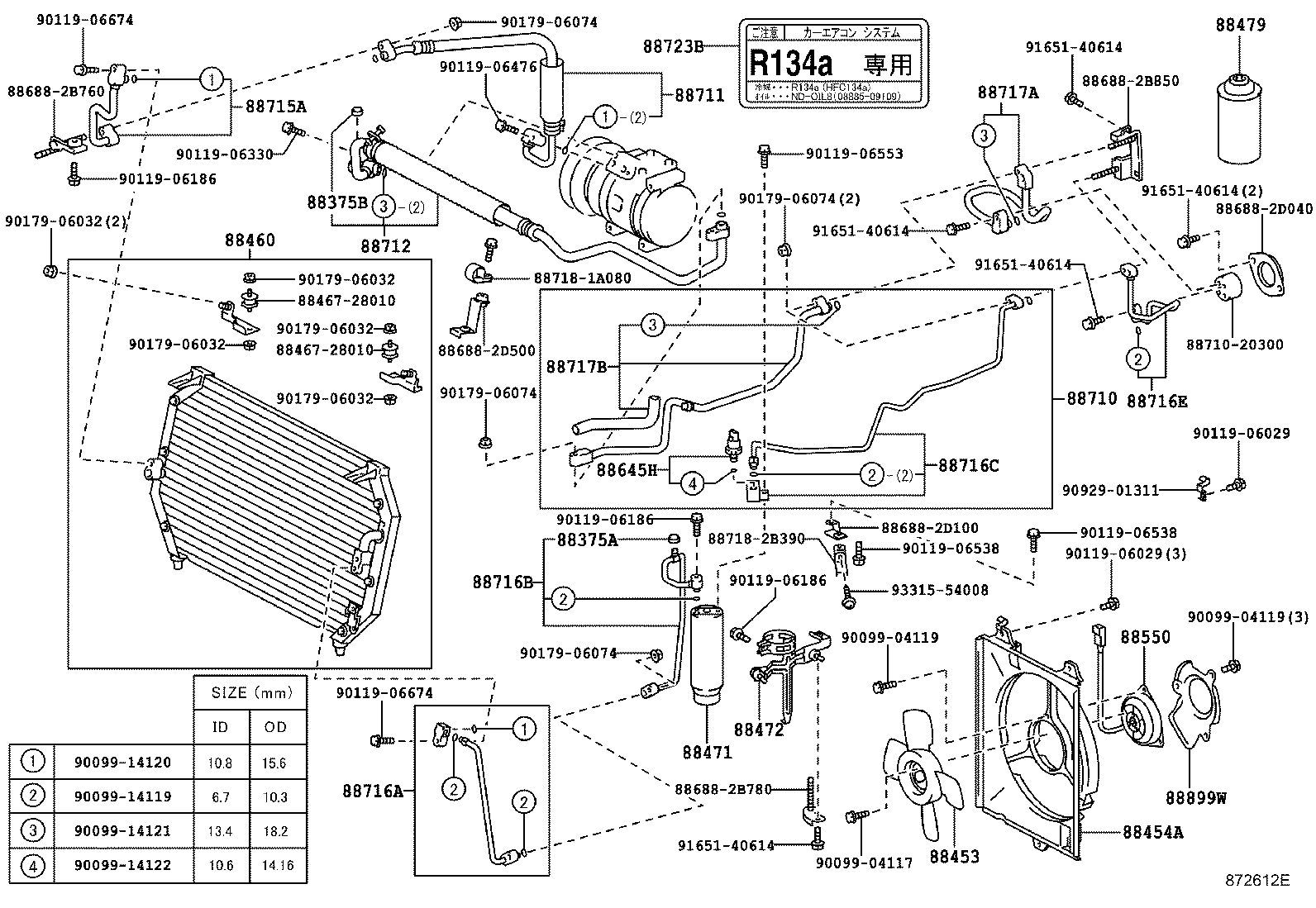

Click highlighted areas on diagram

diagram 88375B 88453 88454A 88460 8846728010 88471 88472 88479 88550 88645H 886882B760 886882B770 886882B780 886882B791 886882B850 886882D040 886882D180 88710 8871020300 88710C 88711 88712 88715A 88716A 88716B 88716C 88716E 88717A 88717B 88717C 887182B420 88723B 88899W 9009904117 9009904119 9009904119 9009914119 9009914120 9009914121 9009914122 9011906029 9011906029 9011906186 9011906186 9011906186 9011906186 9011906476 9011906476 9011906538 9011906553 9011906553 9011906553 9011906674 9011906674 9017906032 9017906032 9017906032 9017906074 9017906074 9017906074 9017906074 9017906074 9017906074 9092901311 9165140614 9165140614 9165140614 9165140614 9331554008
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

AT191,CT19#,ET196,ST19#

 1
88375-30290

CT196,198,ET196,ST19#..CZ,FZ,TZ,U,UL,UX

 1
88375-30290

ET196..UX;AT191,CT19#,ST19#

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-64010

AT191,ET196,ST191

 1
88453-20080

ST19#..CZ,FZ,TZ;CT190,ET196..3FC,5F

 1
88454A - SHROUD, FAN
88454-20160

AT191,ET196,ST191

 1
88454-20020

ET196,ST19#

 1
88460 - CONDENSER ASSY, COOLER
88460-20370

ET196,ST19#

 1
88460-20370

ST195..5F;ET196,ST190,191

 1
88460-20520

AT191,ET196,ST19#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

AT191,CT19#,ET196,ST19#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20200

AT191,CT19#,ET196,ST19#

 1
88472-20140

CT19#,ST19#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130

ET196,ST19#

 1
16363-46030

ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
88550-32110

AT191,ET196,ST191

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

CT190..5F..TD;AT191,CT19#,ET196,ST19#..DSL,EFI

 1
88645-20050

CT196..4FC;CT196..5F..UX;CT190,ET196,ST19#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-20230

ET196,ST19#..CZ,FZ,TZ,U,UL

 1
88710-20230

ET196,ST19#

 1
88710-20230

ET196,ST19#..CZ,FZ,TZ,TZG,U,UL

 1
88710C - TUBE ASSY, AIR CONDITIONER
88710-20250

ET196,ST19#..CZ,FZ,TZ,UX

 1
88710-20250

ST19#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B330

ST19#..CZ,TZ,U,UL,UX

 1
88711-20870

ST19#..CZ,FZ,TZ

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B790

ST19#..CZ,FZ,TZ

 1
88712-2B220

ST19#

 1
88712-2B890

ST19#..CZ,TZ

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120

CT19#,ET196,ST19#

 1
88715-20120

CT19#,ET196,ST19#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140

CT19#,ET196,ST19#

 1
88716-2D490

AT191,CT19#,ET196,ST19#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D150

CT19#,ST19#

 1
88716-2D151

CT196,198,ST19#..CZ,FZ,TZ,TZG,U,UL

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2D090

ET196,ST19#

 1
88716-2D090

ET196,ST19#..CZ,FZ,TZ,TZG,U,UL

 1
88716-2D090

ET196..3FC..(U,UL);ET196,ST19#..CZ,FZ,TZ,UX

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D170

ST19#

ｱﾘ(*66)

 1
88716-2D170

CT19#,ET196,ST19#

 1
88716-2D220

ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B230

ST19#

ｱﾘ(*66)

 1
88717-2B450

ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
88717-2B230

ET196,ST19#

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2B160

ET196,ST19#

 1
88717-2B160

ET196..3FC..(U,UL);ET196,ST19#..CZ,FZ,TZ,UX

 1
88717-2B160

ET196,ST19#..CZ,FZ,TZ,TZG,U,UL

 1
88717-2B160

ET196,ST19#..CZ,FZ,TZ,U,UL

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-2B220

ET196,ST19#

 1
88717-2B221

ET196,ST19#..CZ,FZ,TZ,UX

 1
88717-2B221

ET196,ST19#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

ET196..3FC..UX;CT19#,ET196,ST19#..4FC,5F

 1
88899W - SUPPORT SUB-ASSY, B
88899-20290

AT191,ET196,ST191

 1
88899-20270

ET196,ST19#..CZ,FZ,TZ,U,UL,UX

 1
Common parts
88467-28010
88688-2B760
88688-2B770
88688-2B780
88688-2B791
88688-2B850
88688-2D040
88688-2D180
88710-20300
88718-2B420
90099-04117
90099-04119
90099-14119
90099-14120
90099-14121
90099-14122
90119-06029
90119-06186
90119-06476
90119-06538
90119-06553
90119-06674
90179-06032
90179-06074
90929-01311
91651-40614
93315-54008

(9307-9601)ST19#

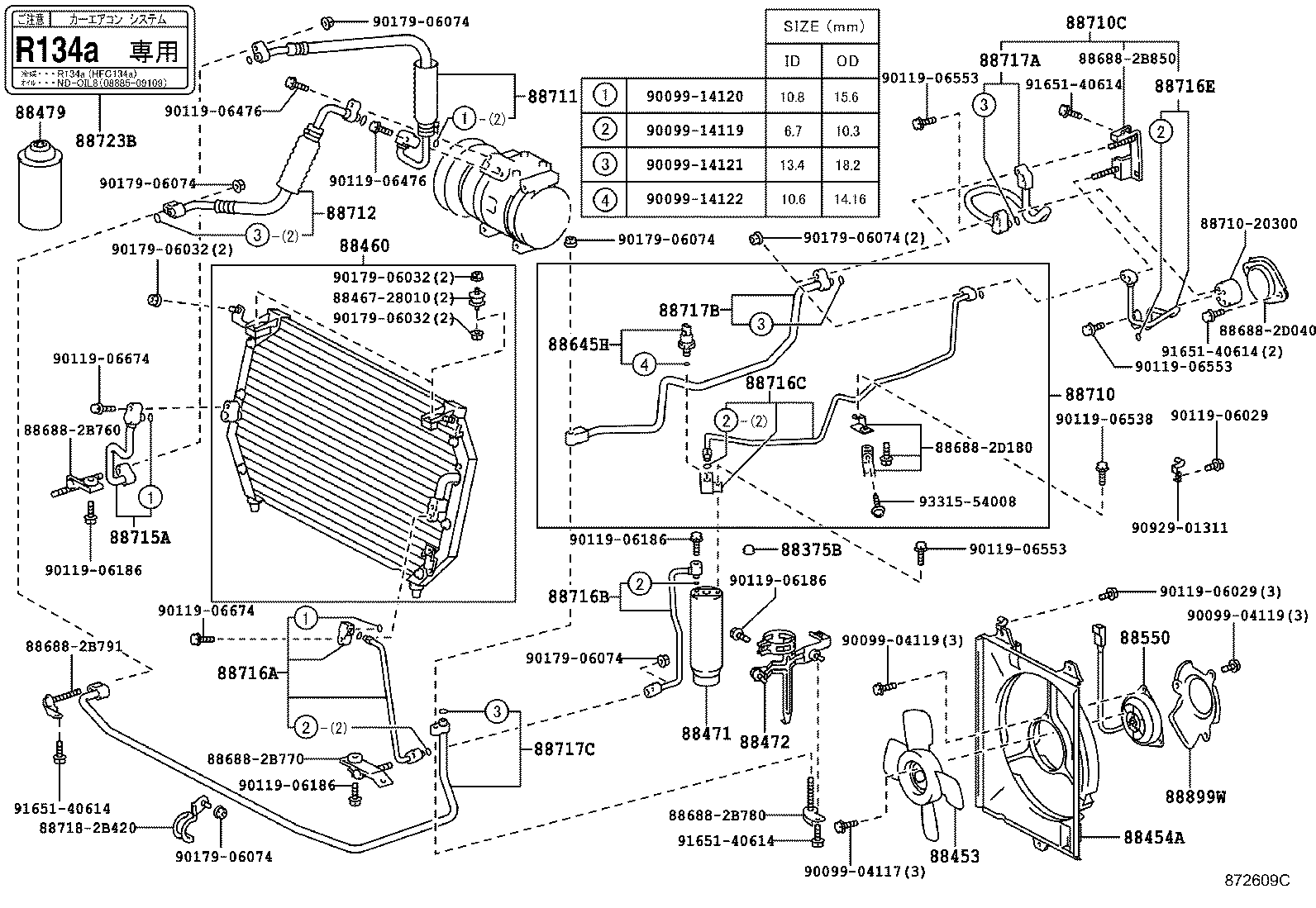

Click highlighted areas on diagram

ﾅｼ(ABS)

diagram 88375B 88453 88454A 88460 8846728010 8846728010 88471 88472 88550 88645H 886882B760 886882B770 886882B780 886882B791 886882D030 886882D500 8871020300 88711 88712 88712 88715A 88716A 88716B 88716E 88717A 88717C 887181A080 887182B420 887182B660 88723B 88899W 9009904117 9009904119 9009904119 9009914119 9009914120 9009914121 9009914122 9011906029 9011906029 9011906186 9011906186 9011906186 9011906186 9011906476 9011906476 9011906553 9011906553 9011906674 9011906674 9017906032 9017906032 9017906032 9017906032 9017906032 9017906074 9017906074 9017906074 9017906074 9017906074 9092901311 9165140614 9165140614 9165140614
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

AT191,CT19#,ET196,ST19#

 1
88375-30290

CT196,198,ET196,ST19#..CZ,FZ,TZ,U,UL,UX

 1
88375-30290

ET196..UX;AT191,CT19#,ST19#

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-64010

AT191,ET196,ST191

 1
88453-20080

ST19#..CZ,FZ,TZ;CT190,ET196..3FC,5F

 1
88454A - SHROUD, FAN
88454-20160

AT191,ET196,ST191

 1
88454-20020

ET196,ST19#

 1
88460 - CONDENSER ASSY, COOLER
88460-20370

ET196,ST19#

 1
88460-20370

ST195..5F;ET196,ST190,191

 1
88460-20520

AT191,ET196,ST19#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

AT191,CT19#,ET196,ST19#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20200

AT191,CT19#,ET196,ST19#

 1
88472-20140

CT19#,ST19#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130

ET196,ST19#

 1
16363-46030

ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
88550-32110

AT191,ET196,ST191

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

CT190..5F..TD;AT191,CT19#,ET196,ST19#..DSL,EFI

 1
88645-20050

CT196..4FC;CT196..5F..UX;CT190,ET196,ST19#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B330

ST19#..CZ,TZ,U,UL,UX

 1
88711-20870

ST19#..CZ,FZ,TZ

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B790

ST19#..CZ,FZ,TZ

 1
88712-2B220

ST19#

 1
88712-2B890

ST19#..CZ,TZ

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B790

ST19#..CZ,FZ,TZ

 1
88712-2B220

ST19#

 1
88712-2B890

ST19#..CZ,TZ

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120

CT19#,ET196,ST19#

 1
88715-20120

CT19#,ET196,ST19#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140

CT19#,ET196,ST19#

 1
88716-2D490

AT191,CT19#,ET196,ST19#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D150

CT19#,ST19#

 1
88716-2D151

CT196,198,ST19#..CZ,FZ,TZ,TZG,U,UL

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D170

ST19#

ｱﾘ(*66)

 1
88716-2D170

CT19#,ET196,ST19#

 1
88716-2D220

ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B230

ST19#

ｱﾘ(*66)

 1
88717-2B450

ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
88717-2B230

ET196,ST19#

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-2B220

ET196,ST19#

 1
88717-2B221

ET196,ST19#..CZ,FZ,TZ,UX

 1
88717-2B221

ET196,ST19#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

ET196..3FC..UX;CT19#,ET196,ST19#..4FC,5F

 1
88899W - SUPPORT SUB-ASSY, B
88899-20290

AT191,ET196,ST191

 1
88899-20270

ET196,ST19#..CZ,FZ,TZ,U,UL,UX

 1
Common parts
88467-28010
88688-2B760
88688-2B770
88688-2B780
88688-2B791
88688-2D030
88688-2D500
88710-20300
88718-1A080
88718-2B420
88718-2B660
90099-04117
90099-04119
90099-14119
90099-14120
90099-14121
90099-14122
90119-06029
90119-06186
90119-06476
90119-06553
90119-06674
90179-06032
90179-06074
90929-01311
91651-40614

(9402-9601)ET196,ST19#

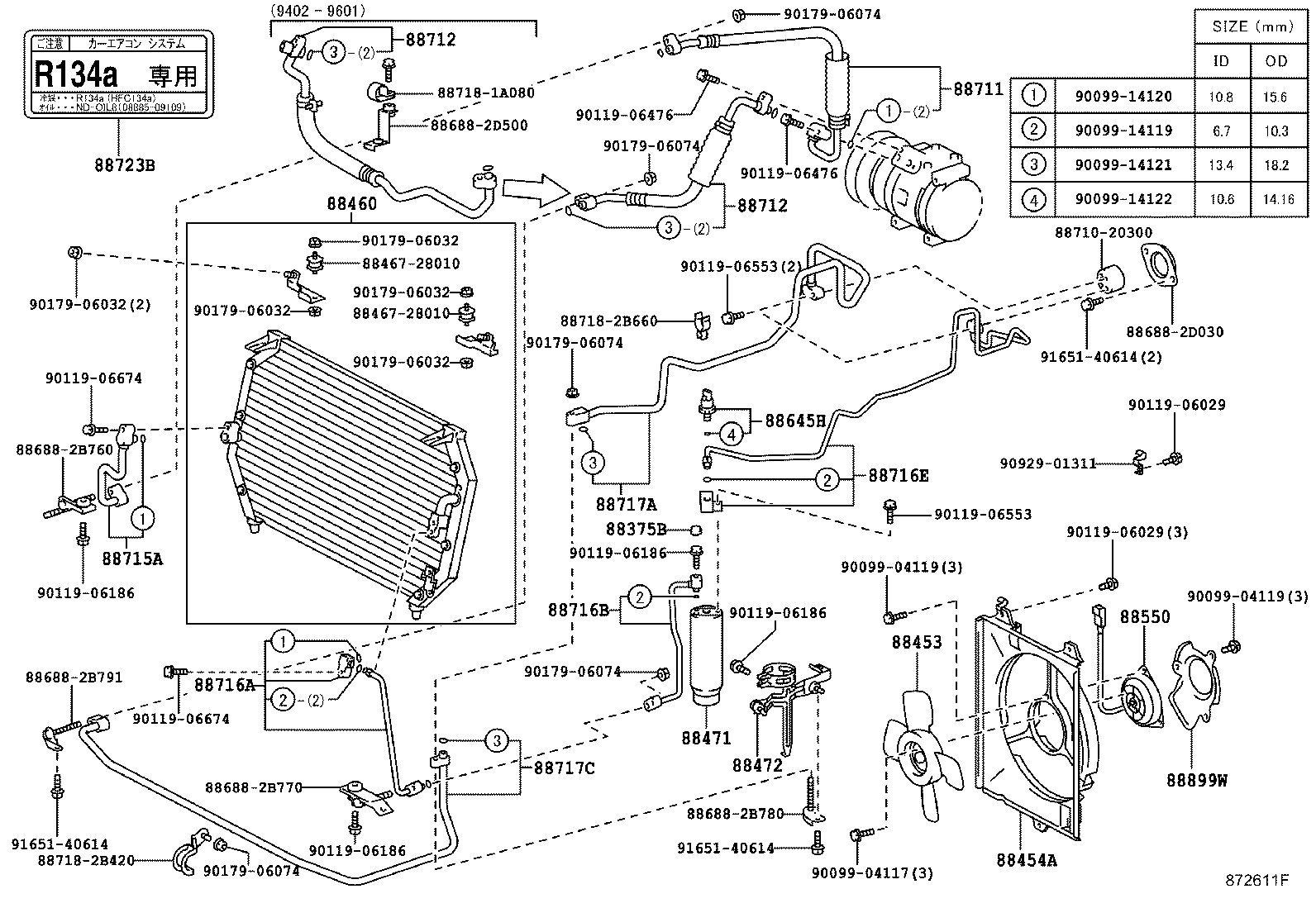

Click highlighted areas on diagram

diagram 88375A 88375B 88453 88454A 88460 8846728010 8846728010 88471 88472 88479 88550 88645H 886882B760 886882B780 886882B850 886882D040 886882D100 886882D500 88710 8871020300 88711 88712 88715A 88716A 88716B 88716C 88716E 88717A 88717B 887181A080 887182B390 88723B 88899W 9009904117 9009904119 9009904119 9009914119 9009914120 9009914121 9009914122 9011906029 9011906029 9011906186 9011906186 9011906186 9011906330 9011906476 9011906538 9011906538 9011906553 9011906674 9011906674 9017906032 9017906032 9017906032 9017906032 9017906032 9017906074 9017906074 9017906074 9017906074 9092901311 9165140614 9165140614 9165140614 9165140614 9165140614 9331554008
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CT197..U,UL;AT191,CT190,196,198,199,ET196,ST19#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

AT191,CT19#,ET196,ST19#

 1
88375-30290

CT196,198,ET196,ST19#..CZ,FZ,TZ,U,UL,UX

 1
88375-30290

ET196..UX;AT191,CT19#,ST19#

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-64010

AT191,ET196,ST191

 1
88453-20080

ST19#..CZ,FZ,TZ;CT190,ET196..3FC,5F

 1
88454A - SHROUD, FAN
88454-20160

AT191,ET196,ST191

 1
88454-20020

ET196,ST19#

 1
88460 - CONDENSER ASSY, COOLER
88460-20370

ET196,ST19#

 1
88460-20370

ST195..5F;ET196,ST190,191

 1
88460-20520

AT191,ET196,ST19#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

AT191,CT19#,ET196,ST19#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20200

AT191,CT19#,ET196,ST19#

 1
88472-20140

CT19#,ST19#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130

ET196,ST19#

 1
16363-46030

ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
88550-32110

AT191,ET196,ST191

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

CT190..5F..TD;AT191,CT19#,ET196,ST19#..DSL,EFI

 1
88645-20050

CT196..4FC;CT196..5F..UX;CT190,ET196,ST19#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-20230

ET196,ST19#..CZ,FZ,TZ,U,UL

 1
88710-20230

ET196,ST19#

 1
88710-20230

ET196,ST19#..CZ,FZ,TZ,TZG,U,UL

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B330

ST19#..CZ,TZ,U,UL,UX

 1
88711-20870

ST19#..CZ,FZ,TZ

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B790

ST19#..CZ,FZ,TZ

 1
88712-2B220

ST19#

 1
88712-2B890

ST19#..CZ,TZ

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120

CT19#,ET196,ST19#

 1
88715-20120

CT19#,ET196,ST19#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140

CT19#,ET196,ST19#

 1
88716-2D490

AT191,CT19#,ET196,ST19#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D150

CT19#,ST19#

 1
88716-2D151

CT196,198,ST19#..CZ,FZ,TZ,TZG,U,UL

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2D090

ET196,ST19#

 1
88716-2D090

ET196,ST19#..CZ,FZ,TZ,TZG,U,UL

 1
88716-2D090

ET196..3FC..(U,UL);ET196,ST19#..CZ,FZ,TZ,UX

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D170

ST19#

ｱﾘ(*66)

 1
88716-2D170

CT19#,ET196,ST19#

 1
88716-2D220

ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B230

ST19#

ｱﾘ(*66)

 1
88717-2B450

ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
88717-2B230

ET196,ST19#

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2B160

ET196,ST19#

 1
88717-2B160

ET196..3FC..(U,UL);ET196,ST19#..CZ,FZ,TZ,UX

 1
88717-2B160

ET196,ST19#..CZ,FZ,TZ,TZG,U,UL

 1
88717-2B160

ET196,ST19#..CZ,FZ,TZ,U,UL

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

ET196..3FC..UX;CT19#,ET196,ST19#..4FC,5F

 1
88899W - SUPPORT SUB-ASSY, B
88899-20290

AT191,ET196,ST191

 1
88899-20270

ET196,ST19#..CZ,FZ,TZ,U,UL,UX

 1
Common parts
88467-28010
88688-2B760
88688-2B780
88688-2B850
88688-2D040
88688-2D100
88688-2D500
88710-20300
88718-1A080
88718-2B390
90099-04117
90099-04119
90099-14119
90099-14120
90099-14121
90099-14122
90119-06029
90119-06186
90119-06330
90119-06476
90119-06538
90119-06553
90119-06674
90179-06032
90179-06074
90929-01311
91651-40614
93315-54008

(9601- )AT191,ET196,ST19#

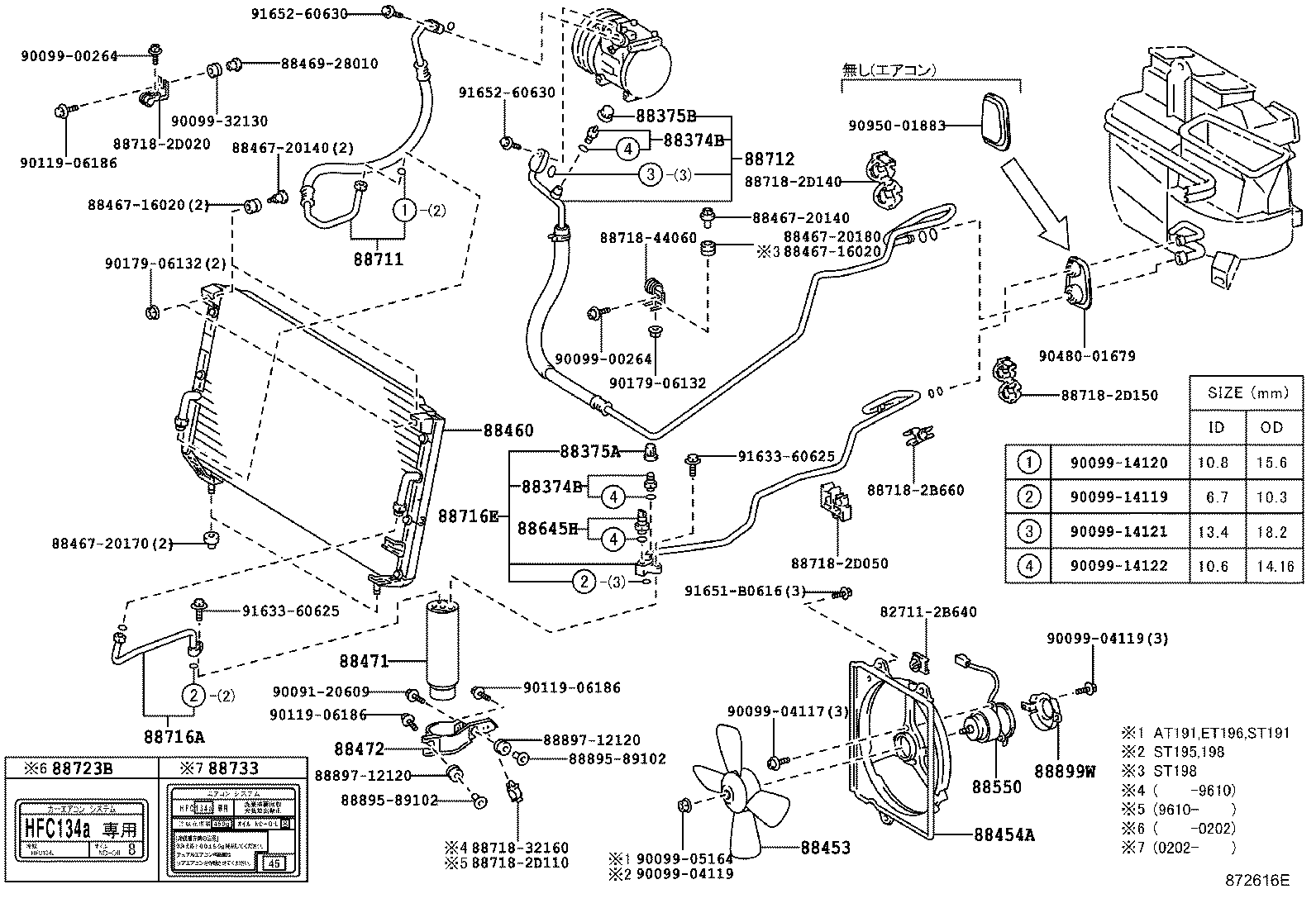

Click highlighted areas on diagram

diagram 827112B640 88374B 88374B 88375A 88375B 88453 88454A 88460 8846716020 8846716020 8846720140 8846720140 8846720170 8846720180 8846928010 88471 88472 88550 88645H 88711 88712 88716A 88716E 887182B660 887182D020 887182D050 887182D110 887182D140 887182D150 8871832160 8871844060 88723B 88733 8889589102 8889589102 8889712120 8889712120 88899W 9009120609 9009900264 9009900264 9009904117 9009904119 9009904119 9009905164 9009914119 9009914120 9009914121 9009914122 9009932130 9011906186 9011906186 9011906186 9017906132 9017906132 9048001679 9095001883 9163360625 9163360625 91651B0616 9165260630 9165260630
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CT197..U,UL;AT191,CT190,196,198,199,ET196,ST19#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

AT191,CT19#,ET196,ST19#

 1
88375-30290

CT196,198,ET196,ST19#..CZ,FZ,TZ,U,UL,UX

 1
88375-30290

ET196..UX;AT191,CT19#,ST19#

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-64010

AT191,ET196,ST191

 1
88453-20080

ST19#..CZ,FZ,TZ;CT190,ET196..3FC,5F

 1
88454A - SHROUD, FAN
88454-20160

AT191,ET196,ST191

 1
88454-20020

ET196,ST19#

 1
88460 - CONDENSER ASSY, COOLER
88460-20370

ET196,ST19#

 1
88460-20370

ST195..5F;ET196,ST190,191

 1
88460-20520

AT191,ET196,ST19#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

AT191,CT19#,ET196,ST19#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20200

AT191,CT19#,ET196,ST19#

 1
88472-20140

CT19#,ST19#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130

ET196,ST19#

 1
16363-46030

ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
88550-32110

AT191,ET196,ST191

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

CT190..5F..TD;AT191,CT19#,ET196,ST19#..DSL,EFI

 1
88645-20050

CT196..4FC;CT196..5F..UX;CT190,ET196,ST19#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B330

ST19#..CZ,TZ,U,UL,UX

 1
88711-20870

ST19#..CZ,FZ,TZ

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B790

ST19#..CZ,FZ,TZ

 1
88712-2B220

ST19#

 1
88712-2B890

ST19#..CZ,TZ

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140

CT19#,ET196,ST19#

 1
88716-2D490

AT191,CT19#,ET196,ST19#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D170

ST19#

ｱﾘ(*66)

 1
88716-2D170

CT19#,ET196,ST19#

 1
88716-2D220

ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

ET196..3FC..UX;CT19#,ET196,ST19#..4FC,5F

 1
88899W - SUPPORT SUB-ASSY, B
88899-20290

AT191,ET196,ST191

 1
88899-20270

ET196,ST19#..CZ,FZ,TZ,U,UL,UX

 1
Common parts
82711-2B640
88467-16020
88467-20140
88467-20170
88467-20180
88469-28010
88718-2B660
88718-2D020
88718-2D050
88718-2D110
88718-2D140
88718-2D150
88718-32160
88718-44060
88895-89102
88897-12120
90091-20609
90099-00264
90099-04117
90099-04119
90099-05164
90099-14119
90099-14120
90099-14121
90099-14122
90099-32130
90119-06186
90179-06132
90480-01679
90950-01883
91633-60625
91651-B0616
91652-60630
