ST191G-DWPEK (1992)
Toyota Caldina
Production
Nov 1992
-
Aug 1997
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

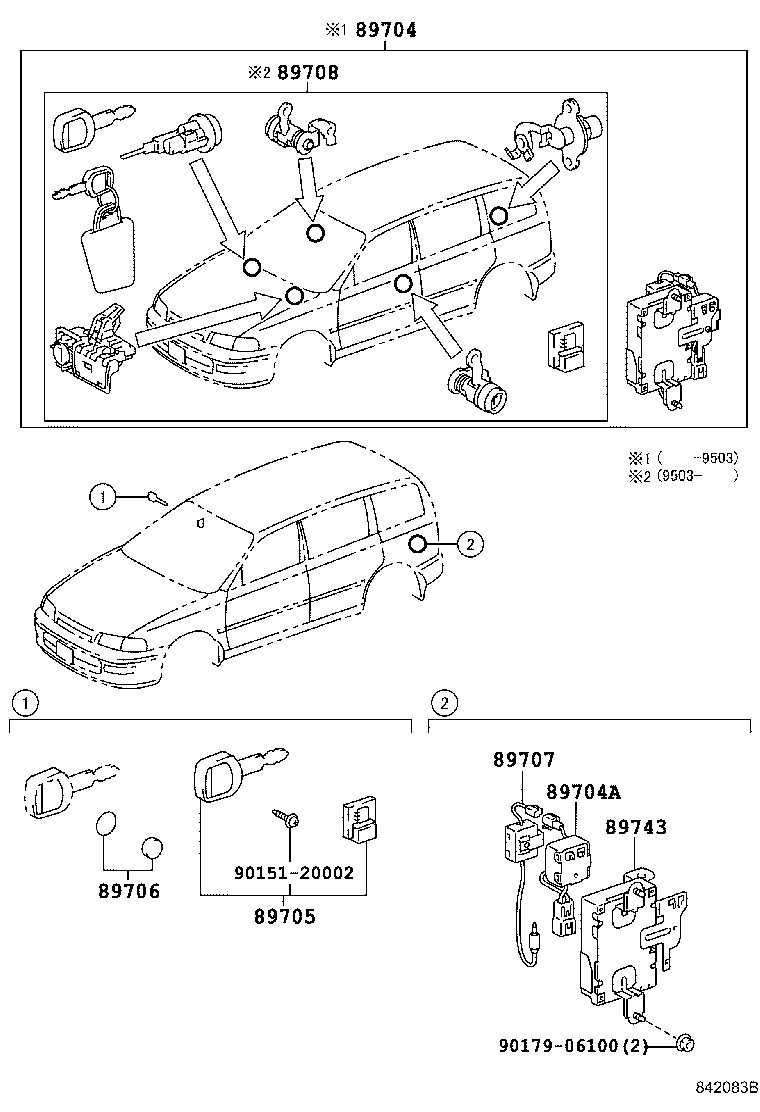

(9211-9601)CZ,TZ,TZG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89704 - CONTROL SET, WIRELESS DOOR LOCK | ||||
| 89704-21010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 89704-21010 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 89704A - FILTER, NOISE(FOR WIRELESS DOOR LOCK) | ||||
| 90980-05243 |
CT190,ST19#..CZ,TZ |
1 | ||
| 90980-05243 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 89705 - TRANSMITTER, DOOR CONTROL | ||||
| 89705-12020 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 89705-12020 |
CT190,ST19#..CZ,TZ |
1 | ||
| 89706 - BATTERY SET, TRANSMITTER | ||||
| 89706-50010 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 89706-50010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 89707 - CORD SUB-ASSY, WIRELESS DOOR LOCK | ||||
| 89707-21010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 89707-21010 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 89708 - CYLINDER SET, WIRELESS DOOR LOCK | ||||
| 89708-21010 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 89743 - RECEIVER, DOOR CONTROL | ||||
| 89743-21010 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 89743-21010 |
CT190,ST19#..CZ,TZ |
1 | ||
| Common parts | ||||
| 90151-20002 | ||||
| 90179-06100 | ||||

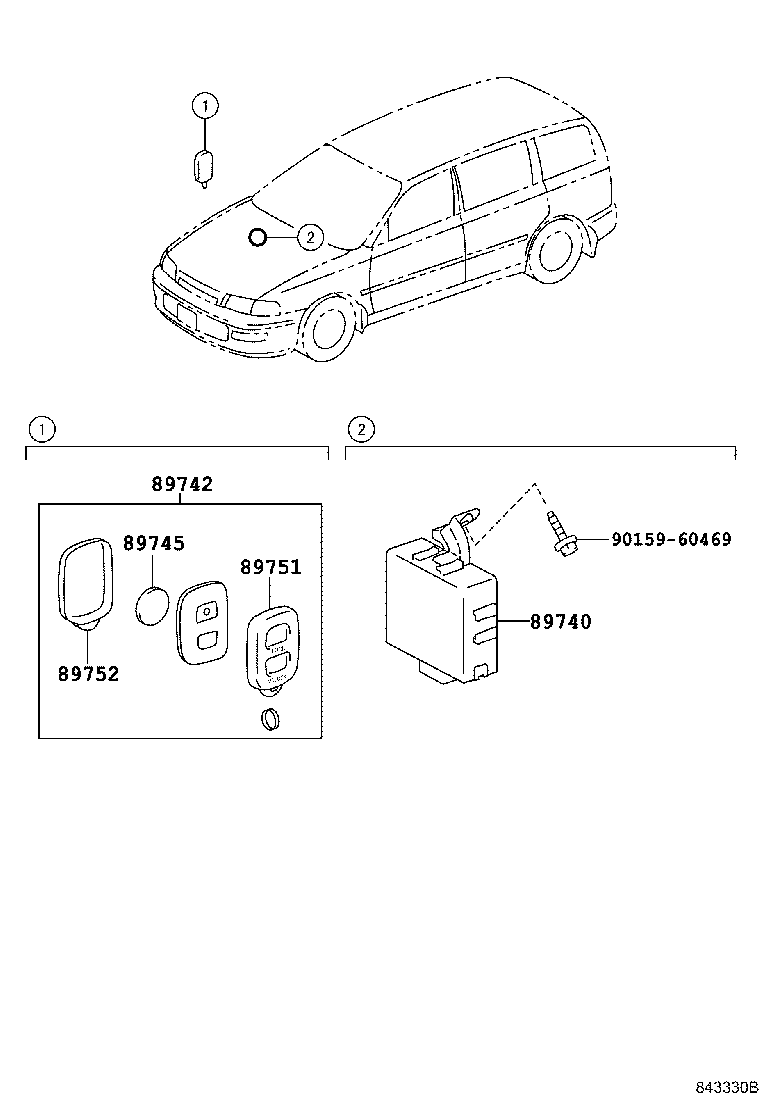

(9601- )AT191,CT190,ST191,195
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89740 - COMPUTER ASSY, DOOR CONTROL W/RECEIVER | ||||
| 89740-20010 |
AT191,CT190,ST19# |
1 | ||
| 89742 - TRANSMITTER, DOOR CONTROL | ||||
| 89742-20190 |
AT191,CT190,ST19# |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-50010 |
AT191,CT190,ST19# |
1 | ||
| 89751 - COVER, TRANSMITTER HOUSING | ||||
| F1672-20010 |
AT191,CT190,ST19# |
1 | ||
| 89752 - CASE, TRANSMITTER HOUSING | ||||
| F1673-20010 |
AT191,CT190,ST19# |
1 | ||
| Common parts | ||||
| 90159-60469 | ||||
