ST191G-DWPEK (1992)

Toyota Caldina

Production Nov 1992 - Aug 1997
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )CT190,196,197,ST190,191..4FC

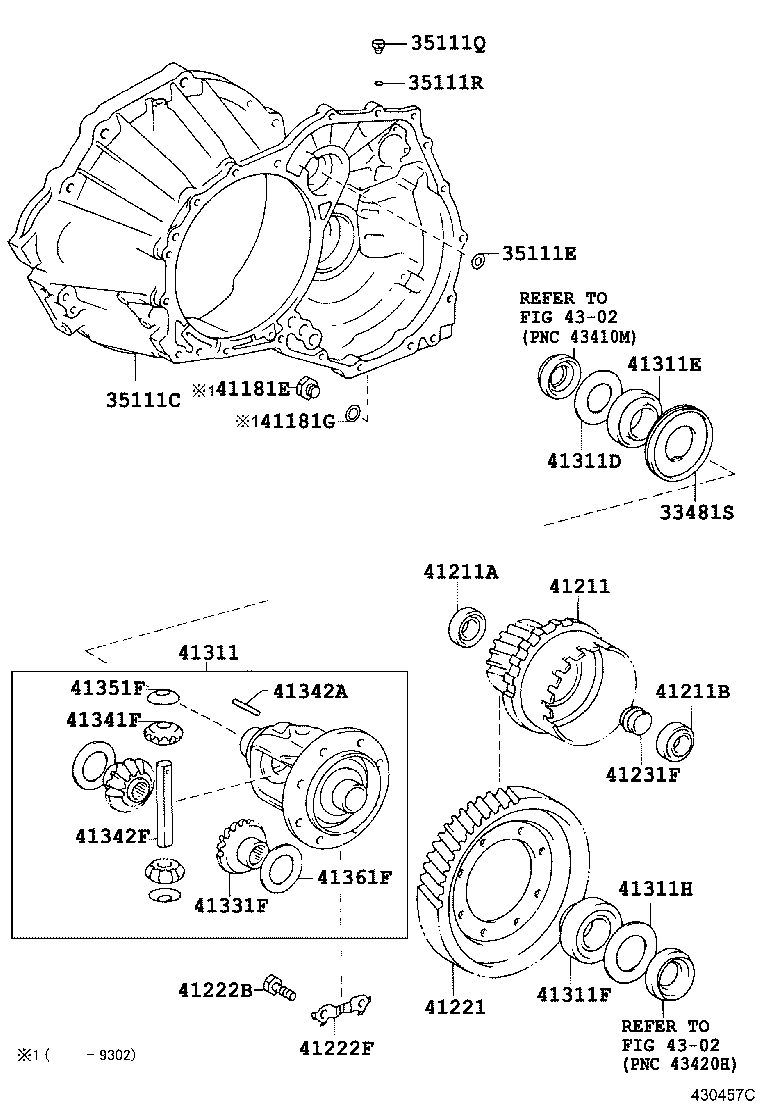

Click highlighted areas on diagram

A241E,A241L

diagram 33481S 35111C 35111E 35111Q 35111R 41181E 41181G 41211 41211A 41211B 41221 41222B 41222F 41231F 41311 41311D 41311E 41311F 41311H 41331F 41341F 41342A 41342F 41351F 41361F 4302 4302
Part # Description Qty Price
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-20140

CT190,196,ST190,191..4FC..(CZ,FZ,TZ,UX)

 1
33481-20140

ST190,191..4FC

 1
35111C - HOUSING, TRANSAXLE
35105-20022

ST190,191..4FC

 1
35105-20023

ST190,191..4FC

 1
35111E - WASHER, SEAL (FOR FRONT TRANSAXLE HOUSING)
90210-13002

AT191,CT190,196,197,ST190,191..4FC

 1
35111Q - PLUG, NO.2 (FOR TRANSAXLE HOUSING)
90341-08001

AT191,CT190,196,197,ST190,191..4FC

 1
35111R - RING, O (FOR TRANSAXLE HOUSING PLUG NO.2)
90301-06196

AT191,CT190,196,197,ST190,191..4FC

 1
41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN)
90341-18057

CT190,196,ST190,191..4FC

 1
41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
90430-18008

CT190,196,ET196,ST19#..ATM

 1
41211 - PINION, DIFFERENTIAL DRIVE
41206-17010

CT190..4FC..TD;CT197,ST191..4FC

 1
41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
90366-30054

CT190,196,197,ST190,191..4FC

 1
41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
90366-30053

CT190,196,197,ST190,191..4FC

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-20210

CT190..4FC..TD;CT197,ST191..4FC

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11353

ET196;CT190,196,ST190,191..4FC

 8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-20030

CT190,196,197,ST190,191..4FC

 4
41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41231-17010

CT190,196,197,ST190,191..4FC

 1
41311 - CASE, FRONT DIFFERENTIAL
41301-20112

CT190,196,197,ST190,191..4FC

 1
41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
90564-45015

CT190,196,197,ST190,191..4FC

厚さ=2.60,ﾏｰｸ 15

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90368-40002

CT190,196,197,ST190,191..4FC

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-44001

CT190,196,197,ST190,191..4FC

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90201-45005

CT190,196,197,ST190,191..4FC

厚さ=2.05,ﾏｰｸ 02

 1
90201-45004

CT190,196,197,ST190,191..4FC

厚さ=2.00,ﾏｰｸ 01

 1
90201-45008

CT190,196,197,ST190,191..4FC

厚さ=2.20,ﾏｰｸ 05

 1
90201-45007

CT190,196,197,ST190,191..4FC

厚さ=2.15,ﾏｰｸ 04

 1
90201-45014

CT190,196,197,ST190,191..4FC

厚さ=2.50,ﾏｰｸ 11

 1
90201-45011

CT190,196,197,ST190,191..4FC

厚さ=2.35,ﾏｰｸ 08

 1
90201-45010

CT190,196,197,ST190,191..4FC

厚さ=2.30,ﾏｰｸ 07

 1
90201-45015

CT190,196,197,ST190,191..4FC

厚さ=2.55,ﾏｰｸ 12

 1
90201-45012

CT190,196,197,ST190,191..4FC

厚さ=2.40,ﾏｰｸ 09

 1
90201-45013

CT190,196,197,ST190,191..4FC

厚さ=2.45,ﾏｰｸ 10

 1
90201-45017

CT190,196,197,ST190,191..4FC

厚さ=2.65,ﾏｰｸ 14

 1
90201-45022

CT190,196,197,ST190,191..4FC

厚さ=2.90,ﾏｰｸ 19

 1
90201-45009

CT190,196,197,ST190,191..4FC

厚さ=2.25,ﾏｰｸ 06

 1
90201-45020

CT190,196,197,ST190,191..4FC

厚さ=2.80,ﾏｰｸ 17

 1
90201-45016

CT190,196,197,ST190,191..4FC

厚さ=2.60,ﾏｰｸ 13

 1
90201-45006

CT190,196,197,ST190,191..4FC

厚さ=2.10,ﾏｰｸ 03

 1
90201-45021

CT190,196,197,ST190,191..4FC

厚さ=2.85,ﾏｰｸ 18

 1
90201-45019

CT190,196,197,ST190,191..4FC

厚さ=2.75,ﾏｰｸ 16

 1
90201-45018

CT190,196,197,ST190,191..4FC

厚さ=2.70,ﾏｰｸ 15

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

CT190,196,197,ST190,191

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-22030

CT190,196,ST190,191

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

AT191,CT190,196,197,ET196,ST190,191

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-32020

CT190,196,197,ST190,191

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

CT190,196,197,ST190,191

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-17030

AT191,CT190,196,ST190,191..4FC

厚さ=1.05

 2
41361-17040

AT191,CT190,196,ST190,191..4FC

厚さ=1.10

 2
41361-17060

AT191,CT190,196,ST190,191..4FC

厚さ=1.20

 2
41361-17050

AT191,CT190,196,ST190,191..4FC

厚さ=1.15

 2
41361-17020

AT191,CT190,196,ST190,191..4FC

厚さ=1.00

 2
41361-17010

AT191,CT190,196,ST190,191..4FC

厚さ=0.95

 2
Linked diagrams
4302
