ST190G-DWPMK (1992)

Toyota Caldina

Production Nov 1992 - Jan 1996
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )

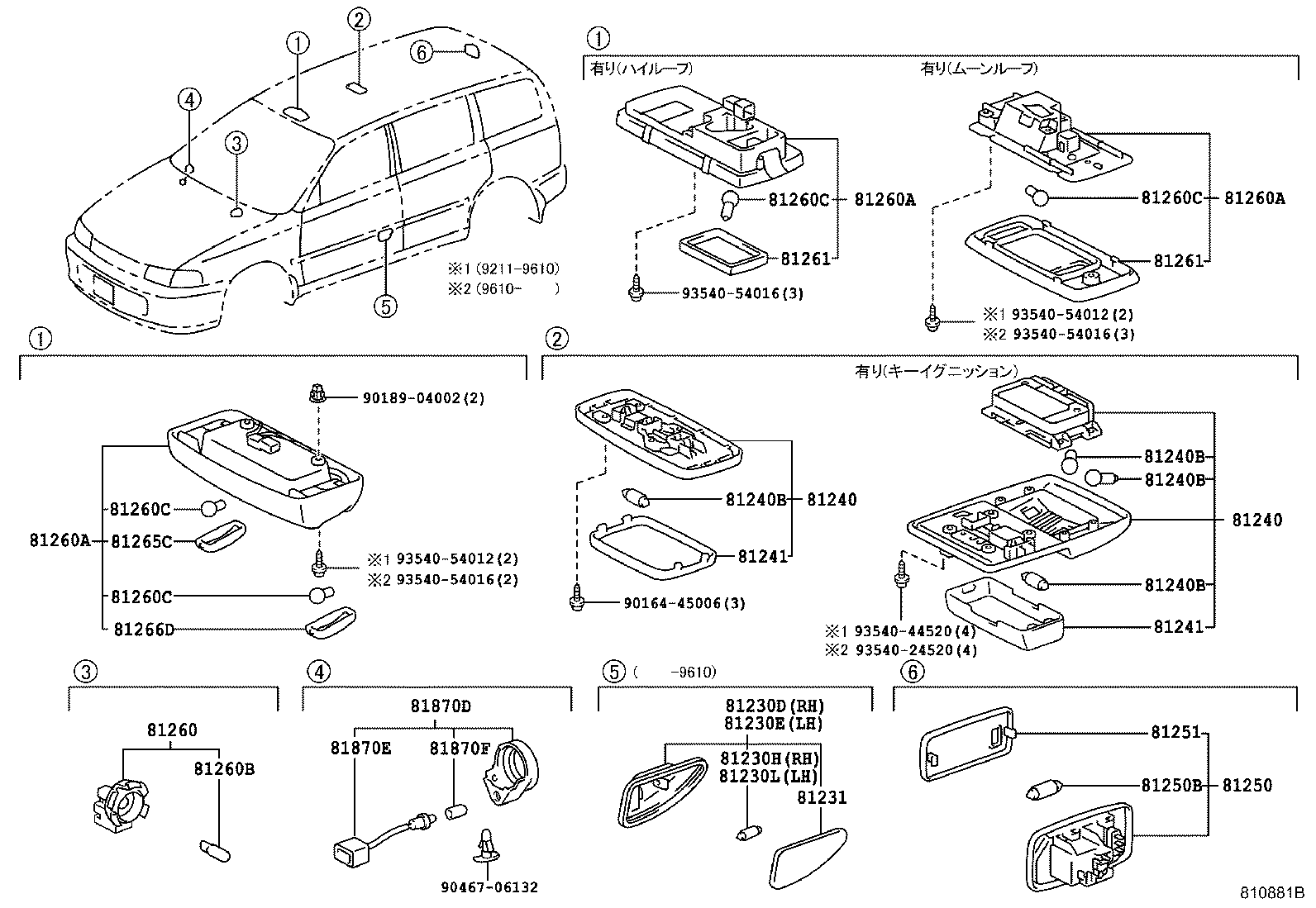

Click highlighted areas on diagram

diagram 81230D 81230E 81230H 81230L 81231 81240 81240 81240B 81240B 81240B 81240B 81241 81241 81250 81250B 81251 81260 81260A 81260A 81260A 81260B 81260C 81260C 81260C 81260C 81261 81261 81265C 81266D 81870D 81870E 81870F 9016445006 9018904002 9046706132 9354024520 9354044520 9354054012 9354054012 9354054016 9354054016 9354054016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-20090B0

CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

GRAY,TRIM2#

 1
81240-12020

CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

 1
81240-12020B1

CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

GRAY,TRIM2#

 1
81240-12020B1

CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

GRAY,TRIM1#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-20090B0

CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

GRAY,TRIM2#

 1
81240-12020

CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

 1
81240-12020B1

CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

GRAY,TRIM2#

 1
81240-12020B1

CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

CT19#,ET196,ST19#

12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

CT19#,ET196,ST19#

12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

CT19#,ET196,ST19#

12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

CT19#,ET196,ST19#

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20090

CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20090

CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-13020B0

CT19#,ET196,ST19#

GRAY,TRIM2#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

AT191,CT19#,ET196,ST19#

12V 5W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-12030

AT191,CT19#,ET196,ST19#

 1
Common parts
90164-45006
90189-04002
90467-06132
93540-24520
93540-44520
93540-54012
93540-54016
