ST190G-DWPMK (1992)

Toyota Caldina

Production Nov 1992 - Jan 1996
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )

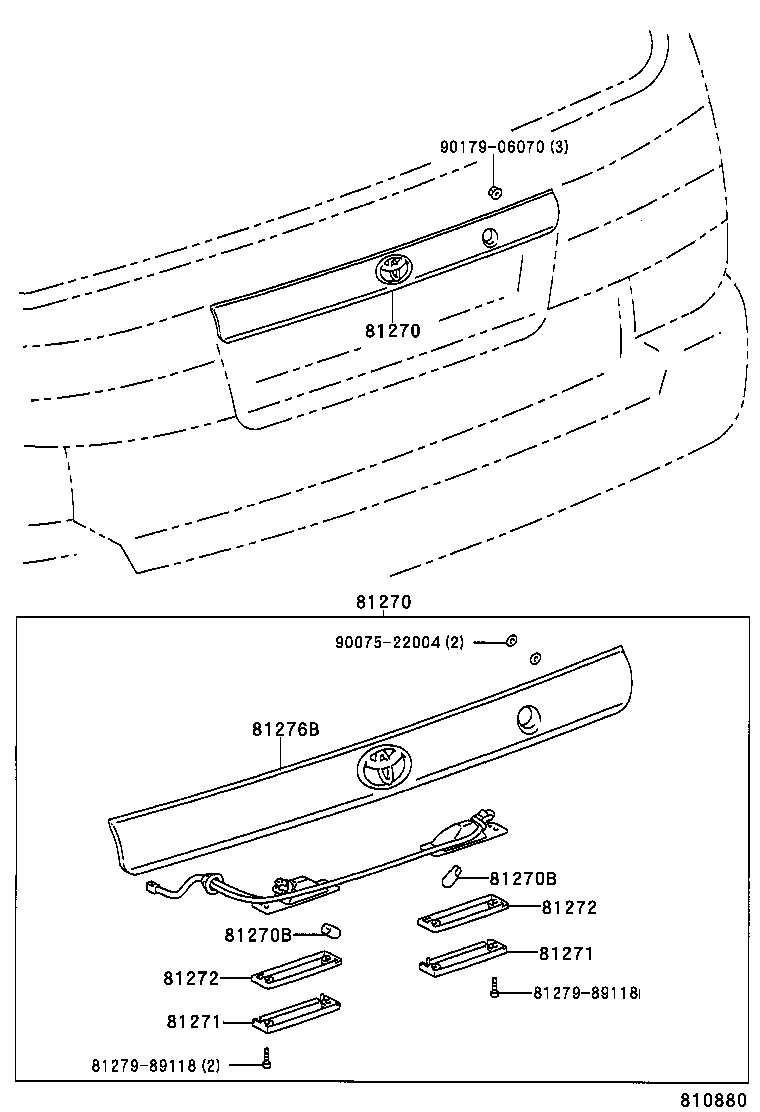

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81271 81271 81272 81272 81276B 8127989118 8127989118 9007522004 9017906070
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-21110G0

CT190,ST19#

DK.GRAYISH OLIVE ME,6M7

 1
81270-21110D1

CT190,ST19#

DK.MAUVE MM,3K1

 1
81270-21110E0

CT190,ST19#

LI.BEIGE ME,4M3

 1
81270-21110D2

CT190,ST19#

MAGENTA MC.,3L3

 1
81270-21111A0

CT190,ST19#

SUPER WHITE 2,040

 1
81270-21110A0

CT190,ST19#

SUPER WHITE 2,040

 1
81270-21111G0

CT190,ST19#

DK.GRAYISH OLIVE ME,6M7

 1
81270-21111D2

CT190,ST19#

MAGENTA MC.,3L3

 1
81270-21110B1

CT190,ST19#

LT.GRAIGE ME.,1A2

 1
81270-21111B1

CT190,ST19#

LT.GRAIGE ME.,1A2

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-21110G0

CT190,ST19#

DK.GRAYISH OLIVE ME,6M7

 1
81270-21110D1

CT190,ST19#

DK.MAUVE MM,3K1

 1
81270-21110E0

CT190,ST19#

LI.BEIGE ME,4M3

 1
81270-21110D2

CT190,ST19#

MAGENTA MC.,3L3

 1
81270-21111A0

CT190,ST19#

SUPER WHITE 2,040

 1
81270-21110A0

CT190,ST19#

SUPER WHITE 2,040

 1
81270-21111G0

CT190,ST19#

DK.GRAYISH OLIVE ME,6M7

 1
81270-21111D2

CT190,ST19#

MAGENTA MC.,3L3

 1
81270-21110B1

CT190,ST19#

LT.GRAIGE ME.,1A2

 1
81270-21111B1

CT190,ST19#

LT.GRAIGE ME.,1A2

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AT191,CT19#,ET196,ST19#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AT191,CT19#,ET196,ST19#

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-21110

AT191,CT19#,ET196,ST19#

 2
81271 - LENS, LICENSE PLATE LAMP
81271-21110

AT191,CT19#,ET196,ST19#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-95J07

AT191,CT19#,ET196,ST19#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-95J07

AT191,CT19#,ET196,ST19#

 2
81276B - COVER, LICENSE PLATE LAMP
81276-21111D2

CT190,ST19#

MAGENTA MC.,3L3

 1
81276-21110A0

CT190,ST19#

SUPER WHITE 2,040

 1
81276-21110E0

CT190,ST19#

LI. BEIGE ME,4M3

 1
81276-21110B1

CT190,ST19#

LT.GRAIGE ME.,1A2

 1
81276-21110D1

CT190,ST19#

DK. MAUVE MM,3K1

 1
81276-21110G0

CT190,ST19#

DK. GRAYISH OLIVE ME,6M7

 1
81276-21110D2

CT190,ST19#

MAGENTA MC.,3L3

 1
81276-21111G0

CT190,ST19#

DK,GRAYISH OLIVE ME,6M7

 1
81276-21111A0

CT190,ST19#

SUPER WHITE 2,040

 1
81276-21111B1

CT190,ST19#

LT.GRAIGE ME.,1A2

 1
Common parts
81279-89118
90075-22004
90179-06070
