ST190G-DWPGK (1992)

Toyota Caldina

Production Nov 1992 - Jan 1996
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211-9601)CT19#,ST19#

Click highlighted areas on diagram

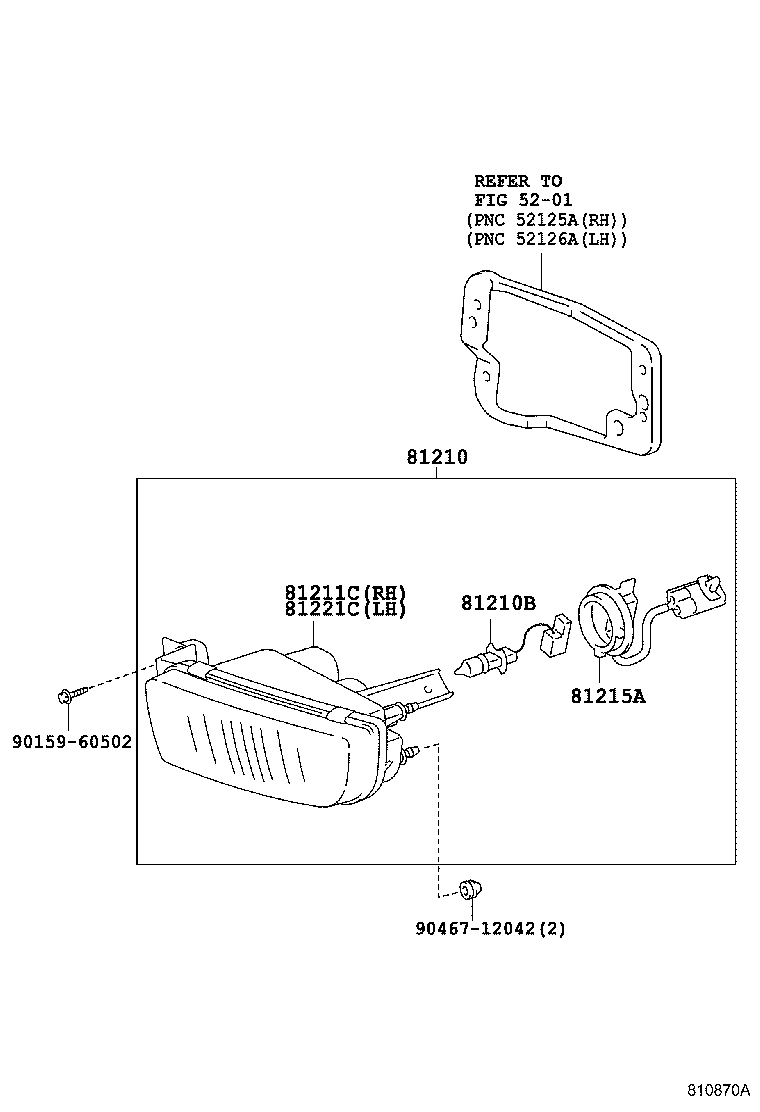

diagram 5201 81210 81210B 81211C 81215A 81221C 9015960502 9046712042
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-21010

CT190,ST19#

右側

 1
81220-21010

CT190,ST19#

左側

 1
81210B - BULB, FOG LAMP
90981-13071

CT190,ST19#

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13071

CT190,ST19#

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-21010

CT190,ST19#

 1
81211-21010

CT190,ST19#

 1
81215A - SOCKET & WIRE, FOG LAMP
81215-20250

CT190,ST19#

 2
81215-20250

CT190,ST19#

 2
81221C - LAMP UNIT, FOG LAMP, LH
81221-21010

CT190,ST19#

 1
81221-21010

CT190,ST19#

 1
Common parts
90159-60502
90467-12042
Linked diagrams
5201
