ST190G-DWPGK (1992)

Toyota Caldina

Production Nov 1992 - Jan 1996
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )

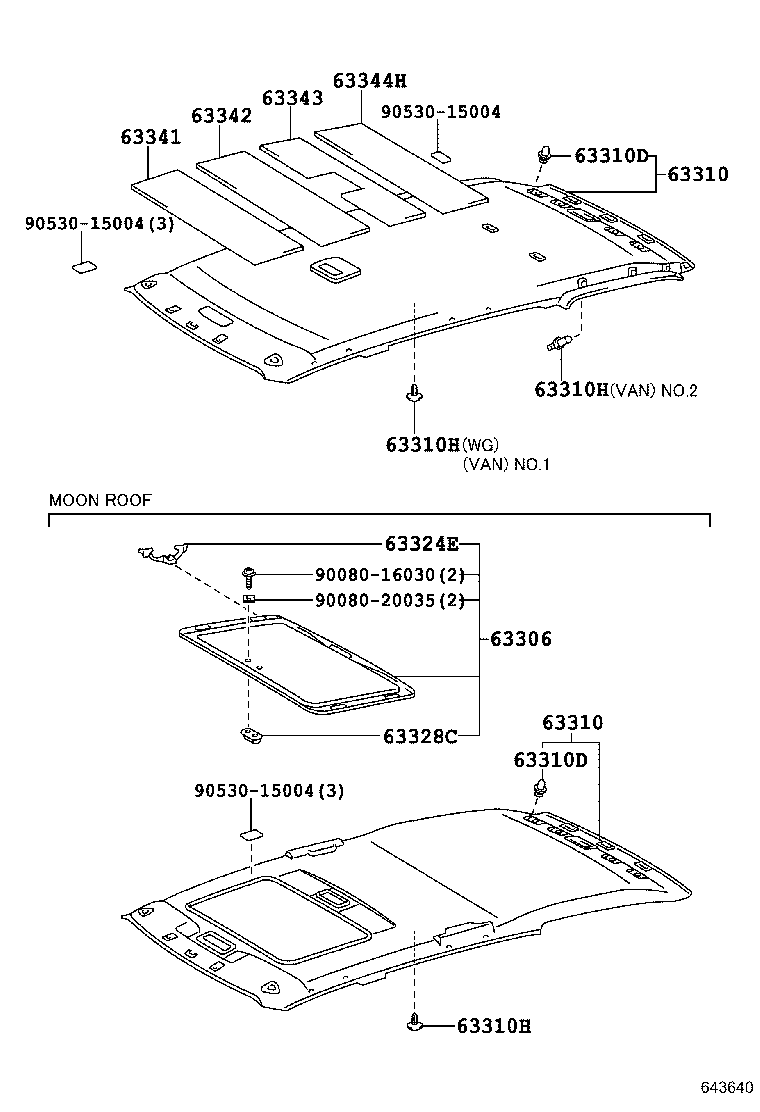

Click highlighted areas on diagram

diagram 63306 63310 63310 63310D 63310D 63310H 63310H 63310H 63324E 63328C 63341 63342 63343 63344H 9008016030 9008020035 9053015004 9053015004 9053015004
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-0W010B0

CT190,ST19#..CZ,TZ

GRAY,TRIM2#

 1
63306-0W010B0

CT190,ST19#..CZ,TZ

GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-21040B0

ST19#..TZ,TZG

GRAY,TRIM1#

 1
63310-21050B0

CT190,ST19#..CZ,TZ

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM2#

 1
63310-21040B0

ST19#..TZ

GRAY,TRIM2#

 1
63310-21050B0

CT190,ST19#..CZ,TZ,TZG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM1#

 1
63310-21041B0

ST19#..TZ,TZG

MEDIUM GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-21040B0

ST19#..TZ,TZG

GRAY,TRIM1#

 1
63310-21050B0

CT190,ST19#..CZ,TZ

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM2#

 1
63310-21040B0

ST19#..TZ

GRAY,TRIM2#

 1
63310-21050B0

CT190,ST19#..CZ,TZ,TZG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM1#

 1
63310-21041B0

ST19#..TZ,TZG

MEDIUM GRAY,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-09126

AT191,CT19#,ET196,ST19#

 1
63310D - CLIP, ROOF HEADLINING
90467-09126

AT191,CT19#,ET196,ST19#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-11095B0

CT190,ST19#..CZ,TZ

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM2#,NO.1

 4
90467-11095B0

CT19#,ET196,ST19#

GRAY,TRIM2#,NO.1

 6
63310H - CLIP(FOR ROOF HEADLINING)
90467-11095B0

CT190,ST19#..CZ,TZ

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM2#,NO.1

 4
90467-11095B0

CT19#,ET196,ST19#

GRAY,TRIM2#,NO.1

 6
63310H - CLIP(FOR ROOF HEADLINING)
90467-11095B0

CT190,ST19#..CZ,TZ

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM2#,NO.1

 4
90467-11095B0

CT19#,ET196,ST19#

GRAY,TRIM2#,NO.1

 6
63324E - SPRING, SUNSHADE LOCK
63324-05010

CT190,ST19#..CZ,TZ

 4
63324-05010

ST191,195..CZ;CT190,ST190..CZ,TZ

 4
63328C - KNOB, SUNSHADE TRIM
63328-0W010B0

CT190,ST19#..CZ,TZ

GRAY,TRIM2#

 1
Common parts
90080-16030
90080-20035
90530-15004
