ST190G-DWPGK (1992)

Toyota Caldina

Production Nov 1992 - Jan 1996
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )

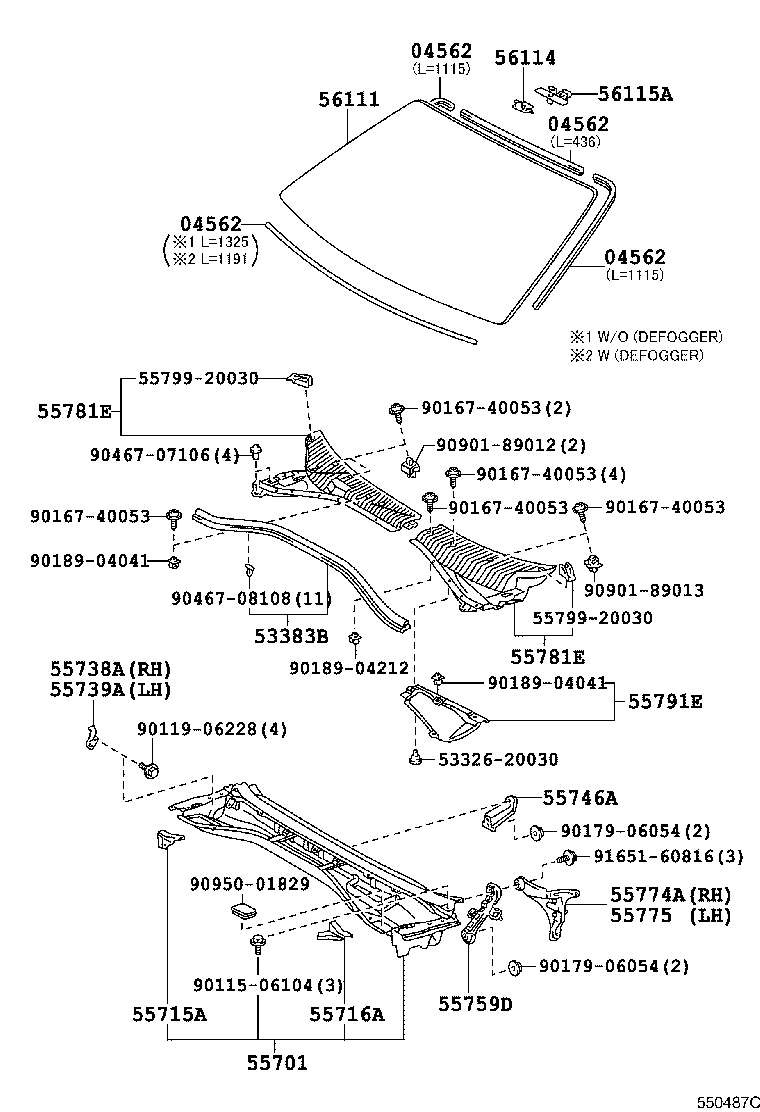

Click highlighted areas on diagram

diagram 04562 04562 04562 04562 5332620030 53383B 55701 55715A 55716A 55738A 55739A 55746A 55759D 55774A 55775 55781E 55781E 55791E 5579920030 5579920030 56111 56114 56115A 9011506104 9011906228 9016740053 9016740053 9016740053 9016740053 9016740053 9017906054 9017906054 9018904041 9018904041 9018904212 9046707106 9046708108 9090189012 9090189013 9095001829 9165160816
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

CT19#,ET196,ST19#

 1
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

CT19#,ET196,ST19#

 1
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

CT19#,ET196,ST19#

 1
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

CT19#,ET196,ST19#

 1
53383B - SEAL, HOOD TO COWL TOP
53383-20160

AT191,CT19#,ET196,ST19#

 1
55701 - PANEL SUB-ASSY, COWL
55700-2B010

ST19#

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-20120

AT191,CT19#,ET196,ST19#

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-20090

AT191,CT19#,ET196,ST19#

 1
55738A - STOPPER, HOOD, RH
55738-20050

AT191,CT19#,ET196,ST19#

 1
55739A - STOPPER, HOOD, LH
55739-20050

AT191,CT19#,ET196,ST19#

 1
55746A - REINFORCEMENT, COWL TOP, INNER LOWER
55746-20100

CT19#,ET196,ST190,191

 1
55746-20100

CT19#,ET196,ST19#

 1
55746-20100

CT19#,ET196,ST19#

 1
55774A - BRACKET, COWL TOP INNER TO PILLAR BRACE, RH
55774-20090

CT19#,ET196,ST19#

 1
55774-20090

CT19#,ET196,ST19#

 1
55775 - BRACKET, COWL TOP INNER TO PILLAR BRACE, LH
55775-20070

CT19#,ET196,ST19#

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55709-20080

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ,左側

 1
55709-20070

AT191,CT19#,ET196,ST19#

左側

 1
55708-20160

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ,右側

 1
55708-20150

AT191,CT19#,ET196,ST19#

右側

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55709-20080

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ,左側

 1
55709-20070

AT191,CT19#,ET196,ST19#

左側

 1
55708-20160

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ,右側

 1
55708-20150

AT191,CT19#,ET196,ST19#

右側

 1
55791E - COVER, HEATER DUCT HOLE
55790-20010

AT191,CT19#,ET196,ST19#

 1
56111 - GLASS, WINDSHIELD
56111-2B130

CT190,ST19#

*LAM,T=4.7,ﾌﾞﾛﾝｽﾞ

 1
56111-2B161

CT190,ST19#

*EHTL,T=4.8,ﾌﾞﾛﾝｽﾞ

 1
56111-2B080

CT190,ST19#

*EHL,T=4.76,ﾌﾞﾛﾝｽﾞ

 1
56111-2B131

CT190,ST19#

*LAM,T=4.76,ﾌﾞﾛﾝｽﾞ

 1
56111-2B400

CT190,ST19#

*LAM,T=4.76,ﾌﾞﾛﾝｽﾞ

 1
56111-2B160

CT190,ST19#

*EHTL,T=4.7,ﾌﾞﾛﾝｽﾞ

 1
56111-2B411

CT190,ST19#

*EHTL,T=4.8,ﾌﾞﾛﾝｽﾞ

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-20010

CT19#,ET196,ST19#

 2
56114-20040

AT191,CT19#,ET196,ST19#

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-20060

CT19#,ET196,ST19#

 2
56115-20060

CT190,ST19#

 2
Common parts
53326-20030
55799-20030
90115-06104
90119-06228
90167-40053
90179-06054
90189-04041
90189-04212
90467-07106
90467-08108
90901-89012
90901-89013
90950-01829
91651-60816
