ST190G-DWPGK (1992)
Toyota Caldina
Production
Nov 1992
-
Jan 1996
Engine
4SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9211-9601)ST190,191

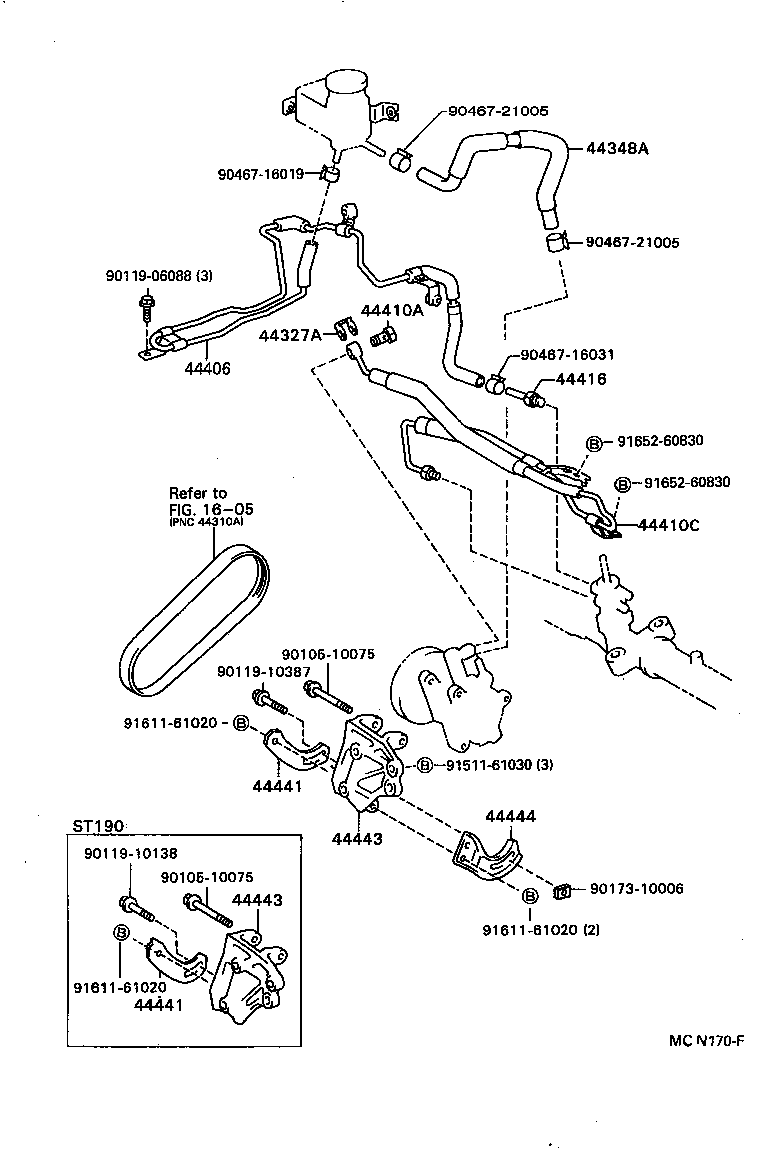

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-20280 |
ST19#..CZ,FZ,TZ |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-20430 |
ST190,191 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 44410C - TUBE ASSY, PRESSURE FEED, NO.1 | ||||
| 44410-20790 |
ST190 |
1 | ||
| 44410-2B080 |
ST190 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20220 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-32010 |
ST190,191 |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-32010 |
ST190,191 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-32070 |
ST190 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-32070 |
ST190 |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-06088 | ||||
| 90119-10138 | ||||
| 90119-10387 | ||||
| 90173-10006 | ||||
| 90467-16019 | ||||
| 90467-16031 | ||||
| 90467-21005 | ||||
| 91511-61030 | ||||
| 91611-61020 | ||||
| 91652-60830 | ||||
| Linked diagrams | ||||
| 1605 | ||||
