ST190G-DWPEK (1992)

Toyota Caldina

Production Nov 1992 - Jan 1996
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

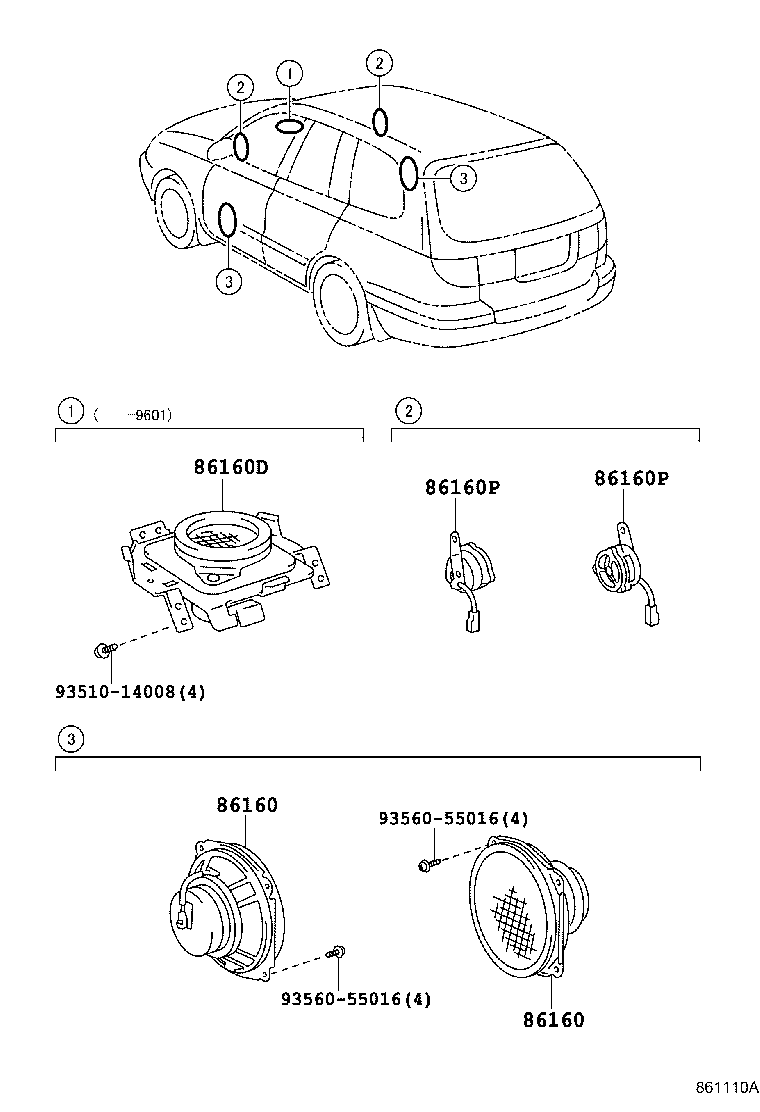

ILLUST NO. 1 OF 2(9211- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 86160 86160 86160D 86160P 86160P 9351014008 9356055016 9356055016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-2B100

CT190,ST19#

15W,MATSUSHITA

 2
86160-20810

CT190,ST190..DSL,EFI;AT191,CT190,ST191,195..(CZ,TZ,TZG)..(EFI,TD)

20W

 2
86160-0W010

CT190,ST19#

15W,PHILIPS

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-2B100

CT190,ST19#

15W,MATSUSHITA

 2
86160-20810

CT190,ST190..DSL,EFI;AT191,CT190,ST191,195..(CZ,TZ,TZG)..(EFI,TD)

20W

 2
86160-0W010

CT190,ST19#

15W,PHILIPS

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-20840

AT191,CT190,ST19#..CZ,TZ,TZG

右側

 1
86160-20850

AT191,CT190,ST19#..CZ,TZ,TZG

左側

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-20840

AT191,CT190,ST19#..CZ,TZ,TZG

右側

 1
86160-20850

AT191,CT190,ST19#..CZ,TZ,TZG

左側

 1
Common parts
93510-14008
93560-55016

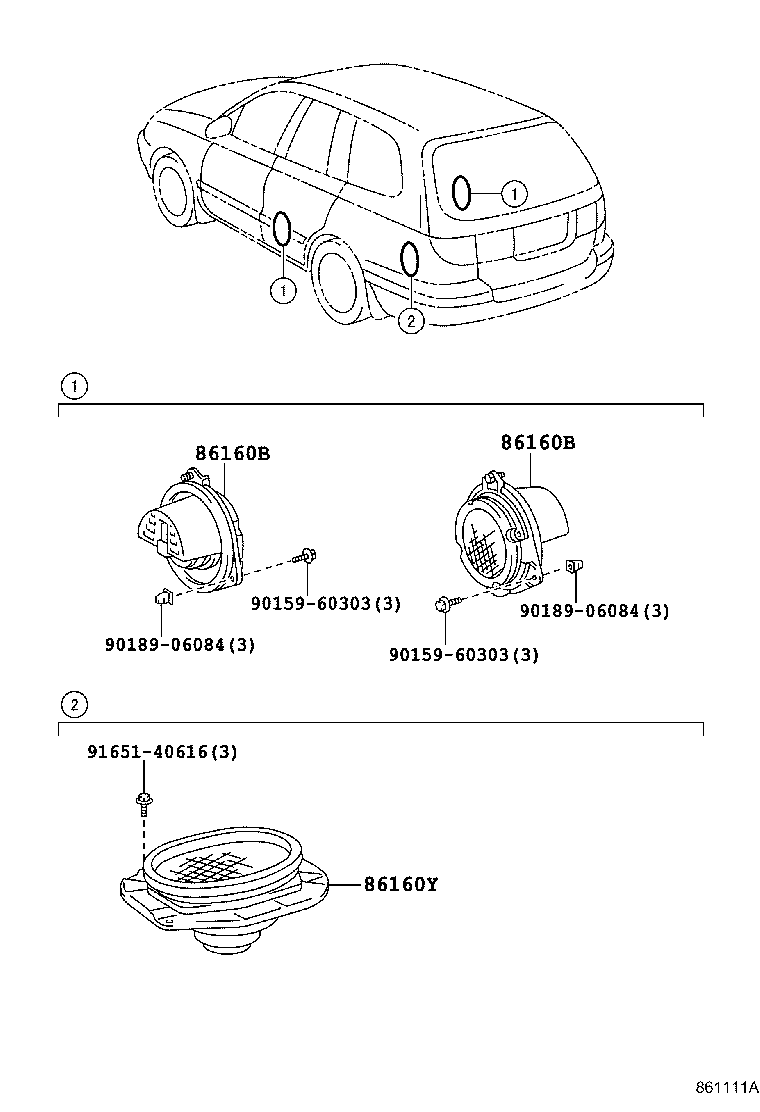

ILLUST NO. 2 OF 2(9211- )AT191,CT190,196,198,ET196,ST190,191,195

Click highlighted areas on diagram

ﾘﾔ

diagram 86160B 86160B 86160Y 9015960303 9015960303 9018906084 9018906084 9165140616
Part # Description Qty Price
86160B - SPEAKER ASSY, REAR
86160-20820

CT190,ST190..DSL,EFI;AT191,CT190,ST191,195..(CZ,TZ,TZG)..(EFI,TD)

20W

 2
86160-2B110

AT191,CT190,ST19#

15W,MATSUSHITA

 2
86160-0W020

CT190,ST19#

15W,PHILIPS

 2
86160B - SPEAKER ASSY, REAR
86160-20820

CT190,ST190..DSL,EFI;AT191,CT190,ST191,195..(CZ,TZ,TZG)..(EFI,TD)

20W

 2
86160-2B110

AT191,CT190,ST19#

15W,MATSUSHITA

 2
86160-0W020

CT190,ST19#

15W,PHILIPS

 2
Common parts
90159-60303
90189-06084
91651-40616
