ST190G-DWPEK (1992)

Toyota Caldina

Production Nov 1992 - Jan 1996
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )AT191,CT190,ST190,191,195

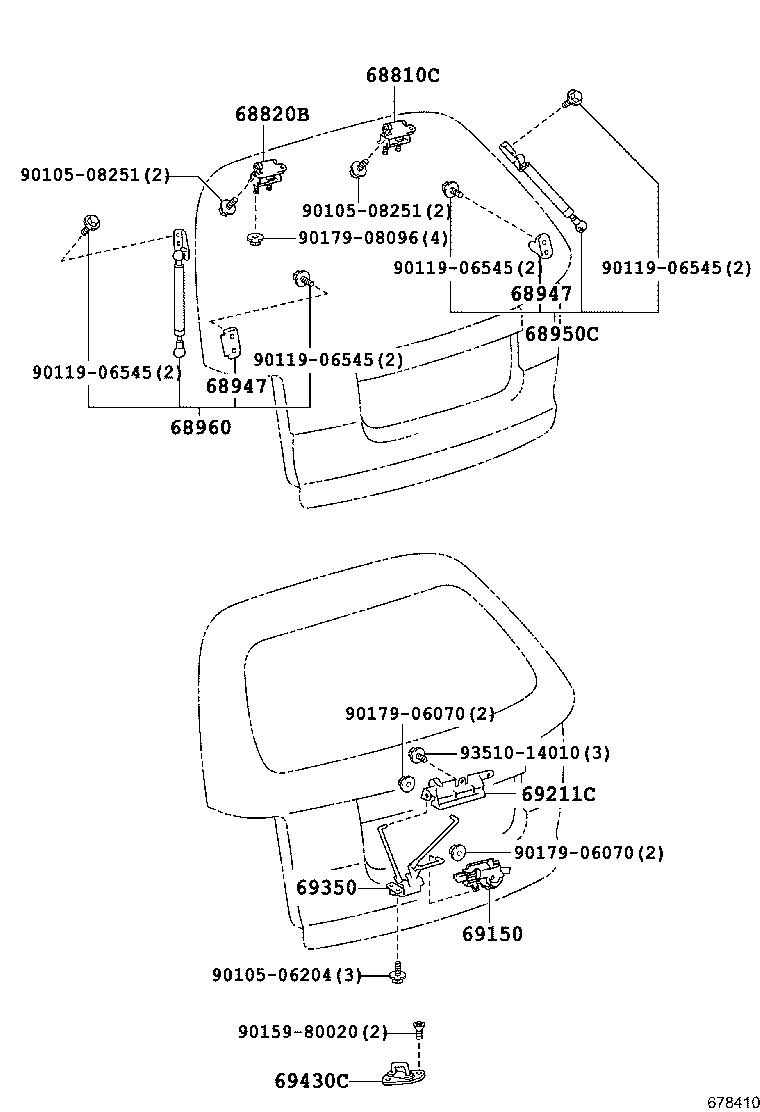

Click highlighted areas on diagram

diagram 68810C 68820B 68947 68947 68950C 68960 69150 69211C 69350 69430C 9010506204 9010508251 9010508251 9011906545 9011906545 9011906545 9011906545 9015980020 9017906070 9017906070 9017908096 9351014010
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68810-21040

AT191,CT19#,ET196,ST19#

 1
68820B - HINGE ASSY, BACK DOOR, LH
68810-21040

AT191,CT19#,ET196,ST19#

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-21010

CT19#,ET196,ST19#

 2
68947-21011

AT191,CT19#,ET196,ST19#

 2
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-21010

CT19#,ET196,ST19#

 2
68947-21011

AT191,CT19#,ET196,ST19#

 2
68950C - STAY ASSY, BACK DOOR, RH
68950-80023

CT190,ST19#

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-29885

CT190,ST19#

 1
69150 - ACTUATOR ASSY, BACK DOOR LOCK
69150-21020

CT19#,ET196,ST19#..CZ,FZ,UL,UX

 1
69211C - HANDLE, BACK DOOR OUTSIDE
69023-21010

AT191,CT190,ST19#

 1
69350 - LOCK ASSY, BACK DOOR
69350-21040

CT190,ST19#

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-13010

AT191,CT19#,ET196,ST19#

 1
Common parts
90105-06204
90105-08251
90119-06545
90159-80020
90179-06070
90179-08096
93510-14010
