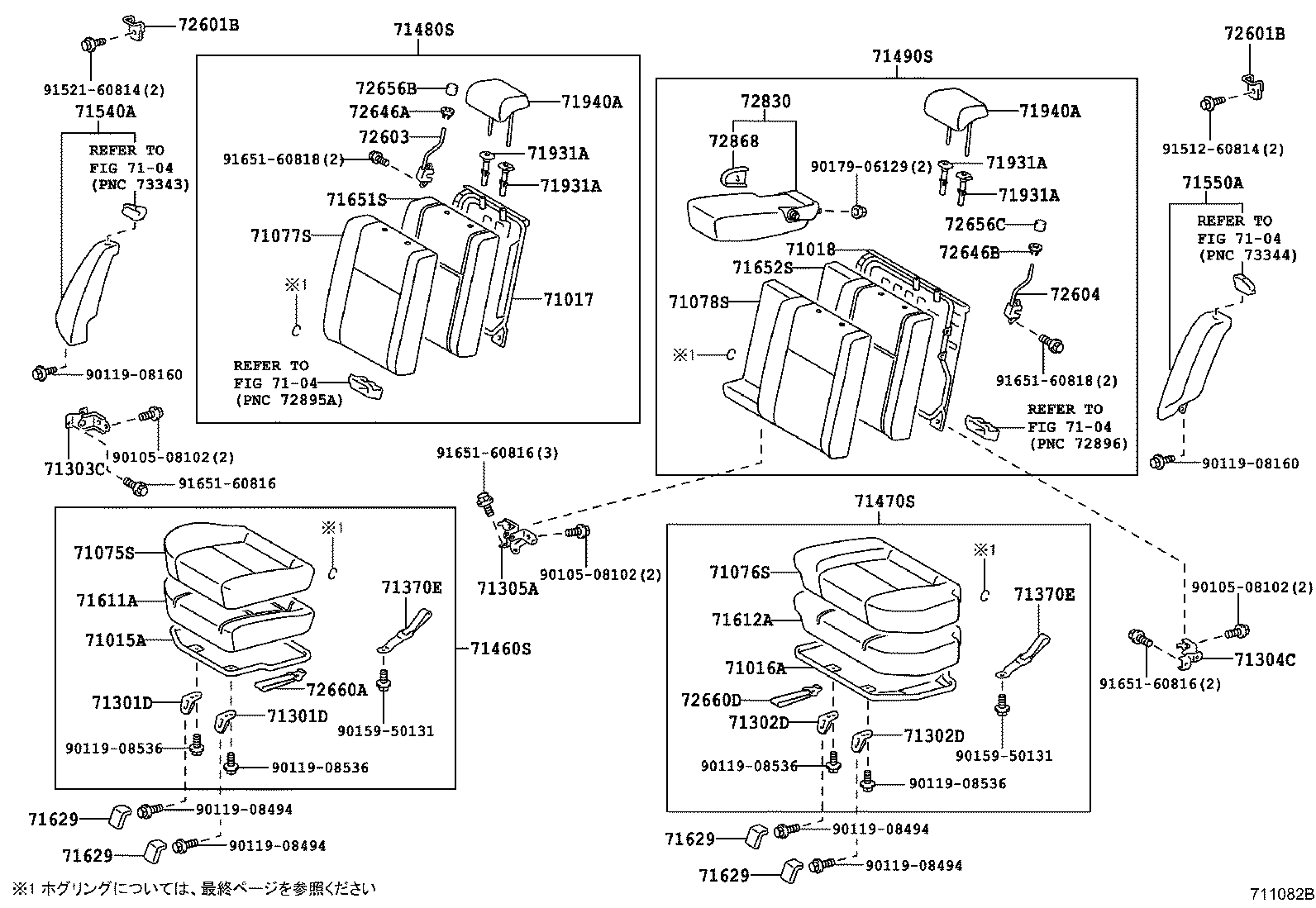

ST190G-DWMEK (1992)
Toyota Caldina
(9211-9501)CT190,ST19#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-20380 |
CT190,ST19# |
1 | ||
| 71015-20380 |
CT190,ST19#..CZ,TZ |
1 | ||
| 71015-21010 |
CT190,ST19# |
1 | ||
| 71015-21010 |
CT190,ST19# |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-21010 |
CT190,ST19# |
1 | ||
| 71016-20050 |
CT190,ST19# |
1 | ||
| 71016-21010 |
CT190,ST19# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-21030 |
CT190,ST19# |
1 | ||
| 71017-20490 |
CT190,ST19# |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-21010 |
CT190,ST19# |
1 | ||
| 71018-20190 |
CT190,ST19# |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-21230C2 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71075-21280B1 |
CT190,ST19#..CZ,TZ SHADOW GRAY,TRIM1# |
1 | ||
| 71075-21230C6 |
CT190,ST19#..CZ,TZ BLACK,TRIM1# |
1 | ||
| 71075-21230C4 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-21050C4 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71076-21050C2 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71076-21070B1 |
CT190,ST19#..CZ,TZ SHADOW GRAY,TRIM1# |
1 | ||
| 71076-21050C6 |
CT190,ST19#..CZ,TZ BLACK,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-21210C1 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71077-21210C3 |
CT190,ST19#..CZ,TZ BLACK,TRIM1# |
1 | ||
| 71077-21290B1 |
CT190,ST19#..CZ,TZ SHADOW GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-21060C1 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71078-21080B1 |
CT190,ST19#..CZ,TZ SHADOW GRAY,TRIM1# |
1 | ||
| 71078-21060C3 |
CT190,ST19#..CZ,TZ BLACK,TRIM1# |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71302-20010 |
CT190,ST19# 左側 |
1 | ||
| 71302-20010 |
CT190,ST19#..CZ,TZ 左側 |
1 | ||
| 71301-21010 |
CT190,ST19# |
1 | ||
| 71302-21020 |
CT190,ST19# 左側 |
1 | ||
| 71301-20060 |
CT190,ST19# 右側 |
1 | ||
| 71301-20060 |
CT190,ST19#..CZ,TZ 右側 |
1 | ||
| 71301-21020 |
CT190,ST19# 右側 |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71302-20010 |
CT190,ST19# 左側 |
1 | ||
| 71302-20010 |
CT190,ST19#..CZ,TZ 左側 |
1 | ||
| 71301-21010 |
CT190,ST19# |
1 | ||
| 71302-21020 |
CT190,ST19# 左側 |
1 | ||
| 71301-20060 |
CT190,ST19# 右側 |
1 | ||
| 71301-20060 |
CT190,ST19#..CZ,TZ 右側 |
1 | ||
| 71301-21020 |
CT190,ST19# 右側 |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71301-21020 |
CT190,ST19# 右側 |
1 | ||
| 71301-20060 |
CT190,ST19# 右側 |
1 | ||
| 71302-20010 |
CT190,ST19# 左側 |
1 | ||
| 71302-21010 |
CT190,ST19# |
1 | ||
| 71302-21020 |
CT190,ST19# 左側 |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71301-21020 |
CT190,ST19# 右側 |
1 | ||
| 71301-20060 |
CT190,ST19# 右側 |
1 | ||
| 71302-20010 |
CT190,ST19# 左側 |
1 | ||
| 71302-21010 |
CT190,ST19# |
1 | ||
| 71302-21020 |
CT190,ST19# 左側 |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-20100 |
CT190,ST19# |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-20090 |
CT190,ST19# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-21010 |
CT190,ST19# |
1 | ||
| 71305-20150 |
CT190,ST19# |
1 | ||
| 71370E - HOLDER ASSY, REAR SEAT CUSHION, LH | ||||
| 71370-20050C1 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 71370-20040C1 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 71370E - HOLDER ASSY, REAR SEAT CUSHION, LH | ||||
| 71370-20050C1 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 71370-20040C1 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-21280B0 |
CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-21281B2 |
CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-21280C2 |
CT190,ST19#..CZ,TZ ***,BLACK,TRIM2# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-21050B0 |
CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71470-21050C2 |
CT190,ST19#..CZ,TZ ***,BLACK,TRIM2# |
1 | ||
| 71470-21051B2 |
CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-21330B0 |
CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-21330C2 |
CT190,ST19#..CZ,TZ ***,BLACK,TRIM2# |
1 | ||
| 71480-21331B2 |
CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-21050C2 |
CT190,ST19#..CZ,TZ ***,BLACK,TRIM2# |
1 | ||
| 71490-21051B2 |
CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-21050B0 |
CT190,ST19#..CZ,TZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-21010C2 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71540-21010B9 |
CT190,ST19#..CZ,TZ SHADOW GRAY,TRIM1# |
1 | ||
| 71540-21040B0 |
CT190,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-21010C2 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 71550-21010B9 |
CT190,ST19#..CZ,TZ SHADOW GRAY,TRIM1# |
1 | ||
| 71550-21040B0 |
CT190,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-21050 |
CT190,ST19# |
1 | ||
| 71611-20560 |
CT190,ST19# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-21050 |
CT190,ST19# |
1 | ||
| 71612-20200 |
CT190,ST19# |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-21010B0 |
CT190,ST19# SHADOW GRAY,TRIM1# |
4 | ||
| 71629-20010B0 |
CT190,ST19# SHADOW GRAY,TRIM1# |
4 | ||
| 71629-20010C0 |
CT190,ST19# BLACK,TRIM2# |
4 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-21010B0 |
CT190,ST19# SHADOW GRAY,TRIM1# |
4 | ||
| 71629-20010B0 |
CT190,ST19# SHADOW GRAY,TRIM1# |
4 | ||
| 71629-20010C0 |
CT190,ST19# BLACK,TRIM2# |
4 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-21010B0 |
CT190,ST19# SHADOW GRAY,TRIM1# |
4 | ||
| 71629-20010B0 |
CT190,ST19# SHADOW GRAY,TRIM1# |
4 | ||
| 71629-20010C0 |
CT190,ST19# BLACK,TRIM2# |
4 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-21010B0 |
CT190,ST19# SHADOW GRAY,TRIM1# |
4 | ||
| 71629-20010B0 |
CT190,ST19# SHADOW GRAY,TRIM1# |
4 | ||
| 71629-20010C0 |
CT190,ST19# BLACK,TRIM2# |
4 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-20690 |
CT190,ST19# |
1 | ||
| 71651-21070 |
CT190,ST19# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-20440 |
CT190,ST19# |
1 | ||
| 71652-21050 |
CT190,ST19# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-1002022 |
CT190,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
CT190,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT190,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
CT190,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-1002022 |
CT190,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
CT190,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT190,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
CT190,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-1002022 |
CT190,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
CT190,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT190,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
CT190,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-1002022 |
CT190,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
CT190,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT190,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
CT190,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-21031C1 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
2 | ||
| 71940-21030C0 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
2 | ||
| 71940-21060B0 |
CT190,ST19# GRAY,TRIM1# |
2 | ||
| 71940-21031B6 |
CT190,ST19#..CZ,TZ SHADOW GRAY,TRIM1# |
2 | ||
| 71940-21060B0 |
CT190,ST19# GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-21031C1 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
2 | ||
| 71940-21030C0 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
2 | ||
| 71940-21060B0 |
CT190,ST19# GRAY,TRIM1# |
2 | ||
| 71940-21031B6 |
CT190,ST19#..CZ,TZ SHADOW GRAY,TRIM1# |
2 | ||
| 71940-21060B0 |
CT190,ST19# GRAY,TRIM1# |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-20080 |
CT190,ST19# |
2 | ||
| 72601-16060 |
CT190,ST19# |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-20080 |
CT190,ST19# |
2 | ||
| 72601-16060 |
CT190,ST19# |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-21010 |
CT190,ST19# |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-21010 |
CT190,ST19# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20070C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72646-20070B0 |
CT190,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20070B0 |
CT190,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72646-20070C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-20020C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72661-20020B2 |
CT190,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-20020B2 |
CT190,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72661-20020C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-20030C0 |
CT190,ST19#..CZ,TZ BLACK,TRIM1# |
1 | ||
| 72660-20030C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72660D - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-20030C0 |
CT190,ST19# BLACK,TRIM1# |
1 | ||
| 72660-20030C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-20450C0 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 72830-20450B7 |
CT190,ST19#..CZ,TZ SHADOW GRAY,TRIM1# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-20020C0 |
CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72868-20020B0 |
CT190,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90119-08160 | ||||
| 90119-08494 | ||||
| 90119-08536 | ||||
| 90159-50131 | ||||
| 90179-06129 | ||||
| 91512-60814 | ||||
| 91521-60814 | ||||
| 91651-60816 | ||||
| 91651-60818 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(9211- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
