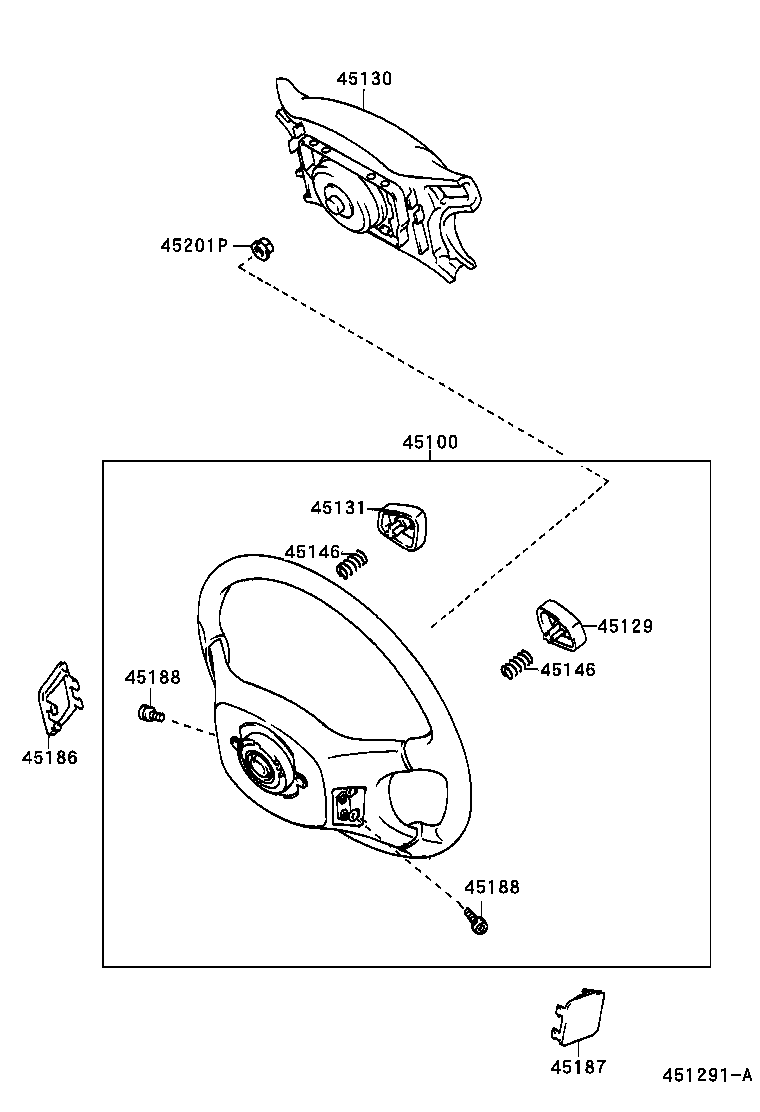

ST190G-DWMEK (1992)
Toyota Caldina
(9211-9601)CZ,FZ,TZ,U,UL,UX
ｱﾘ(ﾃﾞﾝｷｼｷ *80)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B180C0 |
CT190,ST19#..CZ,FZ 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2# |
1 | ||
| 45100-2B231C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2# |
1 | ||
| 45100-2B231C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1# |
1 | ||
| 45100-2B230C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2# |
1 | ||
| 45100-2B440C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1# |
1 | ||
| 45100-2B080C0 |
CT190,ST19#..CZ,FZ 4本ｽﾎﾟｰｸ,BLACK,TRIM1# |
1 | ||
| 45129 - BUTTON, HORN, NO.2 | ||||
| 45129-33010C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 45129-33010C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45129-32020C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B190C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM2# |
1 | ||
| 45130-2B310C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM1# |
1 | ||
| 45130-2B321C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B171C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM2# |
1 | ||
| 45130-2B170C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM2# |
1 | ||
| 45130-2B350C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B351C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-33010C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 45131-33010C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45131-32070C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20230 |
CT19#,ET196,ST19# |
2 | ||
| 45146-32070 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
2 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20230 |
CT19#,ET196,ST19# |
2 | ||
| 45146-32070 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
2 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-32040C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45186-2002022 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45186-2002022 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 45186-32040C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-20030C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45187-20030C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 45187-32040C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90148-60007 |
CT19#,ET196,ST19#..CZ,FZ,TZ,U,UL,UX |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90148-60007 |
CT19#,ET196,ST19#..CZ,FZ,TZ,U,UL,UX |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
CT19#,ET196,ST19# |
1 | ||
| 90179-12071 |
AT191,CT19#,ET196,ST19# |
1 | ||

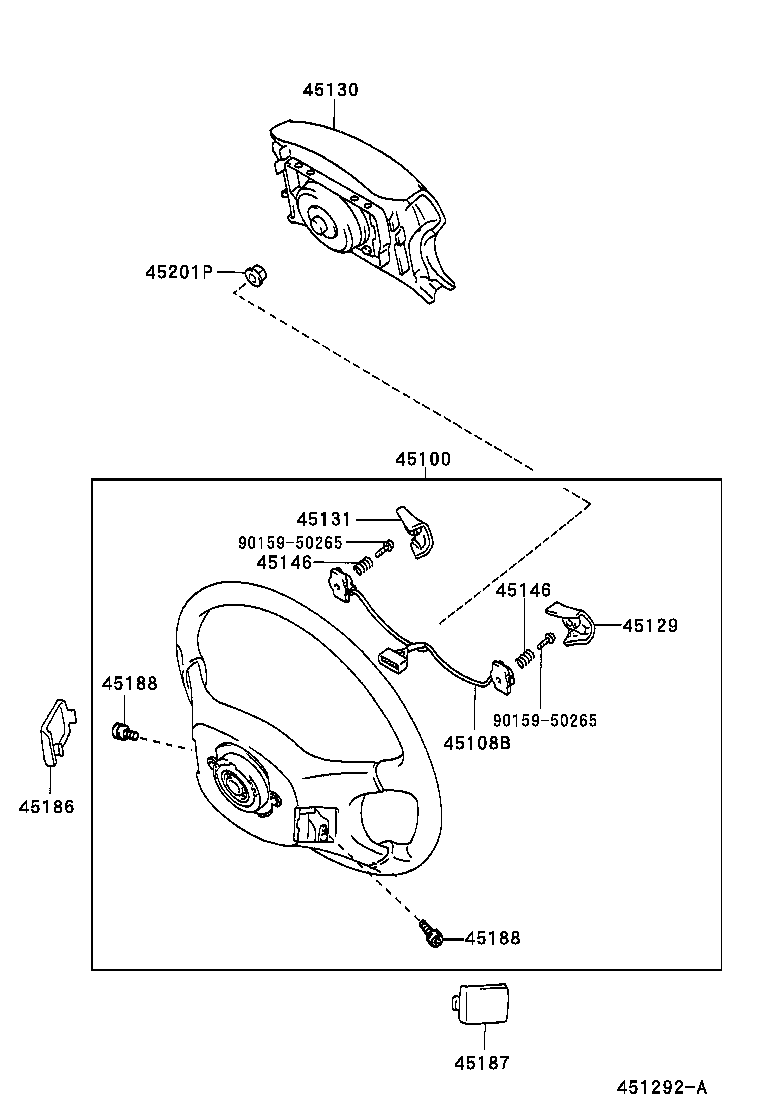

(9501-9601)
4-SPOKE, ｱﾘ(ｷｶｲｼｷ *80)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B180C0 |
CT190,ST19#..CZ,FZ 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2# |
1 | ||
| 45100-2B231C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2# |
1 | ||
| 45100-2B231C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1# |
1 | ||
| 45100-2B230C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2# |
1 | ||
| 45100-2B440C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1# |
1 | ||
| 45100-2B080C0 |
CT190,ST19#..CZ,FZ 4本ｽﾎﾟｰｸ,BLACK,TRIM1# |
1 | ||
| 45108B - BUTTON SUB-ASSY, HORN(FOR STEERING WHEEL ASSY) | ||||
| 45108-32080C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 45129 - BUTTON, HORN, NO.2 | ||||
| 45129-33010C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 45129-33010C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45129-32020C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B190C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM2# |
1 | ||
| 45130-2B310C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM1# |
1 | ||
| 45130-2B321C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B171C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM2# |
1 | ||
| 45130-2B170C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM2# |
1 | ||
| 45130-2B350C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B351C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-33010C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 45131-33010C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45131-32070C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20230 |
CT19#,ET196,ST19# |
2 | ||
| 45146-32070 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
2 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20230 |
CT19#,ET196,ST19# |
2 | ||
| 45146-32070 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
2 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-32040C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45186-2002022 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45186-2002022 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 45186-32040C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-20030C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45187-20030C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 45187-32040C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90148-60007 |
CT19#,ET196,ST19#..CZ,FZ,TZ,U,UL,UX |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90148-60007 |
CT19#,ET196,ST19#..CZ,FZ,TZ,U,UL,UX |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
CT19#,ET196,ST19# |
1 | ||
| 90179-12071 |
AT191,CT19#,ET196,ST19# |
1 | ||
| Common parts | ||||
| 90159-50265 | ||||

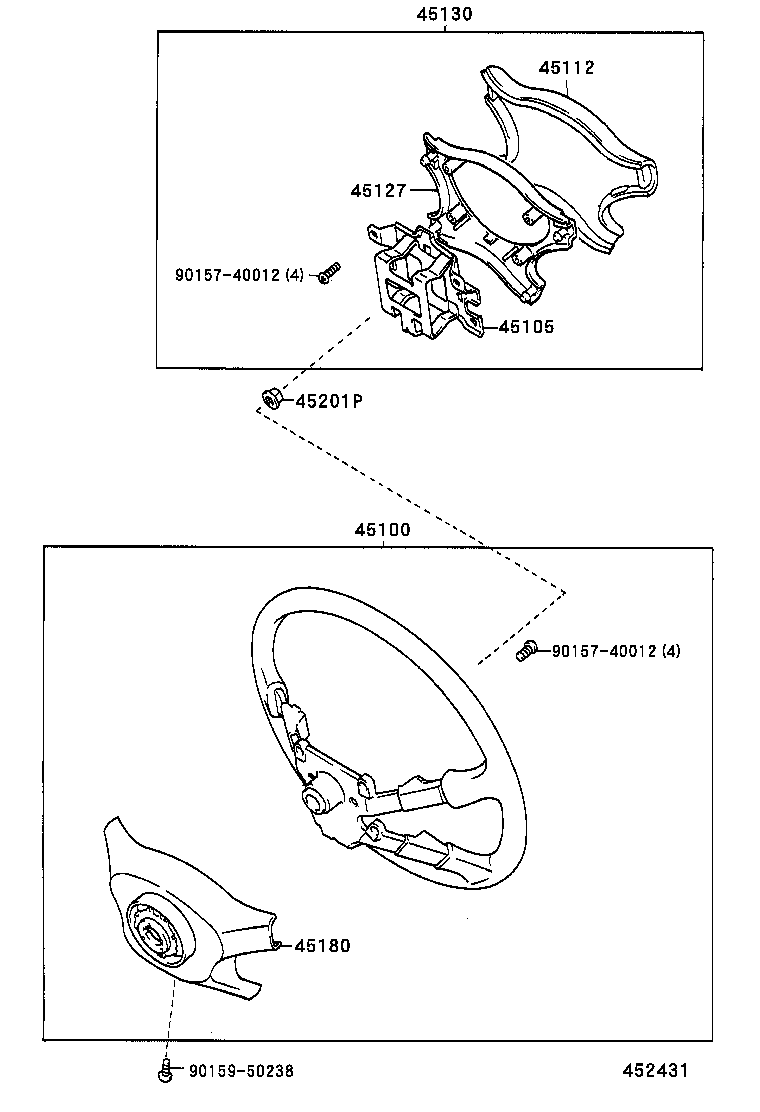

(9211- )AT191,CT190,196,198,ET196,ST190,191,195
4-SPOKE, LEATHER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B180C0 |
CT190,ST19#..CZ,FZ 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2# |
1 | ||
| 45100-2B231C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2# |
1 | ||
| 45100-2B231C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1# |
1 | ||
| 45100-2B230C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2# |
1 | ||
| 45100-2B440C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1# |
1 | ||
| 45100-2B080C0 |
CT190,ST19#..CZ,FZ 4本ｽﾎﾟｰｸ,BLACK,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-20410 |
CT190,ST19#..CZ,FZ |
1 | ||
| 45105-20380 |
CT190,ST19#..CZ,FZ |
1 | ||
| 45112 - PAD, STEERING WHEEL | ||||
| 45112-20630C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM2# |
1 | ||
| 45127 - INSERT, HORN BUTTON, UPPER NO.1 | ||||
| 45127-20010 |
CT190,ST19#..CZ,FZ |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B190C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM2# |
1 | ||
| 45130-2B310C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM1# |
1 | ||
| 45130-2B321C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B171C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM2# |
1 | ||
| 45130-2B170C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM2# |
1 | ||
| 45130-2B350C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B351C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-20120C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM1# |
1 | ||
| 45180-20200C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM2# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
CT19#,ET196,ST19# |
1 | ||
| 90179-12071 |
AT191,CT19#,ET196,ST19# |
1 | ||
| Common parts | ||||
| 90157-40012 | ||||
| 90159-50238 | ||||

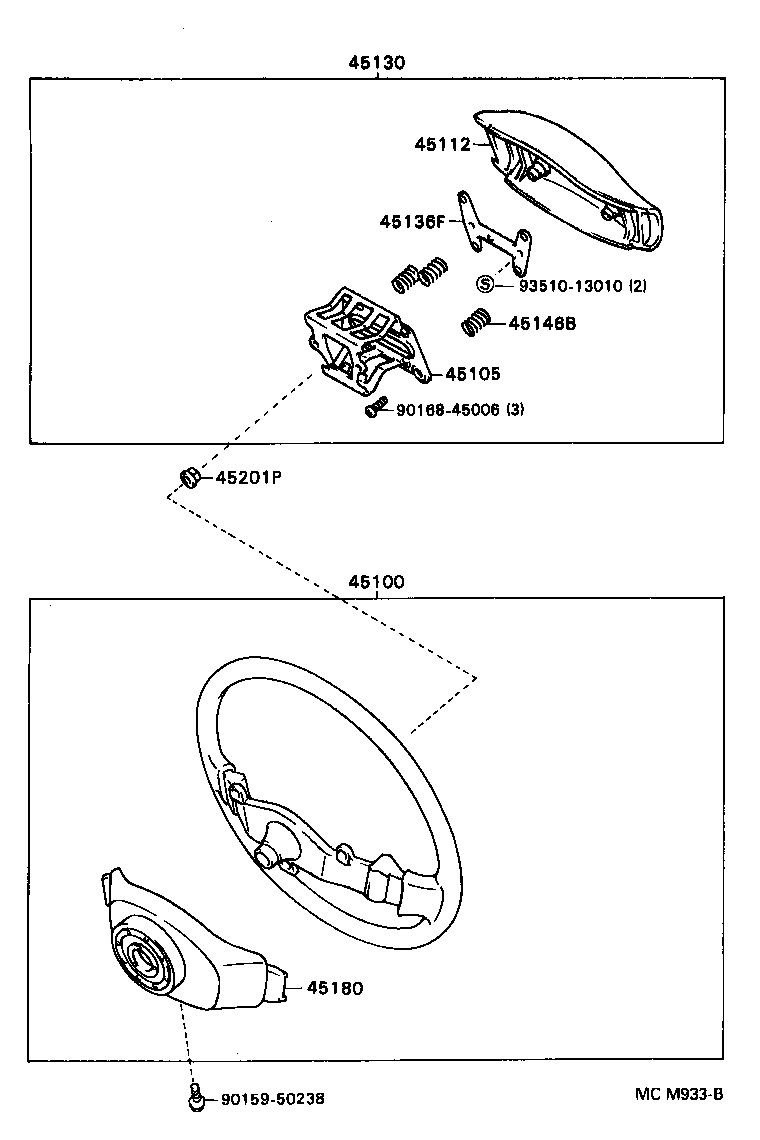

(9211-9402)
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B180C0 |
CT190,ST19#..CZ,FZ 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2# |
1 | ||
| 45100-2B231C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2# |
1 | ||
| 45100-2B231C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1# |
1 | ||
| 45100-2B230C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2# |
1 | ||
| 45100-2B440C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1# |
1 | ||
| 45100-2B080C0 |
CT190,ST19#..CZ,FZ 4本ｽﾎﾟｰｸ,BLACK,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-20410 |
CT190,ST19#..CZ,FZ |
1 | ||
| 45105-20380 |
CT190,ST19#..CZ,FZ |
1 | ||
| 45112 - PAD, STEERING WHEEL | ||||
| 45112-20630C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM2# |
1 | ||
| 45127 - INSERT, HORN BUTTON, UPPER NO.1 | ||||
| 45127-20010 |
CT190,ST19#..CZ,FZ |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B190C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM2# |
1 | ||
| 45130-2B310C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM1# |
1 | ||
| 45130-2B321C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B171C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM2# |
1 | ||
| 45130-2B170C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM2# |
1 | ||
| 45130-2B350C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B351C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-20120C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM1# |
1 | ||
| 45180-20200C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM2# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
CT19#,ET196,ST19# |
1 | ||
| 90179-12071 |
AT191,CT19#,ET196,ST19# |
1 | ||
| Common parts | ||||
| 90157-40012 | ||||
| 90159-50238 | ||||
| 90168-40114 | ||||

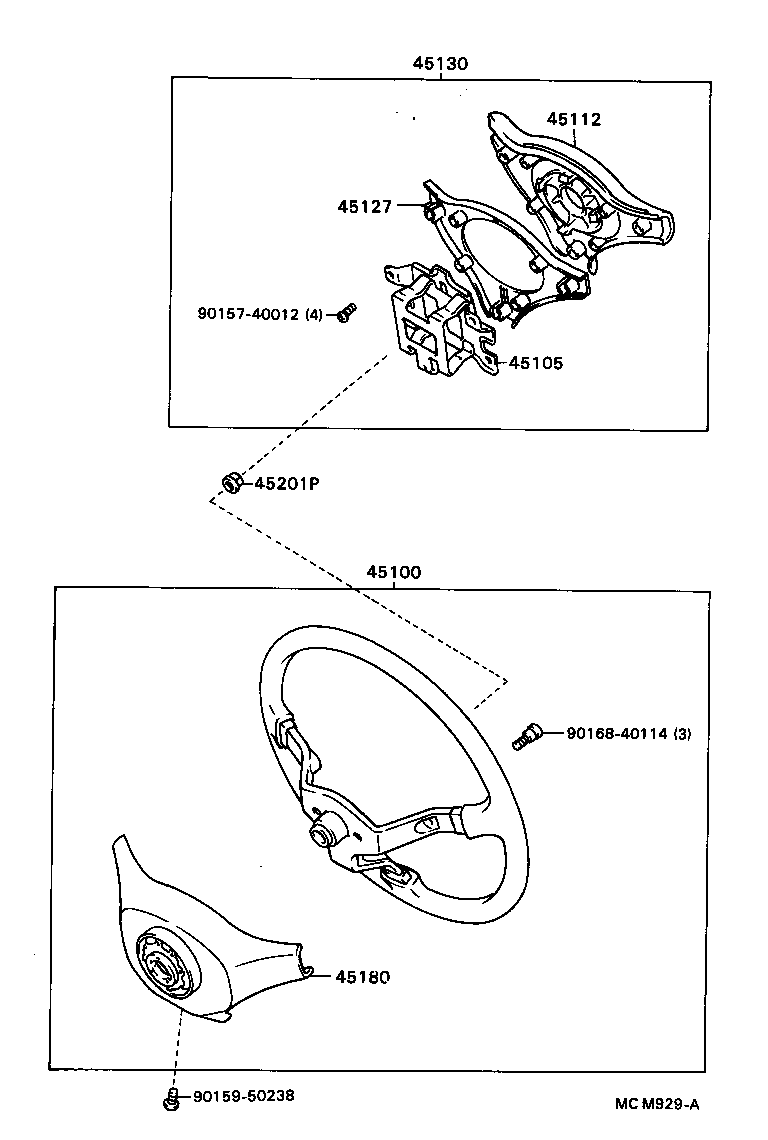

(9211-9601)
2-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B180C0 |
CT190,ST19#..CZ,FZ 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2# |
1 | ||
| 45100-2B231C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2# |
1 | ||
| 45100-2B231C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1# |
1 | ||
| 45100-2B230C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2# |
1 | ||
| 45100-2B440C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1# |
1 | ||
| 45100-2B080C0 |
CT190,ST19#..CZ,FZ 4本ｽﾎﾟｰｸ,BLACK,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-20410 |
CT190,ST19#..CZ,FZ |
1 | ||
| 45105-20380 |
CT190,ST19#..CZ,FZ |
1 | ||
| 45112 - PAD, STEERING WHEEL | ||||
| 45112-20630C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM2# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B190C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM2# |
1 | ||
| 45130-2B310C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM1# |
1 | ||
| 45130-2B321C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B171C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM2# |
1 | ||
| 45130-2B170C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM2# |
1 | ||
| 45130-2B350C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B351C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-20120C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM1# |
1 | ||
| 45180-20200C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM2# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
CT19#,ET196,ST19# |
1 | ||
| 90179-12071 |
AT191,CT19#,ET196,ST19# |
1 | ||
| Common parts | ||||
| 90159-50238 | ||||
| 90168-45006 | ||||
| 93510-13010 | ||||
(9402- )AT191,CT190,196,198,ET196,ST190,191,195

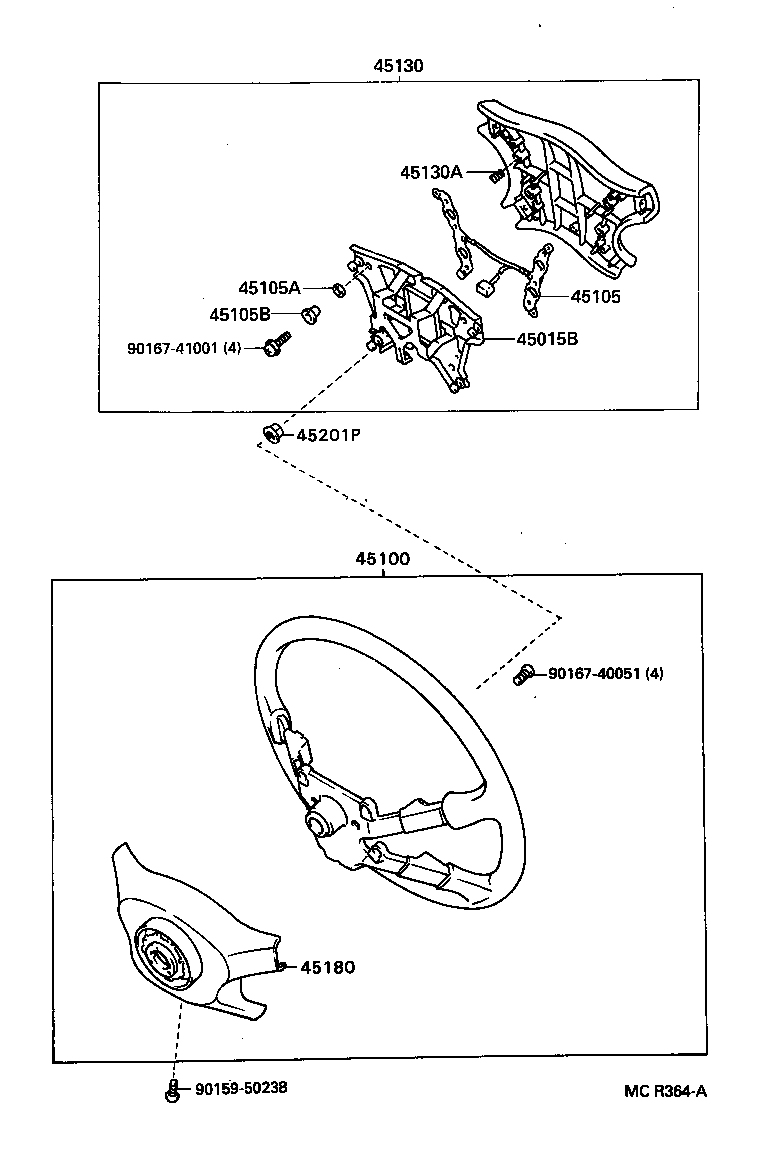

4-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45015B - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.2 | ||||
| 45015-20030 |
CT190,ST19#..CZ,FZ |
1 | ||
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B180C0 |
CT190,ST19#..CZ,FZ 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2# |
1 | ||
| 45100-2B231C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2# |
1 | ||
| 45100-2B231C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1# |
1 | ||
| 45100-2B230C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2# |
1 | ||
| 45100-2B440C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX 4本ｽﾎﾟｰｸ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1# |
1 | ||
| 45100-2B080C0 |
CT190,ST19#..CZ,FZ 4本ｽﾎﾟｰｸ,BLACK,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-20410 |
CT190,ST19#..CZ,FZ |
1 | ||
| 45105-20380 |
CT190,ST19#..CZ,FZ |
1 | ||
| 45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90540-08014 |
CT190,ST19#..CZ,FZ |
4 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 45155-22040 |
CT190,ST19#..CZ,FZ |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B190C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM2# |
1 | ||
| 45130-2B310C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM1# |
1 | ||
| 45130-2B321C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B171C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM2# |
1 | ||
| 45130-2B170C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM2# |
1 | ||
| 45130-2B350C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130-2B351C0 |
CT19#,ET196,ST19# ｱﾘ(*80),BLACK,TRIM1# |
1 | ||
| 45130A - SPRING, COMPRESSION(FOR HORN BUTTON) | ||||
| 90501-08104 |
CT190,ST19#..CZ,FZ |
4 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-20200C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM2# |
1 | ||
| 45180-20120C0 |
CT190,ST19#..CZ,FZ BLACK,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
CT19#,ET196,ST19# |
1 | ||
| 90179-12071 |
AT191,CT19#,ET196,ST19# |
1 | ||
| Common parts | ||||
| 90159-50238 | ||||
| 90167-40051 | ||||
| 90167-41001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
