ST190G-DWMEK (1992)

Toyota Caldina

Production Nov 1992 - Jan 1996
Engine 4SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

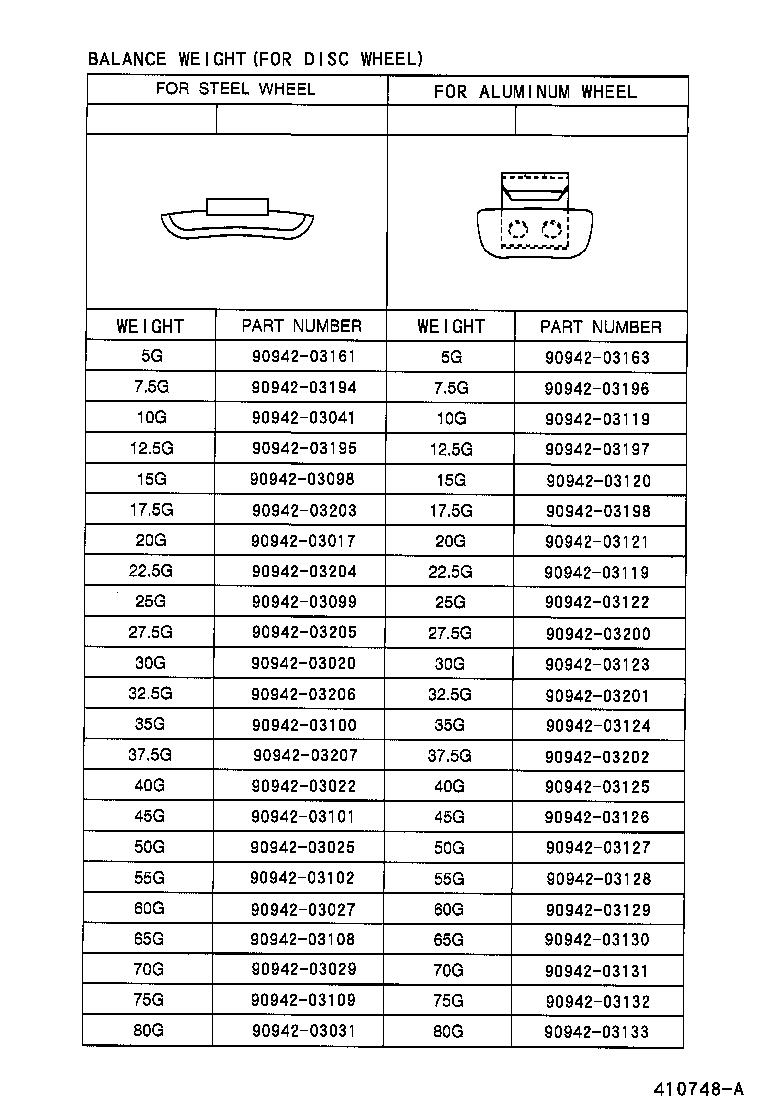

ILLUST NO. 3 OF 4(9211- )

Click highlighted areas on diagram

diagram 9094203017 9094203020 9094203022 9094203025 9094203027 9094203029 9094203031 9094203041 9094203098 9094203099 9094203100 9094203101 9094203102 9094203108 9094203109 9094203119 9094203119 9094203120 9094203121 9094203122 9094203123 9094203124 9094203125 9094203126 9094203127 9094203128 9094203129 9094203130 9094203131 9094203132 9094203133 9094203161 9094203163 9094203194 9094203195 9094203196 9094203197 9094203198 9094203200 9094203201 9094203202 9094203203 9094203204 9094203205 9094203206 9094203207
Part # Description Qty Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03029
90942-03031
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03109
90942-03119
90942-03120
90942-03121
90942-03122
90942-03123
90942-03124
90942-03125
90942-03126
90942-03127
90942-03128
90942-03129
90942-03130
90942-03131
90942-03132
90942-03133
90942-03161
90942-03163
90942-03194
90942-03195
90942-03196
90942-03197
90942-03198
90942-03200
90942-03201
90942-03202
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207

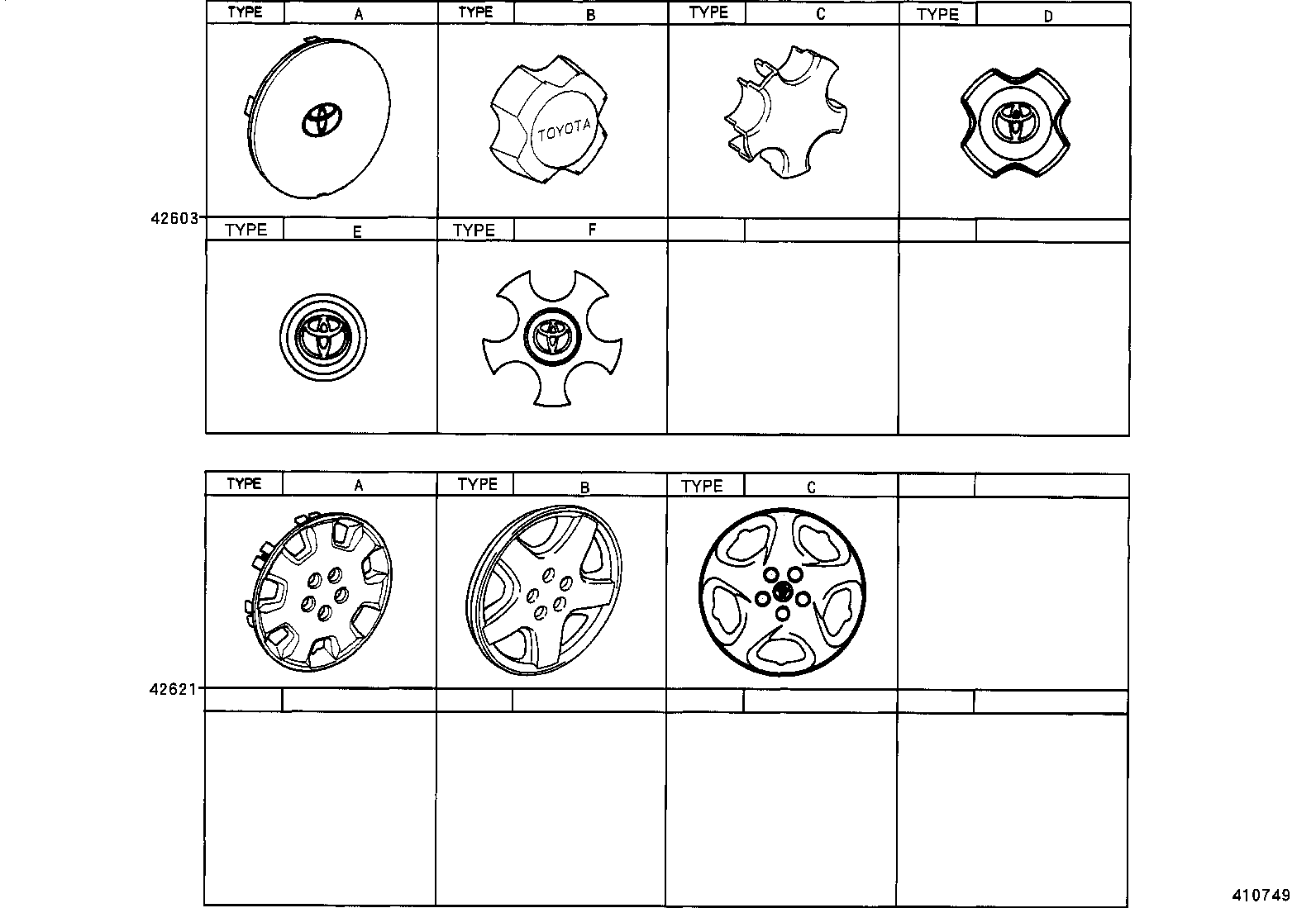

ILLUST NO. 2 OF 4(9211- )

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-20450

CT190,ST19#..CZ,FZ,TZ

*ALU,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42621 - CAP, WHEEL
42602-20300

CT190,ST19#..CZ,FZ,TZ

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 4

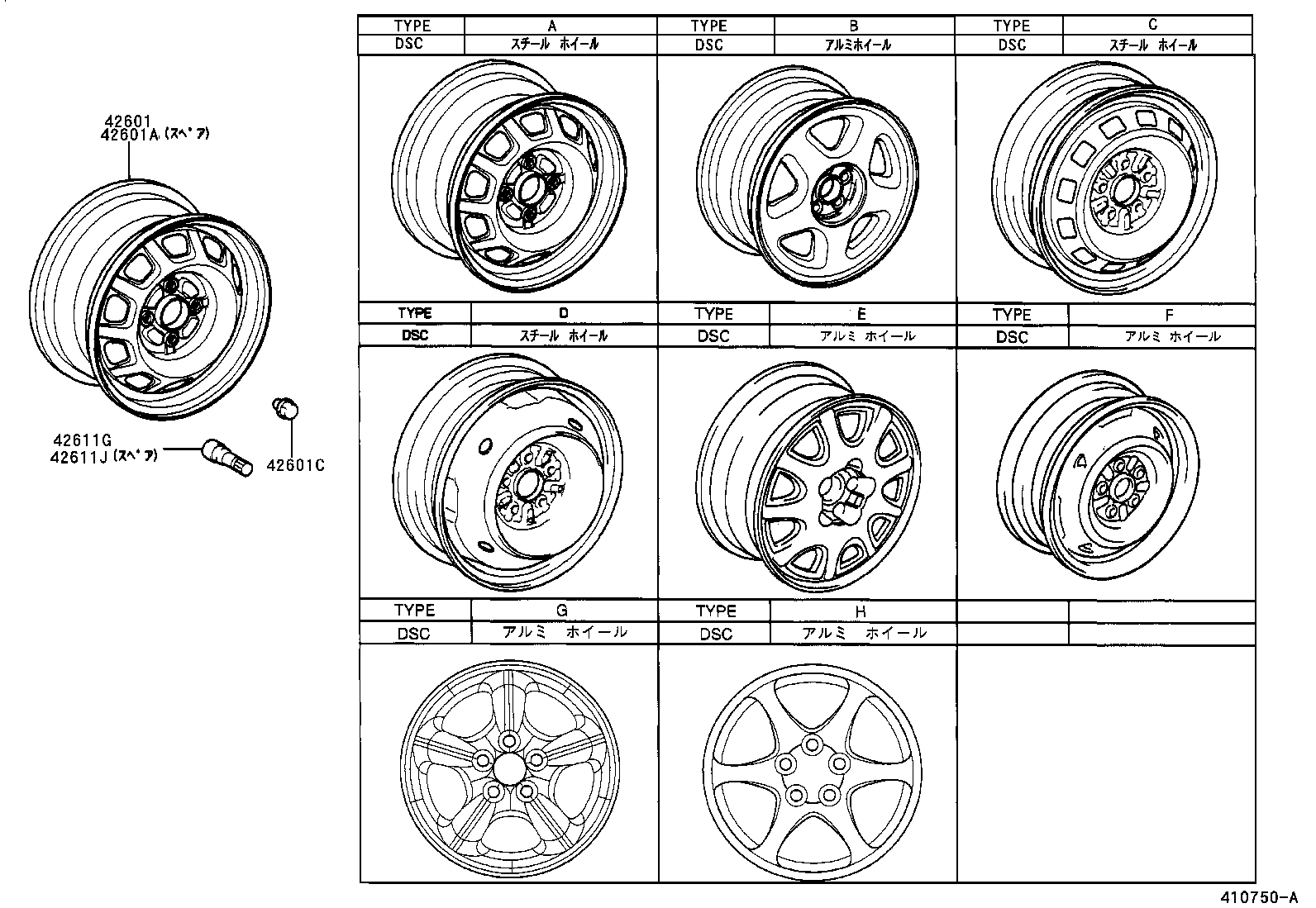

ILLUST NO. 1 OF 4(9211- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42611G 42611J
Part # Description Qty Price
42601 - WHEEL, DISC
42611-2088001

CT190,ST19#..CZ,TZ

14X6JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK

 4
42611-2B030

CT190,ST19#..CZ,FZ,TZ

14X6JJ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-2088001

CT190,ST19#..CZ,TZ

14X6JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK

 1
42611-2B030

CT190,ST19#..CZ,FZ,TZ

14X6JJ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐ ﾎｲ-ﾙ)

 1
42611-20440

AT191,CT190,ST19#..CZ,FZ,TZ

15X4T,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
42601C - NUT, HUB (FOR AXLE)
90942-01062

CT190,ST19#..CZ,FZ,TZ

ｱﾘ(ｱﾙﾐ ﾎｲｰﾙ)

 20
90942-01021

AT191,CT190,ST19#..CZ,FZ,TZ

 20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

AT191,CT19#,ET196,ST19#

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

AT191,CT19#,ET196,ST19#

 1

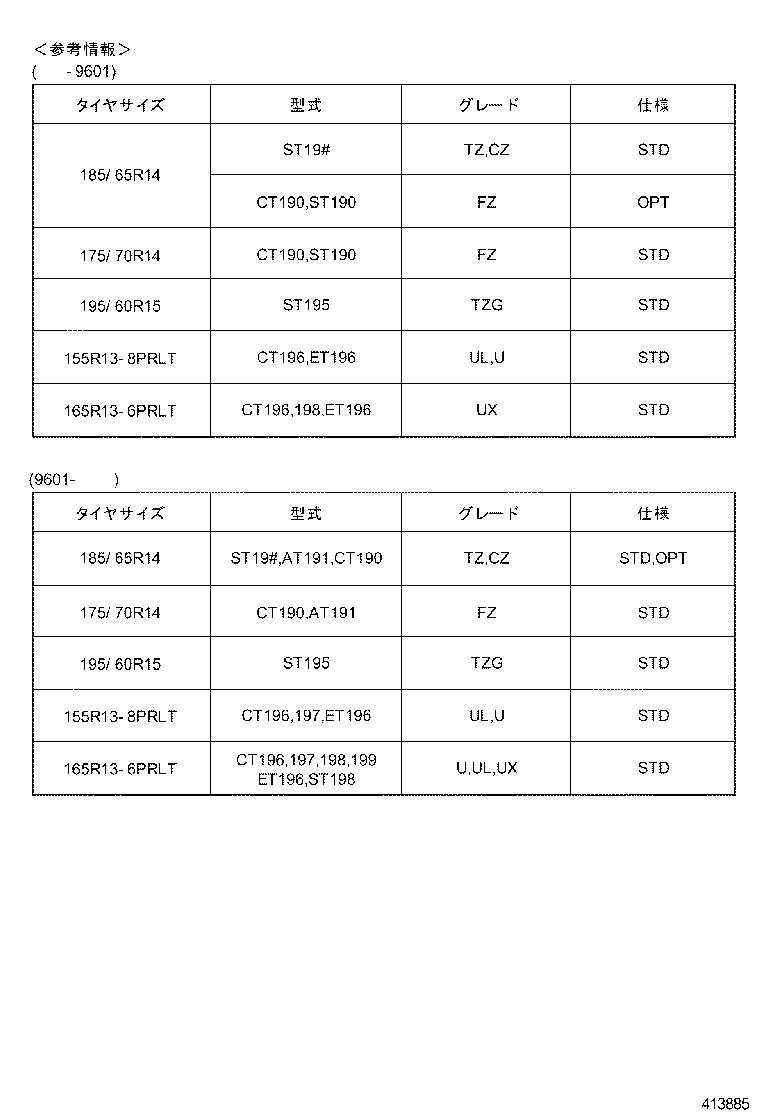

ILLUST NO. 4 OF 4(9211- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price
