ET196V-DXMNK (1992)

Toyota Caldina

Production Nov 1992 - Jun 2002
Engine 5EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

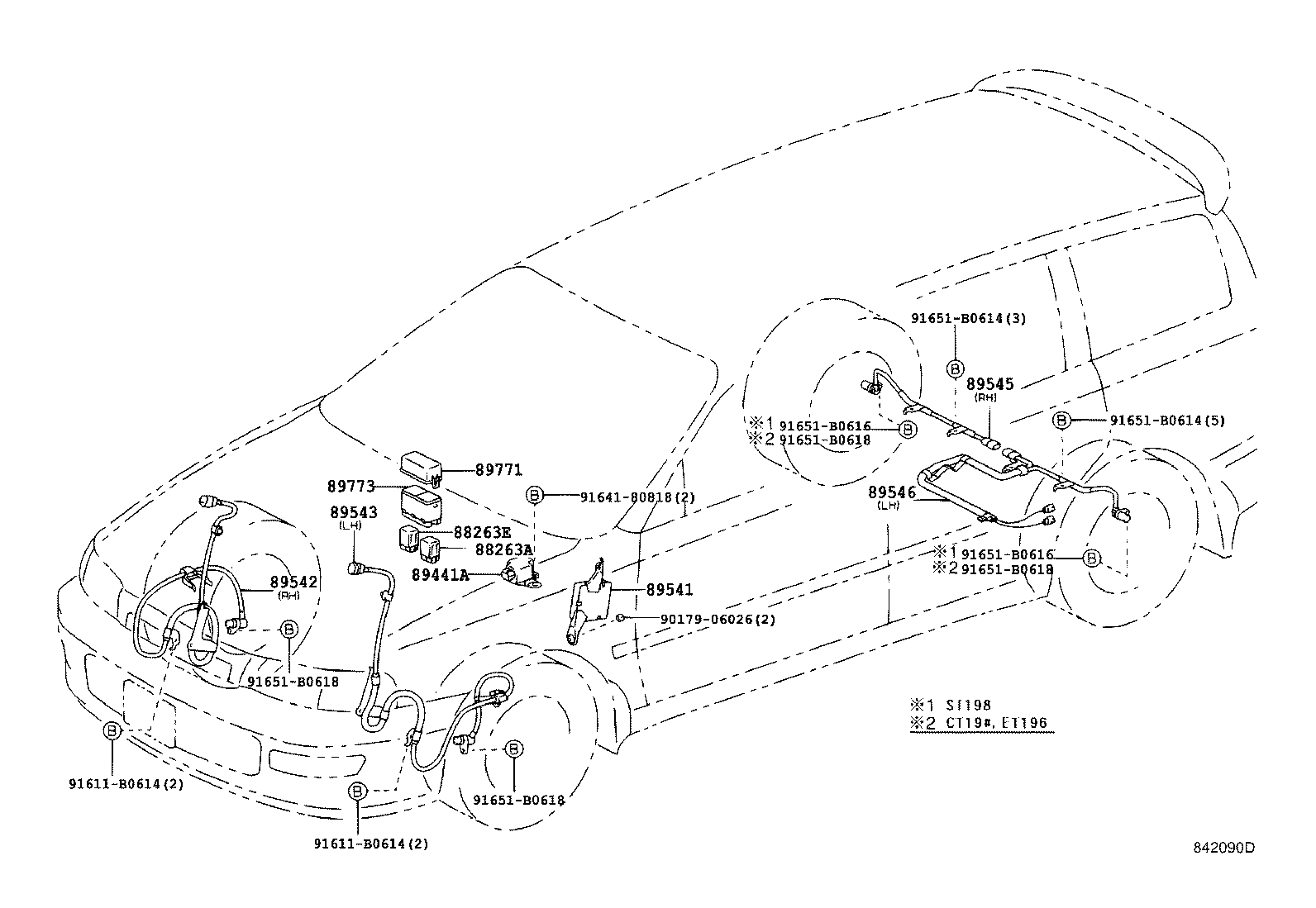

Click highlighted areas on diagram

diagram 88263A 88263E 89441A 89541 89542 89543 89545 89546 89771 89773 9017906026 91611B0614 91611B0614 9164180818 91651B0614 91651B0614 91651B0616 91651B0616 91651B0618 91651B0618 91651B0618 91651B0618
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-24020

CT19#,ET196

 1
88263E - RELAY, SKID CONTROL NO.2
88263-24030

CT19#,ET196,ST198

 1
89541 - COMPUTER, SKID CONTROL
89540-21030

CT197,ET196

 1
89542 - SENSOR, SPEED, FRONT RH
89542-20130

CT19#,ET196,ST198

 1
89543 - SENSOR, SPEED, FRONT LH
89543-20130

CT19#,ET196,ST198

 1
89545 - SENSOR, SPEED, REAR RH
89545-12051

CT197,ET196

 1
89545-12050

CT197,ET196

 1
89546 - SENSOR, SPEED, REAR LH
89546-12050

CT197,ET196

 1
89546-12051

CT197,ET196

 1
89771 - COVER, ABS RELAY BLOCK, UPPER
89771-21010

CT19#,ET196

 1
89773 - CASE, ABS RELAY BLOCK
89773-21010

CT19#,ET196

 1
Common parts
90179-06026
91611-B0614
91641-80818
91651-B0614
91651-B0616
91651-B0618
