ET196V-DXMNK (1992)

Toyota Caldina

Production Nov 1992 - Jun 2002
Engine 5EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )

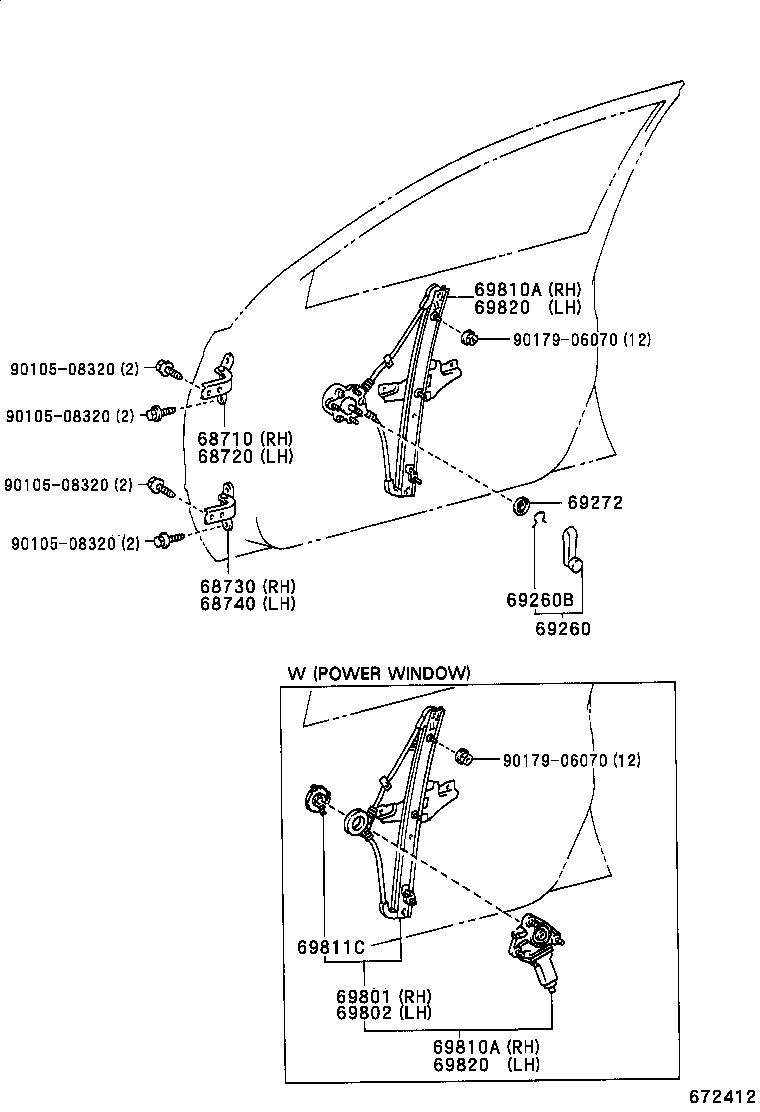

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69802 69810A 69810A 69811C 69820 69820 9010508320 9010508320 9010508320 9010508320 9017906070 9017906070
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12130

CT19#,ET196,ST19#

 1
68710-12150

AT191,CT19#,ET196,ST19#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12150

AT191,CT19#,ET196,ST19#

 1
68720-12130

CT19#,ET196,ST19#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-12090

CT19#,ET196,ST19#

 1
68730-12110

AT191,CT19#,ET196,ST19#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-12110

AT191,CT19#,ET196,ST19#

 1
68740-12090

CT19#,ET196,ST19#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-20090C0

CT196,198,ET196..U

BLACK,TRIM2#

 2
69260-20090B1

CT196,197,198,199,ET196,ST198..U

SHADOW GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

CT196,198,ET196..U

 2
90520-01274

CT196,197,198,199,ET196,ST198..U

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-2201008

CT196,198,ET196..U

NATURAL WHITE,TRIM2#

 2
69285-2201008

CT196,197,198,199,ET196,ST198..U

NATURAL WHITE,TRIM1#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-20210

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
69801-20210

CT19#,ET196,ST198..UL

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-20230

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-20280

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
69810-20270

CT196,197,198,199,ET196,ST198..U

 1
69810-20280

CT19#,ET196,ST198..UL

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-20280

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
69810-20270

CT196,197,198,199,ET196,ST198..U

 1
69810-20280

CT19#,ET196,ST198..UL

 1
69811C - PLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
69813-32010

CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 2
69814-32010

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

左側

 1
69813-32040

CT19#,ET196,ST198..UL

右側

 1
69813-32040

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

右側

 1
69814-32010

CT19#,ET196,ST198..UL

左側

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-20290

CT196,197,198,199,ET196,ST198..U

 1
69820-20300

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-20290

CT196,197,198,199,ET196,ST198..U

 1
69820-20300

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
Common parts
90105-08320
90179-06070
