ET196V-DXMNK (1992)
Toyota Caldina

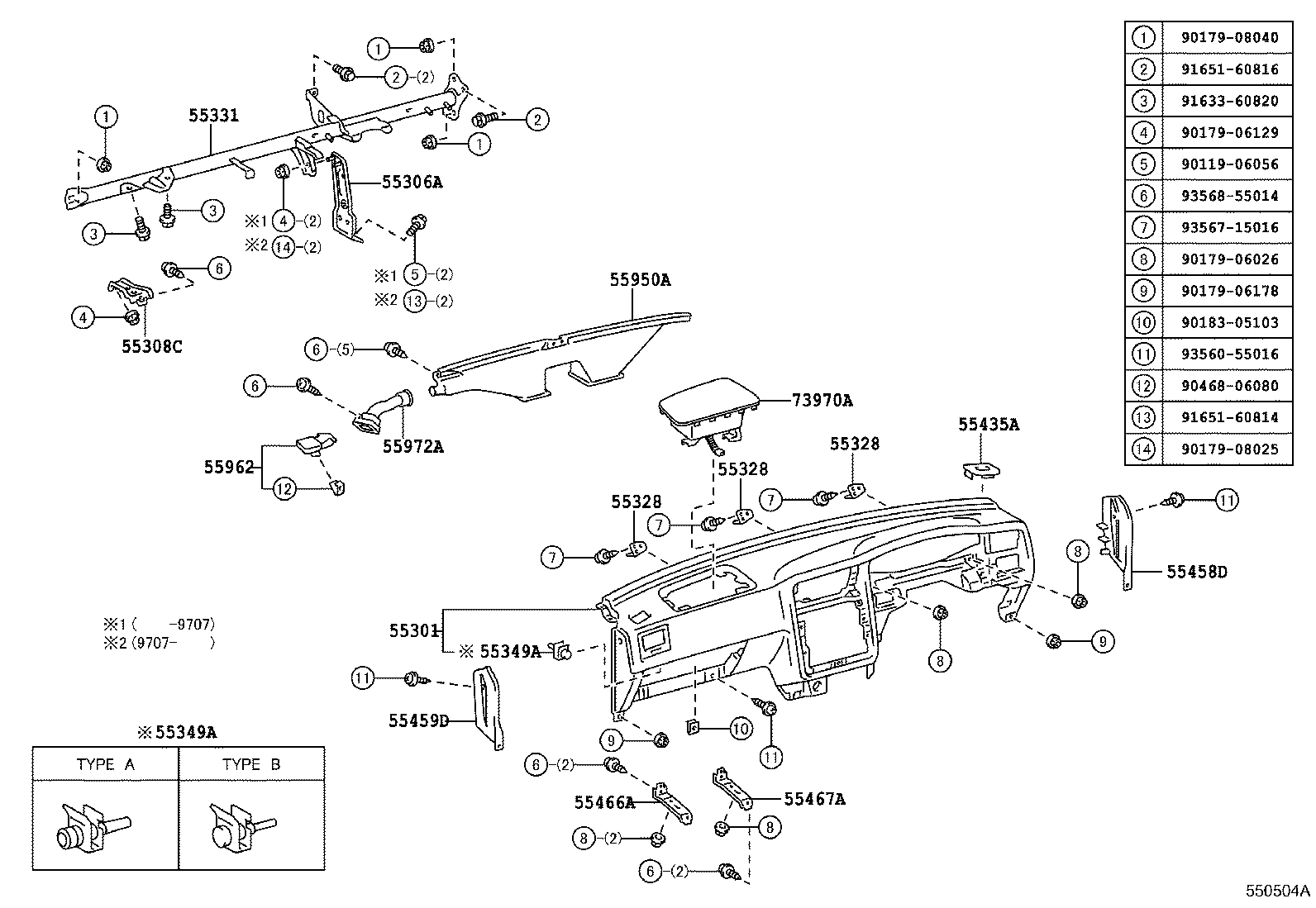

ILLUST NO. 1 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-20030C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55300-20030B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55311-21010B0 |
CT196,198,ET196 SHADOW GRAY,TRIM1# |
1 | ||
| 55311-21090B0 |
CT19#,ET196,ST198 SHADOW GRAY,TRIM1# |
1 | ||
| 55311-21110B0 |
CT19#,ET196,ST198 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),SHADOW GRAY,TRIM1# |
1 | ||
| 55311-21060B0 |
CT196,198,ET196 SHADOW GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-20290 |
CT19#,ET196,ST198 |
1 | ||
| 55306-20200 |
CT19#,ET196,ST19# |
1 | ||
| 55306-20260 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-20210 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 55308-20180 |
CT19#,ET196,ST19# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-20100 |
AT191,CT19#,ET196,ST19# RH,LH |
2 | ||
| 55328-20070 |
CT19#,ET196,ST19# |
3 | ||
| 55328-20110 |
AT191,CT19#,ET196,ST19# CENTER |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-20100 |
AT191,CT19#,ET196,ST19# RH,LH |
2 | ||
| 55328-20070 |
CT19#,ET196,ST19# |
3 | ||
| 55328-20110 |
AT191,CT19#,ET196,ST19# CENTER |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-20100 |
AT191,CT19#,ET196,ST19# RH,LH |
2 | ||
| 55328-20070 |
CT19#,ET196,ST19# |
3 | ||
| 55328-20110 |
AT191,CT19#,ET196,ST19# CENTER |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-20150 |
CT19#,ET196,ST19# |
1 | ||
| 55330-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 55330-21040 |
CT19#,ET196,ST198 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-20090 |
AT191,CT19#,ET196,ST19# ﾀｲﾌﾟ A |
2 | ||
| 55349-20100 |
AT191,CT19#,ET196,ST19# ﾀｲﾌﾟ B |
2 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-20090 |
AT191,CT19#,ET196,ST19# ﾀｲﾌﾟ A |
2 | ||
| 55349-20100 |
AT191,CT19#,ET196,ST19# ﾀｲﾌﾟ B |
2 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-20170B0 |
CT19#,ET196,ST198 SHADOW GRAY,TRIM1# |
1 | ||
| 55458D - COVER, INSTRUMENT LOWER, RH | ||||
| 55458-21010B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55458-20040C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55458-20040B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-20040C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55459-20040B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55459-21010B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55466A - RETAINER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55466-20140 |
ET196 |
1 | ||
| 55466-20130 |
CT19#,ET196,ST198 |
1 | ||
| 55467A - RETAINER, INSTRUMENT PANEL SAFETY PAD, NO.2 | ||||
| 55467-20120 |
CT19#,ET196,ST198 |
1 | ||
| 55467-20140 |
ET196 |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-20160 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 55950-20110 |
CT19#,ET196,ST19# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-20200B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55962-20200C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55962-20260B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-20090 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-20030B0 |
CT19#,ET196 SHADOW GRAY,TRIM1# |
1 | ||
| 73970-20031B0 |
CT19#,ET196,ST198 SHADOW GRAY,TRIM1# |
1 | ||
| 73970-20050B0 |
ET196 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06056 | ||||
| 90179-06026 | ||||
| 90179-06129 | ||||
| 90179-06178 | ||||
| 90179-08025 | ||||
| 90179-08040 | ||||
| 90183-05103 | ||||
| 90468-06080 | ||||
| 91633-60820 | ||||
| 91651-60814 | ||||
| 91651-60816 | ||||
| 93560-55016 | ||||
| 93567-15016 | ||||
| 93568-55014 | ||||

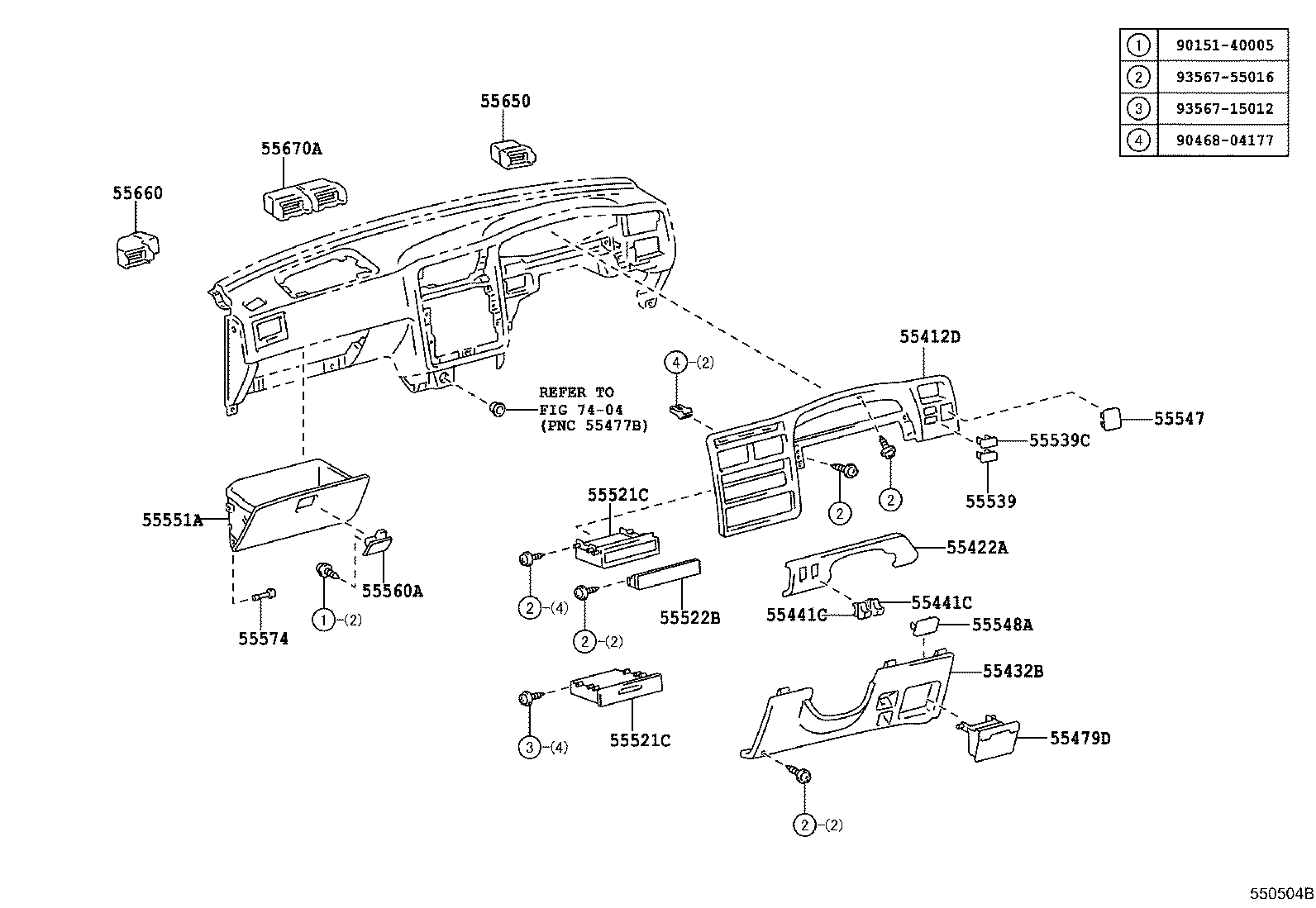

ILLUST NO. 2 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-20540 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-20140 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-20350B0 |
AT191,CT190,196,198,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55432-20260C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55432-20260B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-12130C0 |
CT196,197,198,199,ET196,ST198..U,UX BLACK,TRIM1# |
2 | ||
| 55441-12130C0 |
CT196,197,198,199,ET196,ST198..UL BLACK,TRIM1# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-12130C0 |
CT196,197,198,199,ET196,ST198..U,UX BLACK,TRIM1# |
2 | ||
| 55441-12130C0 |
CT196,197,198,199,ET196,ST198..UL BLACK,TRIM1# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-20080C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55479-20080B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55479-20100B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
CT190..FZ..TD;AT191,CT196,197,198,199,ET196,ST198..FZ,U,UL,UX |
1 | ||
| 55521-16030 |
CT19#,ET196,ST19# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
CT190..FZ..TD;AT191,CT196,197,198,199,ET196,ST198..FZ,U,UL,UX |
1 | ||
| 55521-16030 |
CT19#,ET196,ST19# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
AT191,CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 55539-12120B0 |
CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,U,UX SHADOW GRAY,TRIM1# |
1 | ||
| 55539-12120C0 |
CT19#,ET196,ST19#..CZ,FZ,TZ,U,UX BLACK,TRIM2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-12120C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55539-12120B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55539-32010C0 |
AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,U,UX BLACK,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-95J00C0 |
CT196,197,198,199,ET196,ST198..U BLACK,TRIM1# |
1 | ||
| 55551A - DOOR, GLOVE COMPARTMENT, OUTER | ||||
| 55551-20240B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55551-21010B1 |
CT19#,ET196,ST198 SHADOW GRAY,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-12080P0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-20220B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55650-20300 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 55650-20220C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-20190C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55660-20190B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55660-20250B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-20240 |
AT191,CT19#,ET196,ST19# |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 90468-04177 | ||||
| 93567-15012 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 7404 | ||||

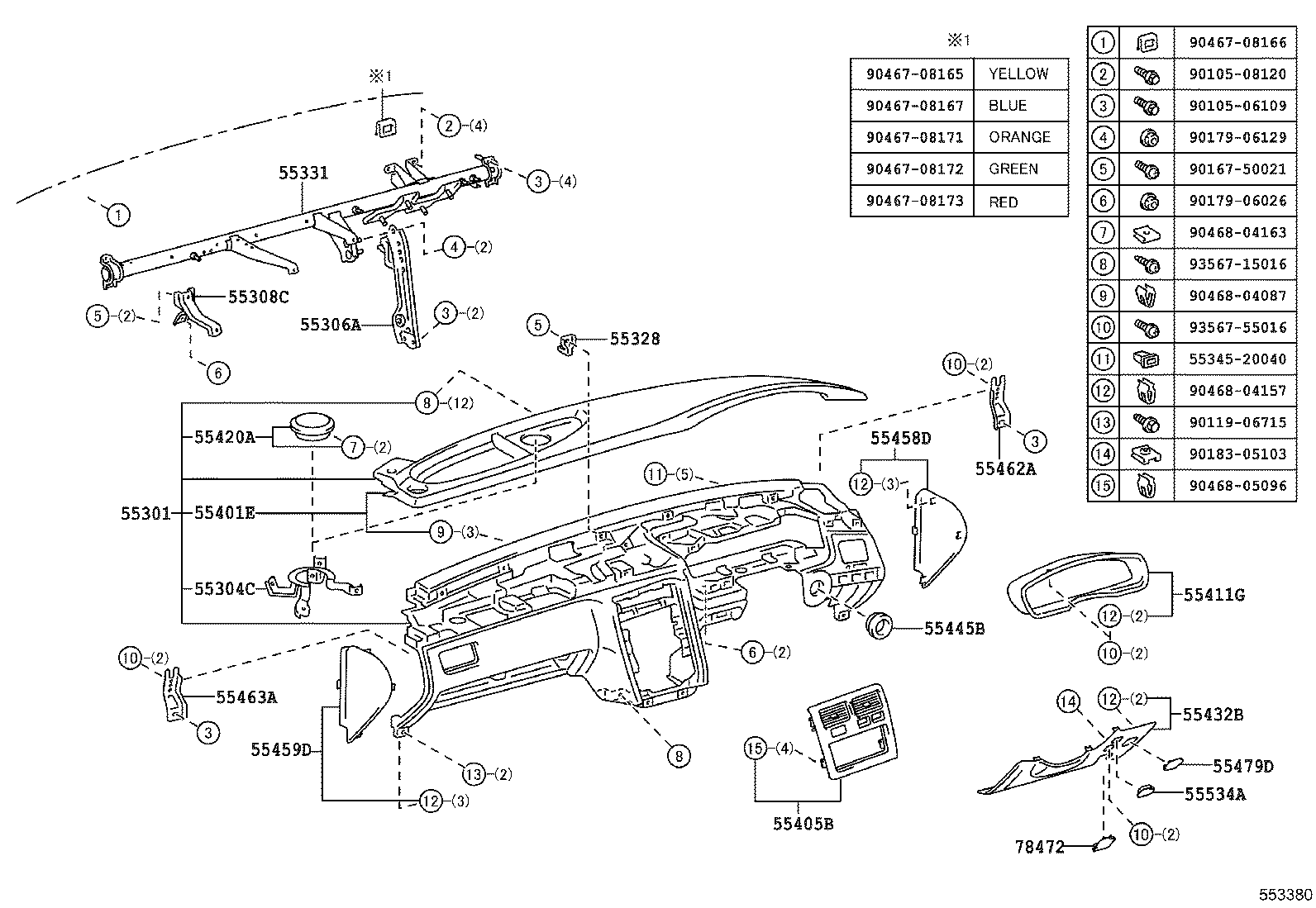

ILLUST NO. 1 OF 2(9211-9601)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-20030C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55300-20030B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55311-21010B0 |
CT196,198,ET196 SHADOW GRAY,TRIM1# |
1 | ||
| 55311-21090B0 |
CT19#,ET196,ST198 SHADOW GRAY,TRIM1# |
1 | ||
| 55311-21110B0 |
CT19#,ET196,ST198 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),SHADOW GRAY,TRIM1# |
1 | ||
| 55311-21060B0 |
CT196,198,ET196 SHADOW GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-20290 |
CT19#,ET196,ST198 |
1 | ||
| 55306-20200 |
CT19#,ET196,ST19# |
1 | ||
| 55306-20260 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-20210 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 55308-20180 |
CT19#,ET196,ST19# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-20100 |
AT191,CT19#,ET196,ST19# RH,LH |
2 | ||
| 55328-20070 |
CT19#,ET196,ST19# |
3 | ||
| 55328-20110 |
AT191,CT19#,ET196,ST19# CENTER |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-20150 |
CT19#,ET196,ST19# |
1 | ||
| 55330-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 55330-21040 |
CT19#,ET196,ST198 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-20610C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55401-20610B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55401-20610B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-20130 |
CT19#,ET196,ST19# |
1 | ||
| 55405-20130 |
CT19#,ET196,ST19# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-20630 |
CT19#,ET196,ST19# |
1 | ||
| 55411-20630 |
CT19#,ET196,ST19# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-20350B0 |
AT191,CT190,196,198,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55432-20260C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55432-20260B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-20200 |
CT19#,ET196,ST19# |
1 | ||
| 55445-20200 |
CT19#,ET196,ST19# |
1 | ||
| 55458D - COVER, INSTRUMENT LOWER, RH | ||||
| 55458-21010B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55458-20040C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55458-20040B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-20040C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55459-20040B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55459-21010B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55462A - EXTENSION, INSTRUMENT SAFETY PAD INSERT, RH | ||||
| 55462-20200 |
CT19#,ET196,ST19# |
1 | ||
| 55462-20200 |
CT19#,ET196,ST19# |
1 | ||
| 55463A - EXTENSION, INSTRUMENT SAFETY PAD INSERT, LH | ||||
| 55463-20130 |
CT19#,ET196,ST19# |
1 | ||
| 55463-20130 |
CT19#,ET196,ST19# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-20080C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55479-20080B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55479-20100B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55534A - COVER, ILLUMINATION LAMP HOLE | ||||
| 55534-20060C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55534-20060B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55534-20060B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 55345-20040 | ||||
| 90105-06109 | ||||
| 90105-08120 | ||||
| 90119-06715 | ||||
| 90167-50021 | ||||
| 90179-06026 | ||||
| 90179-06129 | ||||
| 90183-05103 | ||||
| 90467-08165 | ||||
| 90467-08166 | ||||
| 90467-08167 | ||||
| 90467-08171 | ||||
| 90467-08172 | ||||
| 90467-08173 | ||||
| 90468-04087 | ||||
| 90468-04157 | ||||
| 90468-04163 | ||||
| 90468-05096 | ||||
| 93567-15016 | ||||
| 93567-55016 | ||||

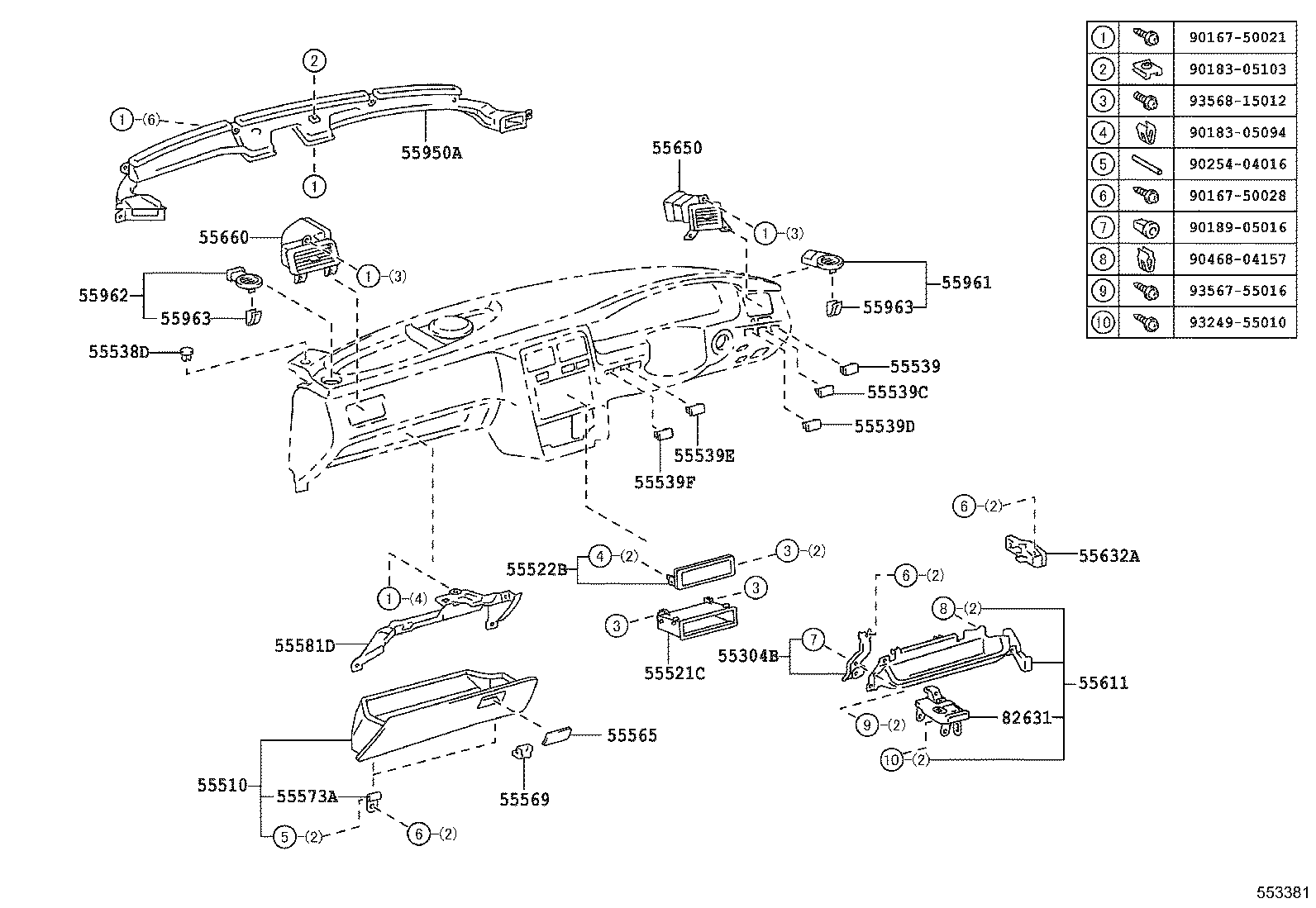

ILLUST NO. 2 OF 2(9211-9601)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-20140C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55550-20140B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55550-20140B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
CT190..FZ..TD;AT191,CT196,197,198,199,ET196,ST198..FZ,U,UL,UX |
1 | ||
| 55521-16030 |
CT19#,ET196,ST19# |
1 | ||
| 55538D - COVER, SUNSHINE SENSOR HOLE | ||||
| 55538-20060P0 |
CT196,198,ET196 SHADOW GRAY,TRIM1# |
1 | ||
| 55538-2006022 |
CT196,198,ET196 BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
AT191,CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 55539-12120B0 |
CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,U,UX SHADOW GRAY,TRIM1# |
1 | ||
| 55539-12120C0 |
CT19#,ET196,ST19#..CZ,FZ,TZ,U,UX BLACK,TRIM2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-12120C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55539-12120B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55539-32010C0 |
AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,U,UX BLACK,TRIM1# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-12120B0 |
ST191,195;CT19#,ET196,ST190..CZ,FZ,U,UL,UX SHADOW GRAY,TRIM1# |
1 | ||
| 55539-32010C0 |
AT191,CT190,196,198,ET196,ST191,195..CZ,FZ,TZ,TZG,U,UX BLACK,TRIM1# |
1 | ||
| 55539-12120C0 |
ST191,195;CT19#,ET196,ST190..CZ,FZ,U,UL,UX BLACK,TRIM2# |
1 | ||
| 55539-12120B0 |
ST191,195;CT19#,ET196,ST190..CZ,FZ,U,UL,UX SHADOW GRAY,TRIM1# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-12120B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55539-12120C0 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX BLACK,TRIM2# |
1 | ||
| 55539-12120B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-12120B0 |
ST195..5F;CT19#,ET196,ST190,191 SHADOW GRAY,TRIM1# |
1 | ||
| 55539-12120C0 |
ST195..5F;CT19#,ET196,ST190,191 BLACK,TRIM2# |
1 | ||
| 55539-12120B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55539-12120B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-22020B1 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55565-22020C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55565-22020B1 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-22030C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55569-22030B1 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55569-22030B1 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-20050 |
CT19#,ET196,ST19# |
2 | ||
| 55573-20050 |
CT19#,ET196,ST19# |
2 | ||
| 55581D - BOX, SHELL, UPPER | ||||
| 55581-20080B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55581-20080C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55581-20080B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-20220B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55650-20300 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 55650-20220C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-20190C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55660-20190B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55660-20250B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-20160 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 55950-20110 |
CT19#,ET196,ST19# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-20200C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55961-20200B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55961-20200B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-20200B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55962-20200C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 55962-20260B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55963 - RETAINER, SIDE DEFROSTER | ||||
| 55963-20030 |
CT19#,ET196,ST19# |
2 | ||
| 55963-20030 |
CT19#,ET196,ST19# |
2 | ||
| 55963 - RETAINER, SIDE DEFROSTER | ||||
| 55963-20030 |
CT19#,ET196,ST19# |
2 | ||
| 55963-20030 |
CT19#,ET196,ST19# |
2 | ||
| Common parts | ||||
| 90167-50021 | ||||
| 90167-50028 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90189-05016 | ||||
| 90254-04016 | ||||
| 90468-04157 | ||||
| 93249-55010 | ||||
| 93567-55016 | ||||
| 93568-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
