ET196V-DXMNK (1992)

Toyota Caldina

Production Nov 1992 - Jun 2002
Engine 5EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )CT196,197,198,199,ET196,ST198

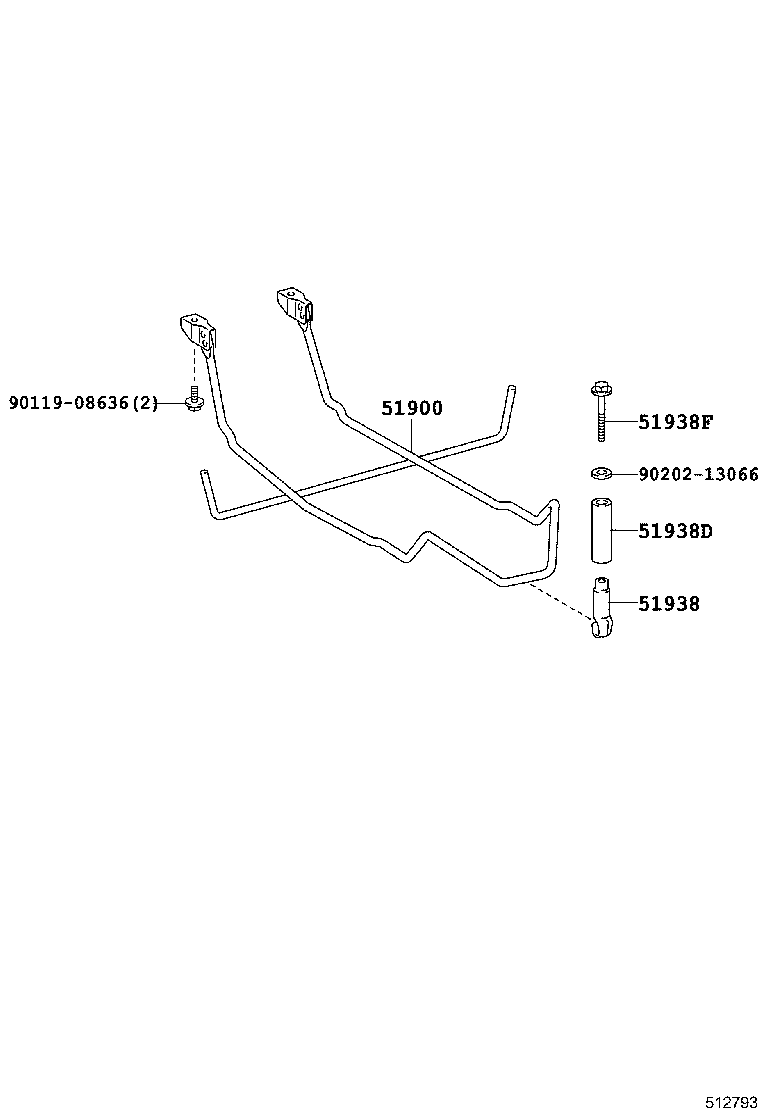

Click highlighted areas on diagram

diagram 51900 51938 51938D 51938F 9011908636 9020213066
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-21080

CT196,197,ET196..U,UL

 1
51938 - LOCK, SPARE WHEEL CARRIER
51938-13040

CT196,197,198,199,ET196,ST198

 1
51938D - TUBE(FOR SPARE WHEEL CARRIER BOLT)
90440-17066

CT196,197,ET196..U,UL

 1
51938F - BOLT(FOR SPARE WHEEL CARRIER LOCK)
90119-12237

ST198;CT196,197,198,199,ET196..U,UL

 1
Common parts
90119-08636
90202-13066
