ET196V-DXMMK (1992)

Toyota Caldina

Production Nov 1992 - Jun 2002
Engine 5EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211-9601) ; (9601- )CT196,197,198,199,ET196,ST198

Click highlighted areas on diagram

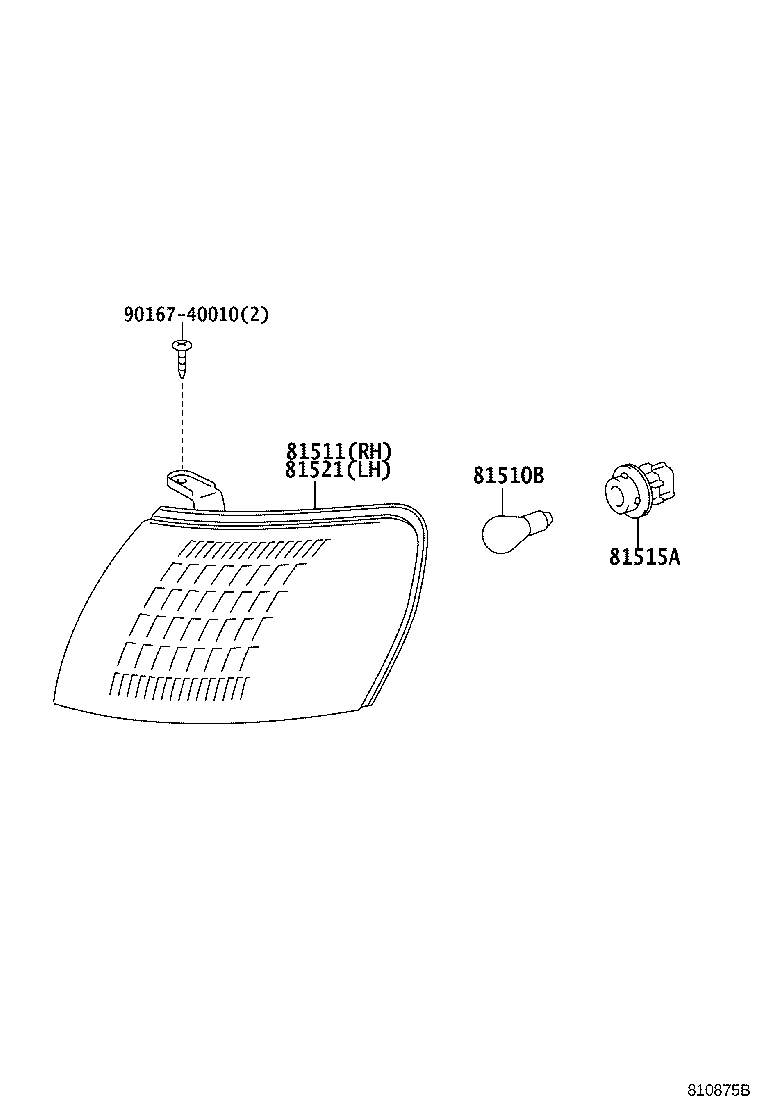

diagram 81510B 81511 81515A 81521 9016740010
Part # Description Qty Price
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AT191,CT19#,ET196,ST19#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20660

CT19#,ET196,ST19#

 1
81511-21020

CT196,197,198,199,ET196,ST198

 1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99078

AT191,CT19#,ET196,ST19#

 2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-21020

CT196,197,198,199,ET196,ST198

 1
81521-20650

CT19#,ET196,ST19#

 1
Common parts
90167-40010
