ET196V-DXMMK (1992)

Toyota Caldina

Production Nov 1992 - Jun 2002
Engine 5EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )

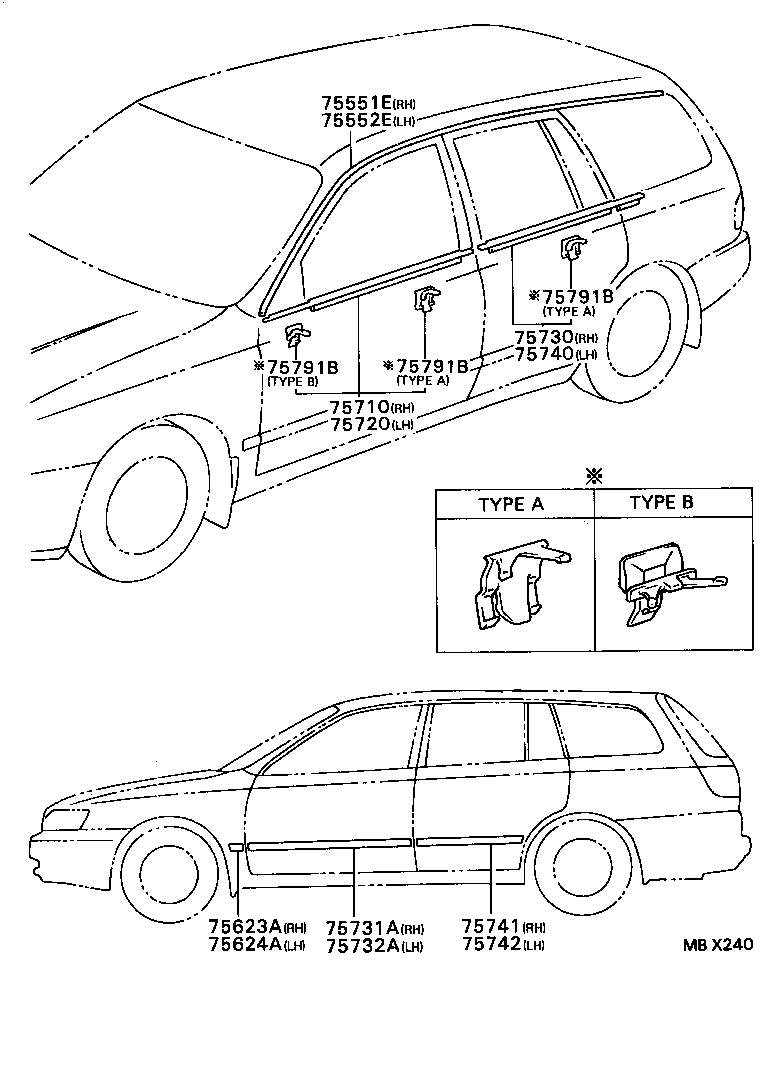

Click highlighted areas on diagram

diagram 75551E 75552E 75623A 75624A 75710 75720 75730 75731A 75732A 75740 75741 75742 75791B 75791B 75791B
Part # Description Qty Price
75551E - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-21010

AT191,CT19#,ET196,ST19#

 1
75552E - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-21010

AT191,CT19#,ET196,ST19#

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-20350

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-20350

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-20370

AT191,CT19#,ET196,ST19#

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-20370

AT191,CT19#,ET196,ST19#

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-20180

AT191,CT19#,ET196,ST19#

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-20570

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-20570

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-20250

AT191,CT19#,ET196,ST19#

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-20620

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-20600

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
75791B - CLIP, BELT MOULDING SIDE
75791-20070

AT191,CT19#,ET196,ST19#

ﾀｲﾌﾟ B

 2
75791-20060

CT19#,ET196,ST19#

ﾀｲﾌﾟ A

 20
75791-20060

AT191,CT19#,ET196,ST19#

TYPE A,FRONT

 10
75791-20100

AT191,CT19#,ET196,ST19#

TYPE A,REAR

 10
75791B - CLIP, BELT MOULDING SIDE
75791-20070

AT191,CT19#,ET196,ST19#

ﾀｲﾌﾟ B

 2
75791-20060

CT19#,ET196,ST19#

ﾀｲﾌﾟ A

 20
75791-20060

AT191,CT19#,ET196,ST19#

TYPE A,FRONT

 10
75791-20100

AT191,CT19#,ET196,ST19#

TYPE A,REAR

 10
75791B - CLIP, BELT MOULDING SIDE
75791-20070

AT191,CT19#,ET196,ST19#

ﾀｲﾌﾟ B

 2
75791-20060

CT19#,ET196,ST19#

ﾀｲﾌﾟ A

 20
75791-20060

AT191,CT19#,ET196,ST19#

TYPE A,FRONT

 10
75791-20100

AT191,CT19#,ET196,ST19#

TYPE A,REAR

 10
