ET196V-DXMMK (1992)
Toyota Caldina

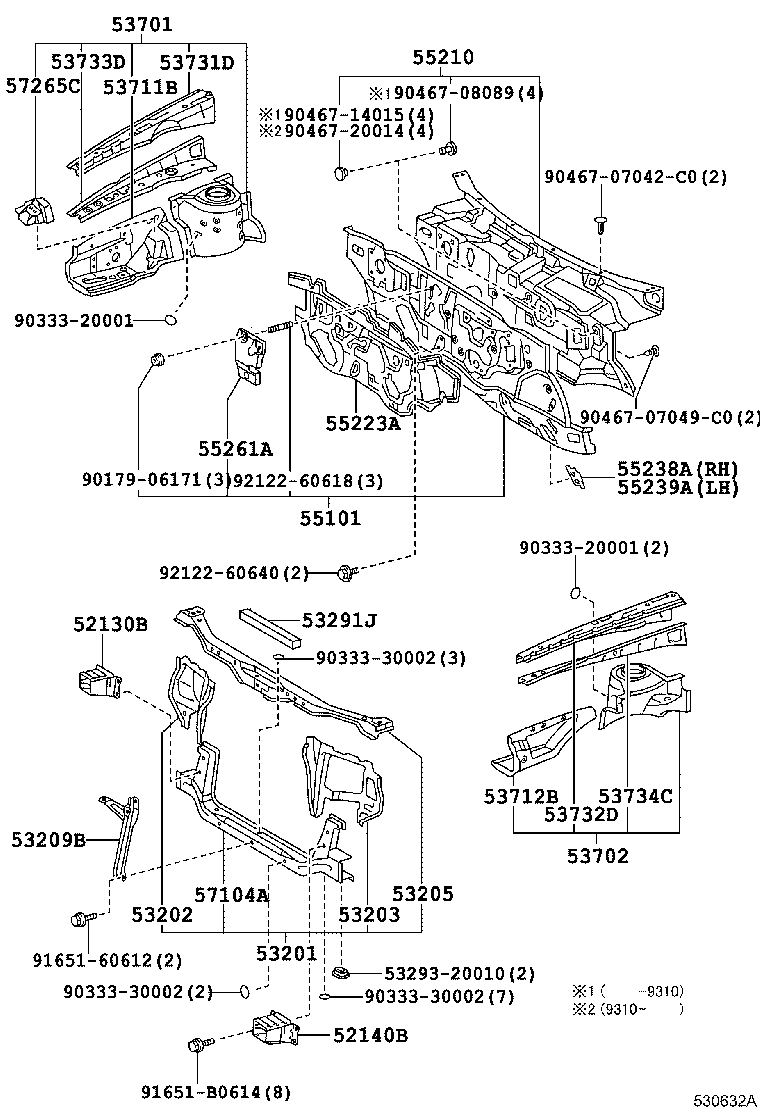

(9211-9601)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52130B - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52130-20030 |
CT19#,ET196,ST19# |
1 | ||
| 52130-20030 |
CT19#,ET196,ST19# |
1 | ||
| 52140B - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52140-20030 |
CT19#,ET196,ST19# |
1 | ||
| 52140-20030 |
CT19#,ET196,ST19# |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-20640 |
CT19#,ET196,ST19# |
1 | ||
| 53201-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-20120 |
CT19#,ET196,ST19# |
1 | ||
| 53202-20120 |
CT19#,ET196,ST19# |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-20200 |
CT19#,ET196,ST19# |
1 | ||
| 53203-20200 |
CT19#,ET196,ST19# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-20210 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53205-20050 |
CT19#,ET196,ST19# |
1 | ||
| 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT | ||||
| 53209-20300 |
CT19#,ET196,ST19# |
1 | ||
| 53209-21020 |
CT196,197,198,199,ET196,ST198 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-20780 |
CT19#,ET196,ST19# |
1 | ||
| 53701-20740 |
CT19#,ET196,ST19# |
1 | ||
| 53701-20770 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-20750 |
CT19#,ET196,ST19# |
1 | ||
| 53702-20720 |
CT19#,ET196,ST19# |
1 | ||
| 53702-20740 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-20310 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53711-20290 |
CT19#,ET196,ST19# |
1 | ||
| 53711-20320 |
CT19#,ET196,ST19# |
1 | ||
| 53711-20311 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53711-20291 |
CT19#,ET196,ST19# |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-20340 |
CT19#,ET196,ST19# |
1 | ||
| 53712-20320 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53712-20300 |
CT19#,ET196,ST19# |
1 | ||
| 53712-20321 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-20130 |
CT19#,ET196,ST19# |
1 | ||
| 53731-20120 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53731-20131 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53731-20100 |
CT19#,ET196,ST19# |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-20100 |
CT19#,ET196,ST19# |
1 | ||
| 53732-20120 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53732-20121 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53732-20130 |
CT19#,ET196,ST19# |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-20080 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53733-20070 |
CT19#,ET196,ST19# |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-20090 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53734-20080 |
CT19#,ET196,ST19# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-2B930 |
ET196,ST190..5F..(CZ,FZ,UL,UX) |
1 | ||
| 55101-21900 |
ET196..5F..U |
1 | ||
| 55101-2B932 |
CT190,196..5F..(CZ,FZ,UL,UX) |
1 | ||
| 55101-2B660 |
AT191,ET196,ST195..5F |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-20240 |
CT19#,ET196,ST19# |
1 | ||
| 55210-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 55210-21011 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 55238A - PLATE, DASH PANEL INSULATOR, NO.2 | ||||
| 55238-20030 |
CT19#,ET196,ST19# |
1 | ||
| 55238-20030 |
CT19#,ET196,ST19# |
1 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-20040 |
CT19#,ET196,ST19# |
1 | ||
| 55239-20040 |
CT19#,ET196,ST19# |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57104-20110 |
CT19#,ET196,ST19# |
1 | ||
| 57265C - BRACKET, ENGINE MOUNTING, RH | ||||
| 57265-20110 |
AT191,CT19#,ET196,ST19# |
1 | ||
| Common parts | ||||
| 53293-20010 | ||||
| 90179-06171 | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 90467-07042C0 | ||||
| 90467-07049C0 | ||||
| 90467-08089 | ||||
| 90467-14015 | ||||
| 90467-20014 | ||||
| 91651-60612 | ||||
| 91651-B0614 | ||||
| 92122-60618 | ||||
| 92122-60640 | ||||

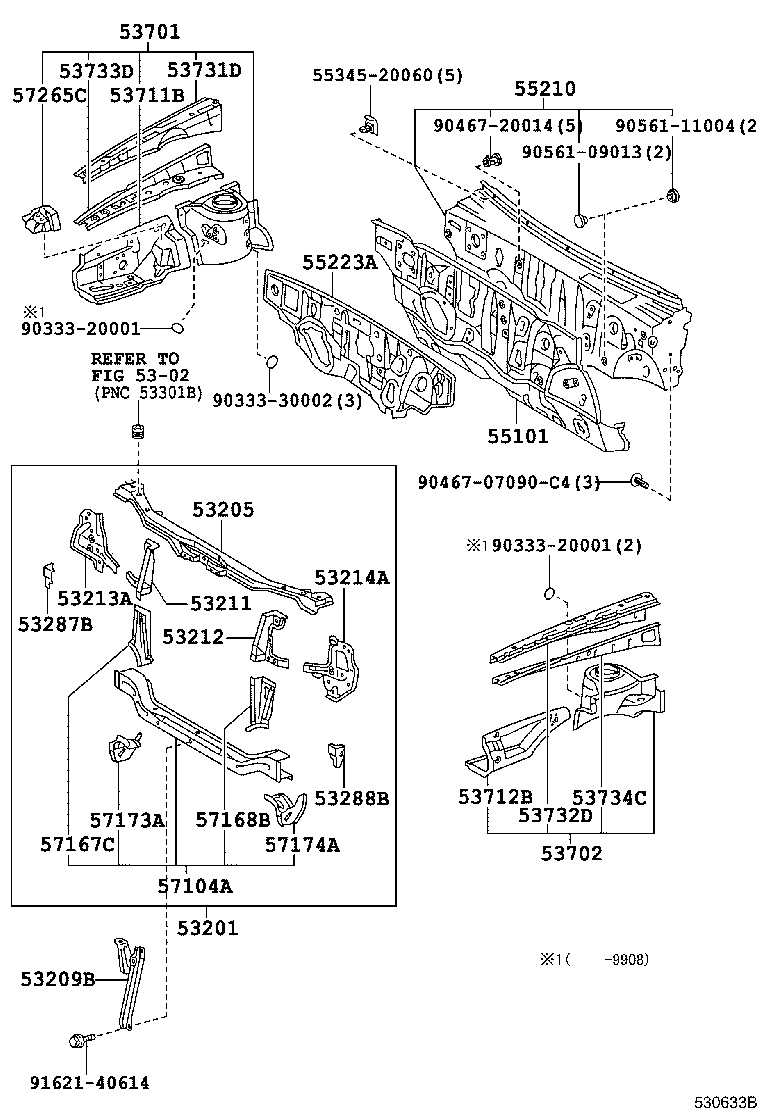

(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-20640 |
CT19#,ET196,ST19# |
1 | ||
| 53201-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-20210 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53205-20050 |
CT19#,ET196,ST19# |
1 | ||
| 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT | ||||
| 53209-20300 |
CT19#,ET196,ST19# |
1 | ||
| 53209-21020 |
CT196,197,198,199,ET196,ST198 |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-20260 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-20260 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-20060 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-20030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-20060 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-20030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-20780 |
CT19#,ET196,ST19# |
1 | ||
| 53701-20740 |
CT19#,ET196,ST19# |
1 | ||
| 53701-20770 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-20750 |
CT19#,ET196,ST19# |
1 | ||
| 53702-20720 |
CT19#,ET196,ST19# |
1 | ||
| 53702-20740 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-20310 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53711-20290 |
CT19#,ET196,ST19# |
1 | ||
| 53711-20320 |
CT19#,ET196,ST19# |
1 | ||
| 53711-20311 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53711-20291 |
CT19#,ET196,ST19# |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-20340 |
CT19#,ET196,ST19# |
1 | ||
| 53712-20320 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53712-20300 |
CT19#,ET196,ST19# |
1 | ||
| 53712-20321 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-20130 |
CT19#,ET196,ST19# |
1 | ||
| 53731-20120 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53731-20131 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53731-20100 |
CT19#,ET196,ST19# |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-20100 |
CT19#,ET196,ST19# |
1 | ||
| 53732-20120 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53732-20121 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53732-20130 |
CT19#,ET196,ST19# |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-20080 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53733-20070 |
CT19#,ET196,ST19# |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-20090 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 53734-20080 |
CT19#,ET196,ST19# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-21900 |
ET196..5F..U |
1 | ||
| 55101-2B932 |
CT190,196..5F..(CZ,FZ,UL,UX) |
1 | ||
| 55101-2B930 |
ET196,ST190..5F..(CZ,FZ,UL,UX) |
1 | ||
| 55101-2B660 |
AT191,ET196,ST195..5F |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-20240 |
CT19#,ET196,ST19# |
1 | ||
| 55210-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 55210-21011 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57104-20110 |
CT19#,ET196,ST19# |
1 | ||
| 57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-20160 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-20150 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57173A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH | ||||
| 57173-20050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57174A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH | ||||
| 57174-20050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57265C - BRACKET, ENGINE MOUNTING, RH | ||||
| 57265-20110 |
AT191,CT19#,ET196,ST19# |
1 | ||
| Common parts | ||||
| 55345-20060 | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 90467-07090C4 | ||||
| 90467-20014 | ||||
| 90561-09013 | ||||
| 90561-11004 | ||||
| 91621-40614 | ||||
| Linked diagrams | ||||
| 5302 | ||||
