ET196V-DXMMK (1992)
Toyota Caldina
Production
Nov 1992
-
Jun 2002
Engine
5EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

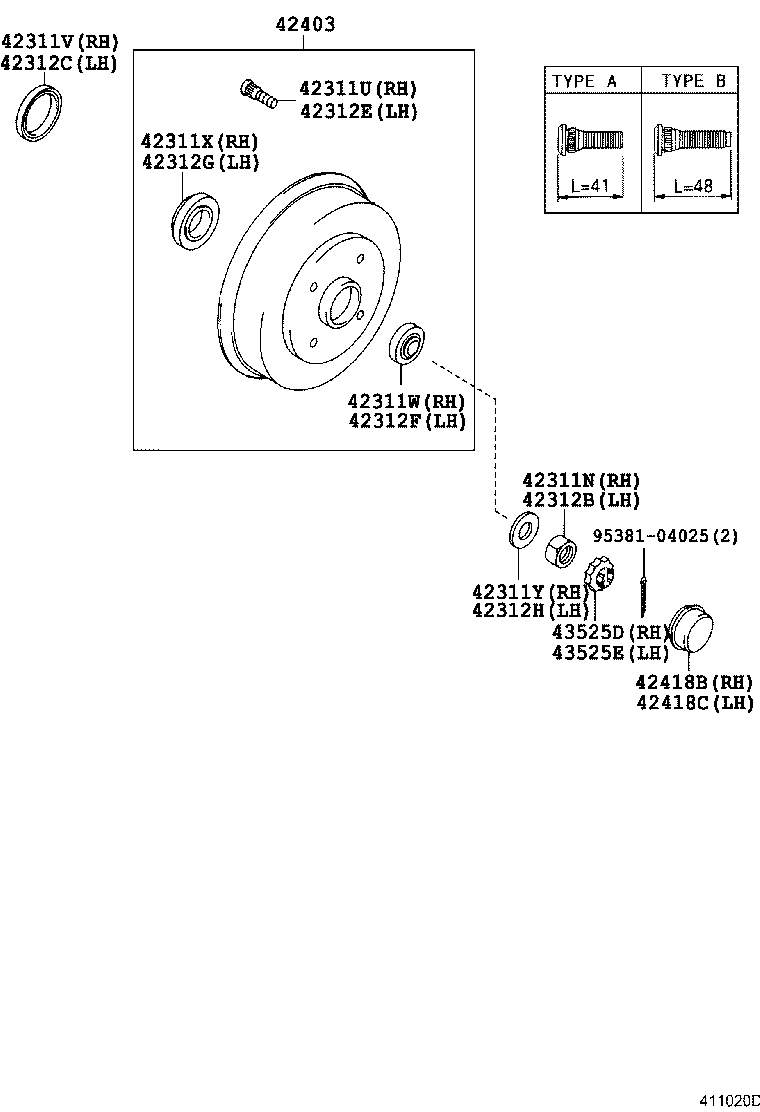

(9211- )CT196,197,ET196
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90170-19185 |
CT196,197,ET196 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02047 |
CT196,197,198,199,ET196,ST198 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-48001 |
CT196,197,ET196 |
1 | ||
| 42311W - BEARING (FOR REAR AXLE SHAFT OUTER RH) | ||||
| 90368-22001 |
CT196,ET196 |
1 | ||
| 90080-36075 |
CT196,ET196 |
1 | ||
| 90368-22001 |
CT196,197,ET196 |
1 | ||
| 42311X - BEARING (FOR REAR AXLE SHAFT INNER RH) | ||||
| 90080-36072 |
CT196,ET196 |
1 | ||
| 90368-35004 |
CT196,ET196 |
1 | ||
| 90368-35004 |
CT196,197,ET196 |
1 | ||
| 42311Y - WASHER, CLAW (FOR REAR AXLE SHAFT RH) | ||||
| 90214-20005 |
CT196,197,ET196 |
1 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90170-19185 |
CT196,197,ET196 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-48001 |
CT196,197,ET196 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02047 |
CT196,197,198,199,ET196,ST198 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42312F - BEARING (FOR REAR AXLE SHAFT OUTER LH) | ||||
| 90368-22001 |
CT196,ET196 |
1 | ||
| 90368-22001 |
CT196,197,ET196 |
1 | ||
| 90080-36075 |
CT196,ET196 |
1 | ||
| 42312G - BEARING (FOR REAR AXLE SHAFT INNER LH) | ||||
| 90368-35004 |
CT196,197,ET196 |
1 | ||
| 90368-35004 |
CT196,ET196 |
1 | ||
| 90080-36072 |
CT196,ET196 |
1 | ||
| 42312H - WASHER, CLAW (FOR REAR AXLE SHAFT LH) | ||||
| 90214-20005 |
CT196,197,ET196 |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42403-29015 |
CT196,ET196 |
2 | ||
| 42403-29025 |
CT196,ET196 |
2 | ||
| 42043-19075 |
CT197,ET196 |
2 | ||
| 42403-29025 |
CT196,197,ET196 |
2 | ||
| 42043-19075 |
CT197,ET196 ｱﾘ(ABS) |
2 | ||
| 42418B - CAP, REAR HUB GREASE, RH | ||||
| 42418-13011 |
CT196,197,ET196 |
1 | ||
| 42418C - CAP, REAR HUB GREASE, LH | ||||
| 42418-13011 |
CT196,197,ET196 |
1 | ||
| 43525D - CAP, REAR WHEEL ADJUSTING LOCK, RH | ||||
| 43525-22010 |
CT196,197,ET196 |
1 | ||
| 43525E - CAP, REAR WHEEL ADJUSTING LOCK, LH | ||||
| 43525-22010 |
CT196,197,ET196 |
1 | ||
| Common parts | ||||
| 95381-04025 | ||||
