ET196V-DXMMK (1992)

Toyota Caldina

Production Nov 1992 - Jun 2002
Engine 5EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )ET196

Click highlighted areas on diagram

C51

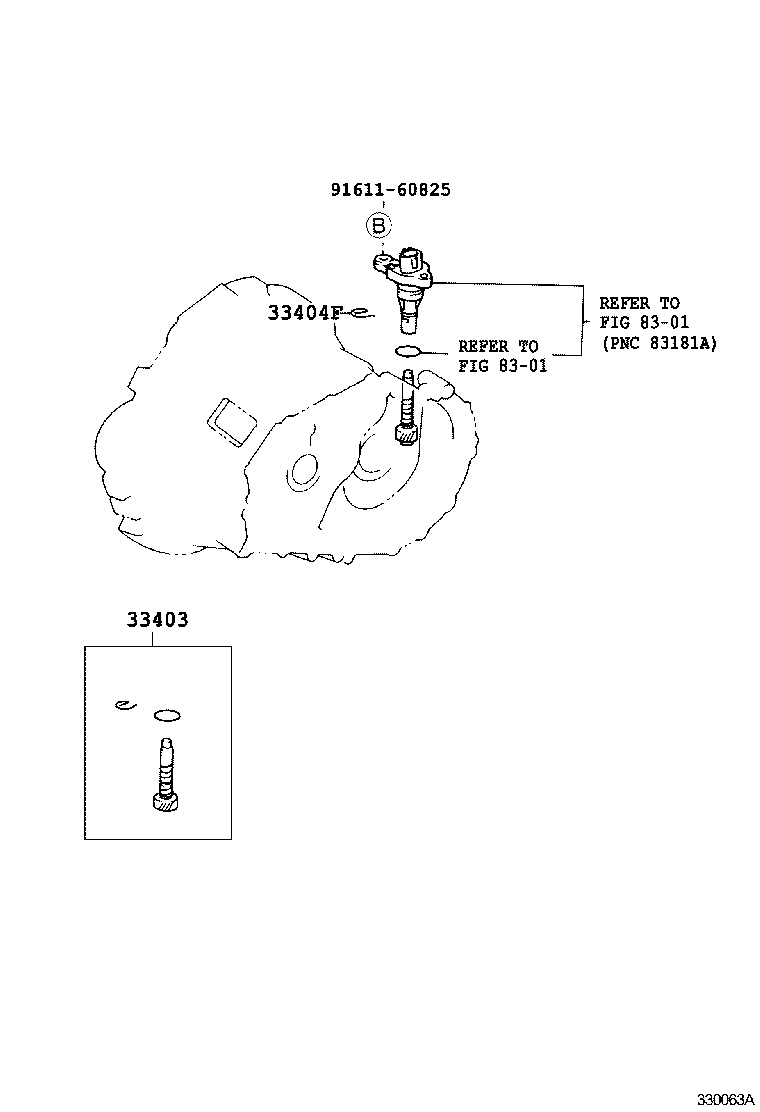

diagram 33403 33404F 8301 8301 9161160825
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-19465

ET196..5F..(U,UX)

歯数=31,ﾏｰｸ 31:35

 1
33403-19465

ET196..5F..(U,UL)

歯数=31,ﾏｰｸ 31:35

 1
33403-19455

ET196..5F..UX

歯数=30,ﾏｰｸ 30:35

 1
33403-19495

CT190,196,197,ST190..5F..(CZ,FZ,UX)..(DSL,EFI)

歯数=21,ﾏｰｸ 21:25

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

CT19#,ET196,ST190,195..5F

 1
90468-12005

CT196,197,198,199,ET196..5F

 1
Common parts
91611-60825
Linked diagrams
8301

(9211- )CT190,196,197,ST190

Click highlighted areas on diagram

S50,S51

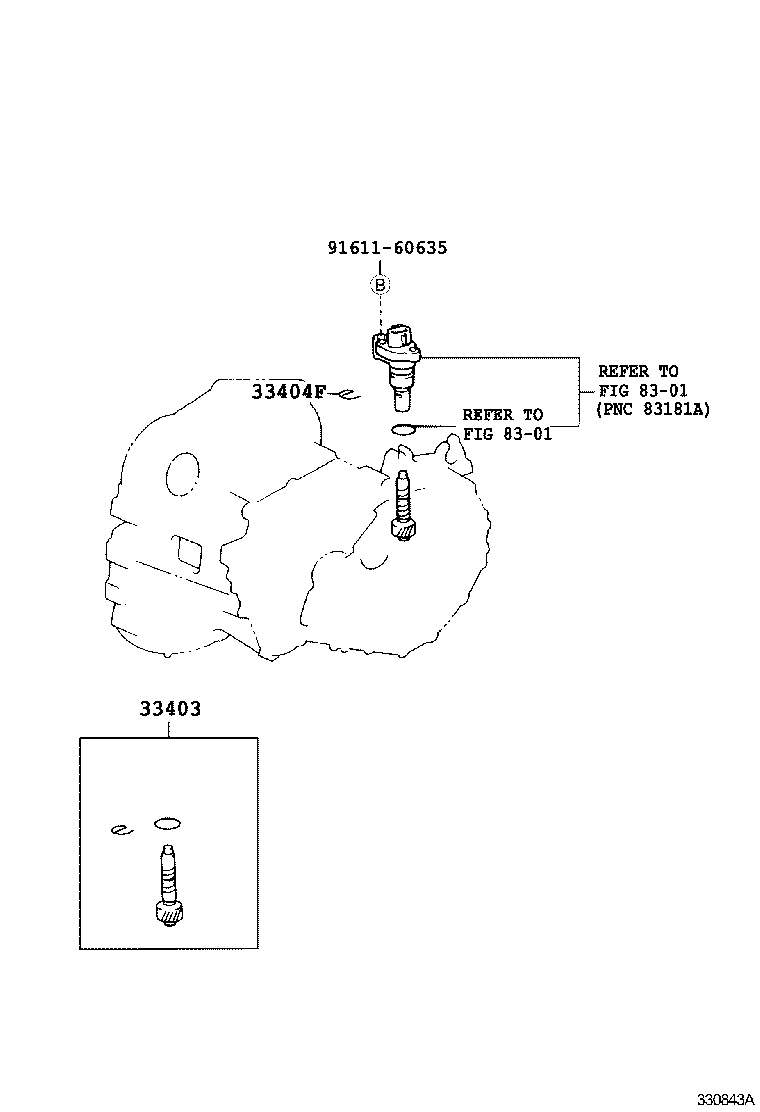

diagram 33403 33404F 8301 8301 9161160635
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-19465

ET196..5F..(U,UX)

歯数=31,ﾏｰｸ 31:35

 1
33403-19465

ET196..5F..(U,UL)

歯数=31,ﾏｰｸ 31:35

 1
33403-19455

ET196..5F..UX

歯数=30,ﾏｰｸ 30:35

 1
33403-19495

CT190,196,197,ST190..5F..(CZ,FZ,UX)..(DSL,EFI)

歯数=21,ﾏｰｸ 21:25

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

CT19#,ET196,ST190,195..5F

 1
90468-12005

CT196,197,198,199,ET196..5F

 1
Common parts
91611-60635
Linked diagrams
8301
