ET196V-DXHNK (1992)

Toyota Caldina

Production Nov 1992 - Jun 2002
Engine 5EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )

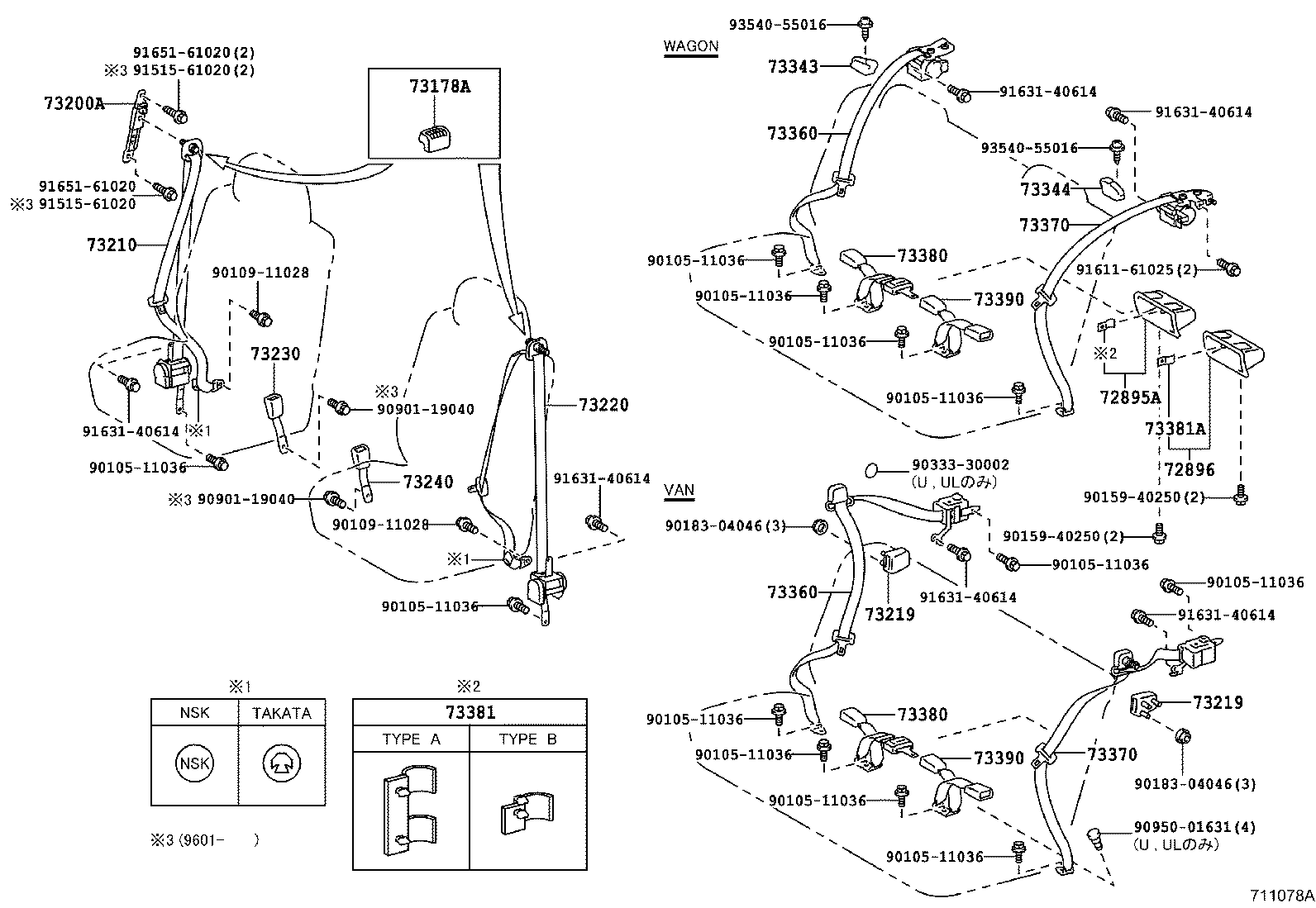

Click highlighted areas on diagram

diagram 72895A 72896 73178A 73200A 73210 73219 73219 73220 73230 73240 73343 73344 73360 73360 73370 73370 73380 73380 73381 73381A 73390 73390 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010911028 9010911028 9015940250 9015940250 9018304046 9018304046 9033330002 9090119040 9090119040 9095001631 9151561020 9151561020 9161161025 9163140614 9163140614 9163140614 9163140614 9163140614 9163140614 9165161020 9165161020 9354055016 9354055016
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-21010C0

CT196,198,ET196..U,UL

BLACK,TRIM2#

 1
73210-21011C0

CT196,198,ET196..U,UL

BLACK,TRIM2#

 1
73210-21012C0

CT196,198,ET196..U,UL

BLACK,TRIM1#

 1
73210-21011C0

CT196,198,ET196..U,UL

BLACK,TRIM1#

 1
73210-21050C0

CT196,198,ET196..U,UL

BLACK,TRIM1#

 1
73210-21090C1

CT19#,ET196,ST198..U,UL

BLACK,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-26010C0

CT196,198,ET196

BLACK,TRIM2#

 2
73219-26010C0

CT196,197,198,199,ET196,ST198

BLACK,TRIM1#

 2
73219 - STOPPER, TONGUE PLATE
73219-26010C0

CT196,198,ET196

BLACK,TRIM2#

 2
73219-26010C0

CT196,197,198,199,ET196,ST198

BLACK,TRIM1#

 2
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-21011C0

CT196,198,ET196..U,UL

BLACK,TRIM1#

 1
73220-21010C0

CT196,198,ET196..U,UL

BLACK,TRIM2#

 1
73220-21011C0

CT196,198,ET196..U,UL

BLACK,TRIM2#

 1
73220-21012C0

CT196,198,ET196..U,UL

BLACK,TRIM1#

 1
73220-21070C1

CT19#,ET196,ST198..U,UL

BLACK,TRIM1#

 1
73220-21040C0

CT196,198,ET196..U,UL

BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-20561C0

CT19#,ET196,ST190..FZ,U,UL,UX

BLACK,TRIM2#

 1
73230-20562C0

CT19#,ET196,ST190..FZ,U,UL,UX

BLACK,TRIM1#

 1
73230-20562C0

CT19#,ET196,ST190..FZ,U,UL,UX

BLACK,TRIM2#

 1
73230-20563C0

CT19#,ET196,ST190..FZ,U,UL,UX

BLACK,TRIM1#

 1
73230-20780C0

AT191,CT19#,ET196,ST198..FZ,U,UL,UX

BLACK,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-20571C0

CT19#,ET196,ST190..FZ,U,UL,UX

BLACK,TRIM2#

 1
73230-20572C0

CT19#,ET196,ST190..FZ,U,UL,UX

BLACK,TRIM2#

 1
73230-20573C0

CT19#,ET196,ST19#

BLACK,TRIM1#

 1
73230-20572C0

CT19#,ET196,ST19#

BLACK,TRIM1#

 1
73230-20573C0

ST191,195;CT19#,ET196,ST190..FZ,U,UL,UX

BLACK,TRIM1#

 1
73230-20730C0

AT191,CT19#,ET196,ST19#

BLACK,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-21040C1

CT196,198,ET196

BLACK,TRIM1#

 1
73360-21040C0

CT196,198,ET196

BLACK,TRIM2#

 1
73360-21040C2

CT19#,ET196,ST198

BLACK,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-21040C1

CT196,198,ET196

BLACK,TRIM1#

 1
73360-21040C0

CT196,198,ET196

BLACK,TRIM2#

 1
73360-21040C2

CT19#,ET196,ST198

BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-21030C2

CT19#,ET196,ST198

BLACK,TRIM1#

 1
73370-21030C1

CT196,198,ET196

BLACK,TRIM1#

 1
73370-21030C0

CT196,198,ET196

BLACK,TRIM2#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-21030C2

CT19#,ET196,ST198

BLACK,TRIM1#

 1
73370-21030C1

CT196,198,ET196

BLACK,TRIM1#

 1
73370-21030C0

CT196,198,ET196

BLACK,TRIM2#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-20010C0

CT19#,ET196,ST19#

BLACK,TRIM2#

 1
73470-20010C0

AT191,CT19#,ET196,ST19#

BLACK,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-20010C0

CT19#,ET196,ST19#

BLACK,TRIM2#

 1
73470-20010C0

AT191,CT19#,ET196,ST19#

BLACK,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-20030C0

AT191,CT19#,ET196,ST19#

BLACK,TRIM1#

 1
73480-20030C0

CT19#,ET196,ST19#

BLACK,TRIM2#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-20030C0

AT191,CT19#,ET196,ST19#

BLACK,TRIM1#

 1
73480-20030C0

CT19#,ET196,ST19#

BLACK,TRIM2#

 1
Common parts
90105-11036
90109-11028
90159-40250
90183-04046
90333-30002
90901-19040
90950-01631
91515-61020
91611-61025
91631-40614
91651-61020
93540-55016
