Toyota Caldina ET196 ROOF HEADLINING & SILENCER PAD

Manufacturers Home
Toyota
JP
CALDINA
ET196V-DXHNK (1992)
6402 - ROOF HEADLINING & SILENCER PAD

ET196V-DXHNK (1992)

Toyota Caldina

Production Nov 1992 - Jun 2002

Engine 5EFE

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9211- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
63310 - HEADLINING ASSY, ROOF
63310-21020B0	CT196,198,ET196 GRAY,TRIM2#	11/1992 - 02/1994	1
63310-21020B0	CT196,198,ET196 GRAY,TRIM1#	02/1994 - 12/1995	1
63310-21021B0	CT196,198,ET196 MEDIUM GRAY,TRIM1#	12/1995 - 01/1996	1
63310-21120B0	CT196,197,198,199,ET196,ST198 MEDIUM GRAY,TRIM1#	01/1996 - 12/2999	1
63310 - HEADLINING ASSY, ROOF
63310-21020B0	CT196,198,ET196 GRAY,TRIM2#	11/1992 - 02/1994	1
63310-21020B0	CT196,198,ET196 GRAY,TRIM1#	02/1994 - 12/1995	1
63310-21021B0	CT196,198,ET196 MEDIUM GRAY,TRIM1#	12/1995 - 01/1996	1
63310-21120B0	CT196,197,198,199,ET196,ST198 MEDIUM GRAY,TRIM1#	01/1996 - 12/2999	1
63310D - CLIP, ROOF HEADLINING
90467-09126	AT191,CT19#,ET196,ST19#	11/1992 - 12/2999	1
63310D - CLIP, ROOF HEADLINING
90467-09126	AT191,CT19#,ET196,ST19#	11/1992 - 12/2999	1
63310H - CLIP(FOR ROOF HEADLINING)
90467-11095B0	AT191,CT19#,ET196,ST19# GRAY,TRIM1#,NO.1	02/1994 - 05/1998	6
90467-11097B0	CT196,198,ET196 GRAY,TRIM2#,NO.2	09/1993 - 02/1994	8
90467-11097B0	CT196,198,ET196 GRAY,TRIM1#,NO.2	02/1994 - 05/1998	8
90467-10045B0	CT196,198,ET196 GRAY,TRIM2#,NO.2	11/1992 - 09/1993	8
90467-11095B5	CT19#,ET196,ST198 BLUE GRAY,TRIM1#,NO.1	05/1998 - 12/2999	6
90467-11097B1	CT19#,ET196,ST198 BLUE GRAY,TRIM1#,NO.2	05/1998 - 12/2999	8
90467-11095B0	CT19#,ET196,ST19# GRAY,TRIM2#,NO.1	11/1992 - 02/1994	6
63310H - CLIP(FOR ROOF HEADLINING)
90467-11095B0	AT191,CT19#,ET196,ST19# GRAY,TRIM1#,NO.1	02/1994 - 05/1998	6
90467-11097B0	CT196,198,ET196 GRAY,TRIM2#,NO.2	09/1993 - 02/1994	8
90467-11097B0	CT196,198,ET196 GRAY,TRIM1#,NO.2	02/1994 - 05/1998	8
90467-10045B0	CT196,198,ET196 GRAY,TRIM2#,NO.2	11/1992 - 09/1993	8
90467-11095B5	CT19#,ET196,ST198 BLUE GRAY,TRIM1#,NO.1	05/1998 - 12/2999	6
90467-11097B1	CT19#,ET196,ST198 BLUE GRAY,TRIM1#,NO.2	05/1998 - 12/2999	8
90467-11095B0	CT19#,ET196,ST19# GRAY,TRIM2#,NO.1	11/1992 - 02/1994	6
63310H - CLIP(FOR ROOF HEADLINING)
90467-11095B0	AT191,CT19#,ET196,ST19# GRAY,TRIM1#,NO.1	02/1994 - 05/1998	6
90467-11097B0	CT196,198,ET196 GRAY,TRIM2#,NO.2	09/1993 - 02/1994	8
90467-11097B0	CT196,198,ET196 GRAY,TRIM1#,NO.2	02/1994 - 05/1998	8
90467-10045B0	CT196,198,ET196 GRAY,TRIM2#,NO.2	11/1992 - 09/1993	8
90467-11095B5	CT19#,ET196,ST198 BLUE GRAY,TRIM1#,NO.1	05/1998 - 12/2999	6
90467-11097B1	CT19#,ET196,ST198 BLUE GRAY,TRIM1#,NO.2	05/1998 - 12/2999	8
90467-11095B0	CT19#,ET196,ST19# GRAY,TRIM2#,NO.1	11/1992 - 02/1994	6
Common parts
90080-16030
90080-20035
90530-15004

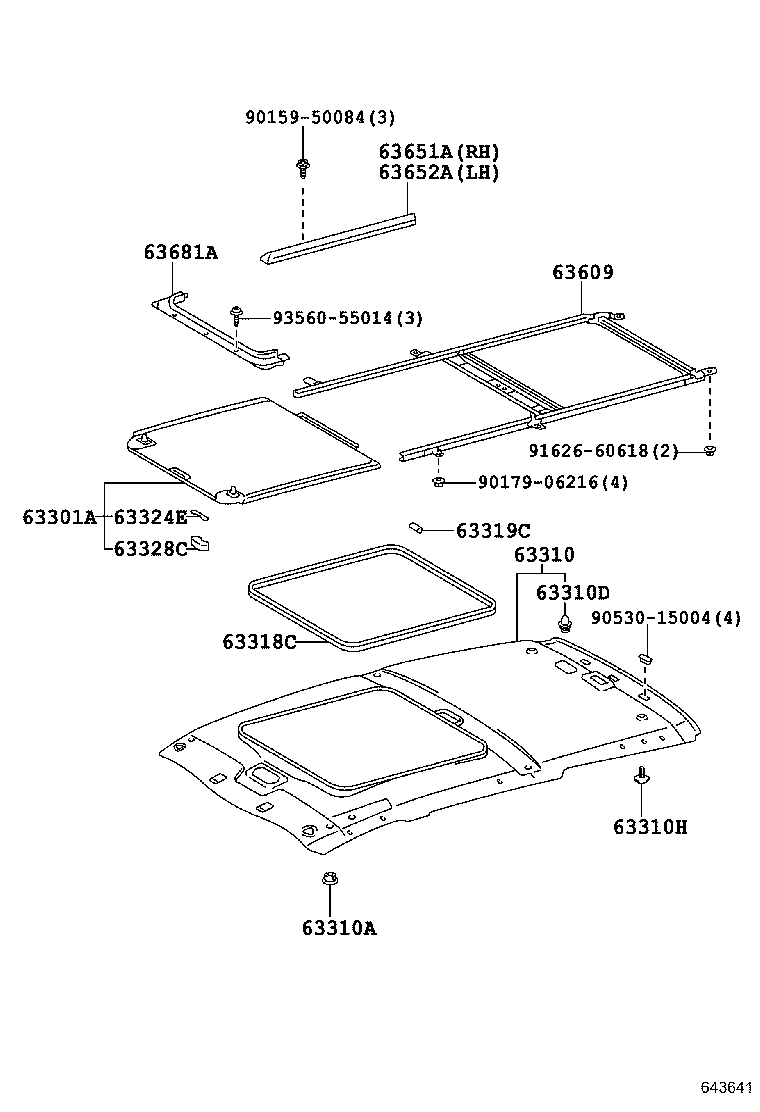

(9601- )AT191,CT19#,ET196,ST191,195

Click highlighted areas on diagram

ｴｱﾘｱﾙ

Part #	Description	Period	Qty
63310 - HEADLINING ASSY, ROOF
63310-21020B0	CT196,198,ET196 GRAY,TRIM2#	11/1992 - 02/1994	1
63310-21020B0	CT196,198,ET196 GRAY,TRIM1#	02/1994 - 12/1995	1
63310-21021B0	CT196,198,ET196 MEDIUM GRAY,TRIM1#	12/1995 - 01/1996	1
63310-21120B0	CT196,197,198,199,ET196,ST198 MEDIUM GRAY,TRIM1#	01/1996 - 12/2999	1
63310D - CLIP, ROOF HEADLINING
90467-09126	AT191,CT19#,ET196,ST19#	11/1992 - 12/2999	1
63310H - CLIP(FOR ROOF HEADLINING)
90467-11095B0	AT191,CT19#,ET196,ST19# GRAY,TRIM1#,NO.1	02/1994 - 05/1998	6
90467-11097B0	CT196,198,ET196 GRAY,TRIM2#,NO.2	09/1993 - 02/1994	8
90467-11097B0	CT196,198,ET196 GRAY,TRIM1#,NO.2	02/1994 - 05/1998	8
90467-10045B0	CT196,198,ET196 GRAY,TRIM2#,NO.2	11/1992 - 09/1993	8
90467-11095B5	CT19#,ET196,ST198 BLUE GRAY,TRIM1#,NO.1	05/1998 - 12/2999	6
90467-11097B1	CT19#,ET196,ST198 BLUE GRAY,TRIM1#,NO.2	05/1998 - 12/2999	8
90467-11095B0	CT19#,ET196,ST19# GRAY,TRIM2#,NO.1	11/1992 - 02/1994	6
Common parts
90159-50084
90179-06216
90530-15004
91626-60618
93560-55014

ET196V-DXHNK (1992)

(9211- )

(9601- )AT191,CT19#,ET196,ST191,195
