ET196V-DXHNK (1992)

Toyota Caldina

Production Nov 1992 - Jun 2002
Engine 5EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )U,UL

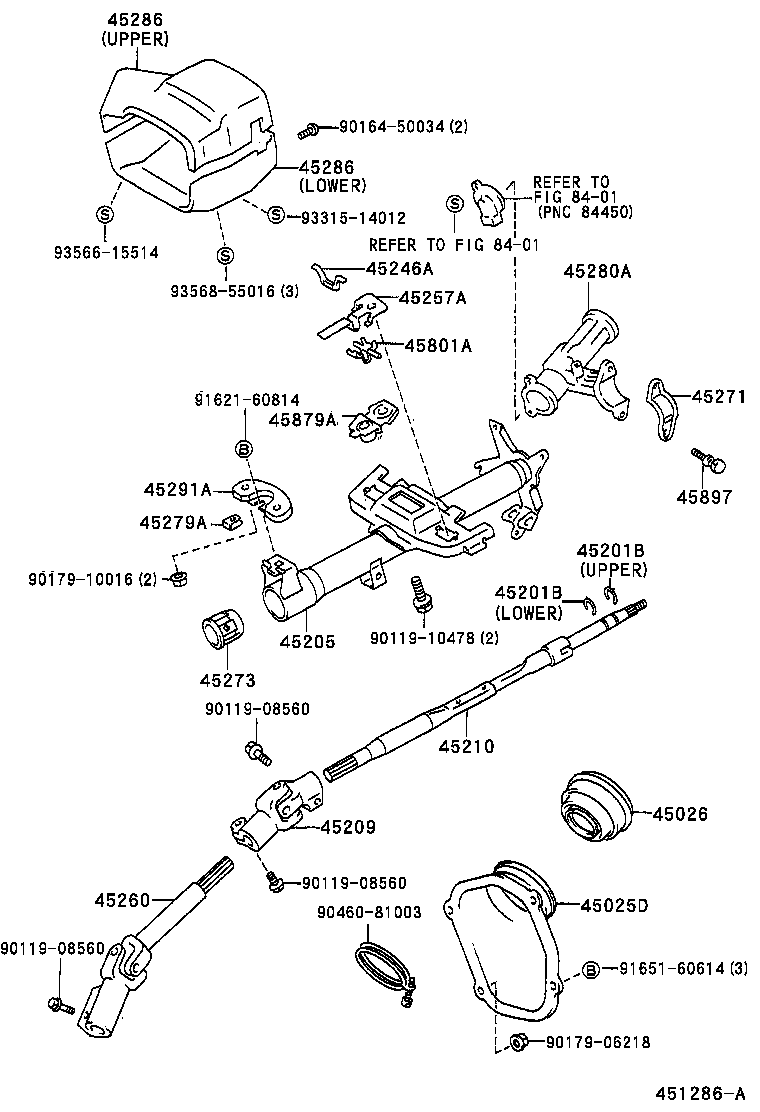

Click highlighted areas on diagram

diagram 45025D 45026 45201B 45201B 45205 45209 45210 45246A 45257A 45260 45271 45273 45279A 45280A 45286 45286 45291A 45801A 45879A 45897 8401 8401 9011908560 9011908560 9011908560 9011910478 9016450034 9017906218 9017910016 9046081003 9162160814 9165160614 9331514012 9356615514 9356855016
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-20350

AT191,CT190,196,197,ET196,ST190,191

 1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-20140

AT191,CT19#,ET196,ST19#

 1
45026-20090

CT19#,ET196,ST19#

 1
45026-20091

CT19#,ET196,ST19#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

CT196,198,ET196..U,UL

厚さ=1.20,NO.1

 1
90520-17042

AT191,CT19#,ET196,ST19#

厚さ=1.20,下側

 1
90520-17269

AT191,CT19#,ET196,ST19#

厚さ=1.20,上側

 1
90520-17269

CT196,198,ET196..U,UL

厚さ=1.20,NO.2

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

CT196,198,ET196..U,UL

厚さ=1.20,NO.1

 1
90520-17042

AT191,CT19#,ET196,ST19#

厚さ=1.20,下側

 1
90520-17269

AT191,CT19#,ET196,ST19#

厚さ=1.20,上側

 1
90520-17269

CT196,198,ET196..U,UL

厚さ=1.20,NO.2

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-12350

CT196,197,198,199,ET196,ST198..U,UL

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-20050

AT191,CT19#,ET196,ST19#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-20330

CT196,198,ET196..U,UL

 1
45210-12480

AT191,CT19#,ET196,ST19#

 1
45246A - GUIDE, STEERING ENERGY ABSORBING PLATE
45246-12110

AT191,CT19#,ET196,ST19#

 2
45257A - PLATE, STEERING COLUMN ENERGY ABSORBING
45257-12070

AT191,CT19#,ET196,ST19#

 2
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-20441

AT191,CT190,196,197,ET196,ST191

 1
45260-20260

CT190,196,ET196,ST190,191

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-12050

CT196,198,ET196..U,UL

 1
45271-16020

AT191,CT19#,ET196,ST19#

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-16010

CT196,198,ET196..U,UL

 1
45273-12020

AT191,CT19#,ET196,ST19#

 1
45273-20030

CT196,198,ET196..U,UL

 1
45273-16020

CT196,198,ET196..U,UL

 1
45273-38010

AT191,CT19#,ET196,ST19#

 1
45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR
45279-12040

CT196,197,198,199,ET196,ST198..U,UL

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-20530

CT196,198,ET196..U,UL

 1
45280-12341

AT191,CT190,196,197,ET196,ST19#..ATM

 1
45280-12340

AT191,CT19#,ET196,ST19#

 1
45286 - COVER, STEERING COLUMN
45286-20941C0

CT196,198,ET196..U,UL

BLACK,TRIM2#

 1
45286-20600B0

AT191,CT19#,ET196,ST19#

SHADOW GRAY,TRIM1#,上側

 1
45286-20947C0

CT196,198,ET196..U,UL

BLACK,TRIM1#

 1
45287-20530B0

AT191,CT19#,ET196,ST19#

SHADOW GRAY,TRIM1#,下側

 1
45286 - COVER, STEERING COLUMN
45286-20941C0

CT196,198,ET196..U,UL

BLACK,TRIM2#

 1
45286-20600B0

AT191,CT19#,ET196,ST19#

SHADOW GRAY,TRIM1#,上側

 1
45286-20947C0

CT196,198,ET196..U,UL

BLACK,TRIM1#

 1
45287-20530B0

AT191,CT19#,ET196,ST19#

SHADOW GRAY,TRIM1#,下側

 1
45291A - SUPPORT, STEERING COLUMN TUBE
45291-50010

CT196,197,198,199,ET196,ST198..U,UL

 1
45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING
45875-12010

AT191,CT19#,ET196,ST19#

 2
45879A - CAPSULE, BREAK AWAY
45879-12050

AT191,CT19#,ET196,ST19#

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

AT191,CT19#,ET196,ST19#

 2
Common parts
90119-08560
90119-10478
90164-50034
90179-06218
90179-10016
90460-81003
91621-60814
91651-60614
93315-14012
93566-15514
93568-55016
Linked diagrams
8401

(9211-9601)U,UL

Click highlighted areas on diagram

diagram 45025D 45026 45201B 45201B 45210 45260 45271 45273 45280A 45286 45298 45870 45897 9011908560 9016450048 9017906218 9017910016 9017910016 9046081001 9165160614 9331514010
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-20350

AT191,CT190,196,197,ET196,ST190,191

 1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-20140

AT191,CT19#,ET196,ST19#

 1
45026-20090

CT19#,ET196,ST19#

 1
45026-20091

CT19#,ET196,ST19#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

CT196,198,ET196..U,UL

厚さ=1.20,NO.1

 1
90520-17042

AT191,CT19#,ET196,ST19#

厚さ=1.20,下側

 1
90520-17269

AT191,CT19#,ET196,ST19#

厚さ=1.20,上側

 1
90520-17269

CT196,198,ET196..U,UL

厚さ=1.20,NO.2

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

CT196,198,ET196..U,UL

厚さ=1.20,NO.1

 1
90520-17042

AT191,CT19#,ET196,ST19#

厚さ=1.20,下側

 1
90520-17269

AT191,CT19#,ET196,ST19#

厚さ=1.20,上側

 1
90520-17269

CT196,198,ET196..U,UL

厚さ=1.20,NO.2

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-20330

CT196,198,ET196..U,UL

 1
45210-12480

AT191,CT19#,ET196,ST19#

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-20441

AT191,CT190,196,197,ET196,ST191

 1
45260-20260

CT190,196,ET196,ST190,191

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-12050

CT196,198,ET196..U,UL

 1
45271-16020

AT191,CT19#,ET196,ST19#

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-16010

CT196,198,ET196..U,UL

 1
45273-12020

AT191,CT19#,ET196,ST19#

 1
45273-20030

CT196,198,ET196..U,UL

 1
45273-16020

CT196,198,ET196..U,UL

 1
45273-38010

AT191,CT19#,ET196,ST19#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-20530

CT196,198,ET196..U,UL

 1
45280-12341

AT191,CT190,196,197,ET196,ST19#..ATM

 1
45280-12340

AT191,CT19#,ET196,ST19#

 1
45286 - COVER, STEERING COLUMN
45286-20941C0

CT196,198,ET196..U,UL

BLACK,TRIM2#

 1
45286-20600B0

AT191,CT19#,ET196,ST19#

SHADOW GRAY,TRIM1#,上側

 1
45286-20947C0

CT196,198,ET196..U,UL

BLACK,TRIM1#

 1
45287-20530B0

AT191,CT19#,ET196,ST19#

SHADOW GRAY,TRIM1#,下側

 1
45298 - PLUG, STEERING COLUMN COVER
45298-20020C0

CT19#,ET196,ST19#..CZ,FZ,U,UL,UX

BLACK,TRIM2#

 1
45870 - TUBE ASSY, STEERING COLUMN
45870-20390

CT196,198,ET196..U,UL

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

AT191,CT19#,ET196,ST19#

 2
Common parts
90119-08560
90164-50048
90179-06218
90179-10016
90460-81001
91651-60614
93315-14010
