ET196V-DXHMK (1992)

Toyota Caldina

Production Nov 1992 - Jun 2002
Engine 5EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

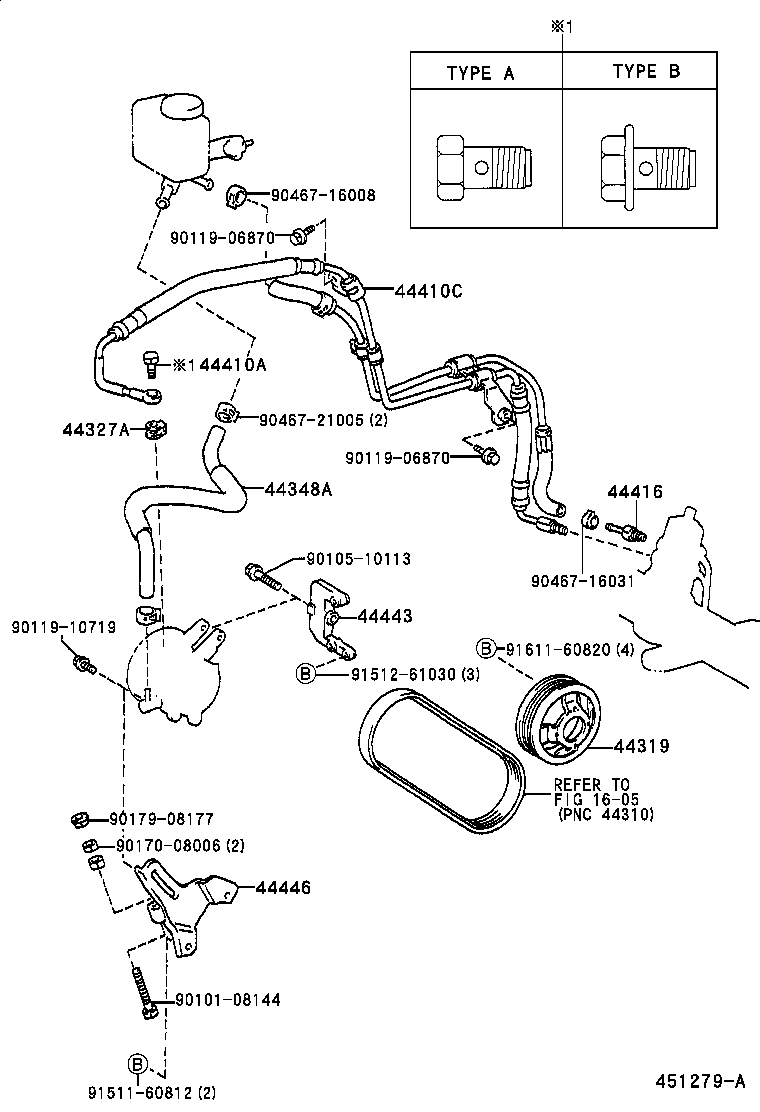

(9601- )ET196

Click highlighted areas on diagram

diagram 1605 44319 44327A 44348A 44410A 44410C 44416 44443 44446 9010108144 9010510113 9011906870 9011906870 9011910719 9017008006 9017908177 9046716008 9046716031 9046721005 9151160812 9151261030 9161160820
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-10011

ET196

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT191,CT19#,ET196,ST19#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20430

ET196

 1
44348-20340

CT190,196

 1
44348-20431

ET196

 1
44348-20390

CT190,196

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT191,CT19#,ET196,ST19#

 1
96341-41603

CT19#,ET196

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90401-16008

CT19#,ET196

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90401-16008

ST195..TZG;AT191,CT19#,ET196

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-20750

CT190,196

 1
44410-20820

ET196

 1
44410-21010

ET196

 1
44410-2B230

CT190,196,197

 1
44410-21011

ET196

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

AT191,CT19#,ET196,ST19#

 1
44443 - BRACKET, PUMP
44443-10030

ET196

 1
44446 - STRUT, ADJUSTING
44446-16051

ET196

 1
Common parts
90101-08144
90105-10113
90119-06870
90119-10719
90170-08006
90179-08177
90467-16008
90467-16031
90467-21005
91511-60812
91512-61030
91611-60820
Linked diagrams
1605

(9601- )CT190,196,197

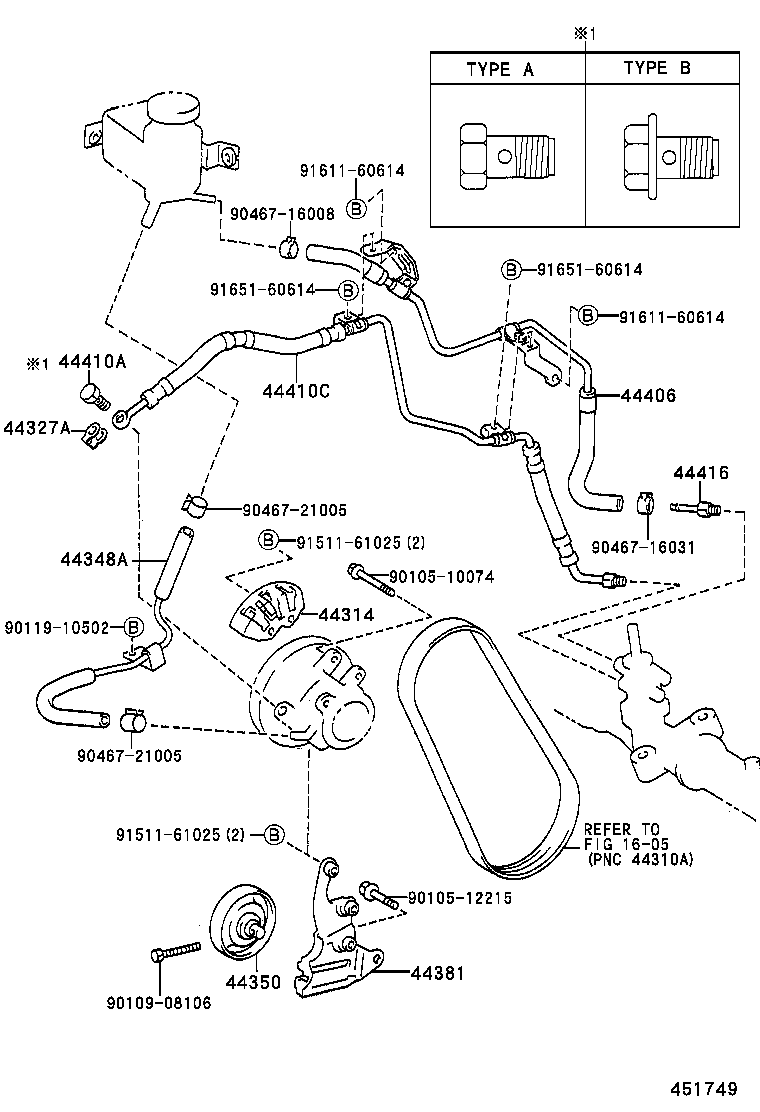

Click highlighted areas on diagram

diagram 1605 44314 44327A 44348A 44350 44381 44406 44410A 44410C 44416 9010510074 9010512215 9010908106 9011910502 9046716008 9046716031 9046721005 9046721005 9151161025 9151161025 9161160614 9161160614 9165160614 9165160614
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT191,CT19#,ET196,ST19#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20430

ET196

 1
44348-20340

CT190,196

 1
44348-20431

ET196

 1
44348-20390

CT190,196

 1
44406 - TUBE SUB-ASSY, RETURN
44406-20730

CT190,196,197

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT191,CT19#,ET196,ST19#

 1
96341-41603

CT19#,ET196

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90401-16008

CT19#,ET196

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90401-16008

ST195..TZG;AT191,CT19#,ET196

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-20750

CT190,196

 1
44410-20820

ET196

 1
44410-21010

ET196

 1
44410-2B230

CT190,196,197

 1
44410-21011

ET196

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

AT191,CT19#,ET196,ST19#

 1
Common parts
90105-10074
90105-12215
90109-08106
90119-10502
90467-16008
90467-16031
90467-21005
91511-61025
91611-60614
91651-60614
Linked diagrams
1605

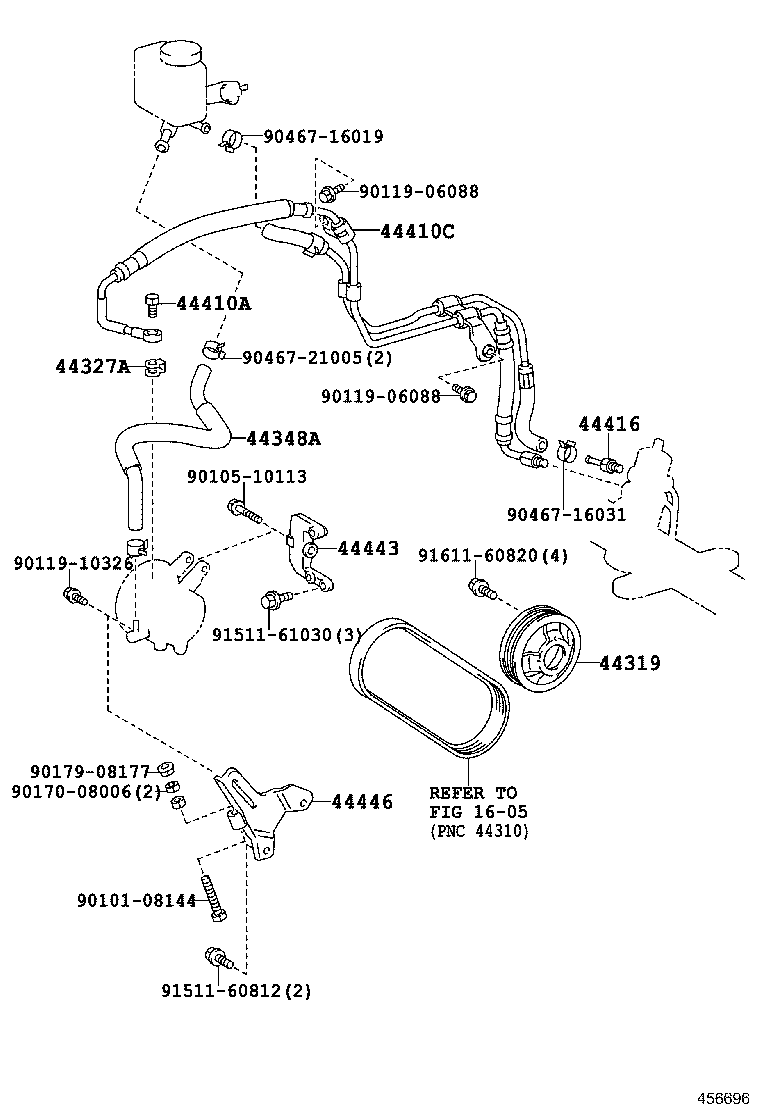

(9211-9601)ET196

Click highlighted areas on diagram

diagram 1605 44319 44327A 44348A 44410A 44410C 44416 44443 44446 9010108144 9010510113 9011906088 9011906088 9011910326 9017008006 9017908177 9046716019 9046716031 9046721005 9151160812 9151161030 9161160820
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-10011

ET196

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT191,CT19#,ET196,ST19#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20430

ET196

 1
44348-20340

CT190,196

 1
44348-20431

ET196

 1
44348-20390

CT190,196

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT191,CT19#,ET196,ST19#

 1
96341-41603

CT19#,ET196

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90401-16008

CT19#,ET196

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90401-16008

ST195..TZG;AT191,CT19#,ET196

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-20750

CT190,196

 1
44410-20820

ET196

 1
44410-21010

ET196

 1
44410-2B230

CT190,196,197

 1
44410-21011

ET196

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

AT191,CT19#,ET196,ST19#

 1
44443 - BRACKET, PUMP
44443-10030

ET196

 1
44446 - STRUT, ADJUSTING
44446-16051

ET196

 1
Common parts
90101-08144
90105-10113
90119-06088
90119-10326
90170-08006
90179-08177
90467-16019
90467-16031
90467-21005
91511-60812
91511-61030
91611-60820
Linked diagrams
1605

(9211-9601)CT190,196

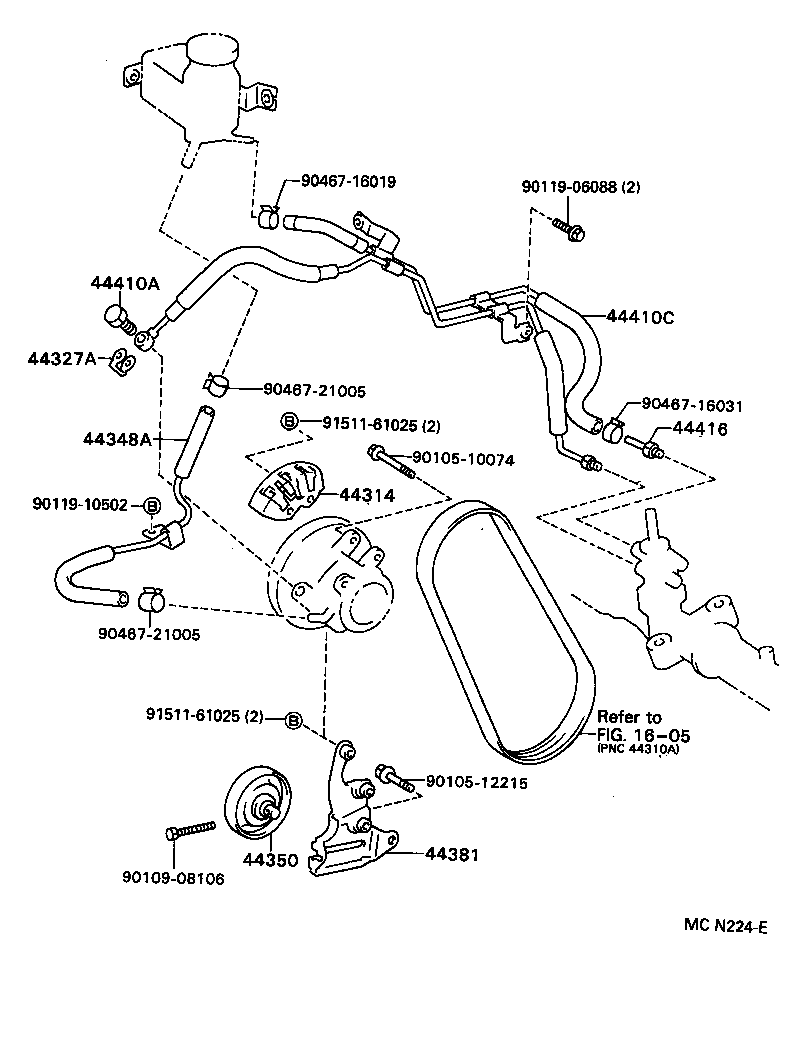

Click highlighted areas on diagram

diagram 1605 44314 44327A 44348A 44350 44381 44410A 44410C 44416 9010510074 9010512215 9010908106 9011906088 9011910502 9046716019 9046716031 9046721005 9046721005 9151161025 9151161025
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT191,CT19#,ET196,ST19#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20430

ET196

 1
44348-20340

CT190,196

 1
44348-20431

ET196

 1
44348-20390

CT190,196

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT191,CT19#,ET196,ST19#

 1
96341-41603

CT19#,ET196

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90401-16008

CT19#,ET196

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90401-16008

ST195..TZG;AT191,CT19#,ET196

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-20750

CT190,196

 1
44410-20820

ET196

 1
44410-21010

ET196

 1
44410-2B230

CT190,196,197

 1
44410-21011

ET196

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

AT191,CT19#,ET196,ST19#

 1
Common parts
90105-10074
90105-12215
90109-08106
90119-06088
90119-10502
90467-16019
90467-16031
90467-21005
91511-61025
Linked diagrams
1605
