ET196V-DXHDK (1992)

Toyota Caldina

Production Nov 1992 - Jun 2002
Engine 5EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )

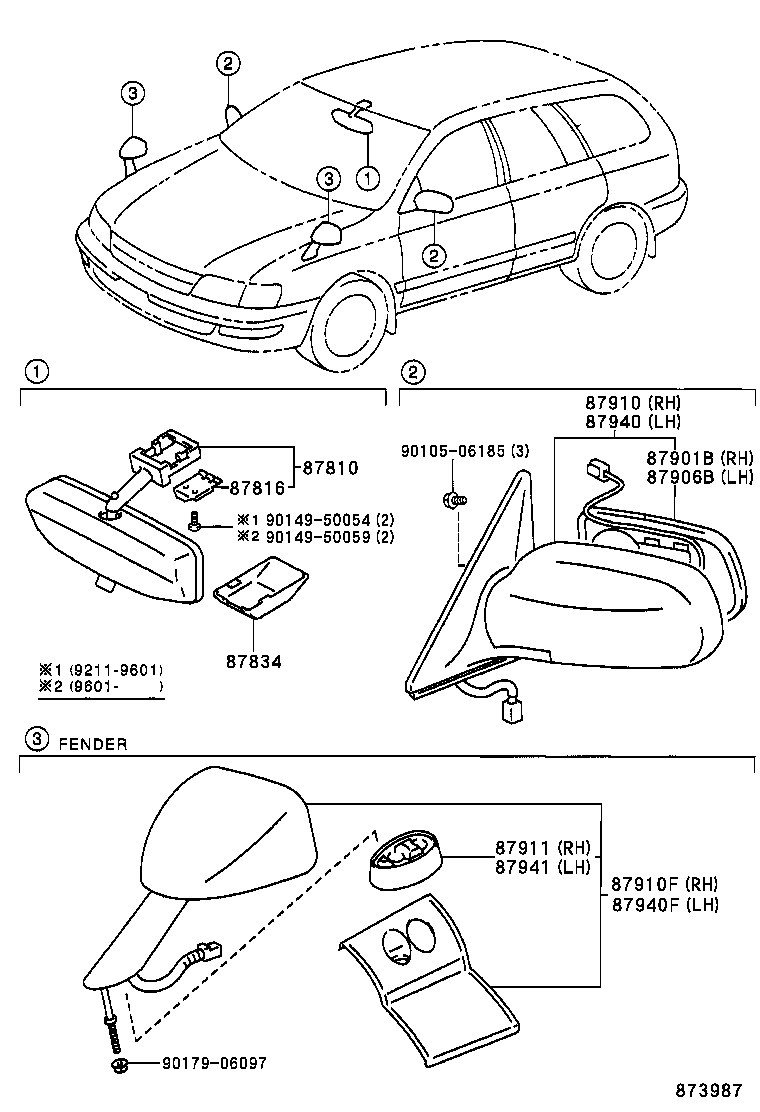

Click highlighted areas on diagram

diagram 87810 87816 87834 87901B 87906B 87910 87910F 87911 87940 87940F 87941 9010506185 9014950054 9014950059 9017906097
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-14170C0

AT191,CT19#,ET196,ST19#

BLACK,TRIM1#

 1
87810-14170C0

CT19#,ET196,ST19#

BLACK,TRIM2#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

AT191,CT19#,ET196,ST19#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-20080B0

CT19#,ET196,ST19#

GRAY,TRIM2#

 1
87834-20080B7

CT19#,ET196,ST198

BLUE GRAY,TRIM1#

 1
87834-20080B0

AT191,CT19#,ET196,ST19#

GRAY,TRIM1#

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-2B510

CT19#,ET196,ST19#..CZ,TZ,TZG,U

 1
87931-2B510

CT196,197,198,199,ET196,ST198..U

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-2B510

CT19#,ET196,ST19#..CZ,TZ,TZG,U

 1
87961-2B510

CT196,197,198,199,ET196,ST198..U

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-21040

CT196,197,198,199,ET196,ST198..U

 1
87910F - MIRROR ASSY, FENDER, RH
87910-21050

CT196,198,ET196..U

 1
87910-21050

CT19#,ET196,ST19#

 1
87910-21050

CT19#,ET196,ST19#

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87911-20240

CT19#,ET196,ST19#

 1
87911-20240

CT19#,ET196,ST19#

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-21040

CT196,197,198,199,ET196,ST198..U

 1
87940F - MIRROR ASSY, FENDER, LH
87940-21050

CT19#,ET196,ST19#

 1
87940-21050

CT196,198,ET196..U

 1
87940-21050

CT19#,ET196,ST19#

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87941-20260

CT19#,ET196,ST19#

 1
87941-20260

CT19#,ET196,ST19#

 1
Common parts
90105-06185
90149-50054
90149-50059
90179-06097
