ET196V-DXHDK (1992)

Toyota Caldina

Production Nov 1992 - Jun 2002
Engine 5EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )FZ,U,UL,UX

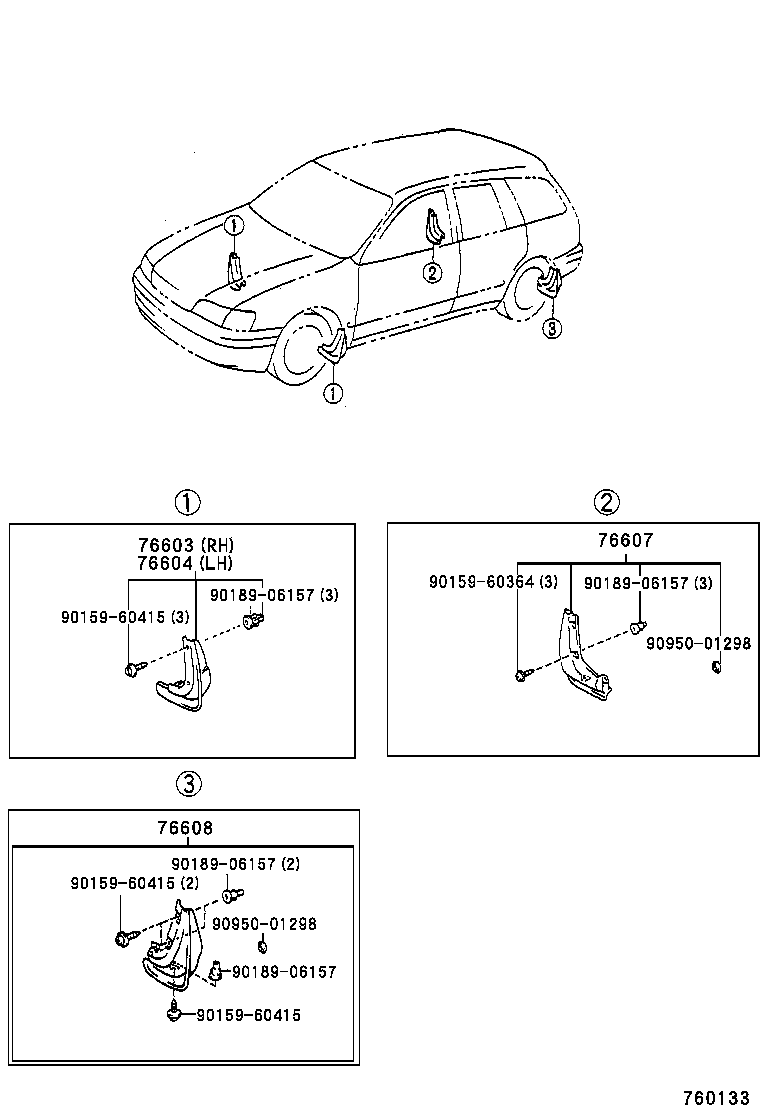

Click highlighted areas on diagram

diagram 76603 76604 76607 76608 9015960364 9015960415 9015960415 9015960415 9018906157 9018906157 9018906157 9018906157 9095001298 9095001298
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-29125

AT191,CT19#,ET196,ST190,198..FZ,U,UL,UX

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-29125

AT191,CT19#,ET196,ST190,198..FZ,U,UL,UX

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-29115

CT19#,ET196,ST190..FZ,U,UL,UX

 1
76625-29185

CT196,197,198,199,ET196,ST198

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-29115

CT19#,ET196,ST190..FZ,U,UL,UX

 1
76626-29185

CT196,197,198,199,ET196,ST198

 1
Common parts
90159-60364
90159-60415
90189-06157
90950-01298
