CT216G-DWPET (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3CTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

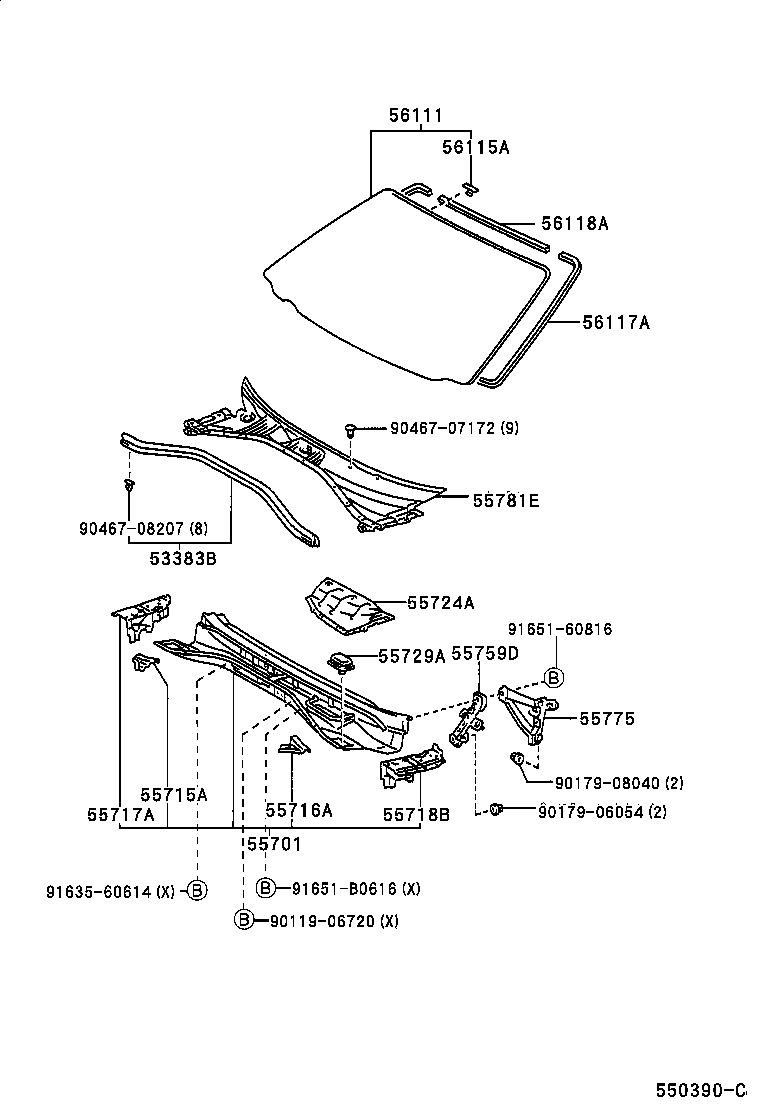

Click highlighted areas on diagram

diagram 53383B 55701 55715A 55716A 55717A 55718B 55724A 55729A 55759D 55775 55781E 56111 56115A 56117A 56118A 9011906720 9017906054 9017908040 9046707172 9046708207 9163560614 9165160816 91651B0616
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-21010

AT211,CT216,ST21#

 1
53383-21011

AT211,CT216,ST21#

 1
55701 - PANEL SUB-ASSY, COWL
55700-21060

AT211,CT216,ST21#

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-21010

AT211,CT216,ST21#

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-21010

AT211,CT216,ST21#

 1
55717A - PANEL, COWL TOP SIDE, INNER RH
55717-21010

AT211,CT216,ST21#

 1
55718B - PANEL, COWL TOP SIDE, INNER LH
55718-21010

AT211,CT216,ST21#

 1
55724A - REINFORCEMENT, COWL TOP SIDE, LH
55724-21010

AT211,CT216,ST21#

 1
55729A - COVER, COWL PANEL HOLE
55729-21010

AT211,CT216,ST21#

 1
55759D - BRACKET, COWL TOP INNER STAY MOUNTING
55759-20070

AT211,CT216,ST21#..E,G

 1
55759-20070

AT211,CT216,ST21#

 1
55775 - BRACKET, COWL TOP INNER TO PILLAR BRACE, LH
55775-20080

AT211,CT216,ST21#

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-21010

AT211,CT216,ST21#

 1
56111 - GLASS, WINDSHIELD
56101-21010

AT211,CT216,ST21#

*EHTL,T=4.76,ｸﾞﾘｰﾝ

 1
56101-21020

AT211,CT216,ST21#

*TL,T=4.76,ｸﾞﾘｰﾝ

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-33020

AT211,CT216,ST21#

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-47010

AT211,CT216,ST21#

*D,L=3165

 1
56118A - DAM, WINDOW GLASS ADHESIVE, NO.2
56118-21010

AT211,CT216,ST21#

 1
Common parts
90119-06720
90179-06054
90179-08040
90467-07172
90467-08207
91635-60614
91651-60816
91651-B0616
