CT216G-DWPET (1997)
Toyota Caldina
Production
Aug 1997
-
Sep 2002
Engine
3CTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )3CTE

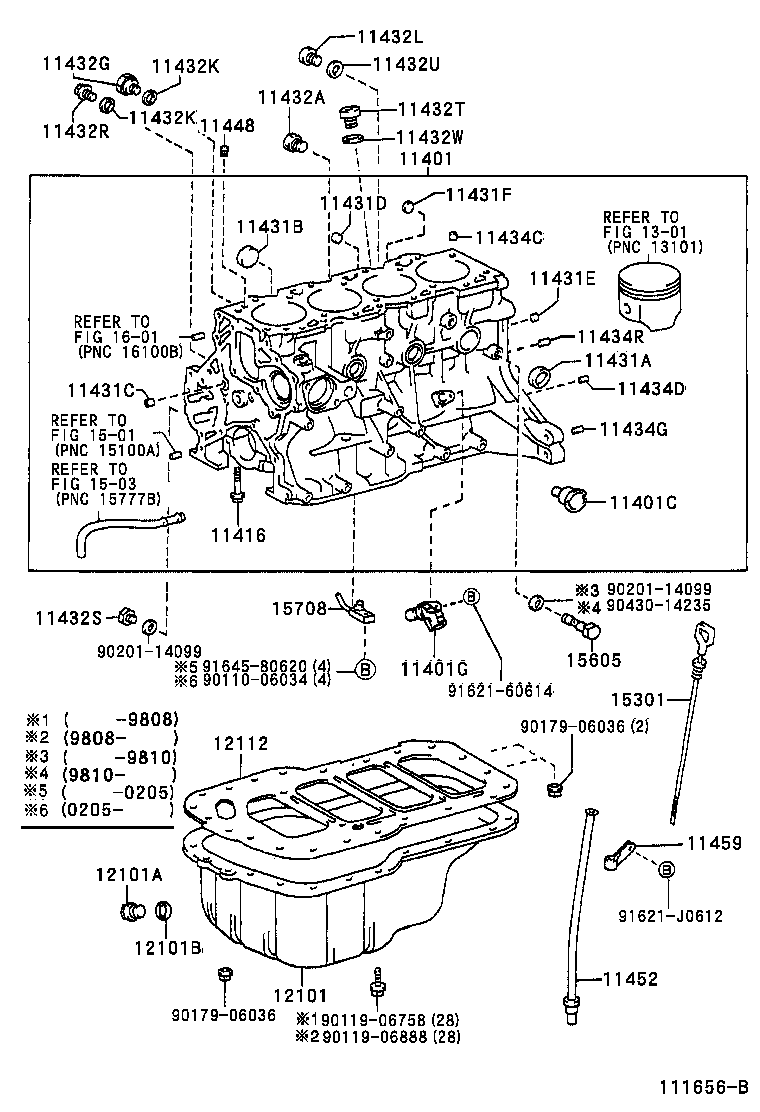

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-69736 |
3CTE..CT216 |
1 | ||
| 11401-69735 |
3CTE..CT216 |
1 | ||
| 11401-69738 |
3CTE..CT216 |
1 | ||
| 11401-69737 |
3CTE..CT216 |
1 | ||
| 11401C - FLANGE(FOR WATER BY-PASS) | ||||
| 16353-64011 |
3CTE..CT216 |
1 | ||
| 11401G - SENSOR, CRANK POSITION | ||||
| 90919-05031 |
3CTE..CT216 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02061 |
3CTE..CT216 |
10 | ||
| 90910-02135 |
3CTE..CT216 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-63500 |
3CTE..CT216 |
4 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-63000 |
3CTE..CT216 |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-41800 |
3CTE..CT216 |
1 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-41800 |
3CTE..CT216 |
1 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-41800 |
3CTE..CT216 |
3 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 96411-42000 |
3CTE..CT216 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-52003 |
3CTE..CT216 |
1 | ||
| 11432G - PLUG, W/HEAD STRAIGHT SCREW, NO.5 | ||||
| 90404-10030 |
3CTE..CT216 |
1 | ||
| 11432K - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-10027 |
3CTE..CT216 |
2 | ||
| 11432K - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-10027 |
3CTE..CT216 |
2 | ||
| 11432L - PLUG, W/HEAD STRAIGHT SCREW, NO.4(FOR CYLINDER BLOCK) | ||||
| 90341-18006 |
3CTE..CT216 |
1 | ||
| 11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK) | ||||
| 90341-10002 |
3CTE..CT216 |
1 | ||
| 11432S - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK) | ||||
| 90341-14032 |
3CTE..CT216 |
1 | ||
| 11432T - PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK) | ||||
| 90341-22001 |
3CTE..CT216 |
1 | ||
| 11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK) | ||||
| 90430-18001 |
3CTE..CT216 |
1 | ||
| 11432W - GASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK) | ||||
| 90430-22003 |
3CTE..CT216 |
1 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-14004 |
3CTE..CT216 長さ=20,外径=14 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
3CTE..CT216 長さ=11,外径=6 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10113 |
3CTE..CT216 |
2 | ||
| 11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90250-06003 |
3CTE..CT216 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-64020 |
3CTE..CT216 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-64030 |
3CTE..CT216 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 90929-01049 |
3CTE..CT216 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-64101 |
3CTE..CT216 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12026 |
3CTE..CT216 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
3CTE..CT216 |
1 | ||
| 12112 - PAN, OIL NO.2 | ||||
| 12112-64060 |
3CTE..CT216 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-64090 |
3CTE..CT216 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15703-27010 |
3CTE..CT216 |
1 | ||
| 15605-64020 |
3CTE..CT216 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15790-64030 |
3CTE..CT216 |
4 | ||
| 15790-64021 |
3CTE..CT216 |
4 | ||
| Common parts | ||||
| 90110-06034 | ||||
| 90119-06758 | ||||
| 90119-06888 | ||||
| 90179-06036 | ||||
| 90201-14099 | ||||
| 90430-14235 | ||||
| 91621-60614 | ||||
| 91621-J0612 | ||||
| 91645-80620 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1501 | ||||
| 1503 | ||||
| 1601 | ||||
