CT199V-DXMDE (1998)

Toyota Caldina

Production May 1998 - Jun 2002
Engine 3CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211-0104)

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43247C 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-12302

CT199,ST198

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
04438-12650

CT199,ST198

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-52051

CT199,ST198

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12040

CT198,199,ST195,198

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43403-12060

CT198,199,ST195,198

 1
43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2
43247-33010

CT19#,ET196,ST19#

 1
43247-12010

CT19#,ET196,ST198

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-22005

AT191,CT19#,ET196,ST19#

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-32162

CT199

ｱﾘ(ABS)

 1
43420-32123

CT199

 1
43420-32163

CT199

ｱﾘ(ABS)

 1
43420-32164

CT199,ST198

 1
43420-32163

CT199,ST198

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-26004

AT191,CT198,199,ET196,ST195,198

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-44003

CT198,199,ST195..5F

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-14010

CT19#,ST19#

 1
42345-20100

CT19#,ST198

内径=31.1

 1
42345-12150

CT19#,ST198

内径=29.6

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
90949-01076

CT19#,ST19#

内径=92.2

 1
42345-20120

CT19#,ST198

内径=90.6

 1
42345-12140

CT19#,ST198

内径=92.0

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-16010

CT19#,ET196,ST19#

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01076

CT199,ET196,ST198

 1
42345-12160

CT19#,ET196,ST198

 1
90949-01076

CT19#,ET196,ST19#

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-19308

CT199

ｱﾘ(ABS)

 1
43470-39090

CT199

 1
43470-19309

CT199,ST198

ｱﾘ(ABS)

 1
43470-19310

CT199,ST198

 1

(0104- )

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43247C 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-12302

CT199,ST198

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
04438-12650

CT199,ST198

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-52051

CT199,ST198

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12040

CT198,199,ST195,198

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43403-12060

CT198,199,ST195,198

 1
43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2
43247-33010

CT19#,ET196,ST19#

 1
43247-12010

CT19#,ET196,ST198

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-22005

AT191,CT19#,ET196,ST19#

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-32162

CT199

ｱﾘ(ABS)

 1
43420-32123

CT199

 1
43420-32163

CT199

ｱﾘ(ABS)

 1
43420-32164

CT199,ST198

 1
43420-32163

CT199,ST198

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-26004

AT191,CT198,199,ET196,ST195,198

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-44003

CT198,199,ST195..5F

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-14010

CT19#,ST19#

 1
42345-20100

CT19#,ST198

内径=31.1

 1
42345-12150

CT19#,ST198

内径=29.6

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
90949-01076

CT19#,ST19#

内径=92.2

 1
42345-20120

CT19#,ST198

内径=90.6

 1
42345-12140

CT19#,ST198

内径=92.0

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-16010

CT19#,ET196,ST19#

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01076

CT199,ET196,ST198

 1
42345-12160

CT19#,ET196,ST198

 1
90949-01076

CT19#,ET196,ST19#

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-19308

CT199

ｱﾘ(ABS)

 1
43470-39090

CT199

 1
43470-19309

CT199,ST198

ｱﾘ(ABS)

 1
43470-19310

CT199,ST198

 1

(9211-0104)CT198,199

Click highlighted areas on diagram

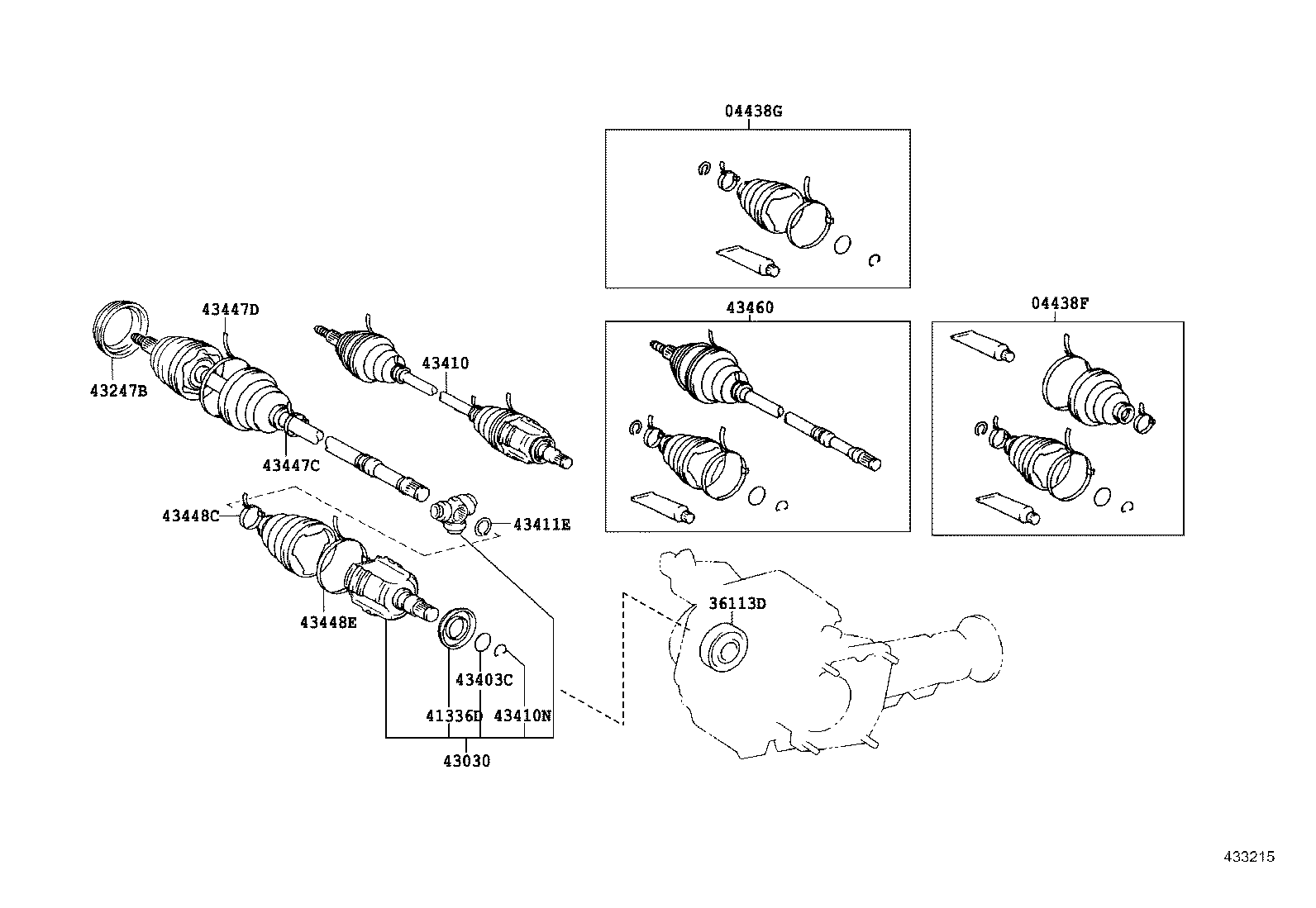

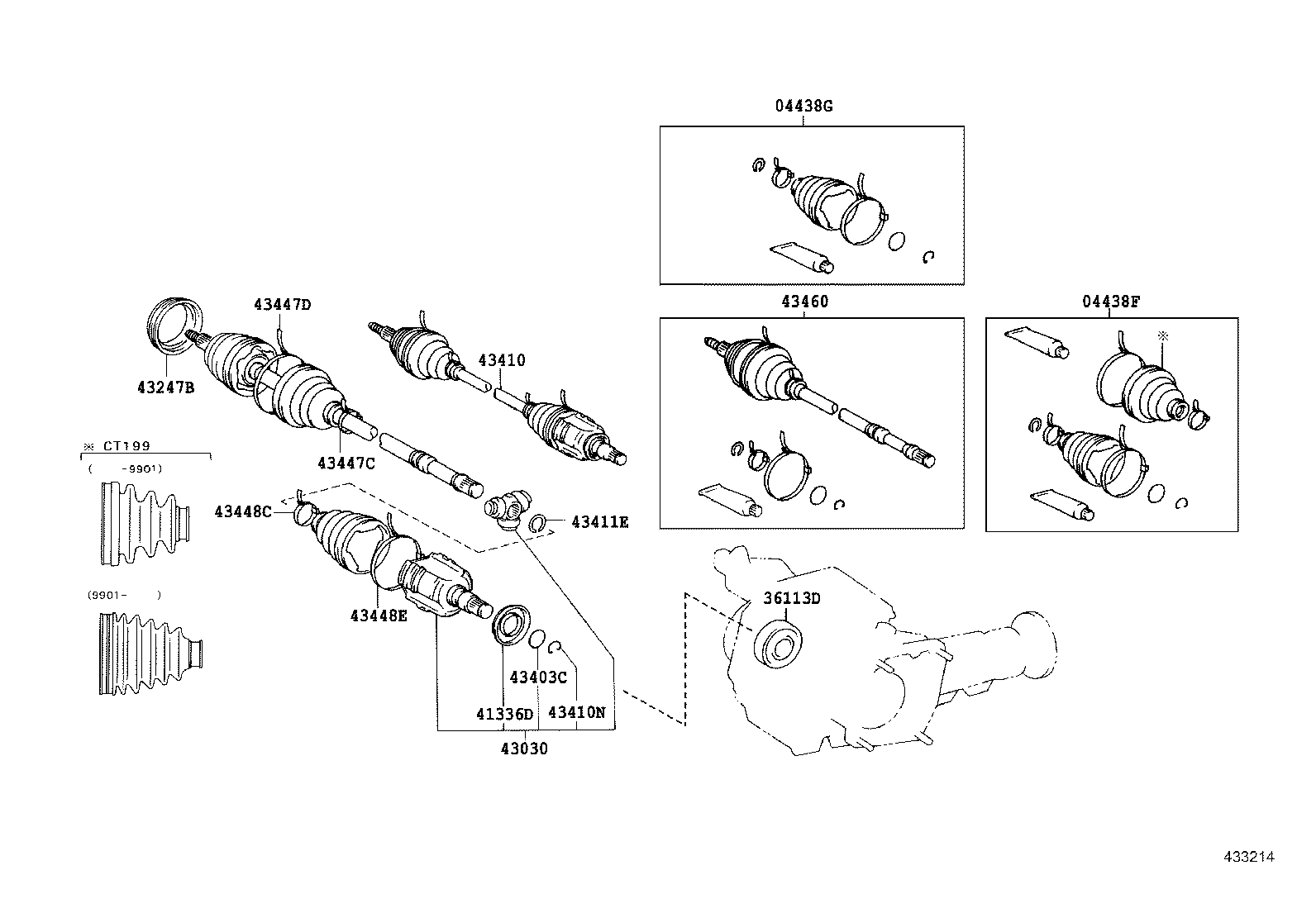

RH

diagram 04438F 04438G 36113D 41336D 43030 43247B 43403C 43410 43410N 43411E 43447C 43447D 43448C 43448E 43460
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-12302

CT199,ST198

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
04438-12650

CT199,ST198

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-52051

CT199,ST198

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-47003

CT198,199,ST195..5F

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-20040

CT198,199,ST195,198

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43403-12050

CT198,199,ST195,198

 1
43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
43247-33010

CT19#,ET196,ST19#

 1
43247-12010

CT19#,ET196,ST198

 1
43403C - RING, O (FOR FRONT DRIVE INBOARD JOINT)
90301-26006

CT198,199,ST195,198

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-32202

CT199

ｱﾘ(ABS)

 1
43410-32203

CT199

ｱﾘ(ABS)

 1
43410-32143

CT199

 1
43410-32204

CT199

 1
43410-32203

CT199

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90521-26004

AT191,CT198,199,ET196,ST195,198

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-22005

AT191,CT19#,ET196,ST19#

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12150

CT19#,ST198

内径=29.6

 1
42345-20100

CT19#,ST198

内径=31.1

 1
42345-14010

CT19#,ST19#

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12140

CT19#,ST198

内径=92.0

 1
90949-01076

CT19#,ST19#

内径=92.2

 1
42345-20120

CT19#,ST198

内径=90.6

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-16010

CT19#,ET196,ST19#

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01076

CT19#,ET196,ST19#

 1
90949-01076

CT199,ET196,ST198

 1
42345-12160

CT19#,ET196,ST198

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-19308

CT199

ｱﾘ(ABS)

 1
43470-39090

CT199

 1
43470-19310

CT199,ST198

 1
43470-19309

CT199,ST198

ｱﾘ(ABS)

 1

(0104- )CT199

Click highlighted areas on diagram

RH

diagram 04438F 04438G 36113D 41336D 43030 43247B 43403C 43410 43410N 43411E 43447C 43447D 43448C 43448E 43460
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-12302

CT199,ST198

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
04438-12650

CT199,ST198

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-52051

CT199,ST198

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-47003

CT198,199,ST195..5F

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-20040

CT198,199,ST195,198

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43403-12050

CT198,199,ST195,198

 1
43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
43247-33010

CT19#,ET196,ST19#

 1
43247-12010

CT19#,ET196,ST198

 1
43403C - RING, O (FOR FRONT DRIVE INBOARD JOINT)
90301-26006

CT198,199,ST195,198

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-32202

CT199

ｱﾘ(ABS)

 1
43410-32203

CT199

ｱﾘ(ABS)

 1
43410-32143

CT199

 1
43410-32204

CT199

 1
43410-32203

CT199

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90521-26004

AT191,CT198,199,ET196,ST195,198

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-22005

AT191,CT19#,ET196,ST19#

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12150

CT19#,ST198

内径=29.6

 1
42345-20100

CT19#,ST198

内径=31.1

 1
42345-14010

CT19#,ST19#

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12140

CT19#,ST198

内径=92.0

 1
90949-01076

CT19#,ST19#

内径=92.2

 1
42345-20120

CT19#,ST198

内径=90.6

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-16010

CT19#,ET196,ST19#

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01076

CT19#,ET196,ST19#

 1
90949-01076

CT199,ET196,ST198

 1
42345-12160

CT19#,ET196,ST198

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-19308

CT199

ｱﾘ(ABS)

 1
43470-39090

CT199

 1
43470-19310

CT199,ST198

 1
43470-19309

CT199,ST198

ｱﾘ(ABS)

 1
