CT199V-DXMDE (1998)

Toyota Caldina

Production May 1998 - Jun 2002
Engine 3CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )CT199

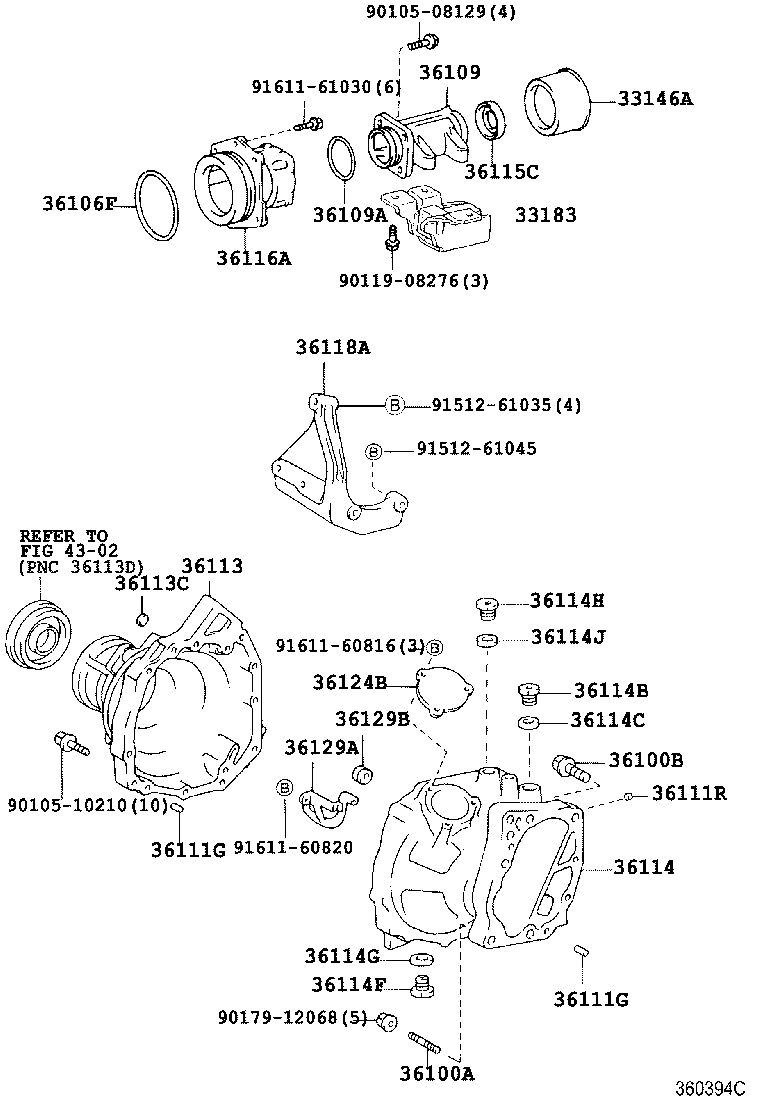

Click highlighted areas on diagram

diagram 33146A 33183 36100A 36100B 36106F 36109 36109A 36111G 36111G 36111R 36113 36113C 36114 36114B 36114C 36114F 36114G 36114H 36114J 36115C 36116A 36118A 36124B 36129A 36129B 4302 9010508129 9010510210 9011908276 9017912068 9151261035 9151261045 9161160816 9161160820 9161161030
Part # Description Qty Price
33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33146-30020

CT198,199,ST195,198

 1
33183 - DAMPER, TRANSFER DYNAMIC
33183-21060

CT199

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12028

CT198,199,ST195,198

ﾈｼﾞ部長さ=22 & 22,長さ=69

 2
90116-12018

CT198,199,ST195..5F

ﾈｼﾞ部長さ=27 & 27,長さ=75

 3
36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING)
90105-12137

CT198,199,ST195..5F

*12−1.25PX52−30

 3
36106F - RING, O (FOR TRANSFER PINION BEARING CAGE)
90301-99049

CT198,199,ST195..5F

 1
36109A - RING, O (FOR TRANSFER EXTENSION HOUSING)
90301-63005

CT198,199,ST195,198

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

CT198,199,ST195..5F

長さ=20,外径=10

 2
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

CT198,199,ST195..5F

長さ=20,外径=10

 2
36111R - PLUG, TIGHT (FOR TRANSFER CASE)
90331-08002

CT198,199,ST195..5F

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-22001

CT198,199,ST195..5F

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-22002

CT198,199,ST195..5F

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18006

CT198,199,ST195..5F

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
90430-18008

CT198,199,ST195,198

 1
36114H - PLUG, NO.2 (FOR TRANSFER CASE)
90341-18023

CT198,199,ST195..5F

 1
36114J - GASKET, NO.2 (FOR TRANSFER CASE)
90430-18008

CT198,199,ST195..5F

 1
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-38032

CT198,199,ST195,198

 1
36118A - PLATE, TRANSFER STIFFENER, RH
36118-21040

CT199

 1
36124B - COVER, TRANSFER INSPECTION HOLE
36124-12010

CT198,199,ST195..5F

 1
36129A - TUBE, TRANSFER OIL
36129-20010

CT198,199,ST195..5F

 1
36129B - CUSHION (FOR TRANSFER OIL TUBE)
90540-06027

CT198,199,ST195..5F

 1
Common parts
90105-08129
90105-10210
90119-08276
90179-12068
91512-61035
91512-61045
91611-60816
91611-60820
91611-61030
Linked diagrams
4302
