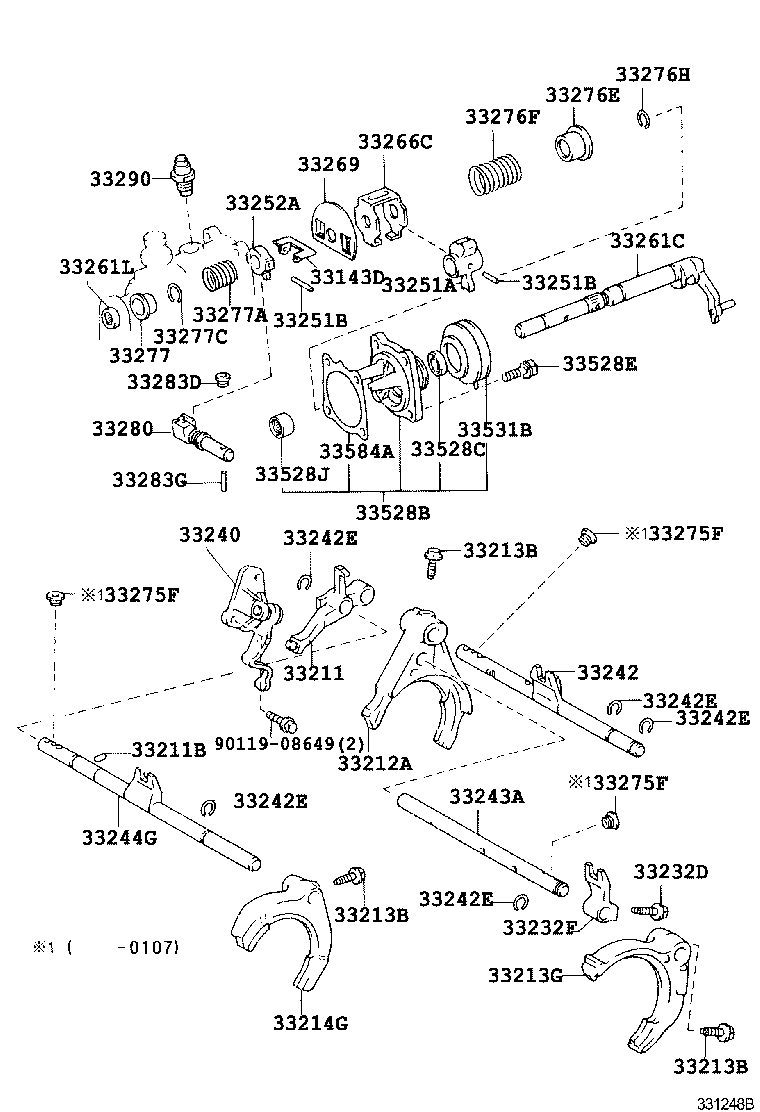

CT199V-DXMDE (1998)
Toyota Caldina
(9211-9912)CT198,199,ST195..5F
E56F,E57F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33143D - BAFFLE, TRANSMISSION OIL | ||||
| 33143-12020 |
CT198,199,ST195..5F |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-20020 |
CT198,199,ST195..5F |
1 | ||
| 33211B - ROLLER(FOR REVERSE SHIFT FORK) | ||||
| 90361-08005 |
CT198,199,ST195..5F |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-12030 |
CT198,199,ST195..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07002 |
CT198,199,ST195..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07002 |
CT198,199,ST195..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07002 |
CT198,199,ST195..5F |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-12032 |
CT198,199,ST195..5F |
1 | ||
| 33220-28020 |
CT199 |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-12020 |
CT198,199,ST195..5F |
1 | ||
| 33232D - BOLT (FOR SHIFT HEAD SET) | ||||
| 90105-07002 |
CT198,199,ST195..5F |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-12030 |
CT198,199,ST195..5F |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-12021 |
CT198,199,ST195..5F |
1 | ||
| 33240-28010 |
CT199 |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-12061 |
CT198,199,ST195..5F |
1 | ||
| 33242-12062 |
CT199 |
1 | ||
| 33242-28030 |
CT199 |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
CT198,199,ST195..5F |
5 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
CT198,199,ST195..5F |
5 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
CT198,199,ST195..5F |
5 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
CT198,199,ST195..5F |
5 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
CT198,199,ST195..5F |
5 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-28040 |
CT199 |
1 | ||
| 33244G - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-12080 |
CT198,199,ST195..5F |
1 | ||
| 33244-28030 |
CT199 |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-20050 |
CT198,199,ST195..5F |
1 | ||
| 33251-28040 |
CT199 |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05007 |
CT19#,ST190,195..5F 長さ=47.0 |
1 | ||
| 90254-05016 |
CT198,199,ST195..5F 長さ=25.5 |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05007 |
CT19#,ST190,195..5F 長さ=47.0 |
1 | ||
| 90254-05016 |
CT198,199,ST195..5F 長さ=25.5 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-20020 |
CT198,199,ST195..5F |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-20070 |
CT198,199,ST195..5F |
1 | ||
| 33261-20071 |
CT199 |
1 | ||
| 33261K - BEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90364-15003 |
CT198,199,ST195..5F |
1 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-15002 |
CT19#..5F |
1 | ||
| 33266A - BOLT (FOR SHIFT INTER LOCK PLATE) | ||||
| 90109-18002 |
CT198,199,ST195..5F |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-12030 |
CT198,199,ST195..5F |
1 | ||
| 33266-28010 |
CT199 |
1 | ||
| 33266D - GASKET (FOR SHIFT INTER LOCK PLATE) | ||||
| 90430-18008 |
CT199,ET196..5F |
1 | ||
| 90430-18008 |
CT198,199,ST195..5F |
1 | ||
| 33269 - COVER, SHIFT INTER LOCK PLATE | ||||
| 33269-12010 |
CT198,199,ST195..5F |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-20010 |
CT198,199,ST195..5F 外径=44.1 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-20010 |
CT198,199,ST195..5F 外径=44.1 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-20010 |
CT198,199,ST195..5F 外径=44.1 |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-08009 |
CT198,199,ST195..5F |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-08009 |
CT198,199,ST195..5F |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-08009 |
CT198,199,ST195..5F |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-14104 |
CT198,199,ST195..5F |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-14104 |
CT198,199,ST195..5F |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-14104 |
CT198,199,ST195..5F |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
AT191,CT198,199,ET196,ST195..5F |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
AT191,CT198,199,ET196,ST195..5F |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
AT191,CT198,199,ET196,ST195..5F |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-20020 |
CT198,199,ST195..5F |
1 | ||
| 33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) | ||||
| 90501-16134 |
CT199 |
1 | ||
| 90501-16133 |
CT198,199,ST195..5F |
1 | ||
| 33276H - RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT) | ||||
| 90520-15003 |
AT191,CT198,199,ET196,ST195..5F |
1 | ||
| 33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) | ||||
| 90501-17028 |
CT199 |
1 | ||
| 33277C - RING, SHAFT SNAP (FOR SELECT SPRING NO.2 SEAT) | ||||
| 90520-12003 |
CT198,199,ST195..5F |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-20041 |
CT198,199,ST195..5F |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-10065 |
AT191,CT19#,ET196,ST190,195..5F |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05003 |
AT191,CT198,199,ET196,ST195..5F |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33506-20270 |
CT198,199,ST195..5F |
1 | ||
| 33506-28210 |
CT199 |
1 | ||
| 33528C - SEAL, OIL (FOR CONTROL SHAFT COVER) | ||||
| 90311-18013 |
AT191,CT19#,ET196,ST190,195..5F |
1 | ||
| 33528E - BOLT (FOR CONTROL SHAFT COVER) | ||||
| 90119-10288 |
CT198,199,ST195..5F *10−1.25PX25−19.8 |
4 | ||
| 33528H - BEARING, NEEDLE ROLLER (FOR CONTROL SHAFT COVER) | ||||
| 90364-18009 |
CT198,199,ST195..5F |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-12020 |
AT191,CT198,199,ET196,ST195..5F |
1 | ||
| 33584A - GASKET, CONTROL SHIFT LEVER RETAINER | ||||
| 33584-20020 |
CT198,199,ST195..5F |
1 | ||
| Common parts | ||||
| 90119-08649 | ||||
(9912- )CT199
E57F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33143D - BAFFLE, TRANSMISSION OIL | ||||
| 33143-12020 |
CT198,199,ST195..5F |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-20020 |
CT198,199,ST195..5F |
1 | ||
| 33211B - ROLLER(FOR REVERSE SHIFT FORK) | ||||
| 90361-08005 |
CT198,199,ST195..5F |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-12030 |
CT198,199,ST195..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07002 |
CT198,199,ST195..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07002 |
CT198,199,ST195..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07002 |
CT198,199,ST195..5F |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-12032 |
CT198,199,ST195..5F |
1 | ||
| 33220-28020 |
CT199 |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-12020 |
CT198,199,ST195..5F |
1 | ||
| 33232D - BOLT (FOR SHIFT HEAD SET) | ||||
| 90105-07002 |
CT198,199,ST195..5F |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-12030 |
CT198,199,ST195..5F |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-12021 |
CT198,199,ST195..5F |
1 | ||
| 33240-28010 |
CT199 |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-12061 |
CT198,199,ST195..5F |
1 | ||
| 33242-12062 |
CT199 |
1 | ||
| 33242-28030 |
CT199 |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
CT198,199,ST195..5F |
5 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
CT198,199,ST195..5F |
5 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
CT198,199,ST195..5F |
5 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
CT198,199,ST195..5F |
5 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
CT198,199,ST195..5F |
5 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-28040 |
CT199 |
1 | ||
| 33244G - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-12080 |
CT198,199,ST195..5F |
1 | ||
| 33244-28030 |
CT199 |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-20050 |
CT198,199,ST195..5F |
1 | ||
| 33251-28040 |
CT199 |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05007 |
CT19#,ST190,195..5F 長さ=47.0 |
1 | ||
| 90254-05016 |
CT198,199,ST195..5F 長さ=25.5 |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05007 |
CT19#,ST190,195..5F 長さ=47.0 |
1 | ||
| 90254-05016 |
CT198,199,ST195..5F 長さ=25.5 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-20020 |
CT198,199,ST195..5F |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-20070 |
CT198,199,ST195..5F |
1 | ||
| 33261-20071 |
CT199 |
1 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-15002 |
CT19#..5F |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-12030 |
CT198,199,ST195..5F |
1 | ||
| 33266-28010 |
CT199 |
1 | ||
| 33269 - COVER, SHIFT INTER LOCK PLATE | ||||
| 33269-12010 |
CT198,199,ST195..5F |
1 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
AT191,CT198,199,ET196,ST195..5F |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
AT191,CT198,199,ET196,ST195..5F |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
AT191,CT198,199,ET196,ST195..5F |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-20020 |
CT198,199,ST195..5F |
1 | ||
| 33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) | ||||
| 90501-16134 |
CT199 |
1 | ||
| 90501-16133 |
CT198,199,ST195..5F |
1 | ||
| 33276H - RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT) | ||||
| 90520-15003 |
AT191,CT198,199,ET196,ST195..5F |
1 | ||
| 33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) | ||||
| 90501-17028 |
CT199 |
1 | ||
| 33277C - RING, SHAFT SNAP (FOR SELECT SPRING NO.2 SEAT) | ||||
| 90520-12003 |
CT198,199,ST195..5F |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-20041 |
CT198,199,ST195..5F |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-10065 |
AT191,CT19#,ET196,ST190,195..5F |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05003 |
AT191,CT198,199,ET196,ST195..5F |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-28010 |
CT199 |
1 | ||
| 33290-33020 |
CT199 |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33506-20270 |
CT198,199,ST195..5F |
1 | ||
| 33506-28210 |
CT199 |
1 | ||
| 33528C - SEAL, OIL (FOR CONTROL SHAFT COVER) | ||||
| 90311-18013 |
AT191,CT19#,ET196,ST190,195..5F |
1 | ||
| 33528E - BOLT (FOR CONTROL SHAFT COVER) | ||||
| 90119-10288 |
CT198,199,ST195..5F *10−1.25PX25−19.8 |
4 | ||
| 33528J - BUSH, BIMETAL FORMED (FOR CONTROL SHAFT COVER) | ||||
| 90384-18017 |
CT19#..5F |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-12020 |
AT191,CT198,199,ET196,ST195..5F |
1 | ||
| 33584A - GASKET, CONTROL SHIFT LEVER RETAINER | ||||
| 33584-20020 |
CT198,199,ST195..5F |
1 | ||
| Common parts | ||||
| 90119-08649 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
