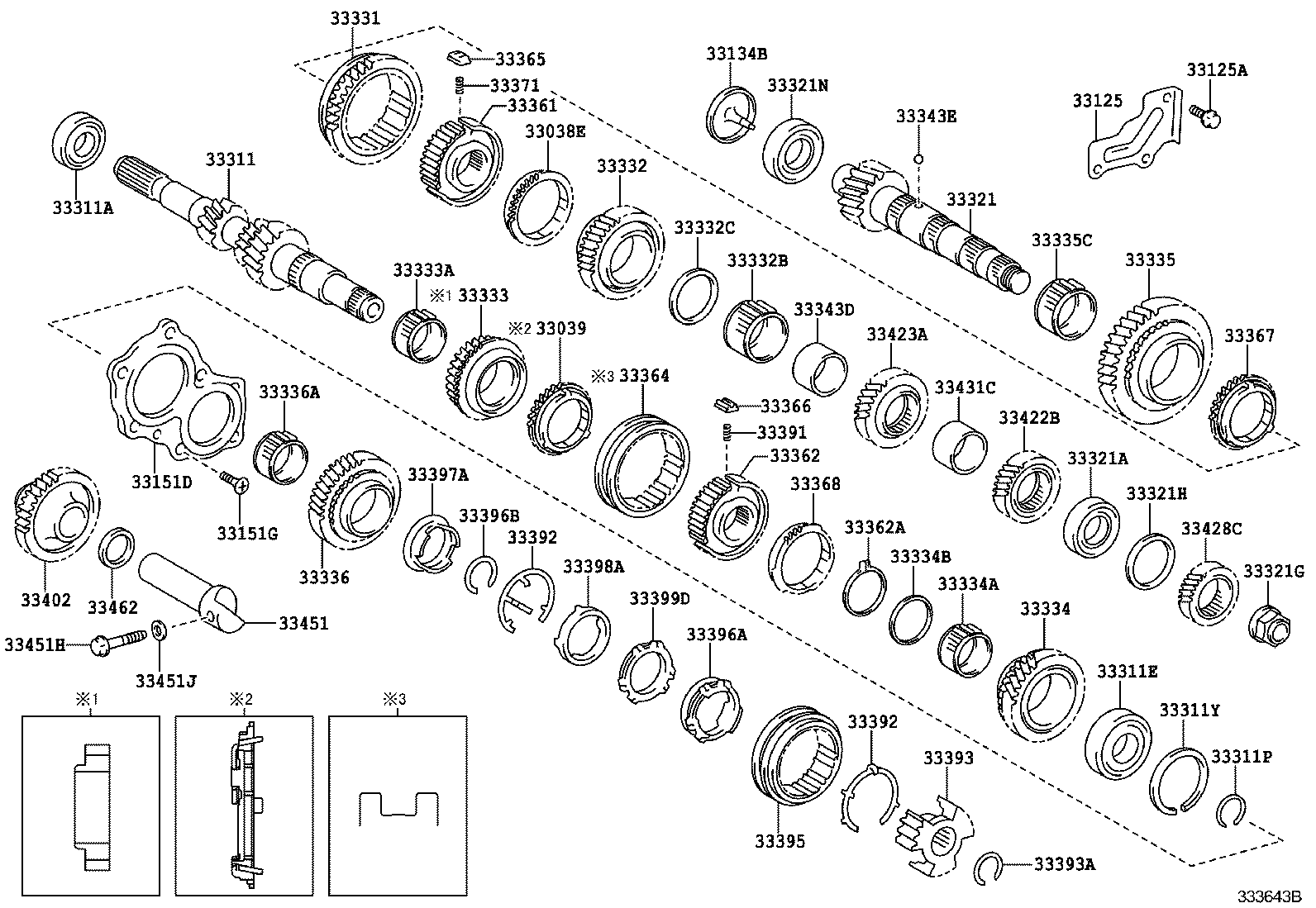

CT199V-DXMDE (1998)
Toyota Caldina
(9912- )CT199
E57F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-28010 |
CT199 |
1 | ||
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| 33038-28010 |
CT199 |
1 | ||
| 33125 - RECEIVER, MANUAL TRANSAXLE CASE | ||||
| 33125-20010 |
CT198,199,ST195..5F |
1 | ||
| 33125A - BOLT(FOR TRANSAXLE CASE RECEIVER) | ||||
| 91611-60616 |
CT198,199,ST195..5F |
3 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-20010 |
CT198,199,ST195..5F |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-12031 |
CT198,199,ST195..5F |
1 | ||
| 33151-28020 |
CT199 |
1 | ||
| 33151G - SCREW(FOR REAR BEARING RETAINER) | ||||
| 90149-80029 |
CT198,199,ST195..5F |
7 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-13011 |
CT199 |
1 | ||
| 33311-13010 |
CT198,199 |
1 | ||
| 33311-13012 |
CT199 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-30023 |
CT198,199,ST195..5F |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-33007 |
CT198,199,ST195..5F |
1 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-30012 |
CT198,199,ST195..5F 厚さ=2.55−2.60,ﾏｰｸ 5 |
1 | ||
| 90520-30009 |
CT198,199,ST195..5F 厚さ=2.40−2.45,ﾏｰｸ 2 |
1 | ||
| 90520-30010 |
CT198,199,ST195..5F 厚さ=2.45−2.50,ﾏｰｸ 3 |
1 | ||
| 90520-30022 |
CT198,199,ST195..5F 厚さ=2.70−2.74,ﾏｰｸ 8 |
1 | ||
| 90520-30021 |
CT198,199,ST195..5F 厚さ=2.65−2.69,ﾏｰｸ 7 |
1 | ||
| 90520-30013 |
CT198,199,ST195..5F 厚さ=2.60−2.65,ﾏｰｸ 6 |
1 | ||
| 90520-30008 |
CT198,199,ST195..5F 厚さ=2.35−2.40,ﾏｰｸ 1 |
1 | ||
| 90520-30011 |
CT198,199,ST195..5F 厚さ=2.50−2.55,ﾏｰｸ 4 |
1 | ||
| 33311Y - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-76003 |
CT198,199,ST195..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33302-12070 |
CT199,ST195..5F..(CZ,TZ,U,UL) |
1 | ||
| 33302-12071 |
CT199 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-28002 |
CT198,199,ST195..5F |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20012 |
CT198,199,ST195..5F |
1 | ||
| 33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90564-59005 |
CT198,199,ST195..5F 厚さ=1.50,ﾏｰｸ 4 |
1 | ||
| 90564-59004 |
CT198,199,ST195..5F 厚さ=1.45,ﾏｰｸ 3 |
1 | ||
| 90564-59008 |
CT198,199,ST195..5F 厚さ=1.65,ﾏｰｸ 7 |
1 | ||
| 90564-59003 |
CT198,199,ST195..5F 厚さ=1.40,ﾏｰｸ 2 |
1 | ||
| 90564-59012 |
CT198,199,ST195..5F 厚さ=1.85,ﾏｰｸ B |
1 | ||
| 90564-59006 |
CT198,199,ST195..5F 厚さ=1.55,ﾏｰｸ 5 |
1 | ||
| 90564-59001 |
CT198,199,ST195..5F 厚さ=1.30,ﾏｰｸ 0 |
1 | ||
| 90564-59009 |
CT198,199,ST195..5F 厚さ=1.70,ﾏｰｸ 8 |
1 | ||
| 90564-59002 |
CT198,199,ST195..5F 厚さ=1.35 ﾏｰｸ 1 |
1 | ||
| 90564-59007 |
CT198,199,ST195..5F 厚さ=1.60,ﾏｰｸ 6 |
1 | ||
| 90564-59017 |
CT198,199,ST195..5F 厚さ=2.10,ﾏｰｸ G |
1 | ||
| 90564-59013 |
CT198,199,ST195..5F 厚さ=1.90,ﾏｰｸ C |
1 | ||
| 90564-59015 |
CT198,199,ST195..5F 厚さ=2.00,ﾏｰｸ E |
1 | ||
| 90564-59019 |
CT198,199,ST195..5F 厚さ=2.20,ﾏｰｸ J |
1 | ||
| 90564-59018 |
CT198,199,ST195..5F 厚さ=2.15,ﾏｰｸ H |
1 | ||
| 90564-59016 |
CT198,199,ST195..5F 厚さ=2.05,ﾏｰｸ F |
1 | ||
| 90564-59011 |
CT198,199,ST195..5F 厚さ=1.80,ﾏｰｸ A |
1 | ||
| 90564-59014 |
CT198,199,ST195..5F 厚さ=1.95,ﾏｰｸ D |
1 | ||
| 90564-59010 |
CT198,199,ST195..5F 厚さ=1.75,ﾏｰｸ 9 |
1 | ||
| 90564-59020 |
CT198,199,ST195..5F 厚さ=2.25,ﾏｰｸ K |
1 | ||
| 90564-59021 |
CT198,199,ST195..5F 厚さ=2.30,ﾏｰｸ L |
1 | ||
| 90564-59023 |
CT198,199,ST195..5F 厚さ=2.40,ﾏｰｸ N |
1 | ||
| 90564-59025 |
CT198,199,ST195..5F 厚さ=2.50,ﾏｰｸ Q |
1 | ||
| 90564-59024 |
CT198,199,ST195..5F 厚さ=2.45,ﾏｰｸ P |
1 | ||
| 90564-59022 |
CT198,199,ST195..5F 厚さ=2.35,ﾏｰｸ M |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-32016 |
CT198,199,ST195..5F |
1 | ||
| 90366-32025 |
CT199 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-28020 |
CT199 |
1 | ||
| 33331-12042 |
CT199 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-28020 |
CT199 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-44001 |
CT198,199,ST195..5F |
1 | ||
| 33332C - SPACER (FOR 2ND GEAR BEARING) | ||||
| 90560-44001 |
CT198,199,ST195..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-28030 |
CT199 ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-36011 |
CT198,199,ST195..5F |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-13012 |
CT199 |
1 | ||
| 33035-13011 |
CT198,199 |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-36014 |
CT198,199,ST195..5F |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-36002 |
CT198,199,ST195..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-13010 |
CT198,199 |
1 | ||
| 33335-13011 |
CT199 |
1 | ||
| 33335-28050 |
CT199 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-45007 |
CT198,199,ST195..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-12060 |
CT198,199 |
1 | ||
| 33336-12061 |
CT199 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-28023 |
CT199 |
1 | ||
| 90364-28013 |
CT198,199,ST195..5F |
1 | ||
| 33343D - BUSH, 2ND GEAR | ||||
| 33343-12020 |
CT198,199,ST195..5F |
1 | ||
| 33343E - BALL (FOR 2ND GEAR BUSH) | ||||
| 90360-05012 |
CT19#,ST190,195..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-28010 |
CT199 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-28020 |
CT199 |
1 | ||
| 33362-28021 |
CT199 |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-34008 |
CT198,199,ST195..5F 厚さ=2.55−2.60,ﾏｰｸ N |
1 | ||
| 90520-34004 |
CT198,199,ST195..5F 厚さ=2.35−2.40,ﾏｰｸ J |
1 | ||
| 90520-34003 |
CT198,199,ST195..5F 厚さ=2.30−2.35,ﾏｰｸ H |
1 | ||
| 90520-34005 |
CT198,199,ST195..5F 厚さ=2.40−2.45,ﾏｰｸ K |
1 | ||
| 90520-34009 |
CT198,199,ST195..5F 厚さ=2.60−2.65,ﾏｰｸ P |
1 | ||
| 90520-34007 |
CT198,199,ST195..5F 厚さ=2.50−2.55,ﾏｰｸ M |
1 | ||
| 90520-34006 |
CT198,199,ST195..5F 厚さ=2.45−2.50,ﾏｰｸ L |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-28010 |
CT199 ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 33364-28011 |
CT199 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-12040 |
CT198,199,ST195..5F |
3 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-28010 |
CT199 ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 90501-08112 |
CT198,199,ST195..5F |
3 | ||
| 33381 - RING, 2ND SYNCHRONIZER OUTER | ||||
| 33381-28010 |
CT199 |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 90501-08131 |
CT198,199,ST195..5F |
3 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-12010 |
CT198,199,ST195..5F OUTER RING SIDE |
1 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-12010 |
CT198,199,ST195..5F OUTER RING SIDE |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-12022 |
CT199 |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-12020 |
CT198,199,ST195..5F |
1 | ||
| 33395-12021 |
CT199 |
1 | ||
| 33396A - RING, SYNCHRONIZER PULL | ||||
| 33396-28010 |
CT199 |
1 | ||
| 33396B - RING, SNAP (FOR SYNCHRONIZER PULL RING) | ||||
| 90520-46035 |
CT19#,ST190,195..5F |
1 | ||
| 33397A - RING, SYNCHRONIZER, INNER NO.5 | ||||
| 33397-28010 |
CT199 |
1 | ||
| 33398A - RING, SYNCHRONIZER, MIDDLE NO.5 | ||||
| 33398-12010 |
CT19#,ST190,195..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-12031 |
CT198,199,ST195..5F |
1 | ||
| 33402-28020 |
CT199 |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-12040 |
CT198,199 |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-12030 |
CT198,199,ST195..5F |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-12031 |
CT199 |
1 | ||
| 33428-12030 |
CT198,199 |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-20080 |
CT198,199,ST195..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-12032 |
CT198,199,ST195..5F |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90105-08150 |
CT198,199,ST195..5F |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
AT191,CT19#,ET196,ST190,195..5F |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-20050 |
CT198,199,ST195..5F |
1 | ||
(9211-9912)CT198,199,ST195
E56F,E57F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| 33038-28010 |
CT199 |
1 | ||
| 33125 - RECEIVER, MANUAL TRANSAXLE CASE | ||||
| 33125-20010 |
CT198,199,ST195..5F |
1 | ||
| 33125A - BOLT(FOR TRANSAXLE CASE RECEIVER) | ||||
| 91611-60616 |
CT198,199,ST195..5F |
3 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-20010 |
CT198,199,ST195..5F |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-12031 |
CT198,199,ST195..5F |
1 | ||
| 33151-28020 |
CT199 |
1 | ||
| 33151G - SCREW(FOR REAR BEARING RETAINER) | ||||
| 90149-80029 |
CT198,199,ST195..5F |
7 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-13011 |
CT199 |
1 | ||
| 33311-13010 |
CT198,199 |
1 | ||
| 33311-13012 |
CT199 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-30023 |
CT198,199,ST195..5F |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-33007 |
CT198,199,ST195..5F |
1 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-30012 |
CT198,199,ST195..5F 厚さ=2.55−2.60,ﾏｰｸ 5 |
1 | ||
| 90520-30009 |
CT198,199,ST195..5F 厚さ=2.40−2.45,ﾏｰｸ 2 |
1 | ||
| 90520-30010 |
CT198,199,ST195..5F 厚さ=2.45−2.50,ﾏｰｸ 3 |
1 | ||
| 90520-30022 |
CT198,199,ST195..5F 厚さ=2.70−2.74,ﾏｰｸ 8 |
1 | ||
| 90520-30021 |
CT198,199,ST195..5F 厚さ=2.65−2.69,ﾏｰｸ 7 |
1 | ||
| 90520-30013 |
CT198,199,ST195..5F 厚さ=2.60−2.65,ﾏｰｸ 6 |
1 | ||
| 90520-30008 |
CT198,199,ST195..5F 厚さ=2.35−2.40,ﾏｰｸ 1 |
1 | ||
| 90520-30011 |
CT198,199,ST195..5F 厚さ=2.50−2.55,ﾏｰｸ 4 |
1 | ||
| 33311Y - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-76003 |
CT198,199,ST195..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33302-12070 |
CT199,ST195..5F..(CZ,TZ,U,UL) |
1 | ||
| 33302-12071 |
CT199 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-28002 |
CT198,199,ST195..5F |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20012 |
CT198,199,ST195..5F |
1 | ||
| 33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90564-59005 |
CT198,199,ST195..5F 厚さ=1.50,ﾏｰｸ 4 |
1 | ||
| 90564-59004 |
CT198,199,ST195..5F 厚さ=1.45,ﾏｰｸ 3 |
1 | ||
| 90564-59008 |
CT198,199,ST195..5F 厚さ=1.65,ﾏｰｸ 7 |
1 | ||
| 90564-59003 |
CT198,199,ST195..5F 厚さ=1.40,ﾏｰｸ 2 |
1 | ||
| 90564-59012 |
CT198,199,ST195..5F 厚さ=1.85,ﾏｰｸ B |
1 | ||
| 90564-59006 |
CT198,199,ST195..5F 厚さ=1.55,ﾏｰｸ 5 |
1 | ||
| 90564-59001 |
CT198,199,ST195..5F 厚さ=1.30,ﾏｰｸ 0 |
1 | ||
| 90564-59009 |
CT198,199,ST195..5F 厚さ=1.70,ﾏｰｸ 8 |
1 | ||
| 90564-59002 |
CT198,199,ST195..5F 厚さ=1.35 ﾏｰｸ 1 |
1 | ||
| 90564-59007 |
CT198,199,ST195..5F 厚さ=1.60,ﾏｰｸ 6 |
1 | ||
| 90564-59017 |
CT198,199,ST195..5F 厚さ=2.10,ﾏｰｸ G |
1 | ||
| 90564-59013 |
CT198,199,ST195..5F 厚さ=1.90,ﾏｰｸ C |
1 | ||
| 90564-59015 |
CT198,199,ST195..5F 厚さ=2.00,ﾏｰｸ E |
1 | ||
| 90564-59019 |
CT198,199,ST195..5F 厚さ=2.20,ﾏｰｸ J |
1 | ||
| 90564-59018 |
CT198,199,ST195..5F 厚さ=2.15,ﾏｰｸ H |
1 | ||
| 90564-59016 |
CT198,199,ST195..5F 厚さ=2.05,ﾏｰｸ F |
1 | ||
| 90564-59011 |
CT198,199,ST195..5F 厚さ=1.80,ﾏｰｸ A |
1 | ||
| 90564-59014 |
CT198,199,ST195..5F 厚さ=1.95,ﾏｰｸ D |
1 | ||
| 90564-59010 |
CT198,199,ST195..5F 厚さ=1.75,ﾏｰｸ 9 |
1 | ||
| 90564-59020 |
CT198,199,ST195..5F 厚さ=2.25,ﾏｰｸ K |
1 | ||
| 90564-59021 |
CT198,199,ST195..5F 厚さ=2.30,ﾏｰｸ L |
1 | ||
| 90564-59023 |
CT198,199,ST195..5F 厚さ=2.40,ﾏｰｸ N |
1 | ||
| 90564-59025 |
CT198,199,ST195..5F 厚さ=2.50,ﾏｰｸ Q |
1 | ||
| 90564-59024 |
CT198,199,ST195..5F 厚さ=2.45,ﾏｰｸ P |
1 | ||
| 90564-59022 |
CT198,199,ST195..5F 厚さ=2.35,ﾏｰｸ M |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-32016 |
CT198,199,ST195..5F |
1 | ||
| 90366-32025 |
CT199 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-28020 |
CT199 |
1 | ||
| 33331-12042 |
CT199 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-28020 |
CT199 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-44001 |
CT198,199,ST195..5F |
1 | ||
| 33332C - SPACER (FOR 2ND GEAR BEARING) | ||||
| 90560-44001 |
CT198,199,ST195..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-28030 |
CT199 ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-36011 |
CT198,199,ST195..5F |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-13012 |
CT199 |
1 | ||
| 33035-13011 |
CT198,199 |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-36014 |
CT198,199,ST195..5F |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-36002 |
CT198,199,ST195..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-13010 |
CT198,199 |
1 | ||
| 33335-13011 |
CT199 |
1 | ||
| 33335-28050 |
CT199 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-45007 |
CT198,199,ST195..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-12060 |
CT198,199 |
1 | ||
| 33336-12061 |
CT199 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-28023 |
CT199 |
1 | ||
| 90364-28013 |
CT198,199,ST195..5F |
1 | ||
| 33343D - BUSH, 2ND GEAR | ||||
| 33343-12020 |
CT198,199,ST195..5F |
1 | ||
| 33343E - BALL (FOR 2ND GEAR BUSH) | ||||
| 90360-05012 |
CT19#,ST190,195..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-28010 |
CT199 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-28020 |
CT199 |
1 | ||
| 33362-28021 |
CT199 |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-34008 |
CT198,199,ST195..5F 厚さ=2.55−2.60,ﾏｰｸ N |
1 | ||
| 90520-34004 |
CT198,199,ST195..5F 厚さ=2.35−2.40,ﾏｰｸ J |
1 | ||
| 90520-34003 |
CT198,199,ST195..5F 厚さ=2.30−2.35,ﾏｰｸ H |
1 | ||
| 90520-34005 |
CT198,199,ST195..5F 厚さ=2.40−2.45,ﾏｰｸ K |
1 | ||
| 90520-34009 |
CT198,199,ST195..5F 厚さ=2.60−2.65,ﾏｰｸ P |
1 | ||
| 90520-34007 |
CT198,199,ST195..5F 厚さ=2.50−2.55,ﾏｰｸ M |
1 | ||
| 90520-34006 |
CT198,199,ST195..5F 厚さ=2.45−2.50,ﾏｰｸ L |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-28010 |
CT199 ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 33364-28011 |
CT199 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-12040 |
CT198,199,ST195..5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-12040 |
CT198,199,ST195..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 90501-08112 |
CT198,199,ST195..5F |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 90501-08131 |
CT198,199,ST195..5F |
3 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-12010 |
CT198,199,ST195..5F OUTER RING SIDE |
1 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-12010 |
CT198,199,ST195..5F OUTER RING SIDE |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-12022 |
CT199 |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-12020 |
CT198,199,ST195..5F |
1 | ||
| 33395-12021 |
CT199 |
1 | ||
| 33396A - RING, SYNCHRONIZER PULL | ||||
| 33396-28010 |
CT199 |
1 | ||
| 33396B - RING, SNAP (FOR SYNCHRONIZER PULL RING) | ||||
| 90520-46035 |
CT19#,ST190,195..5F |
1 | ||
| 33397A - RING, SYNCHRONIZER, INNER NO.5 | ||||
| 33397-28010 |
CT199 |
1 | ||
| 33398A - RING, SYNCHRONIZER, MIDDLE NO.5 | ||||
| 33398-12010 |
CT19#,ST190,195..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-12031 |
CT198,199,ST195..5F |
1 | ||
| 33402-28020 |
CT199 |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-12040 |
CT198,199 |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-12030 |
CT198,199,ST195..5F |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-12031 |
CT199 |
1 | ||
| 33428-12030 |
CT198,199 |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-20080 |
CT198,199,ST195..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-12032 |
CT198,199,ST195..5F |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90105-08150 |
CT198,199,ST195..5F |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
AT191,CT19#,ET196,ST190,195..5F |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-20050 |
CT198,199,ST195..5F |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
